Pocket4 Gold Tester/xrf Gold Tester

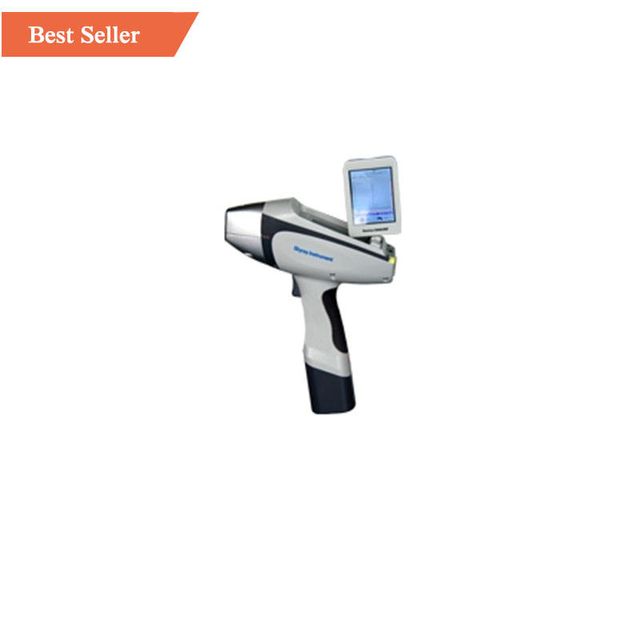

Pocket4 Gold Tester

Instrument introduction

On the basis of the mature technology and the latest technology development of the desktop X-ray fluorescence analyzer, on the basis of the performance of the existing international commercial hand-held X-ray fluorescence analyzer, a new generation of elements is added on the basis of the first, second and third grades , we have developed the fourth generation of smart portable handheld analyzer-Genius XRF series, which can meet the market demand and have independent intellectual property rights.

The new generation of Genius XRF series is designed according to the application of field X-ray analysis. Ultra-small, ultra-light, ultra-beautiful, ultra-safe, ultra-convenient, ultra-long standby, ultra-waterproof, ultra-precise, ultra-fast. Digital multi-channel technology enables the instrument to have better detection limit, better stability, and wider application fields.

The products include Genius 3000XRF RoHS analyzer, Genius 5000XRF alloy analyzer, Genius 7000XRF mineral analyzer, and Genius 9000XRF heavy metal analyzer in soil, which can be used for in-situ detection of materials and on-site online analysis of various elements in the production process. From manufacturing control to finished product inspection, for rapid identification of alloy numbers and reliable identification, for on-site heavy metal detection in soil, and for multi-element on-site analysis of various geological and ore samples.

This series of products has undergone strict testing and inspection, and all indicators meet the relevant technical requirements and reach the international advanced level. The products have been sold in batches at home and abroad, and are well received by customers, breaking the monopoly of foreign manufacturers.
Performance advantage
Perfect performance, such as the introduction of three core technologies such as low-power window integrated miniature X-ray tube, large-size beryllium window electric-cooled SDD detector (the best detector in the world), and miniature digital signal multi-channel processor, which greatly reduces the test time. and test bias, improving detection accuracy and making it similar to desktop performance.

Small body, easy to carry and operate Small body, easy to carry. Suitable for field work. On-site and in-situ analysis can be performed anytime, anywhere.

Nondestructive testing does not damage the sample

The rapid detection instrument can not only perform hand-held rapid detection within 1-2 seconds, but also perform long-term precise detection on a desktop computer, with an accuracy similar to laboratory detection after 10 seconds.

Compared with the third-generation handheld fluorescent X-ray analyzer, the newly added light element detection function has added a gas filling system, which can be filled with helium gas under normal pressure, so that the elements in magnesium can be detected, which greatly expands the detection range of elements and meets the requirements of Customer requirements for light element detection.

Direct detection detects the analyte directly without the need for a sample. It can analyze a variety of samples including electronics, alloy samples, geology and mining, soil, rocks, residues, small solid particles, liquid sediments, and more.

High-definition camera, more accurate detection The built-in high-definition camera can observe the detection position at any time, which is very important for mineral sample detection.

Easy to calibrate the deviation, install multiple test modes, add unlimited modes freely, and cooperate with the automatic test mode matching function to achieve one-click easy testing. Built-in intensive calibration method to correct for deviations caused by uneven density of different geometries and structures.

Professional software, simple to operate RoHS element analyzer, alloy analyzer, mineral analyzer, heavy metal analyzer in soil are all installed with professional software. The new software interface and core, FP and EC are combined, and the application field is wider.

Collimating filter, the efficiency is increased by 3 times. On the basis of the combination of collimating filters, the number of groups is increased from 4 to 12, which is increased by 3 times.

Faster data transmission Embedded Window CE system, high-definition touch screen (resolution 640*480), digital multi-channel technology, SPI data transmission, effectively improve data transmission and counting capabilities, and master test data in various environments.

Radiation protection, health care triple safety protection function, automatic induction, X-ray tube automatically shuts down within 2 seconds, no sample detection; The radiation level during work is far lower than the international safety standard, and there is no radiation leakage; A test safety cover is attached.

Powerful, easy-to-charge lithium battery, with a maximum capacity of 7800mAH, can work continuously for 8 hours, and the battery life is twice that of the previous three generations. And equipped with wide voltage AC charger or car charger, to ensure the test in any place or any time.

Warning indication to prevent misoperation Equipped with a warning indication system, the green light flashes when the power is turned on, and the yellow light flashes during the test to prevent misoperation.

Multiple protection, durable The instrument is waterproof and dustproof, and can work continuously in high temperature and high humidity environment. The protective box is made of high-strength military materials and has good moisture-proof, shock-proof and compression-resistant functions.

Performance

1. Model: Fourth generation EDX analyzer - Genius XRF series. 2. Analysis method: energy dispersive X-ray fluorescence analysis. 3. Element measurement range: Mg to U. 4. Simultaneous detection of elements: Detect dozens of elements at the same time. 5. Processor and memory: CUP: 667MHz, memory: 256M, maximum extended storage: 32G, standard configuration: 2G, can store a large amount of data. 6. Content range: ppm~99.99%. 7. Test time: 3-30 seconds. 8. GPS, WIFI: Built-in system. 9. Battery time: Lithium battery, rechargeable, with a maximum capacity of 7800mAH, can work continuously for 8 hours; Equipped with a wide voltage (110V-220V) universal adapter, it can work under AC power. 10. Test objects: solid, liquid, powder. 11. Detector: 25mm2 0.3mil, SDD detector. 12. Detector resolution: the lowest resolution can reach 139eV. 13. Excitation source: 40KV/100uA-Ag anode window micro X-ray tube and high voltage source. 14. Collimator and filter: 4.0 or 2.0 diameter collimator, 6 kinds of filter sets are automatically switched. 12 groups, the most complex mode in the world, can meet various sample tests. 15. Video system: HD camera. 16. Screen: TFT-LCD touch screen, resolution 640*480. 17. Detection limit: The minimum detection limit is ppm level. 18. Test window: 12mm. 20.Safety: Independent password management mode. 19. Inflating system: the atmospheric pressure system is inflated with helium. 20. Data transmission: digital multi-channel technology, SPI data transmission, fast analysis, high count, waterproof micro USB, can be connected to desktop computer. 21. Humidity: ≤90%. 22. Temperature: -20°C~+50°C. 23. Dimensions: 234×306×82mm (length×height×width). 24. Weight: 1.9Kg (with battery), 1.6Kg (without battery)
