Best Selling HDPE Geocell 50-300mm High Erosion Control Geocell
- $0.69 / 15 - 879999 square meters
$0.57 / 880000 - 1899999 square meters
$0.45 / 1900000 - 3799999 square meters
$0.35 / >=3800000 square meters - 15 square meters
- Taian Lin Yuan Engineering Materials Co., Ltd.
- Shandong, China
- Mr Tony Chen
PRODUCT DETAIL
After-sales service: | Online technical support, free spare parts, others | Origin: | Shandong China |
Solder joint peel strength: | 1000N 1420N | application: | Slope protection road construction, load support/slope stabilization/retaining wall |
color: | black, yellow, green | Warranty: | over 5 years |
Cell Depth: | 50-75-100-150-200mm | raw material: | High-density polyethylene |
Packaging Details: | Standard export packaging or according to customer requirements. | brand: | Lin Yuan |
sample: | Support free samples | Project solution ability: | Others, online technical support |
port: | Qingdao, Tianjin, Shanghai | Supply capacity: | 10000 square meters per week |
product name: | HDPE geocell | Package preview: | |
MOQ: | 100 square meters | Weld Spacing: | 330-356-400-445-500-660-712mm |
model: | TGLD 50-445 | thickness: | Grain: 1.5mm Smooth: 1.1mm |
type: | Geocell | design style: | industrial |
payment terms: | L/C, T/T |
Project display
project:slope protection
Specification:100-445
Country: Chile
date:2021.03
project:road construction
Specifications: 100-330
nation:Vietnam
date:2020.05
date:2020.05
project:retaining wall
Specification:200-445
nation:ecuador
date:2020.11
date:2020.11

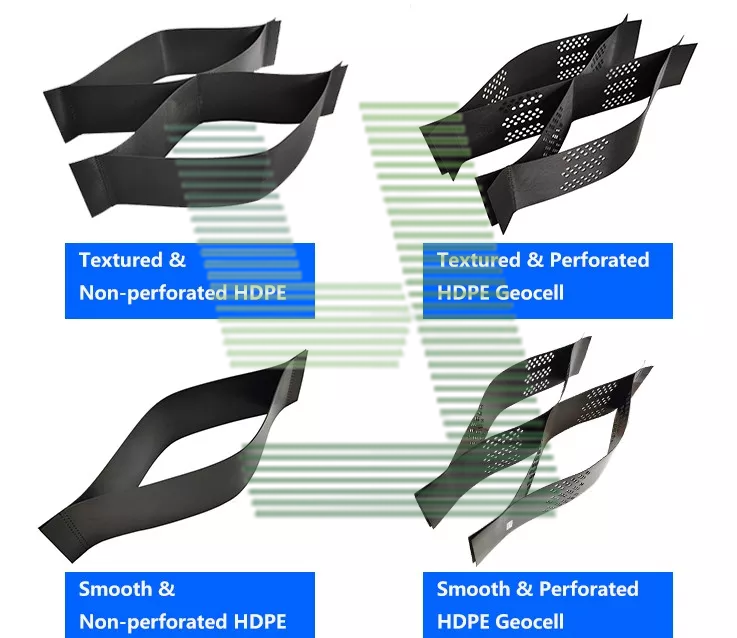

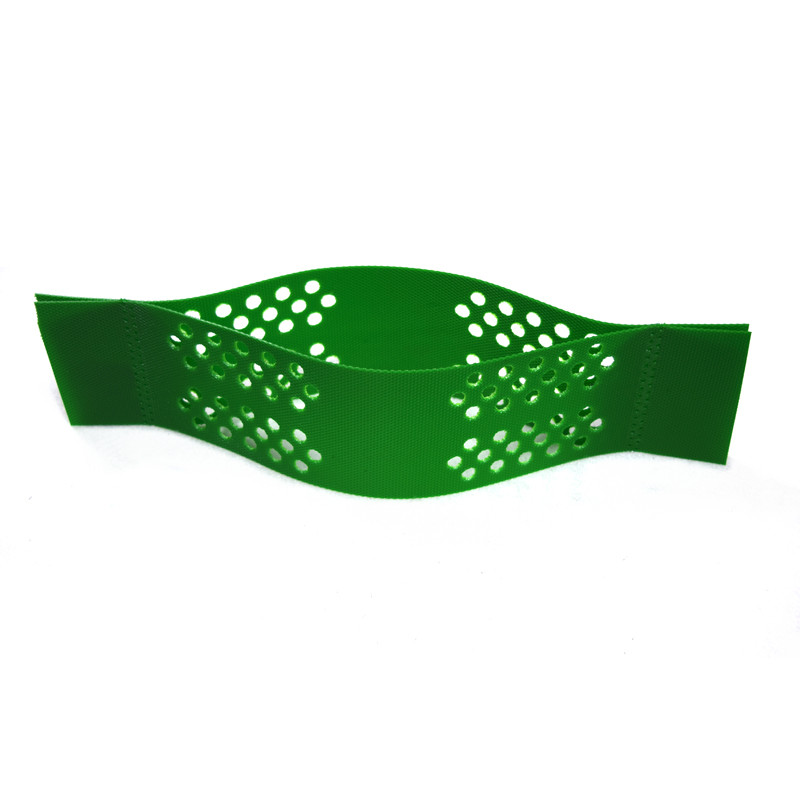

surface and color
Product Description

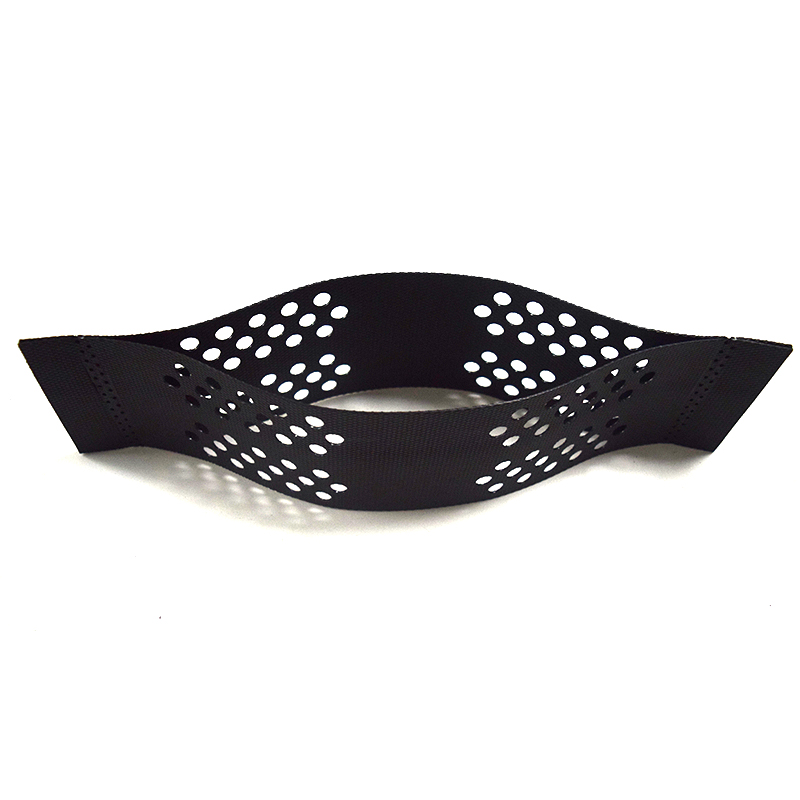

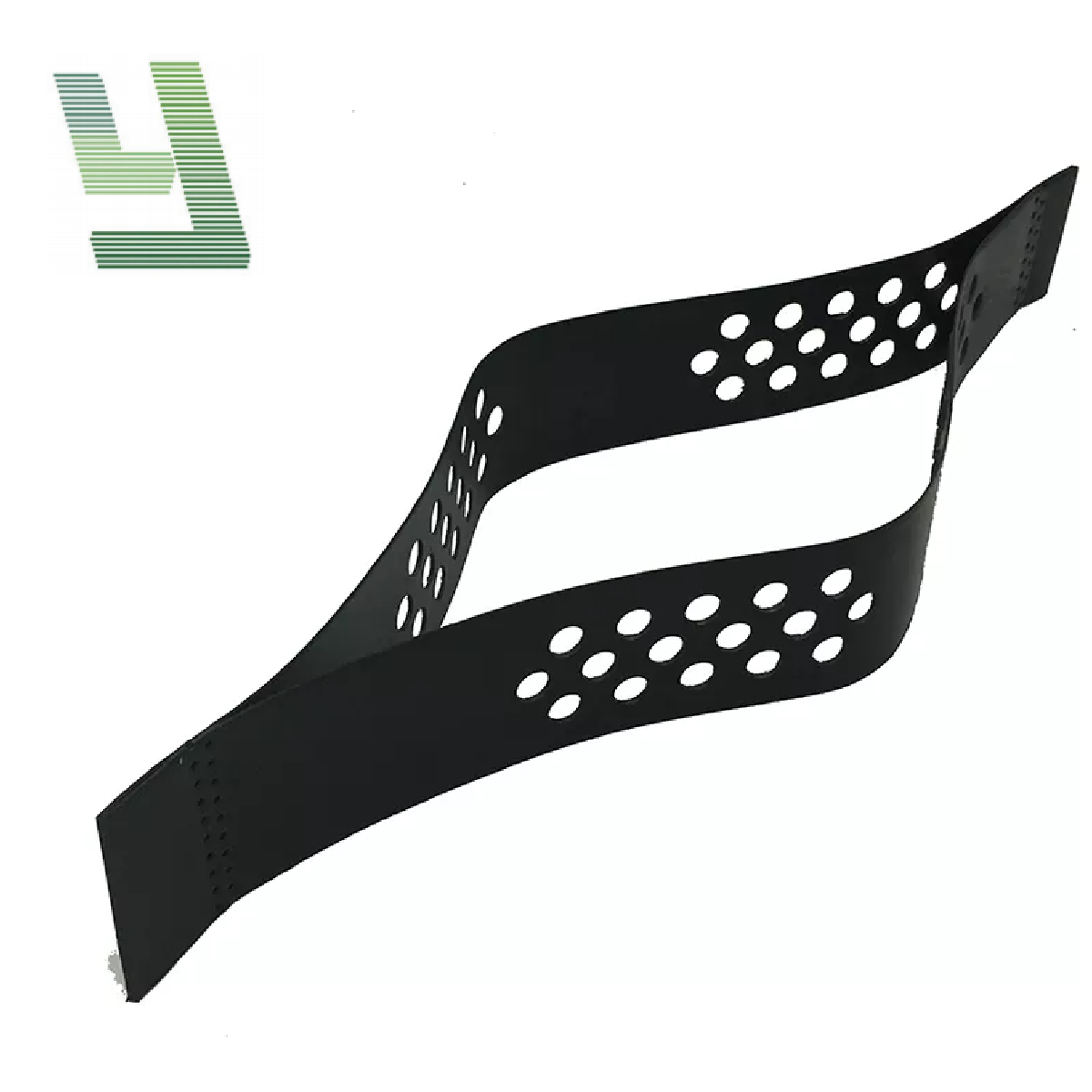

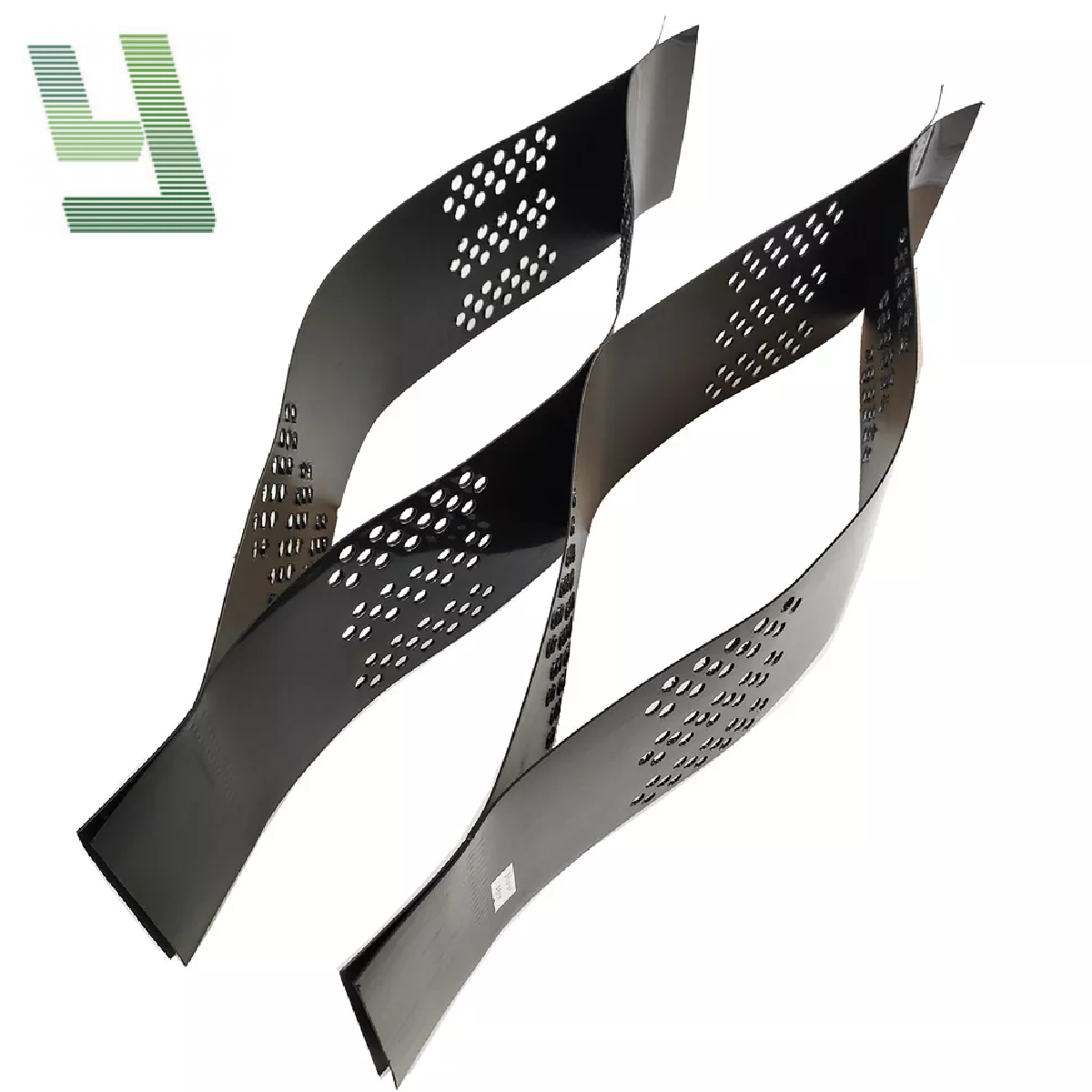

Linyuan GeocellIt is a flexible three-dimensional honeycomb structure made of high-density polyethylene (High-density polyethylene) strips, which are ultrasonically bonded together to form an extremely strong structure. It can be filled with a variety of materials: aggregate, sand, soil, concrete, etc.
Linyuan GeocellFor foundation stabilization, erosion control of slopes and channels, and construction of retaining walls.
Linyuan GeocellFor foundation stabilization, erosion control of slopes and channels, and construction of retaining walls.

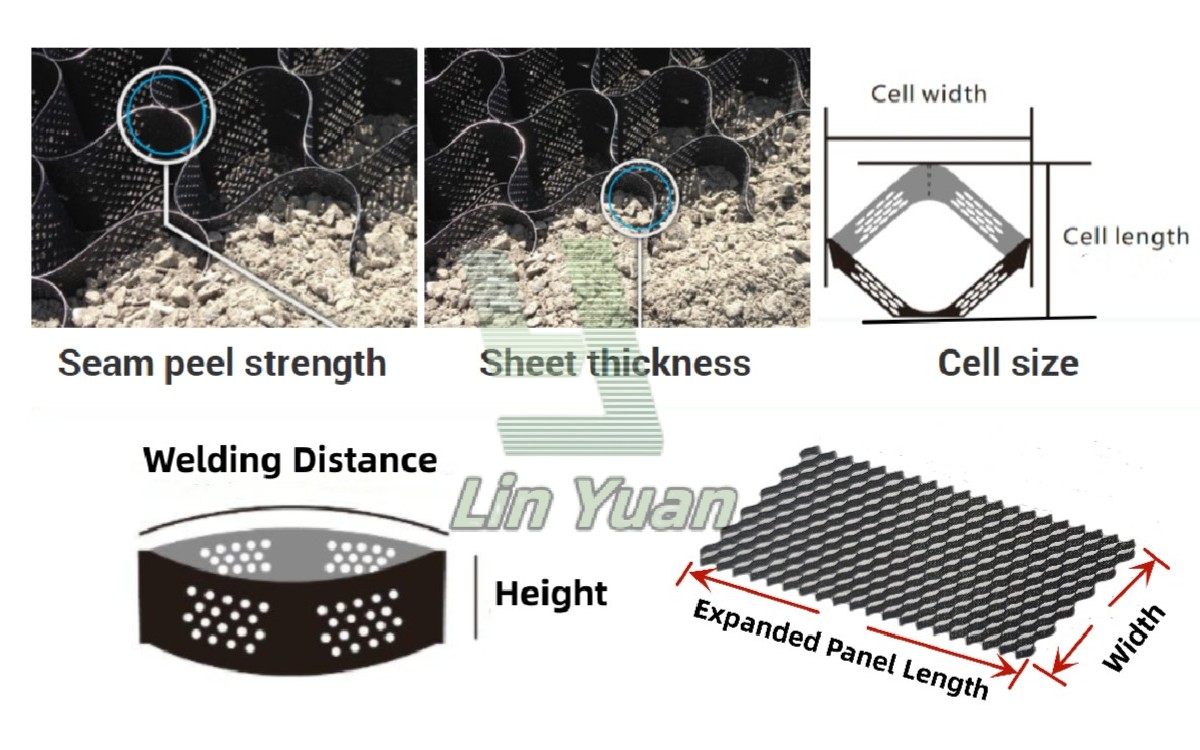

product name | HDPE geocell |
cell depth | 50, 75, 100, 125, 150, 200, 300 mm |
Weld spacing | 300, 330, 356, 400, 445, 600, 660, 712 mm |
thickness (texture) | 1.5 - 1.6mm |
thickness (smooth) | 1.1 - 1.2mm |
color | black, sand, green, others |
standard | International Organization for Standardization |
application
load support

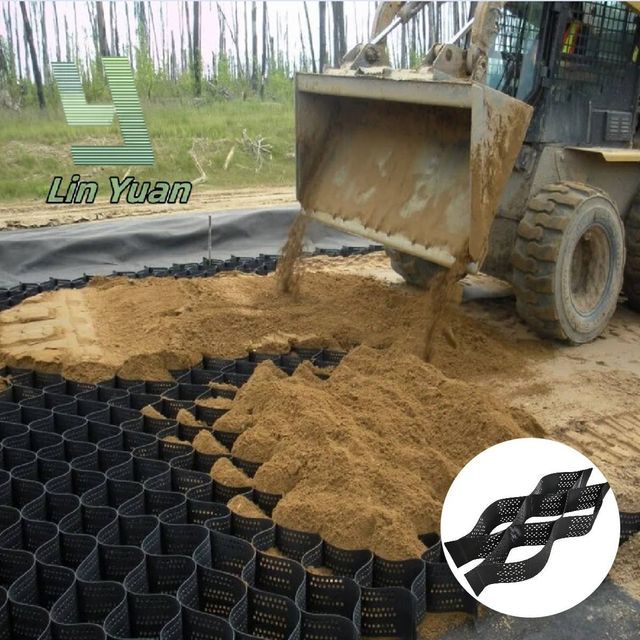

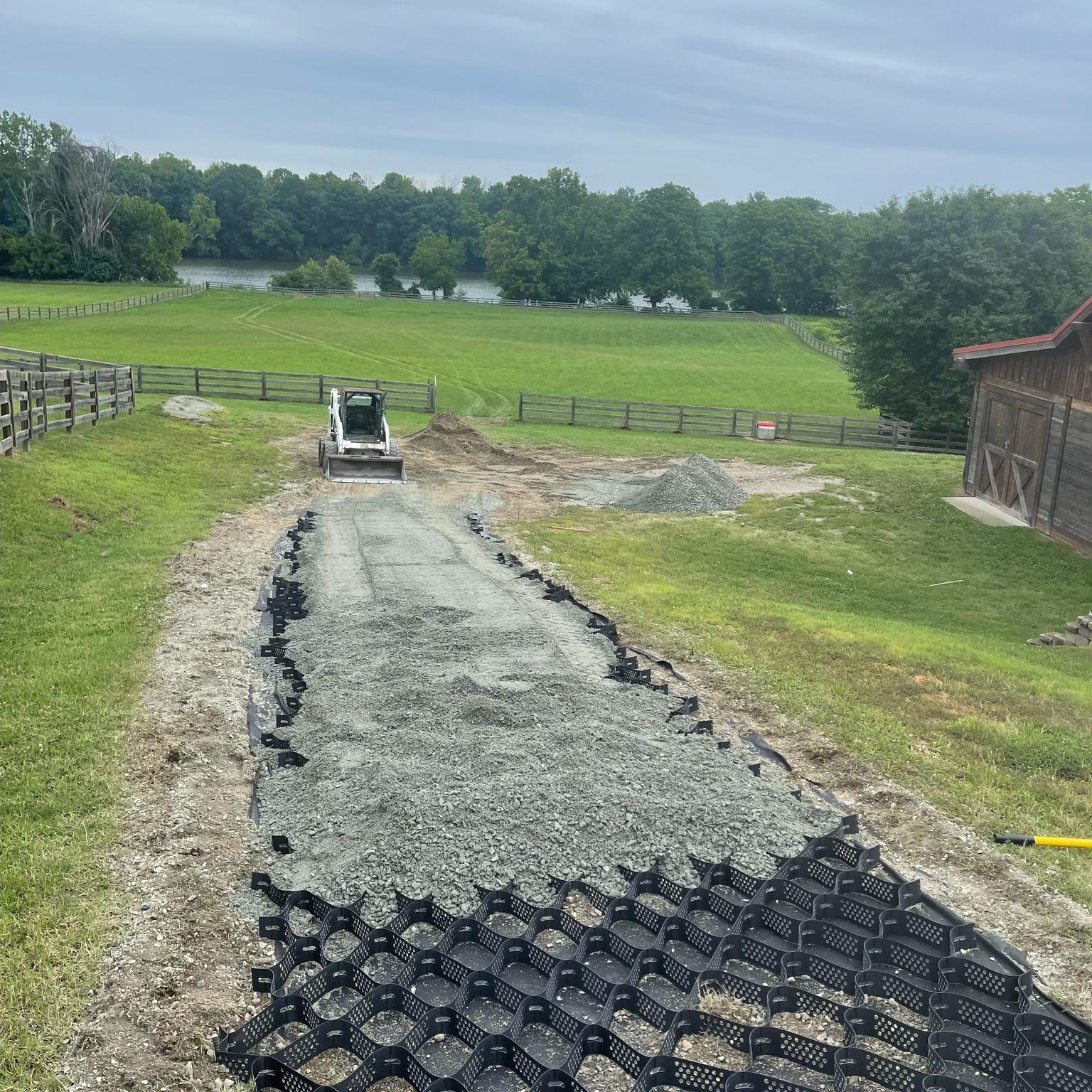

Linyuan GeocellProvides a convenient construction technique for access roads on soft ground without being adversely affected by wet weather conditions. It can also be used to reinforce paved areas.

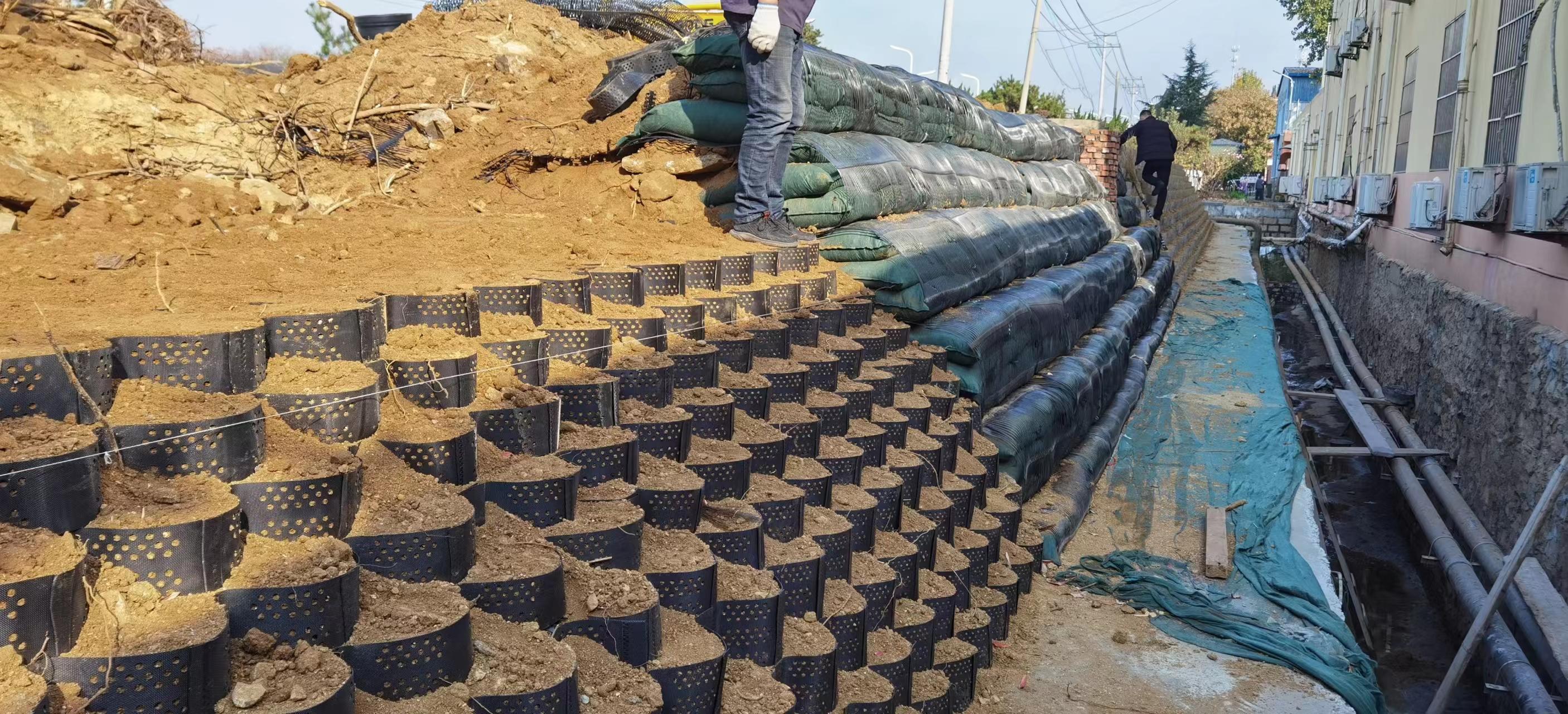

retaining wall
Linyuan GeocellCan be stacked to form a 90-degree wall, or they can be stepped at each level, creating bare cells for vegetation. Lin Yuan Geocell is the perfect green wall solution.

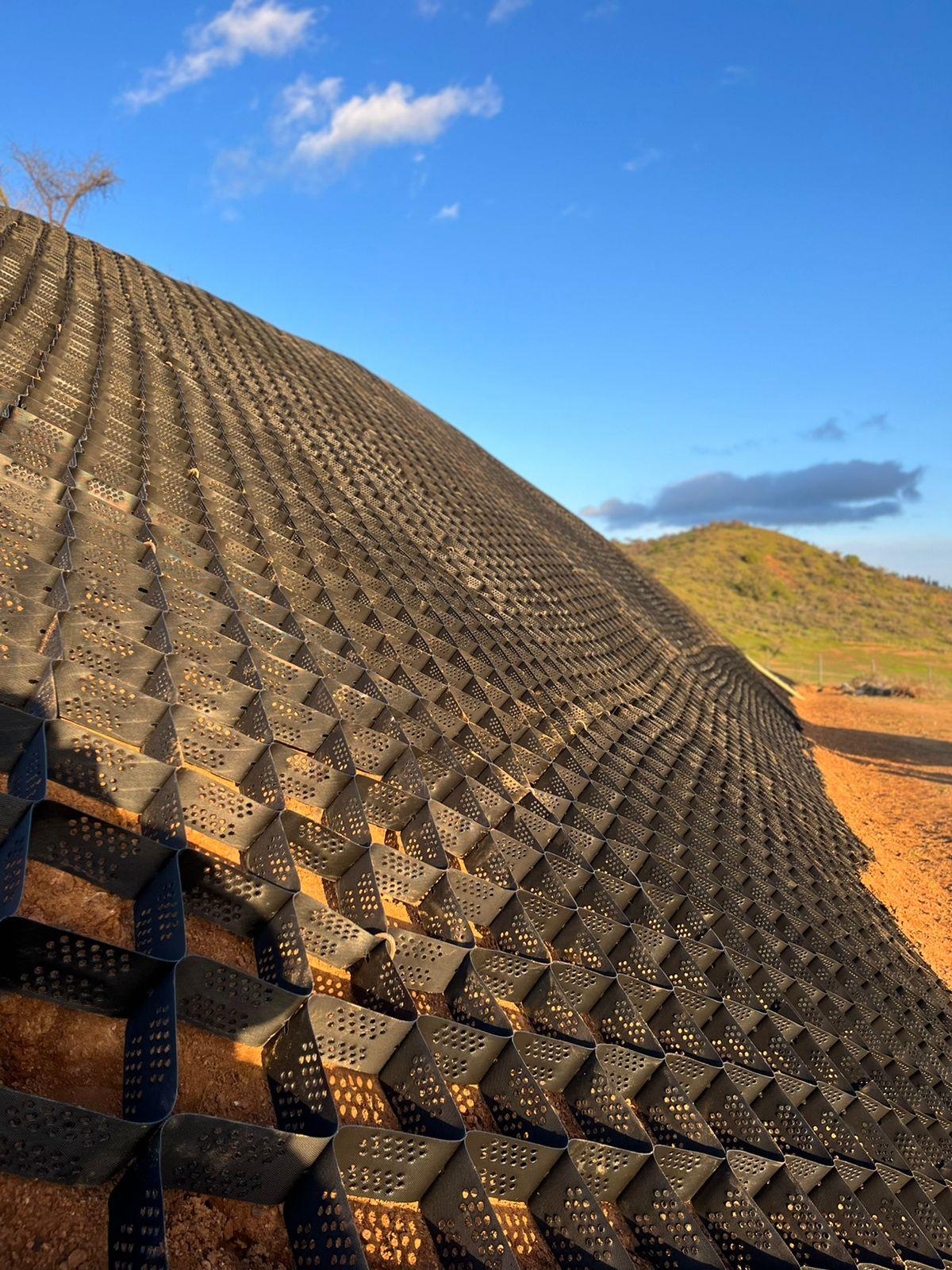

Slope reinforcement
Linyuan GeocellCreates a stable layer that protects slopes from erosion, contours to the embankment of the slope, and reduces preparation time. This system reduces water loss when filled with vegetated soil or rocks.
dam project
Linyuan GeocellCan be installed on dam slopes up to 50-60 degrees and on channels with flow velocities greater than 7.6 m/s, depending on fill material.

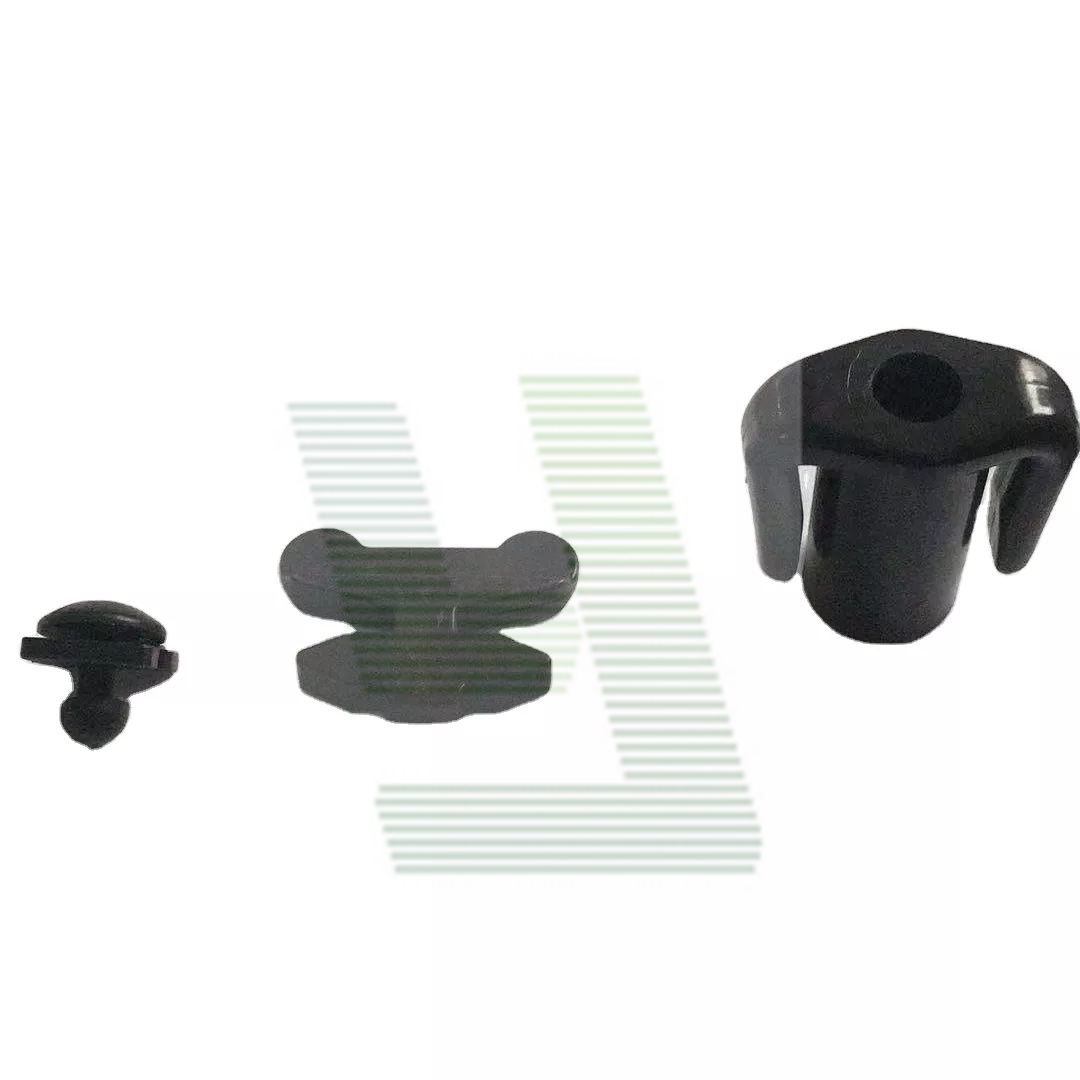

Accessories

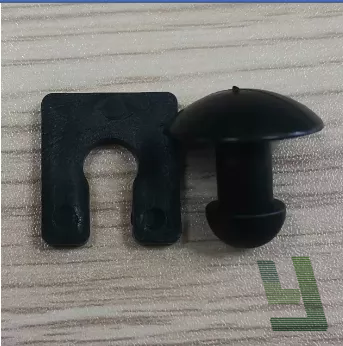

key clip

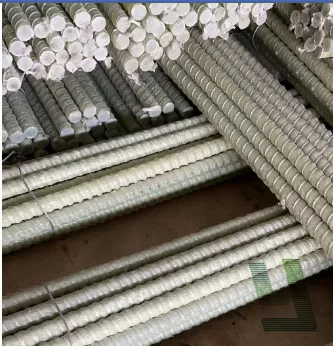

Fiberglass Anchor

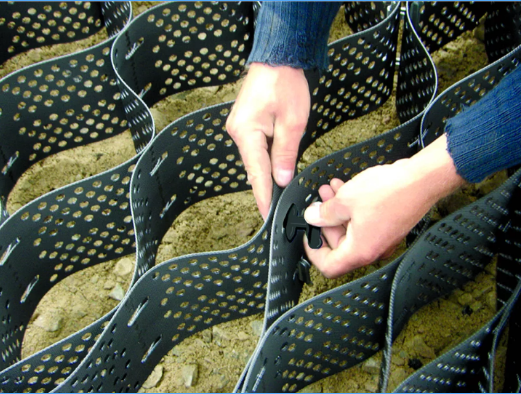

plastic connector

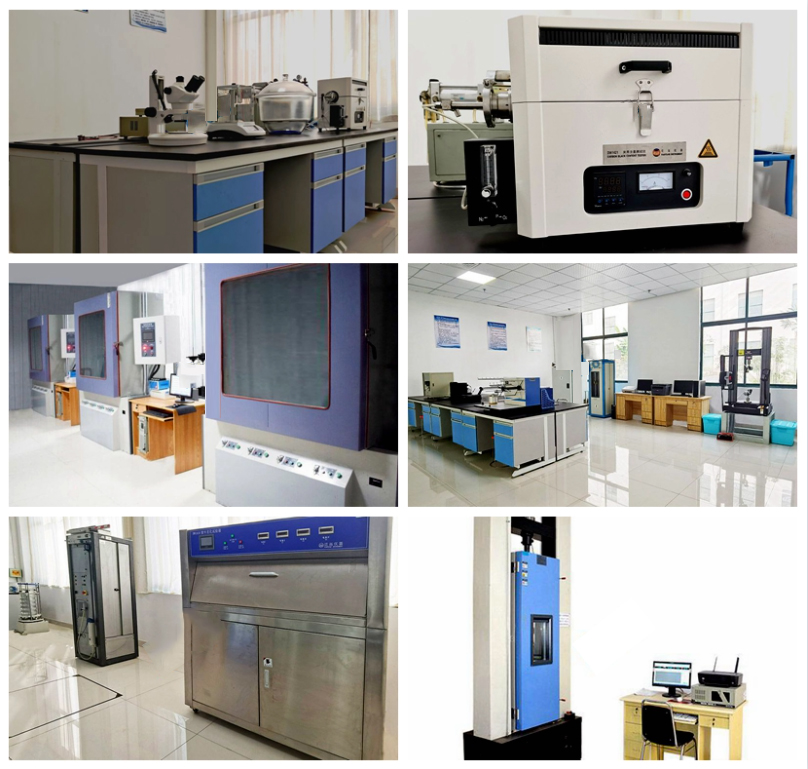

quality test
