BiGa TOP20-3 Lather Digital Readout

PRODUCT DETAIL
Plug:7pin ot 9pin;Supply Ability:500 Sets per Week we have two produce line to make it;
Brand Name:BiGa;Delivery time:within a week;
service:OEM;Place of Origin:Guangdong, China;
Delivery type:by express ,air,ship;Product name:BiGa TOP20-3 Lather Digital Readout;
Model Number:TOP20-3/D;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Packaging Detail:double cartons with protecting cystosepiment inside;number of axis:2, 3 or 4;
voltage range:110V-220V;Delivery Detail:delivery within two days after receive the payment;
Resolution:0.001mm, 0.005mm,0.01mm;Port:Shenzhen;
product item:Digital Readout;MOQ:1 set;

Welcome BiGa grating Machinery company !!!

Your every requirement will treated seriously!



This is  Digital Readout .



Our product   Digital Readout  widely applied to milling machine,grinding machine,

lathe,EDM and so on.According to customer’need,the company can supply products such

as grating of special types and specifications,as well as magnescale,both assorted with other

apparatus and special mechanical equipments.



1.The technical parameter of  Digital Readout



Temperature rangeService:0~40°C/Storage:-20~70°C
Power sourceAc110~240V50~60hZ30VA 0.5A
Number of axis2/3/4
Display function8LED
Quantizing error±1
Readout box input signalTTL square wave
Input frequency>100KHZ
Resolution10um, 5um, 1um, 0.5um
Operating keyboardlight touch buttons
Linear scale Grating space

0.04mm, 0.02mm, power supply is +5V.

the difference between two and four TTL

output signal is 90°.

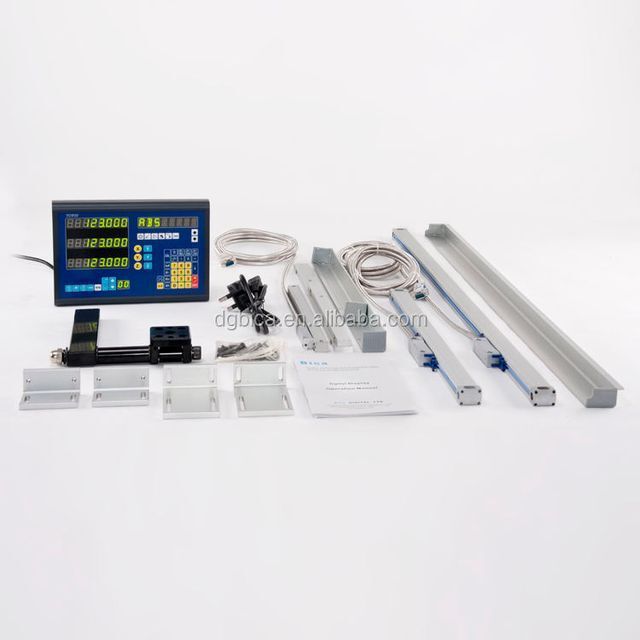

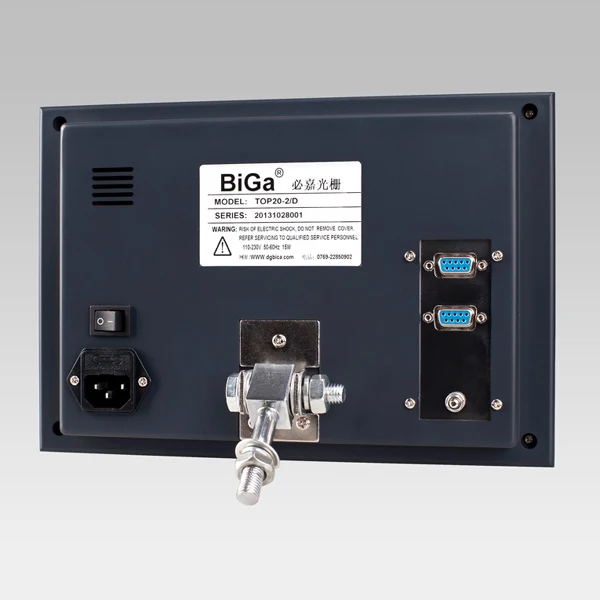

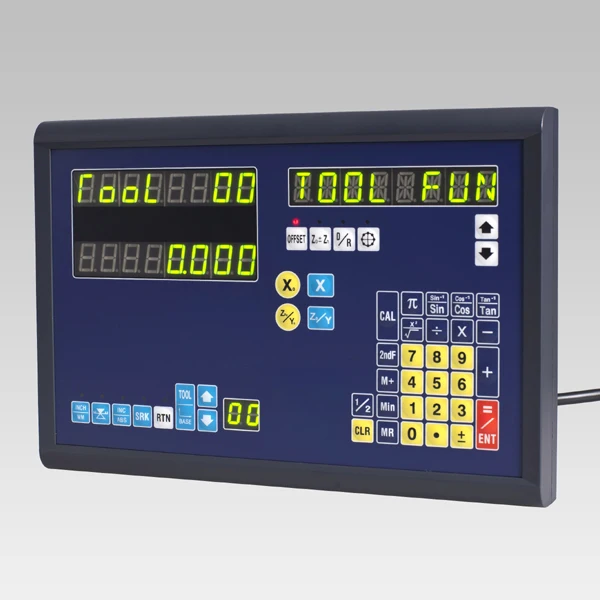

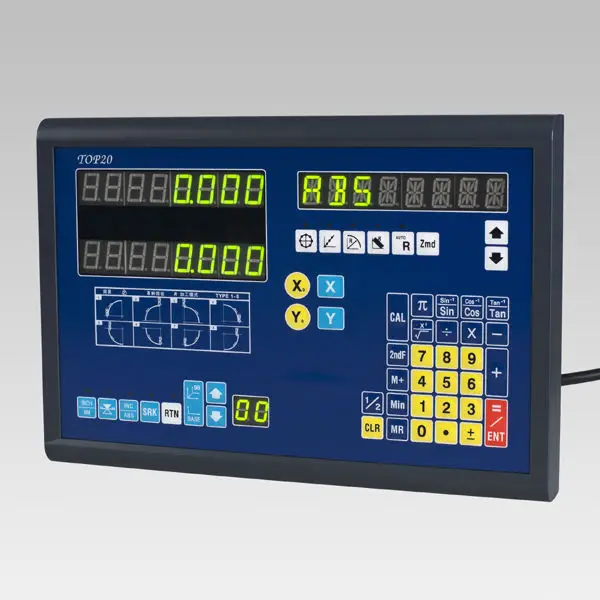

2   Digital Readout Product Pictures

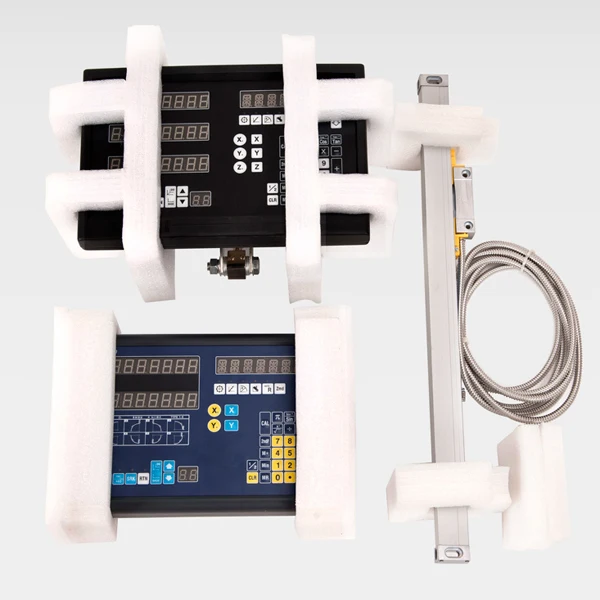

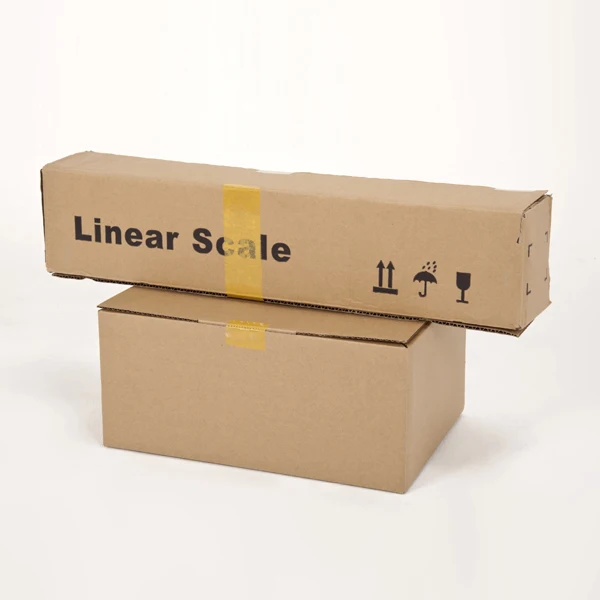

Packaging & Shipping















Our Services





Thanks for your time .I wish you enjoy your good day!



Hot-line: 0086-13902604539 Miss Shelia is at your service in 24 hours
