M120T Modbus RTU TCP Ethernet Remote IO SCADA System Modem (RS485+4DI+4AI+2AO+4DO+Relay Output)

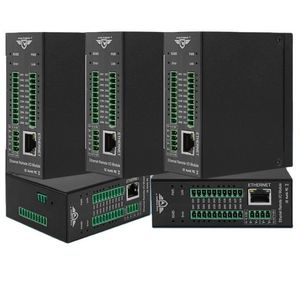

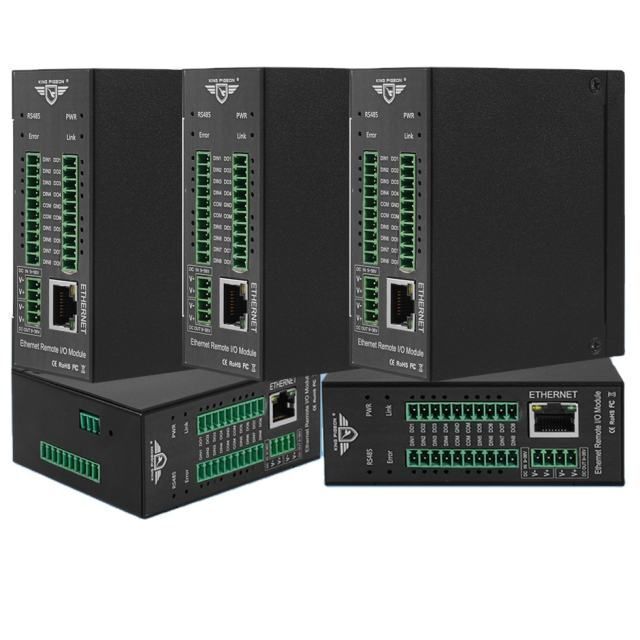

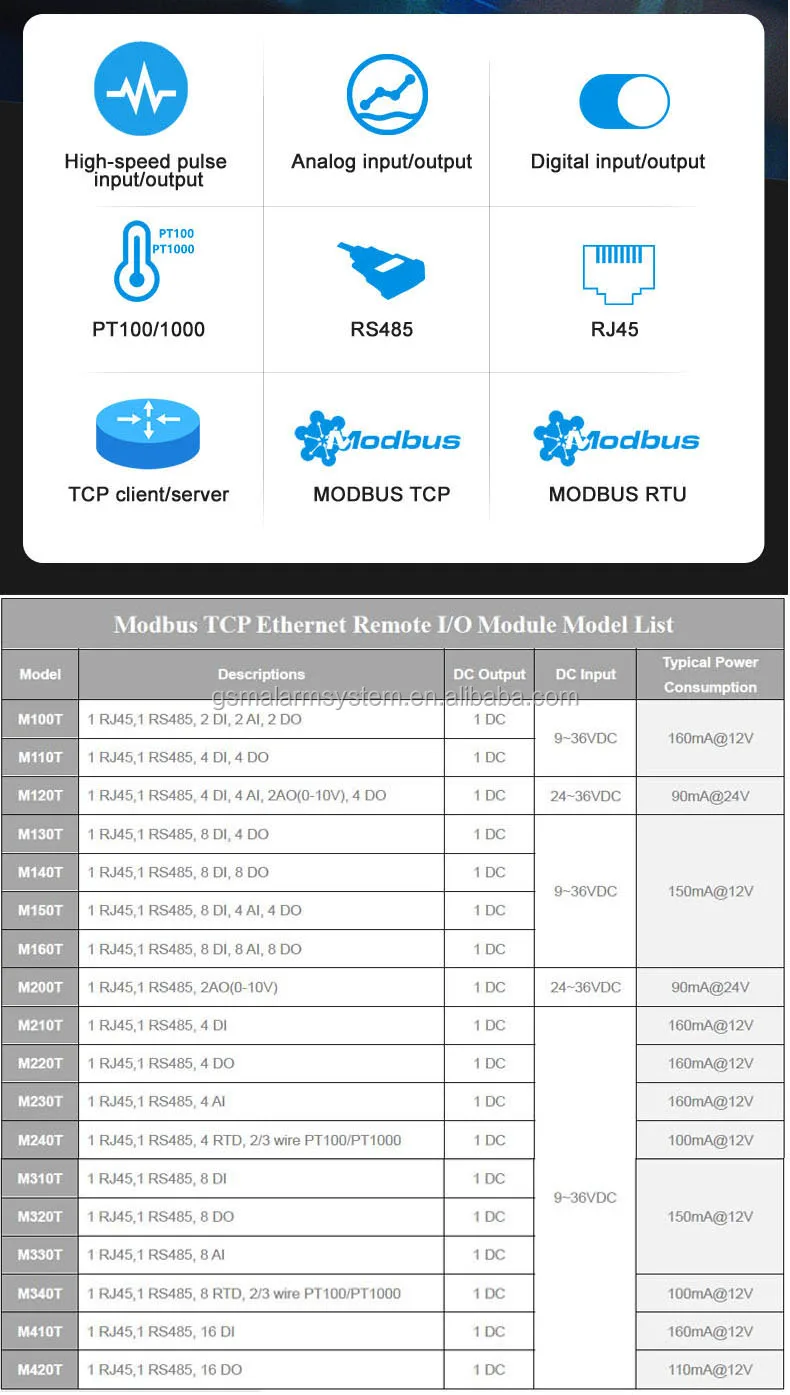

Name:Modbus TCP Ethernet Remote IO Module (4DI+4DO+RJ45+RS485)

Introduction:

The M120T Ethernet Remote I/O module provides 4 optical-isolated digital inputs, supports 1~300KHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 4 digital outputs, supports 1~300Khz high speed pulse output or relay outputs, 2 channel 12bits analog outputs, supports 0~10VDC signal output.

The M120T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems.

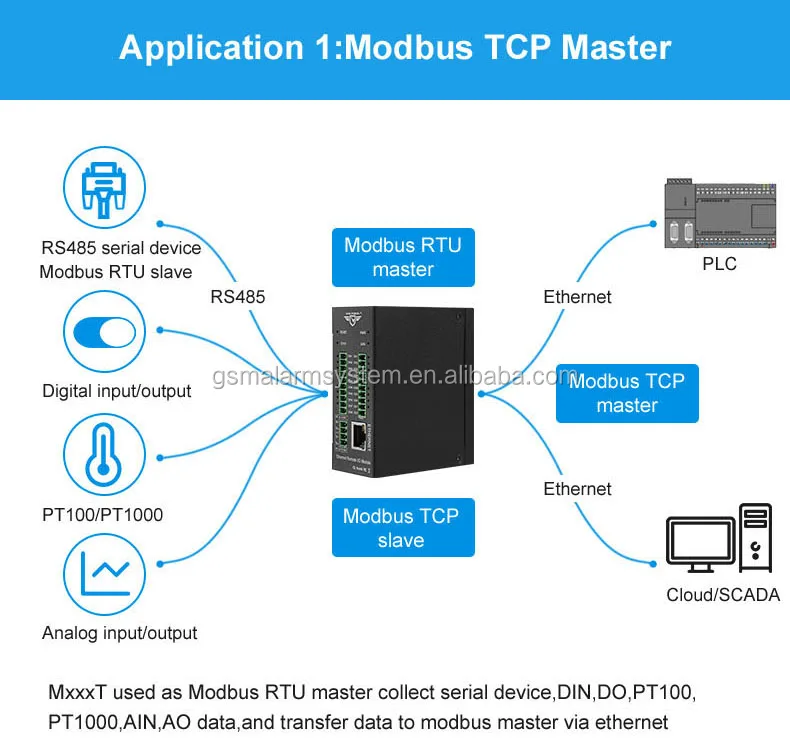

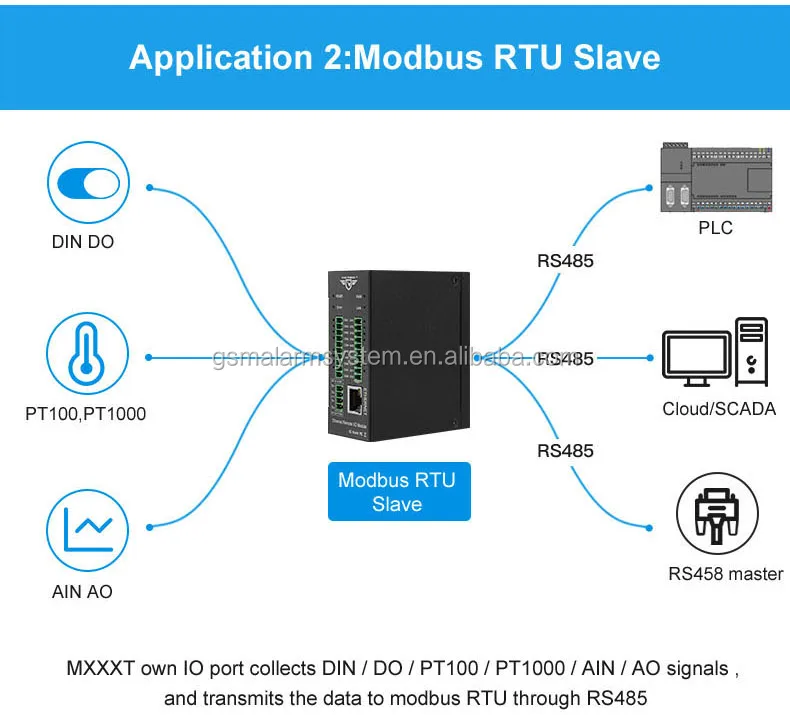

he M120T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

The M120T Ethernet Remote I/O module provides 4 optical-isolated digital inputs, supports 1~300KHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 4 digital outputs, supports 1~300Khz high speed pulse output or relay outputs, 2 channel 12bits analog outputs, supports 0~10VDC signal output. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.

The M120T Ethernet Remote I/O module can work at wide working voltage range, the range is 12 ~ 36VDC with anti-reverse protection design. Also, it provides 1channel 12~36VDC power output for external device to save wiring cost.

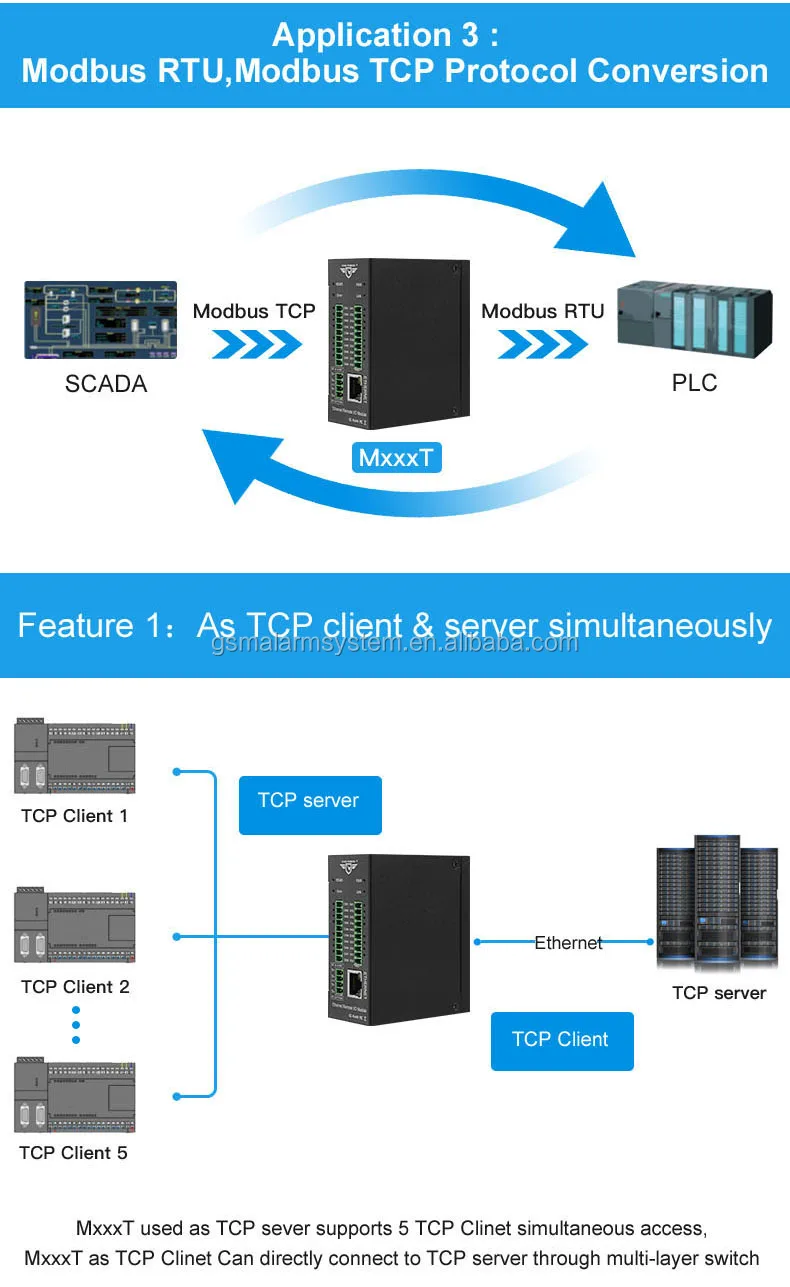

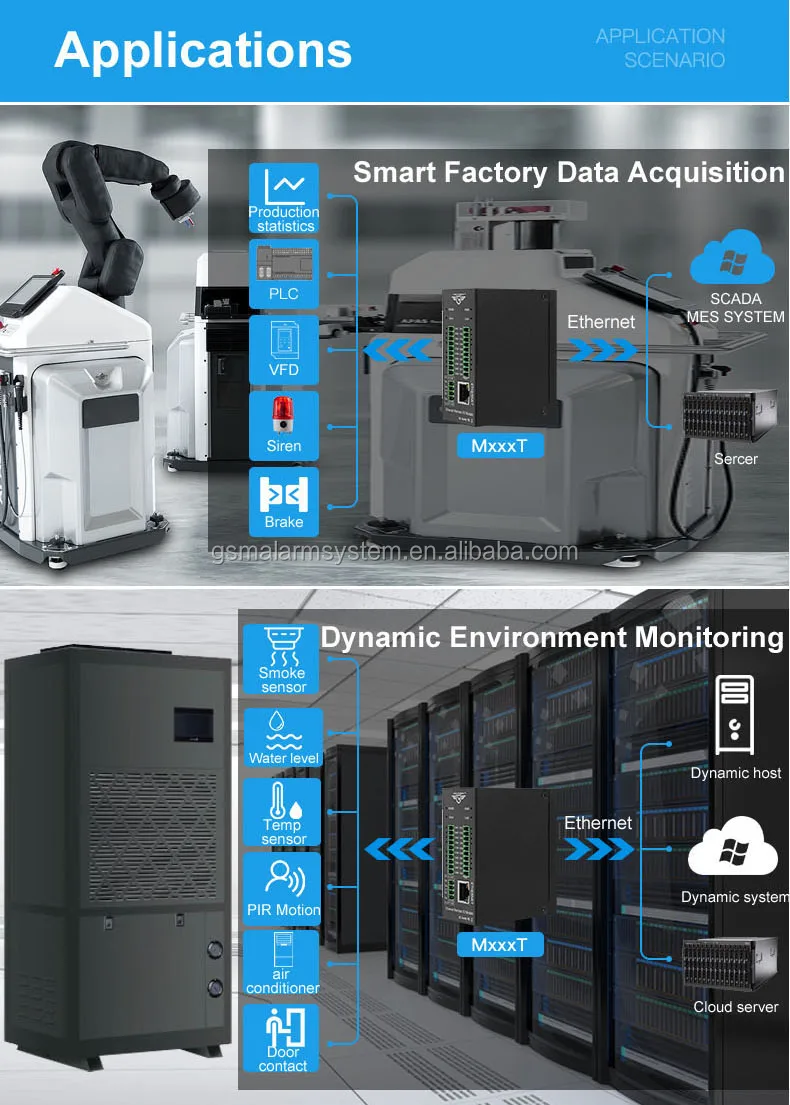

KingPigeon Mxxt series enthernet remote IO module support modbustcp protocol ,Wellintech Scada software KingView can use modbustcp protocol to communicate with these modules.

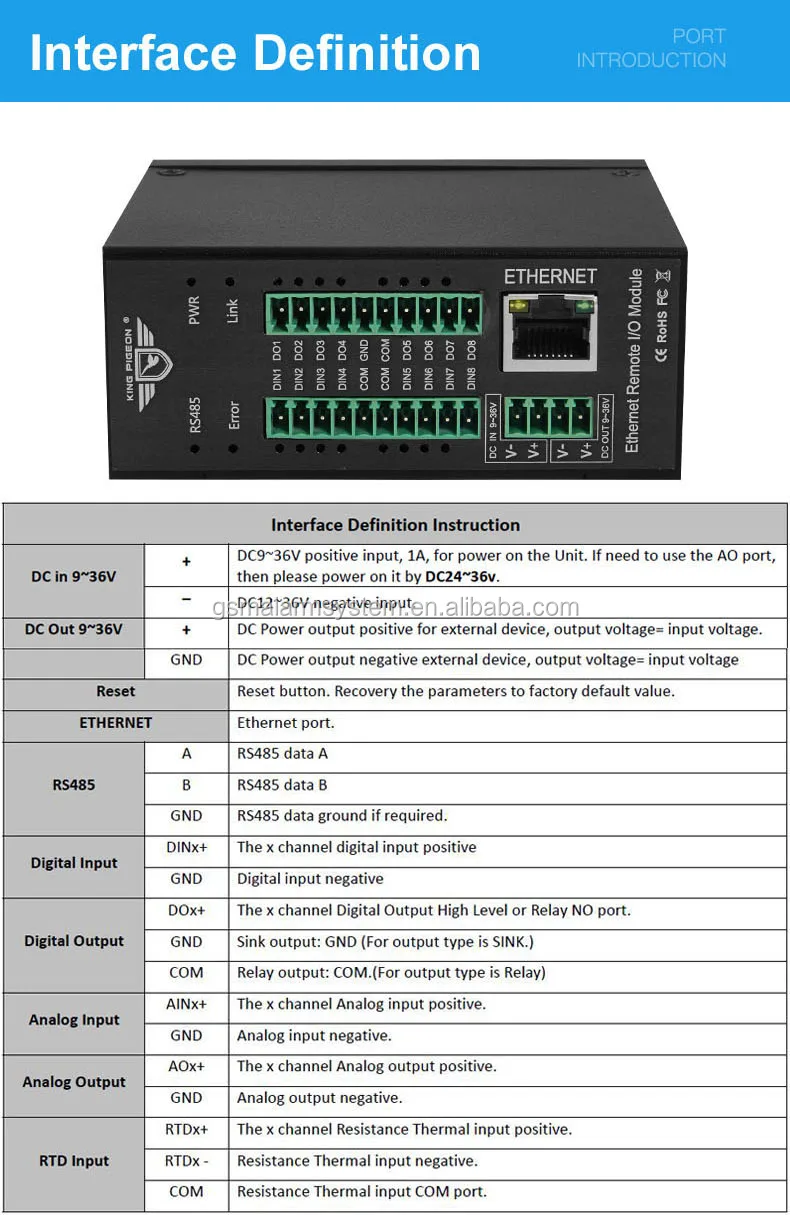

Features:

1.   Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2.  Wide range power supply 12 ~ 36VDC with over voltage and phase-reversal protection;

3..  Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;

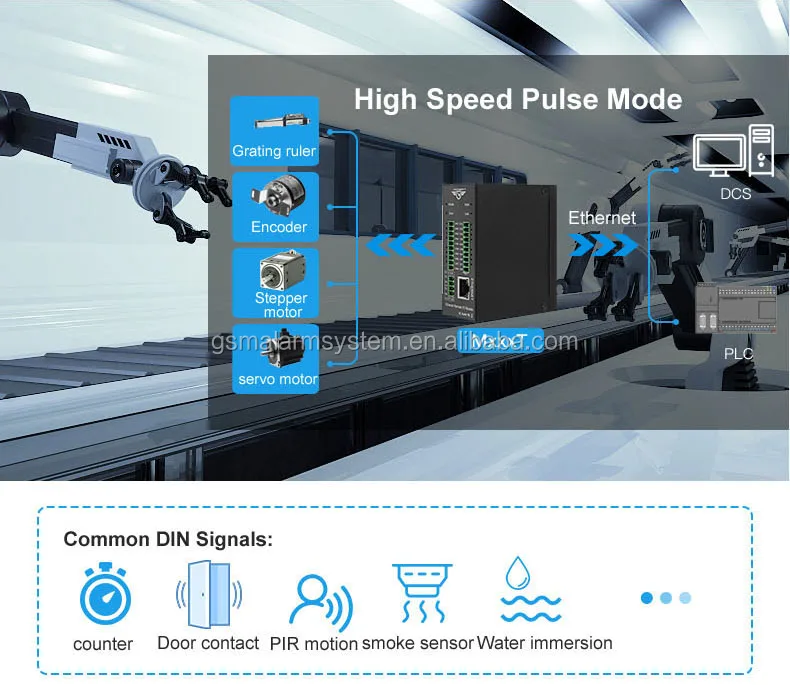

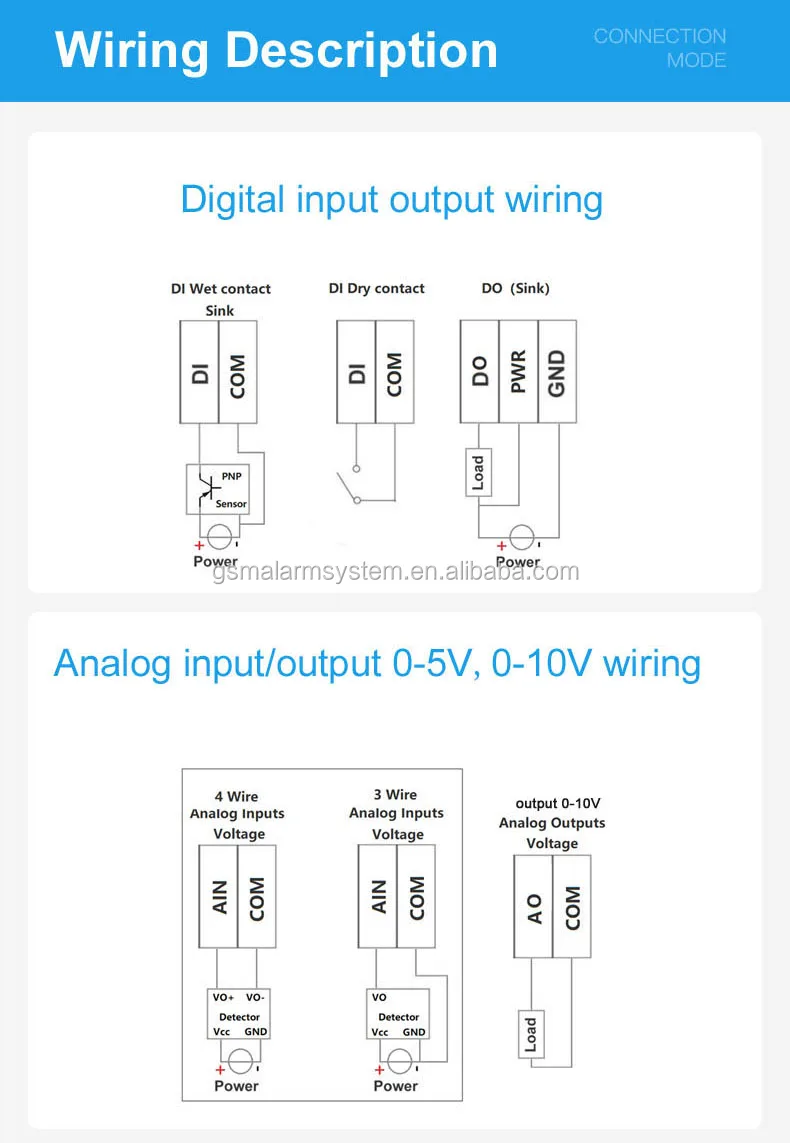

4.  4 optical isolated digital input, supports 1~300KHz high speed pulse counter;

5.  4 digital output or relay output, supports 1~300KHz high speed pulse output;

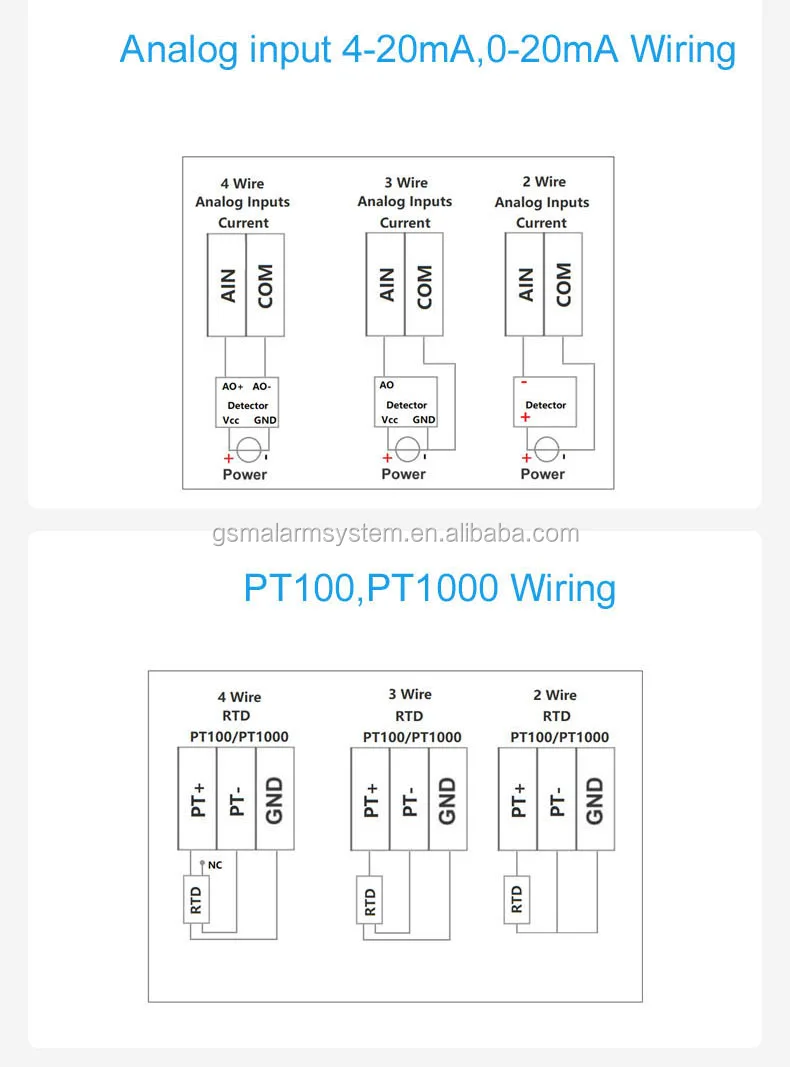

6  4 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC,0-10VDC;

7.  2 analog output, 12-bit resolution, supports 0-10VDC

8.  High sampling frequency and special filtering strategy to ensure reliability;

9.  1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;

10.Supports register mapping function and extend I/O inquiry strategy;

11. Provides 1 channel 12`36VDC power source output for external device, saving wiring cost;

12. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

13. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;

14. Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
