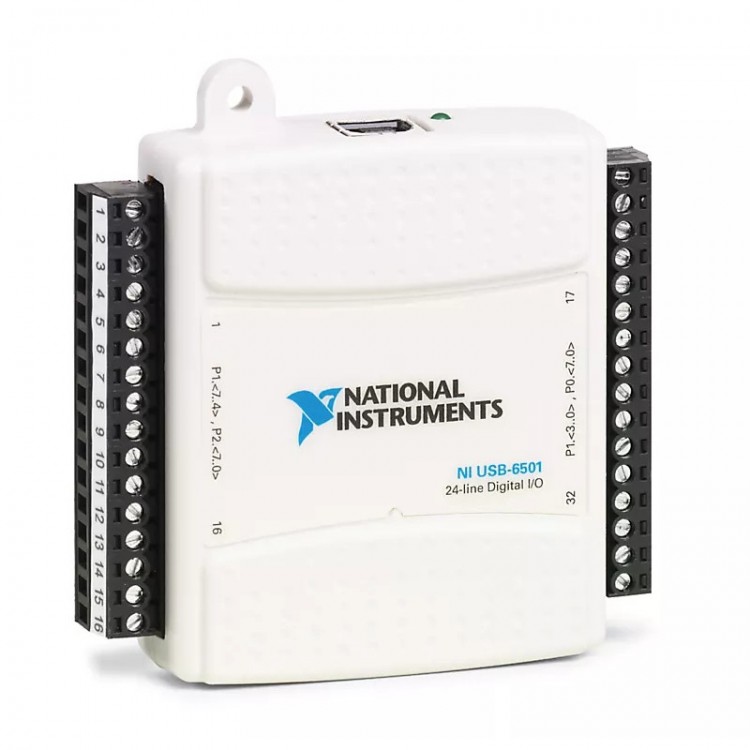

NI original USB-6501 24-channel DAQ USB data acquisition card

NI original USB-6501 24-channel DAQ USB data acquisition card

feature:
- USB-6501 (24 channel, 8.5 mA) USB data acquisition device at an unbeatable price
- 24 I/O channels; one 32-bit counter
- Overvoltage protection, 8.5 mA current drive
- Built-in screw terminals or universal 34-pin connector (OEM version)
- USB2.0 full speed (12 Mb/s) bus interface
- Convenient bus power supply

Specification:
General:
- Product Family: Digital I/O
- Measurement type: digital
Form factor: USB
- OS/Target: Available for Linux, Mac OS, Pocket PC and Windows
RoHS Compliant: Yes
Isolation Type: None

Analog input:
- Single-ended channel: 0
- Differential channel: 0

Analog output:
- Number of channels: 0

Digital Input/Output:
- Bidirectional channels: 24
- Input channel only: 0
- output channel only: 0
- Time: Software
- Logic level: TTL
- Programmable input filter: no
- Support programmable power-up state: no

Digital input:
- Input type: source; stream away
- Maximum voltage range: 0V-5V

Digital output:
- output type: source; stream away
- Current driven single: 8.5 mA
- Current drive all: 65mA
- Maximum voltage range: 0V-5V

Counter/Timer:
- Watchdog Timer: No
- Counter: 1
- Number of DMA channels: 0
- Buffer operation: no
- Debounce/Glitch Removal: No
- Maximum source frequency: 5MHz
Pulse Generation: No
- Size: 32 bits
- Time base stability: 50 ppm
- Logic level: TTL

Physical Specifications:
- Length: 8.51 cm / 3.4 inches
- Width: 8.18 cm / 3.2 inches
- Height: 2.31 cm / 0.9 inches
- I/O connectors: screw terminals
- USB Power: Bus Powered

Package Included:
- 1 x Data Acquisition Card
