CALT rope length transmitter cable displacement sensor
- $90.00 / 2 - 7 pieces
$86.00 / >=8 pieces - 2 pieces
- Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd
- Shanghai, China
- Ms Shirley Lee
PRODUCT DETAIL
| Storage temperature: | -20~80 degrees Celsius | Pull speed: | 1m/s |
| Gross weight per piece: | 0.600 kg | output: | NPN, Push-Pull, Line-Driven, Absolute Encoder 4-20mA |
| output: | digital sensor | rope: | Steel wire rope 0.6~1.2mm, the maximum load-bearing capacity of steel wire is 16KG |
| Measuring distance: | 0~1000mm | Sales unit: | single product |
| model: | CESI-S1000 | Resolution: | infinity |
| Operating temperature: | -40~85 degrees Celsius | Protection class: | IP65/IP54 |
| Single package size: | 18X15X12 cm | Supply voltage: | 12~24Vdc |
| place of origin; place of origin: | China Shanghai | usage: | position sensor |
| theory: | Resistive sensor | brand: | CALT |
| Packaging Details: | carton |
Product Description

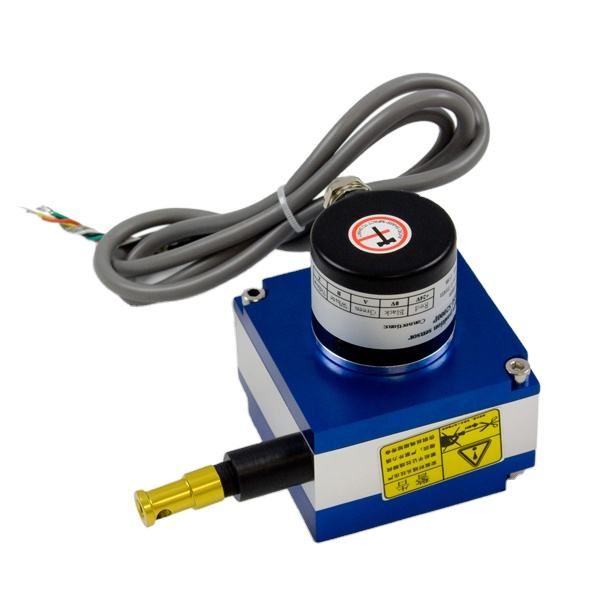

CALT Cord Length Transmitter Pull Wire Displacement Sensor Linear Position Sensor
The pull-wire position sensor is an efficient linear displacement measuring device. The design principle is ingenious. Through the scientific combination of special steel cables and angle measuring elements (potentiometers or encoders), the linear displacement motion of objects is converted into electrical signals, which can be measured. And linear scale, so as to achieve accurate displacement measurement data output.

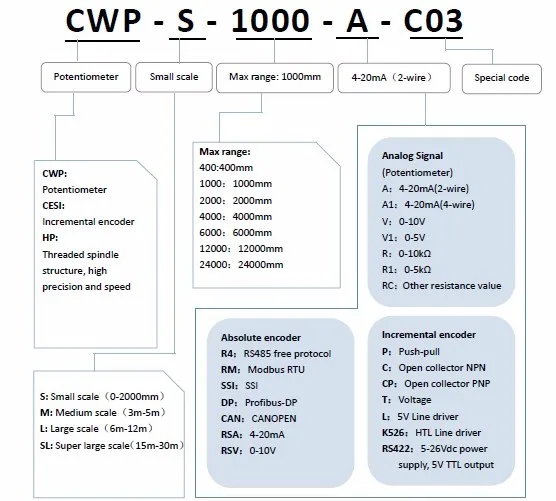

selection guide

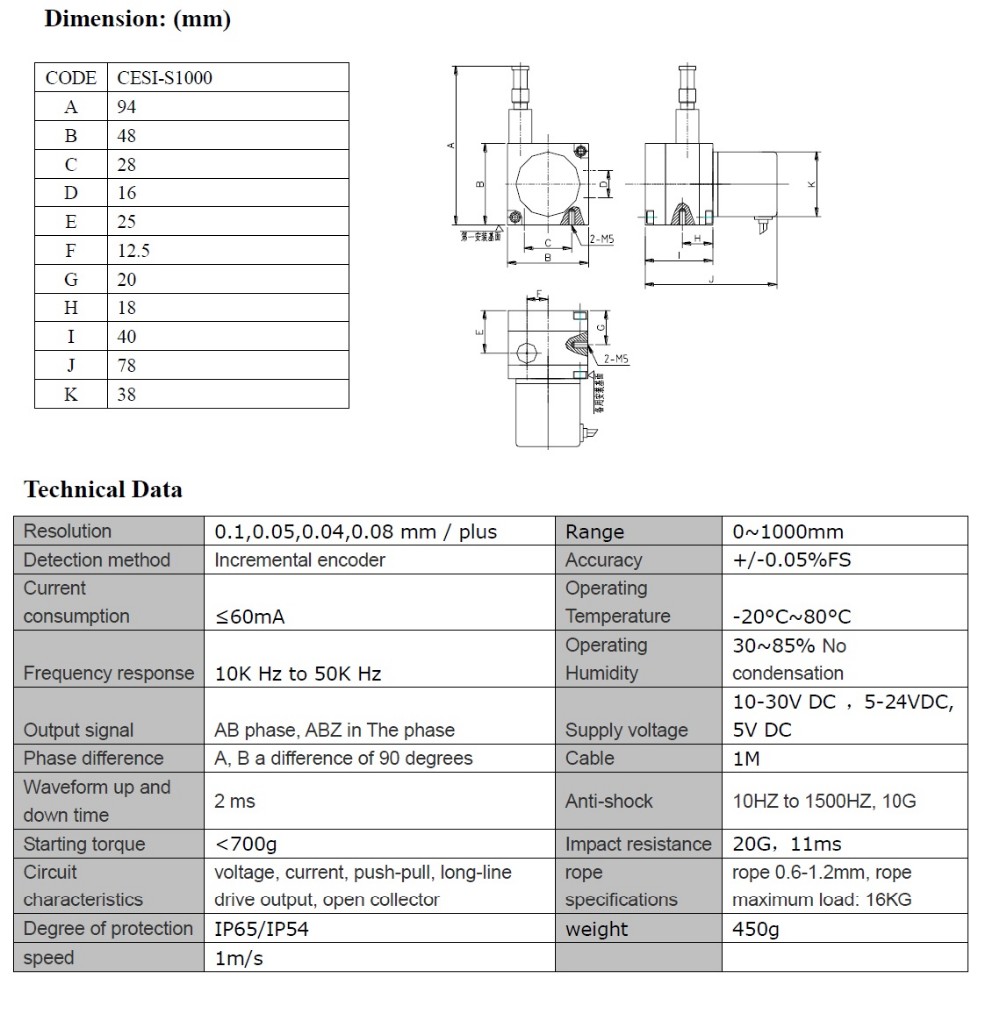

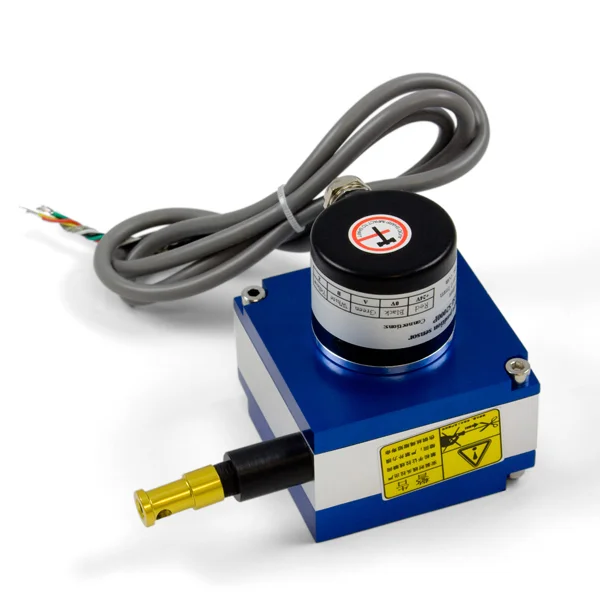

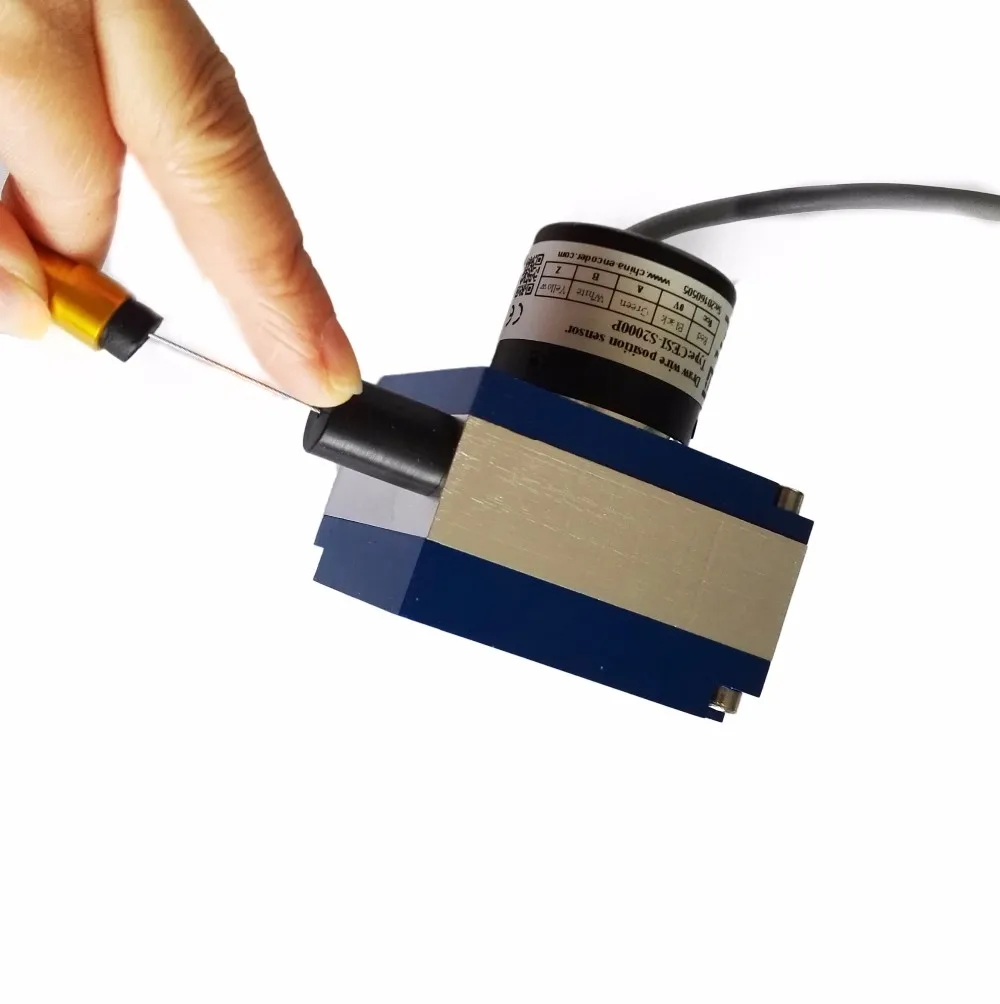

detailed image
