LENGTH MEASUREMENT ANALOG LINEAR SENSOR 100 mm up to 35000 mm HIGH ENCODE WIRE SHOCK SENSOR
- $80.20 / 1 - 9 pieces
$78.20 / 10 - 99 pieces
$75.20 / 100 - 999 pieces
$70.20 / >=1000 pieces - 1 piece
- Honde Technology Co., Ltd.
- Beijing, China
- Mr Marvin Li
PRODUCT DETAIL
brand: | Hongde Technology | Packaging Preview: | |
Working pressure: | ≤10MPa (limited to explosion-proof and waterproof series) | Packaging Details: | 1 piece/bag |
model: | RD-DWD-02 | Warranty: | 1 year |
product name: | Pull Wire Displacement Sensor | type: | Waterproof rope displacement sensor |
usage: | Level measurement and position control | Wire diameter specifications: | 0.8mm/1.5mm (SUS304) |
Range A: | 100mm-10000mm (absolute value) | output: | Resistance/Voltage/Current/Pulse/RS485/4-20mA |
output signal: | Resistance/Voltage/Current/Pulse/RS485/4-20mA | theory: | Hall Magnetic Induction |
Material: | Stainless Steel and Aluminum Alloy | port: | Tianjin Xingang |
place of origin; place of origin: | Beijing China | describe: | Pull Wire Displacement Sensor |
Supply capacity: | 1000 pieces per month | Range B: | 100mm-35000mm (incremental) |
Linear Accuracy: | ±0.05%FS | Protection class: | IP68 |
payment terms: | Western Union, T/T, MoneyGram, Paypal |
Product Description
product name | Pull Wire Displacement Sensor | |
scope | 100mm-35000mm | |
Voltage | DC 5V~DC 10V (resistance output type) | Volatility is less than 5% |
DC12V~DC24V (voltage/current/RS485) | ||
supply current | 10mA~35mA | |
output signal | Resistance output type: 5kΩ, 10KΩ | |
Voltage output type: 0-5V, 0-10V | ||
Current output type: 4-20mA (2-wire/3-wire) | ||
Digital signal output type: RS485 | ||
Linear accuracy | ±0.25%FS | |
Repeatability | ±0.05%FS | |
Resolution | 12 bits | Only digital signal output |
Wire diameter specification | 0.8mm or 1.5mm (SUS304) | |
work pressure | ≤10MPa | Limited explosion-proof waterproof series |
Operating temperature | -10℃~85℃ | |
Shock | 10Hz to 2000Hz | |
Protection class | IP68 |
detailed picture

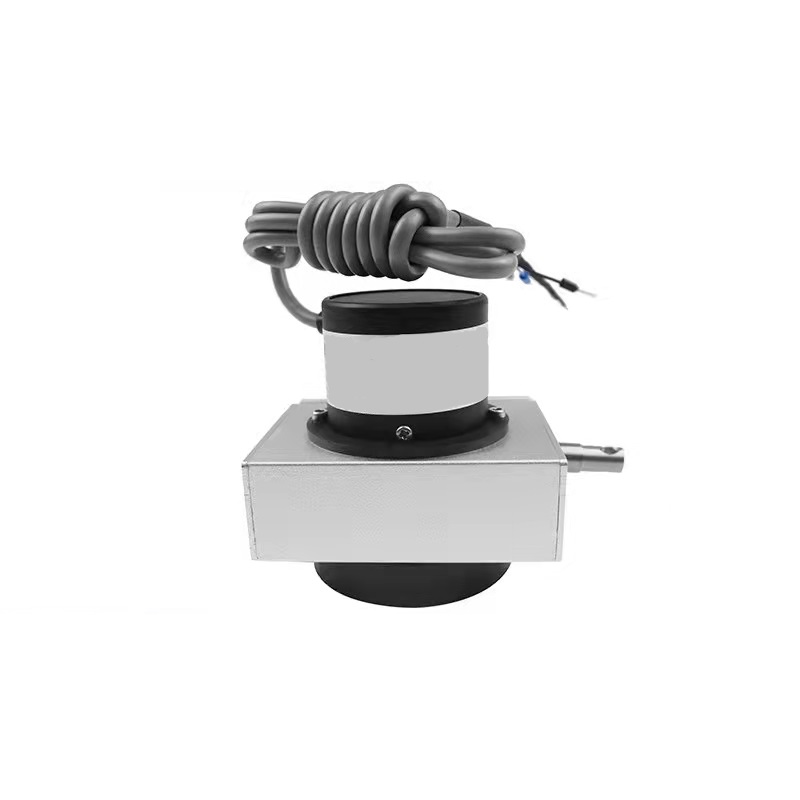

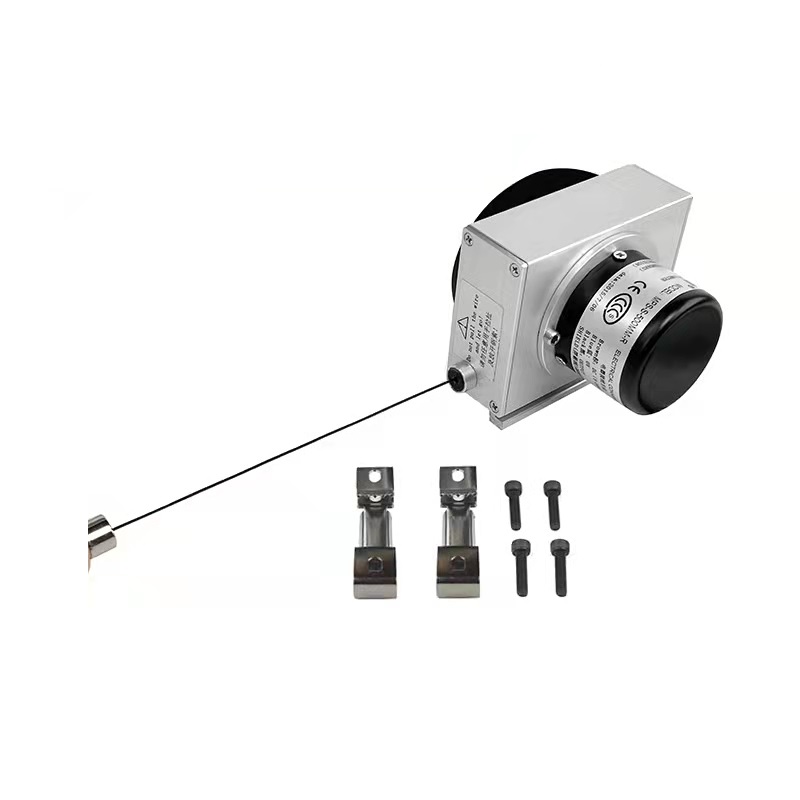

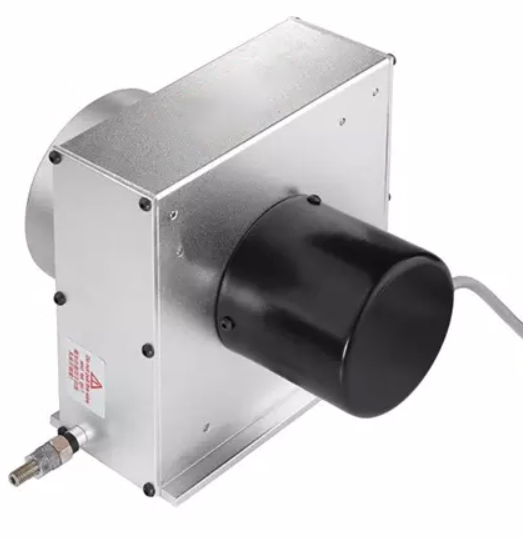

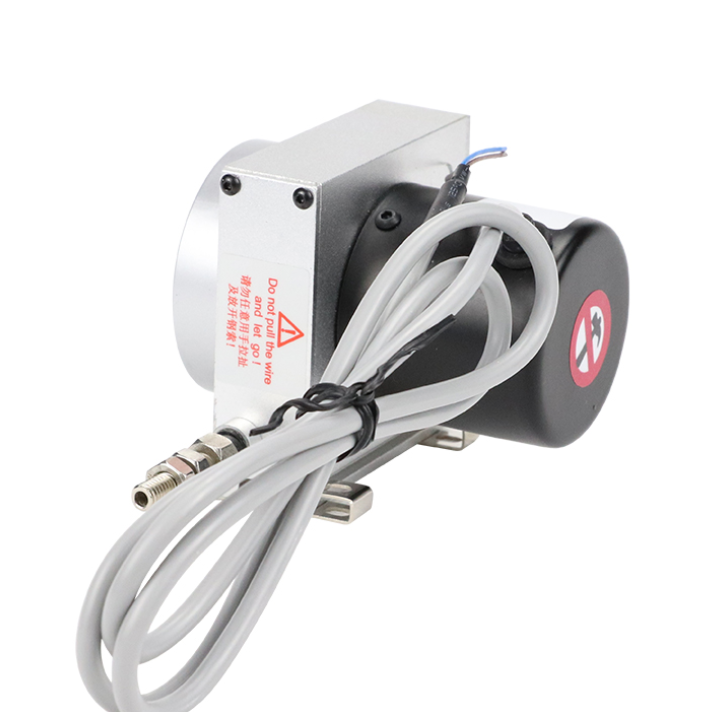

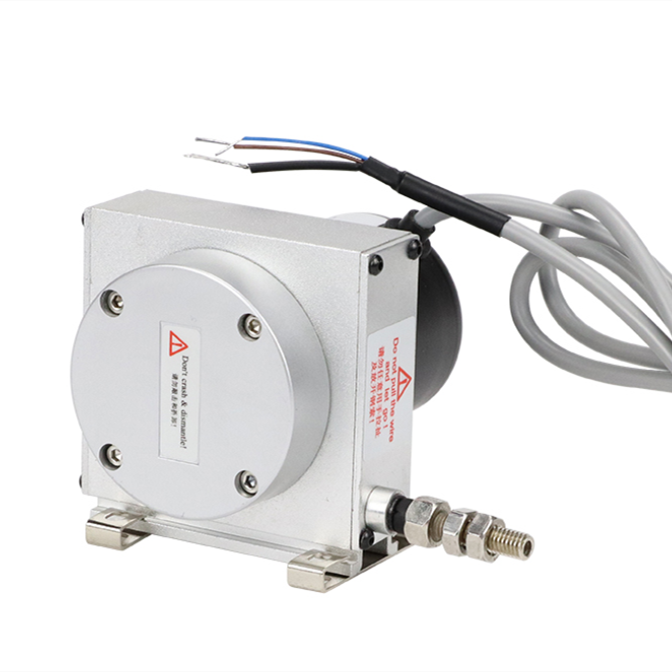

Pull Wire Displacement Sensor
The absolute value output type waterproof pull-rope displacement sensor is a magnetoresistive multi-turn angular displacement sensor with core electronic components. The entire product assembly is made of materials that will not rust in water.
Aluminum alloy housing and wire wheel
Feature two
Stainless steel spring and drawcord
Featurine 3
Ceramic Bearings
Feature 4
Plastic Clockwork Case
