Electronic ruler / linear displacement sensor

PRODUCT DETAIL
Model Number:75mm--1250mm;Theory:Resistance Sensor;
Product:Electronic ruler/linear displacement sensor;MOQ:3pcs;
Usage:Position Sensor;Mode of Production:OEM;
Place of Origin:Guangdong China;Output:Switching Transducer;
Packaging Detail:1pc/cylinder linear position sensor;Port:Shenzhen;
Max Operating Vottage:24v;Supply Ability:1000 Set/Sets per Day linear position sensor;
Technology:metal foil;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram,Paypal;
Quality:excellent;Brand Name:HOERSUN;

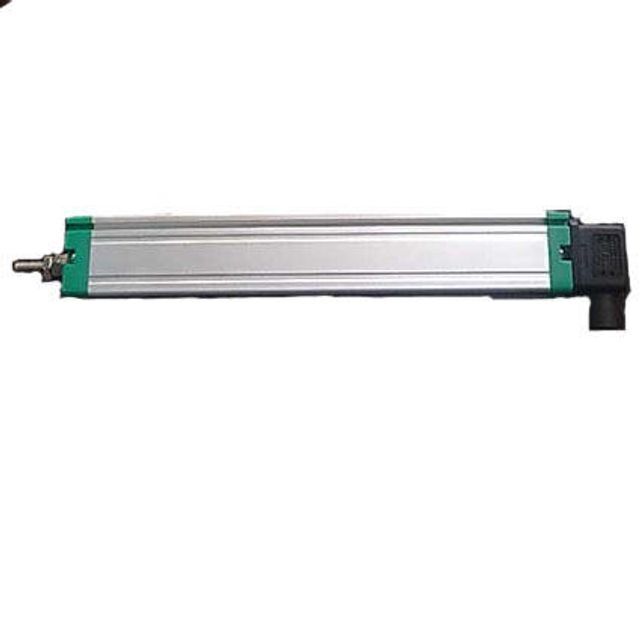

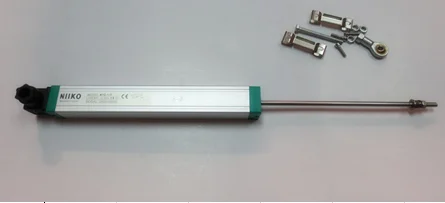

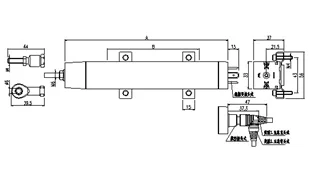

Electronic ruler/linear displacement sensor



From KTC-75MM----KTC1250MM







Discription of the linear position transducer



Place of Origin: Guangdong China (Mainland)
Brand Name: Hoersun
Model Number: KTC
Type: Rotary Potentiometer
Technology: Metal Foil
Resistance: 5K
Resistance Tolerance: 0.05%
Max. Operating Voltage: 24V
color: glivery
temperature: heat-resisted
speed: fast
Resistance:5 or 10 Kohms
Load resistance:mini 1 Mohms
Electrical measuring stock:75-1250mm



Mechanical specifications

Rod Material:S.S.-316
Rod dia:6mm
Case:paper tube
Protection:IP-67
Mechanical stroke:75 to 1250 mm
performance :Linearity :0.5% to 1%
Mechanical Life:10,000,000 cycle
Repeatability:0.05 %
Displacement speed:2m/s
Working temp:-20 to 80 degC





Main Specifications

Pow supply18-30V DC,Current Drain:<50mA
Operation temperature-40°C-75°C
Range:From 0-25mm to 0-5000mm
Output

Analogue 4-20mA,0-5V,0-10V

Start/Stop:RS485

Digital:Synchronous Series Interface(SSI)

Non-Linearity<±0.05%FS
Repeatability<±0.002%FS
Resolution<±0.002%FS
Stroke Range:50mm-7000mm
Output Pulse≤20mV
Isolation500VDC (Power or output signal to housing)
Mechanical Zone

Null Zone:50.8mm Dead zone:63.5mm

(Special Zone Please Contact Factory)

Rod Material 304 or 316L Stainless Steel
Head MaterialCasted aluminum or 316L Stainless Steel
Electronic Connection4 wire shield cable or Connector
MountingM18*1.5mm,M12*1.5mm,or Custom
Protecting RateProtection Rate:IP65 (or IP67)









  • Hydroelectric industry: Turbine and Gear in Hydro-electric power and Wind-power Generator;Throttle Valve Position
  • Printing and Packing Industry;Paper Machine
  • Woods Harvesting and Construction: Log Optimizer Positioning; Tile Compressing; Marble Cutting
  •  Port machinery; Container Handling
  •  Hydraulic Fluid Level Measurement, Wave Pool Level Measurement
  •  Fluid Power: Leveling Jacks; Valve Position
  •  Plastic and Rubber Part Manufacturing: Extrusion Rate; Tire Presses
  • Tools; Woodworking, Metalworking and Assembly: Drill Press Stroke; Paint Sprayers

  •

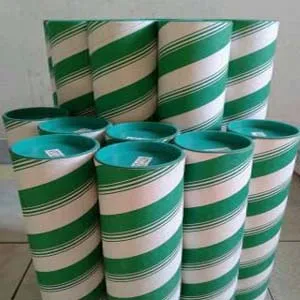

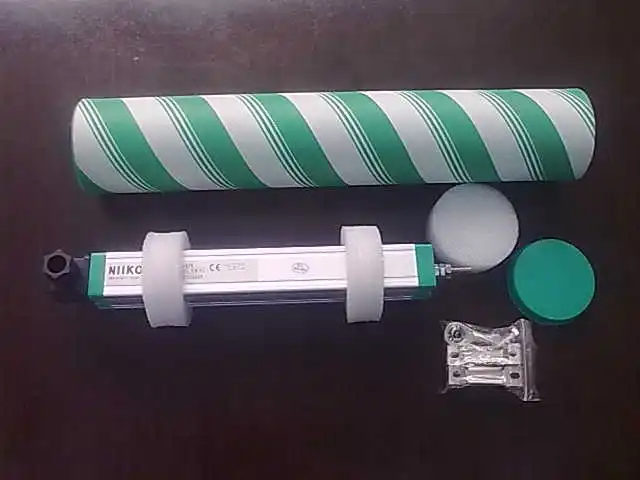

one for a paper tube then into a carton
