Ultrasonic wind speed and direction sensor
- $268.10 / 1 - 9 pieces
$260.10 / 10 - 99 pieces
$251.10 / >=100 pieces - 1 piece
- Honde Technology Co., Ltd.
- Beijing, China
- Mr Marvin Li
PRODUCT DETAIL
Single piece packaging size: | 25X25X25cm | Application 1: | wind energy weather station |
model: | HD-WSD-U-02 | Application 3: | agricultural meteorological station |
Customization support: | OEM, ODM, software | Application 4: | highway weather station |
type: | ultrasound | Packaging details: | 1 unit/box |
brand: | Hundtek | Key words: | Ultrasonic wind speed and direction two-in-one |
Minimum order quantity: | 1 | Sales unit: | Single product |
Material: | ABS | Place of origin: | Beijing China |
product name: | Secondary meteorological parameter weather station | Package preview: | |
Warranty: | Normally 1 year, 1 year | Application 2: | environmental weather station |
Gross weight of single piece: | 3.000kg | application: | Agricultural highway environmental protection, roads, smart street lights |
Product Description
Measurement parameters | ||||||
parameter name | 2 in 1: Ultrasonic wind speed and direction | |||||
parameter | Measuring range | solve | Accuracy | |||
wind speed | 0-60 meters/second | 0.01 meters/second | ±0.2m/s or ±0.02*V | |||
wind direction | 0-359° | 1° | ±3° | |||
*Other customizable parameters | Temperature, humidity, pressure, noise PM2.5/PM10/CO2 | |||||
Technical Parameters | ||||||
Stablize | Less than 1% during sensor life | |||||
Response time | less than 10 seconds | |||||
Working current | DC12V≤60ma (HCD6815)-DC12V≤180ma | |||||
energy consumption | DC12V≤0.72W (HCD6815); DC12V≤2.16W | |||||
output | RS485, MODBUS communication protocol | |||||
building materials | ABS engineering plastics | |||||
working environment | Temperature -30~70℃, working humidity: 0-100% | |||||
Storage conditions | -40~60℃ | |||||
Standard cable length | 2 meters | |||||
Farthest lead length | RS485 1000 meters | |||||
Protection level | IP65 | |||||
Wireless transmission | ||||||
Wireless transmission | LORA/LORAWAN, GPRS, 4G, WIFI | |||||
Mounting Accessories | ||||||
pole | 1.5 meters, 2 meters, 3 meters high, other heights can be customized | |||||
Equipment case | stainless steel waterproof | |||||
ground cage | Matching cages can be provided to be buried underground. | |||||
lightning rod | Optional (for use in thunderstorm locations) | |||||
LED display | Elective | |||||
7-inch touch screen | Elective | |||||
Surveillance cameras | Elective | |||||
The Sun can generate system | ||||||
Solar panels | Power can be customized | |||||
Solar Controller | Supporting controller available | |||||
Mounting brackets | Matching brackets available | |||||
Cloud servers and software | ||||||
Cloud Server | Free shipping if you buy our wireless module | |||||
free software | View real-time data and download historical data in Excel |
detailed image

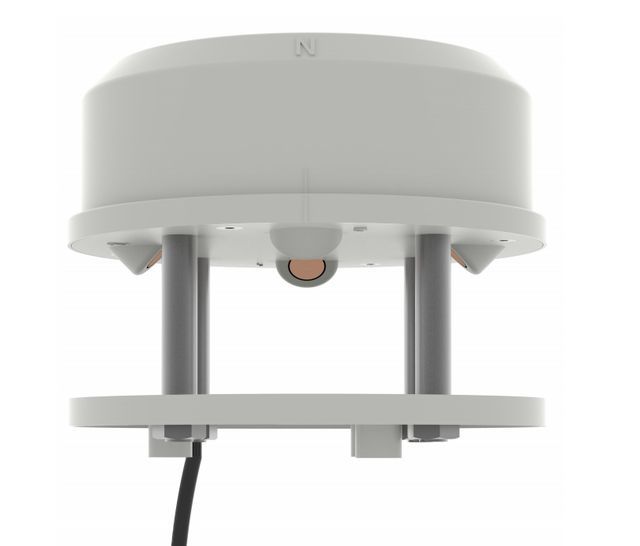

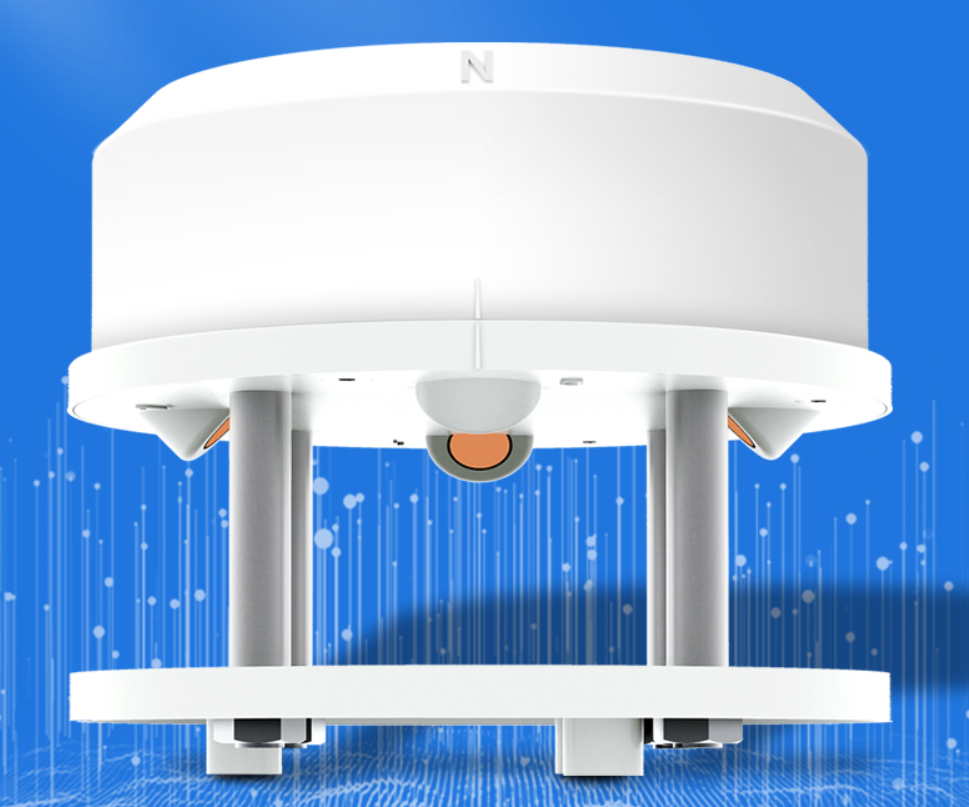

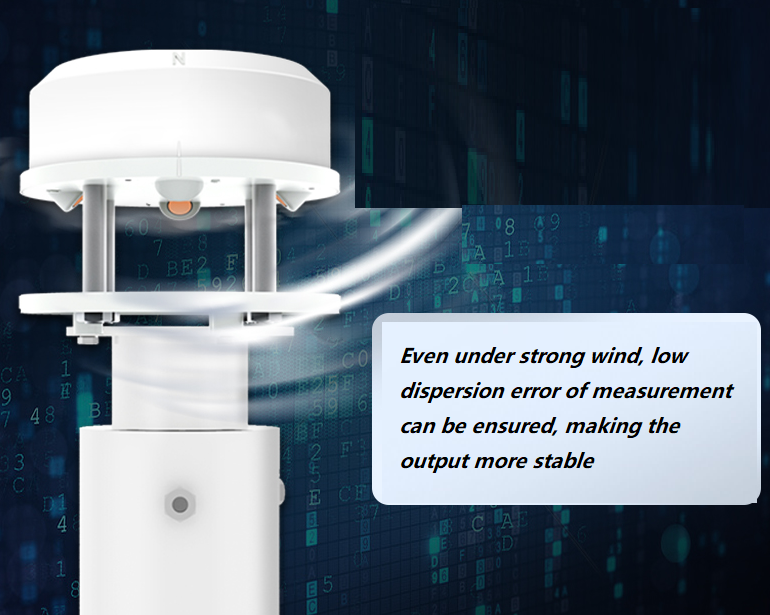

Ultrasonic wind speed and direction integrated sensor

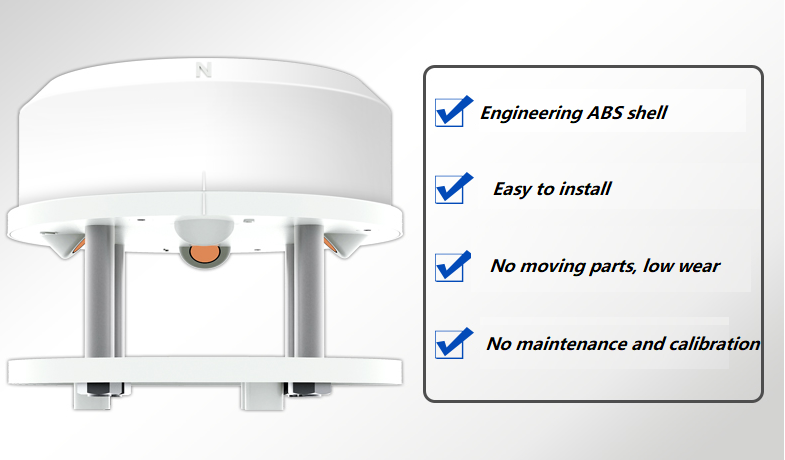

1. Lightweight
2. High-precision ultrasound
3.360 degree measurement
4. Sturdy and durable
5. No maintenance required
6. No calibration required
7. No moving parts, no damage
2. Zero wind speed work

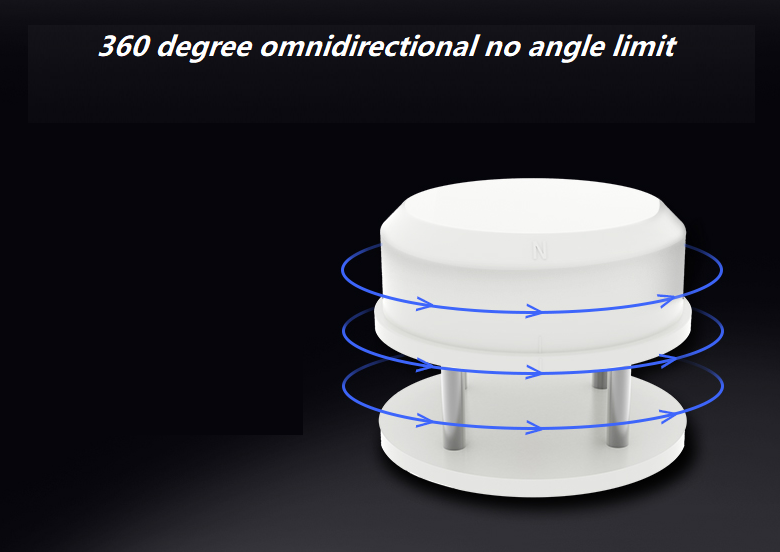

3. No angle restrictions
4. 360-degree coverage
5. Wind speed and wind direction data can be obtained at the same time

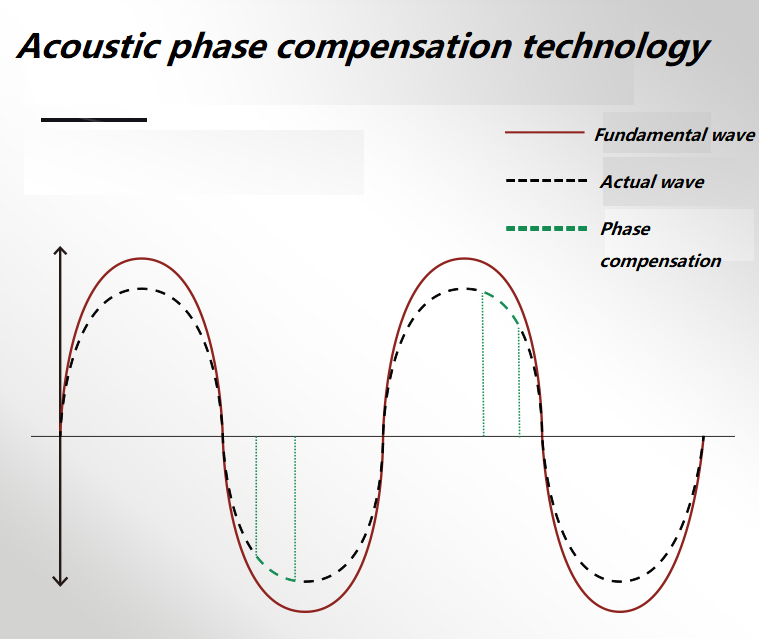

Acoustic phase compensation technology, high precision
Using random error identification technology
The ultrasonic probe faces downward to avoid interference from ice, snow and other debris.

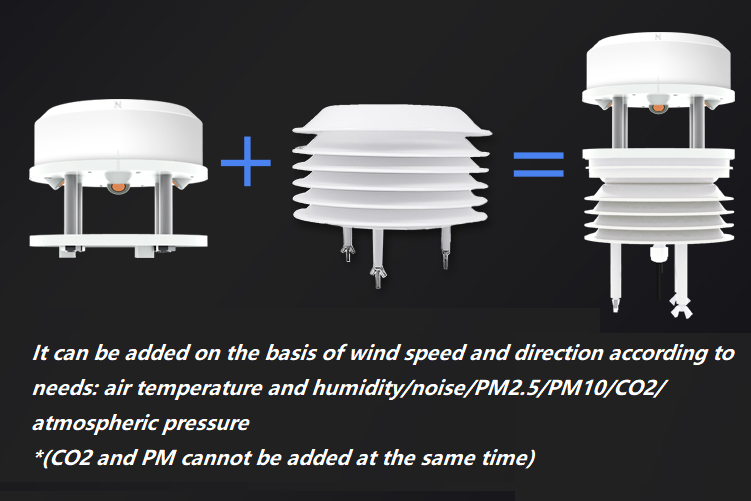

Other weather parameters can be integrated and customized
Applicable to various harsh environments

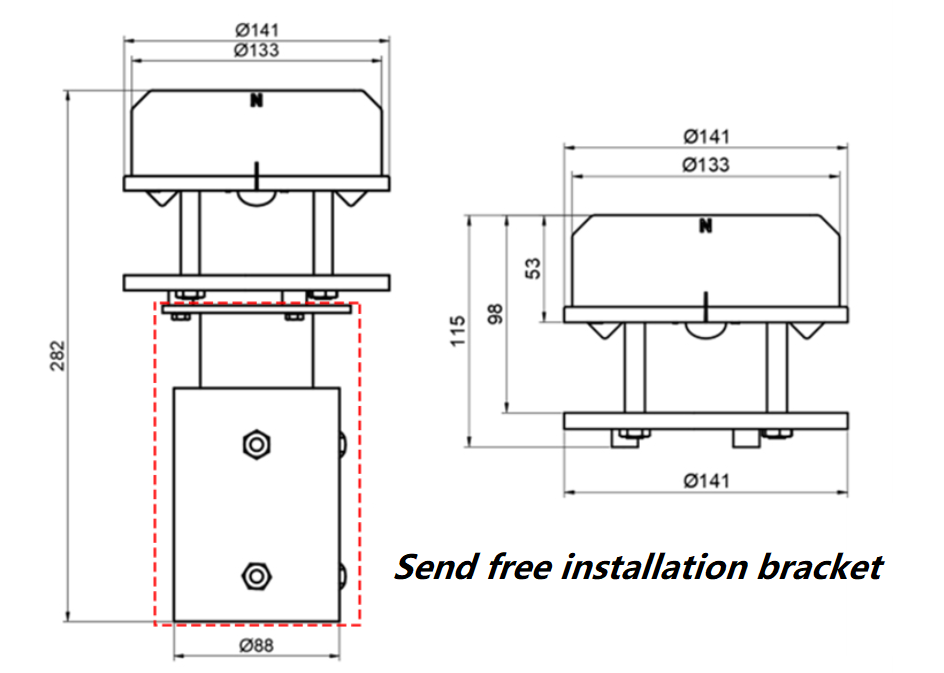

Product Size

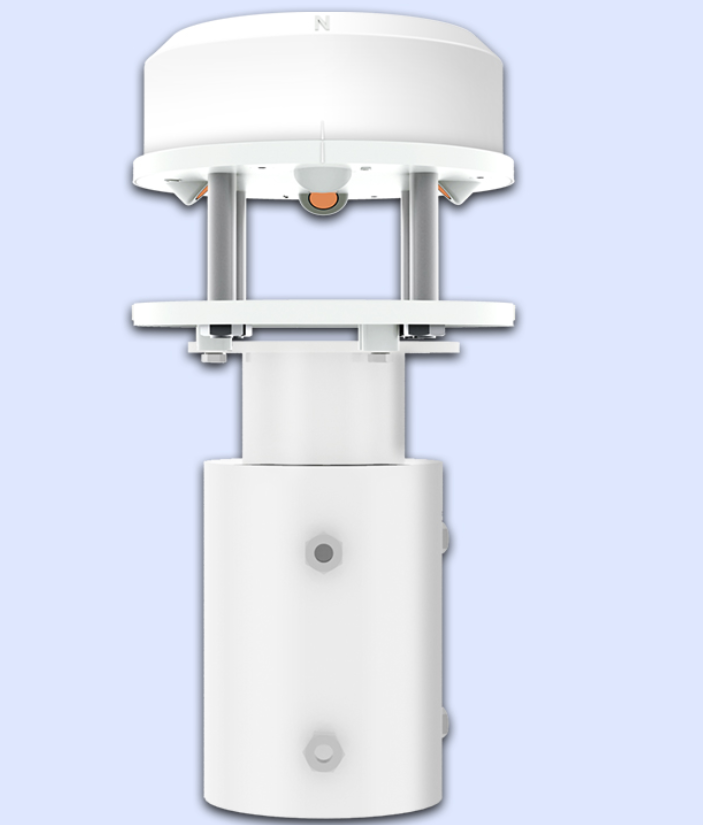

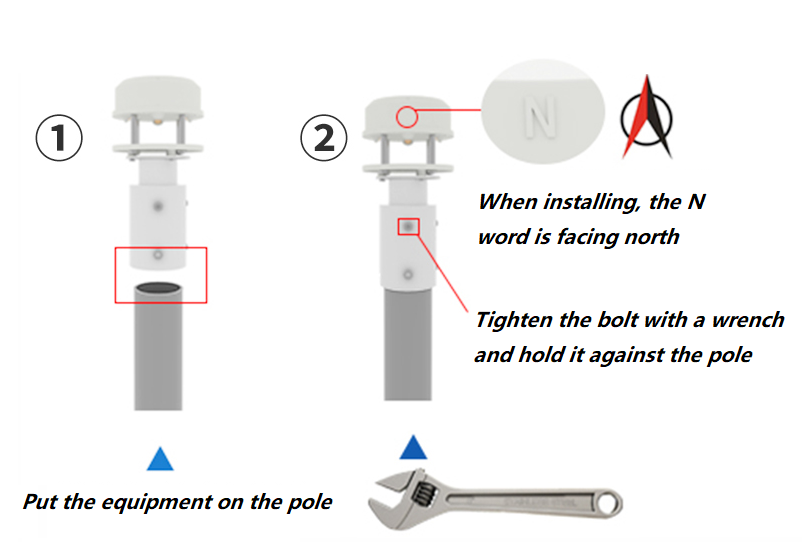

Product installation method-pole installation

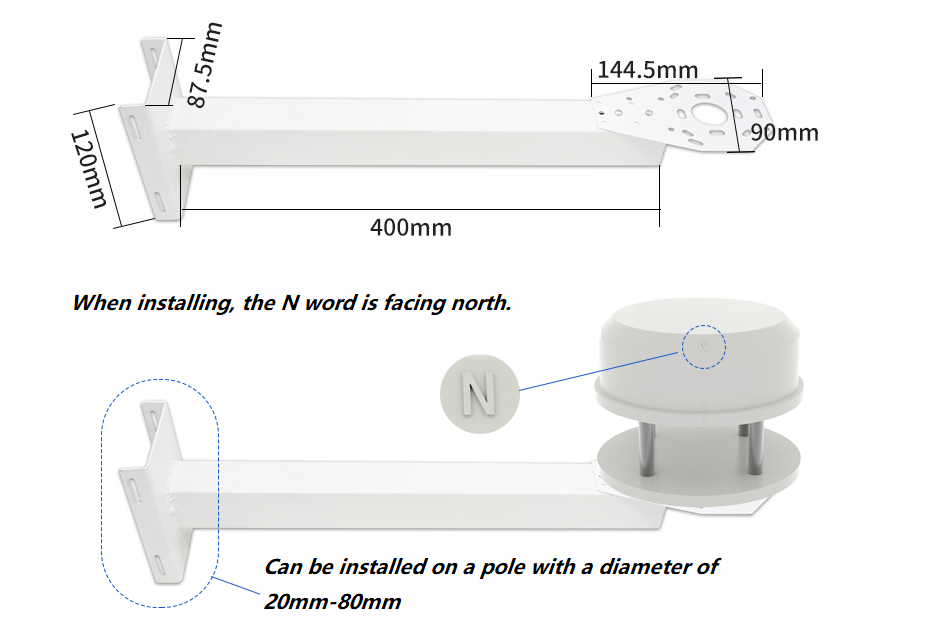

Product installation method-cross arm installation

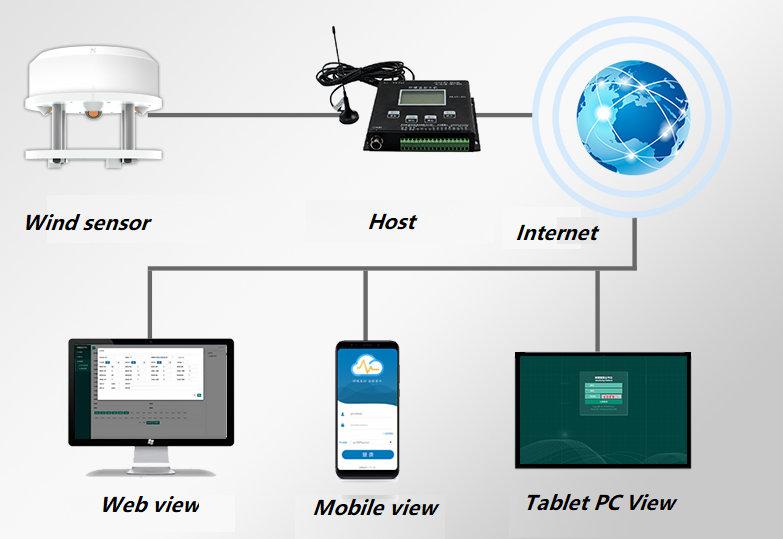

Free cloud server and software
