LORA LORAWAN OEM GPRS 4G WIFI DIGITAL RS485 MODBUS PROTOCOL PIEZOELECTRIC RAIN GAUGE

PRODUCT DETAIL
Port:Tianjin Xingang;Package Preview:;
Place of Origin:Beijing, China;Signal output:RS485/0.5v/0-10v/4-20mA output;
Brand Name:HONDETECH;OEM:Accept;
Model Number:RD-PERFS-01;Payment Terms:Western Union,T/T,MoneyGram,Paypal;
Packaging Detail:1 PC/BOX;MOQ:1PC;
Warranty:1 Year,1 year;Principle:Automatic Rain Gauge;
Wireless type:Lora Lorawan GPRS 4G WiFi;Customized support:OEM,ODM,OBM,Software;
Supply Ability:1000 Pieces per Month;Product name:Piezoelectric Rain Gauge;
Feature:Stainless steel material;Application:Rainfall monitoring;
Resolution:0.1mm;
Product Description
Product Name

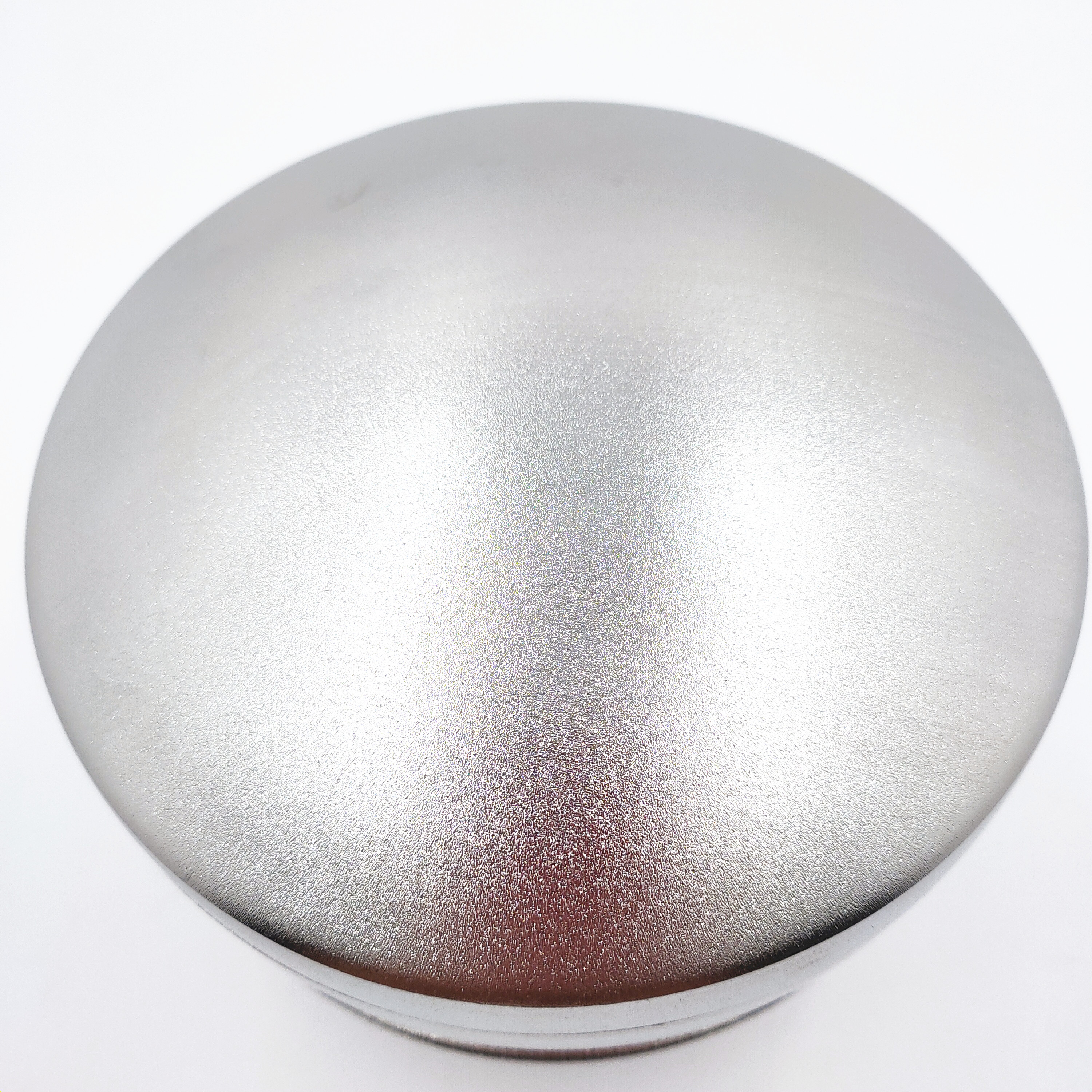

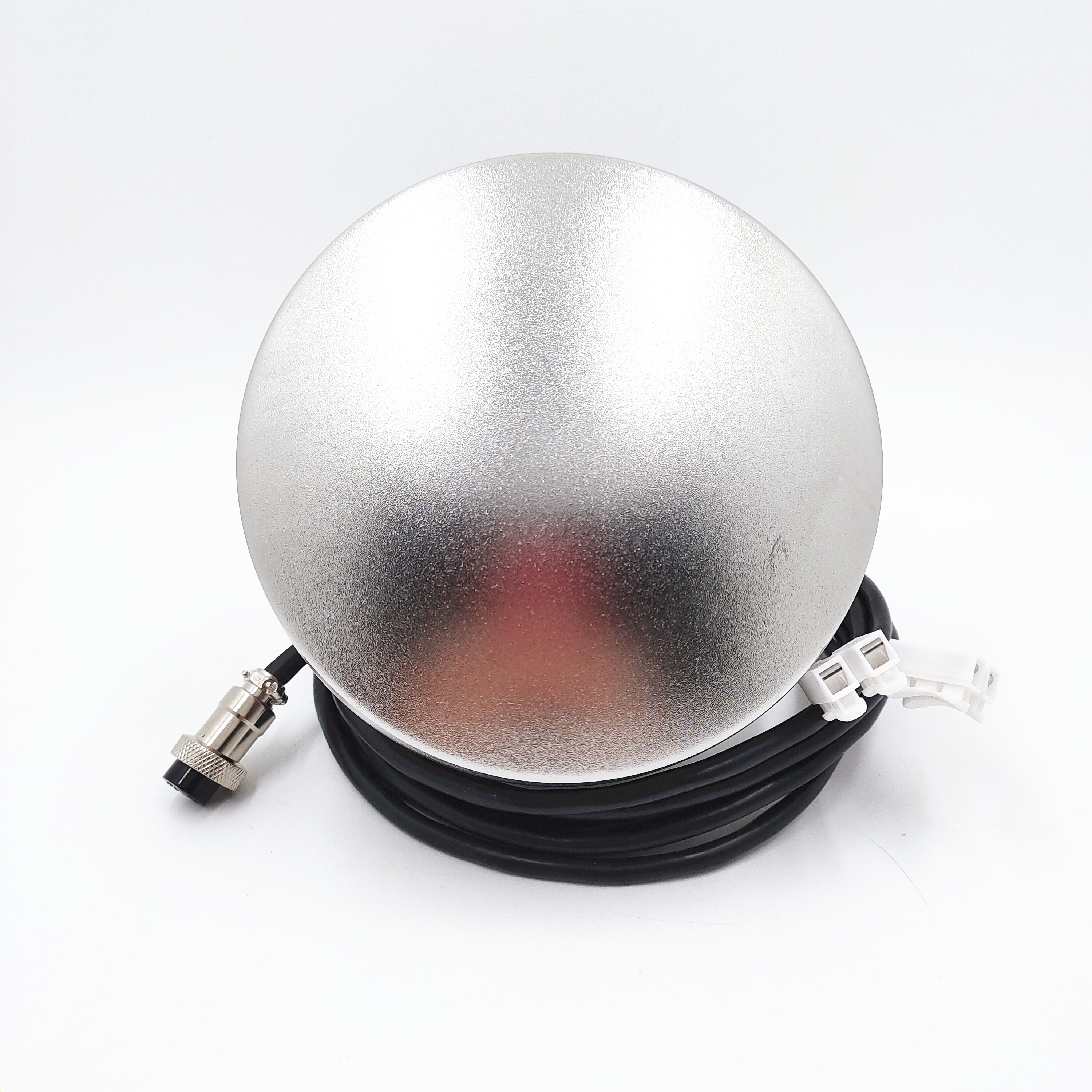

Piezoelectric Rain Gauge
Material
Stainless steel material
Resolution
0.1mm
Rainfall parameter
 0-200mm/h
Measurement accuracy
≤±5%
Output
A: RS485 (standard Modbus-RTU protocol, device default address: 01)
B: 0-5v/0-10v/4-20mA output
Power supply
12~24V DC (when the output signal is RS485)
Working environment
Ambient temperature: -40°C ~ 80°C
Wireless module
4G/GPRS/WIFI/LORA/LORAWAN
Server and software
We can supply the matched server and software
Size
φ140mm×125mm
Features





1.Compared with other rain gauges

1.Stainless steel material
2.Maintenance free
3.Can measure snow, freezing rain and hail
4.No moving parts and resistant to pollution and corrosion.







2.Use shock to calculate rainfall

The piezoelectric rain sensor uses impact theory to calculate the weight of a single raindrop, and then calculates the rainfall.




3.Multiple output methods

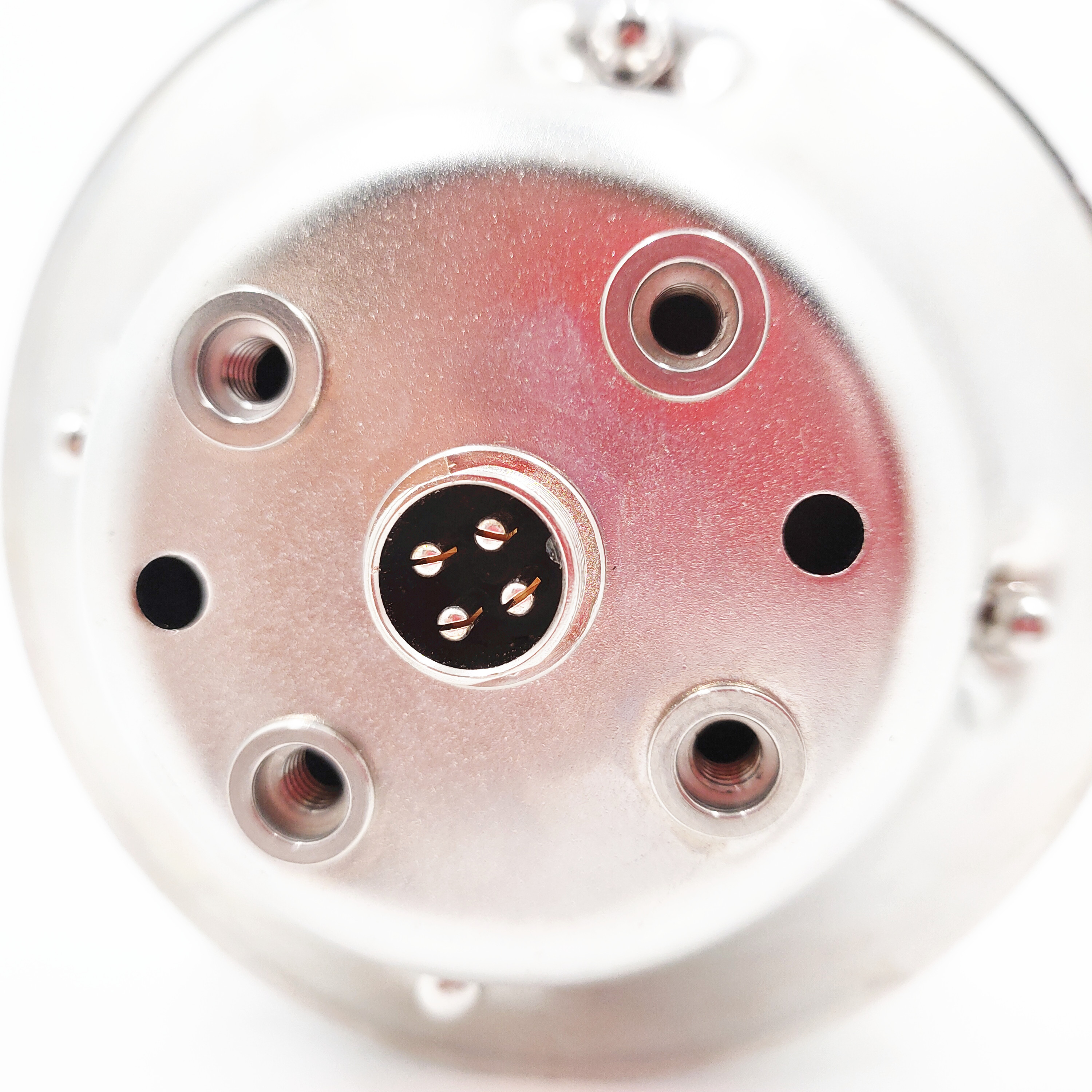

Easy to install, aviation waterproof interface Support RS485, 4-20mA, 0-5V, 0-10V output

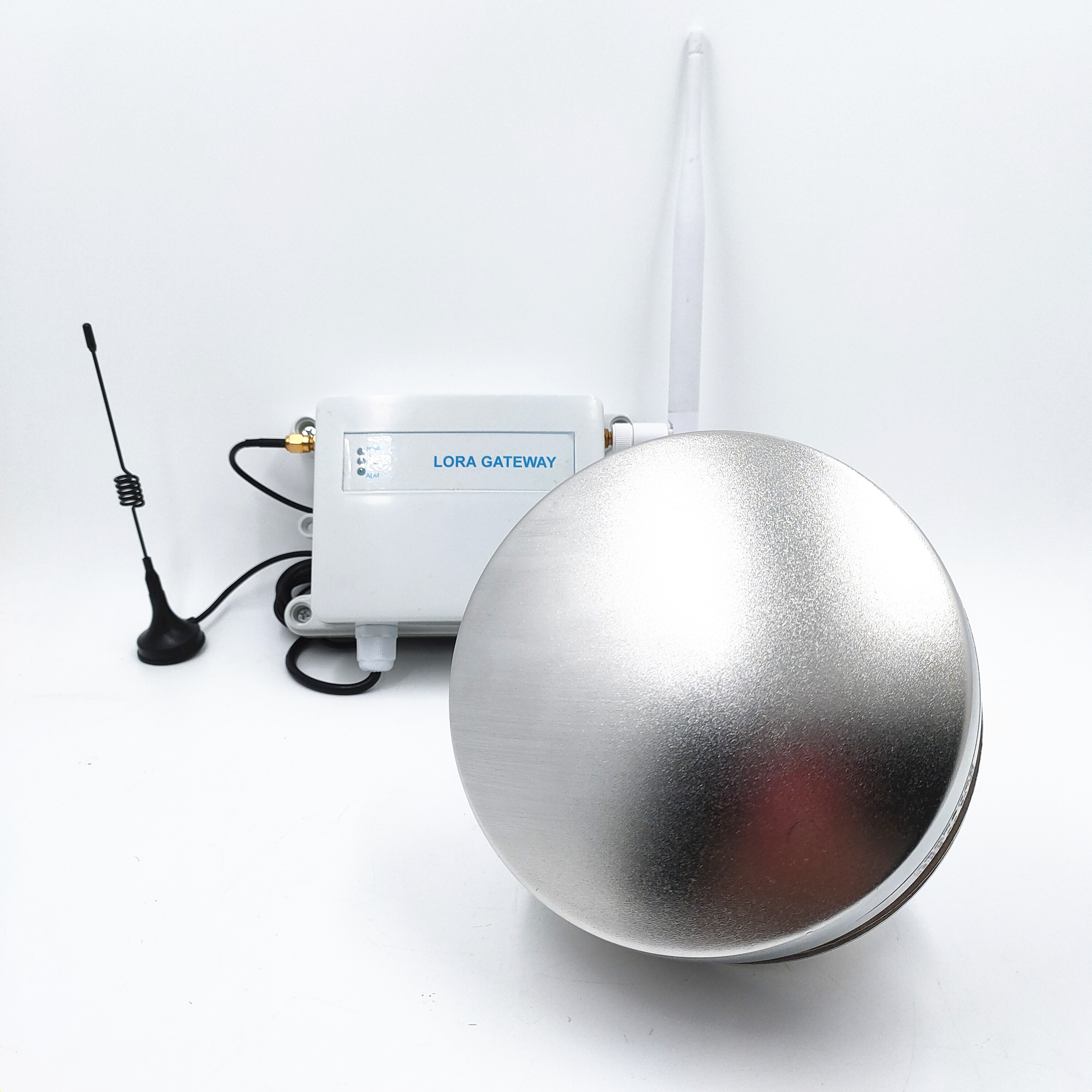

4.Integrated wireless module

Integrate wireless module:
GPRS/4G/WIFI/LORA/LORAWAN

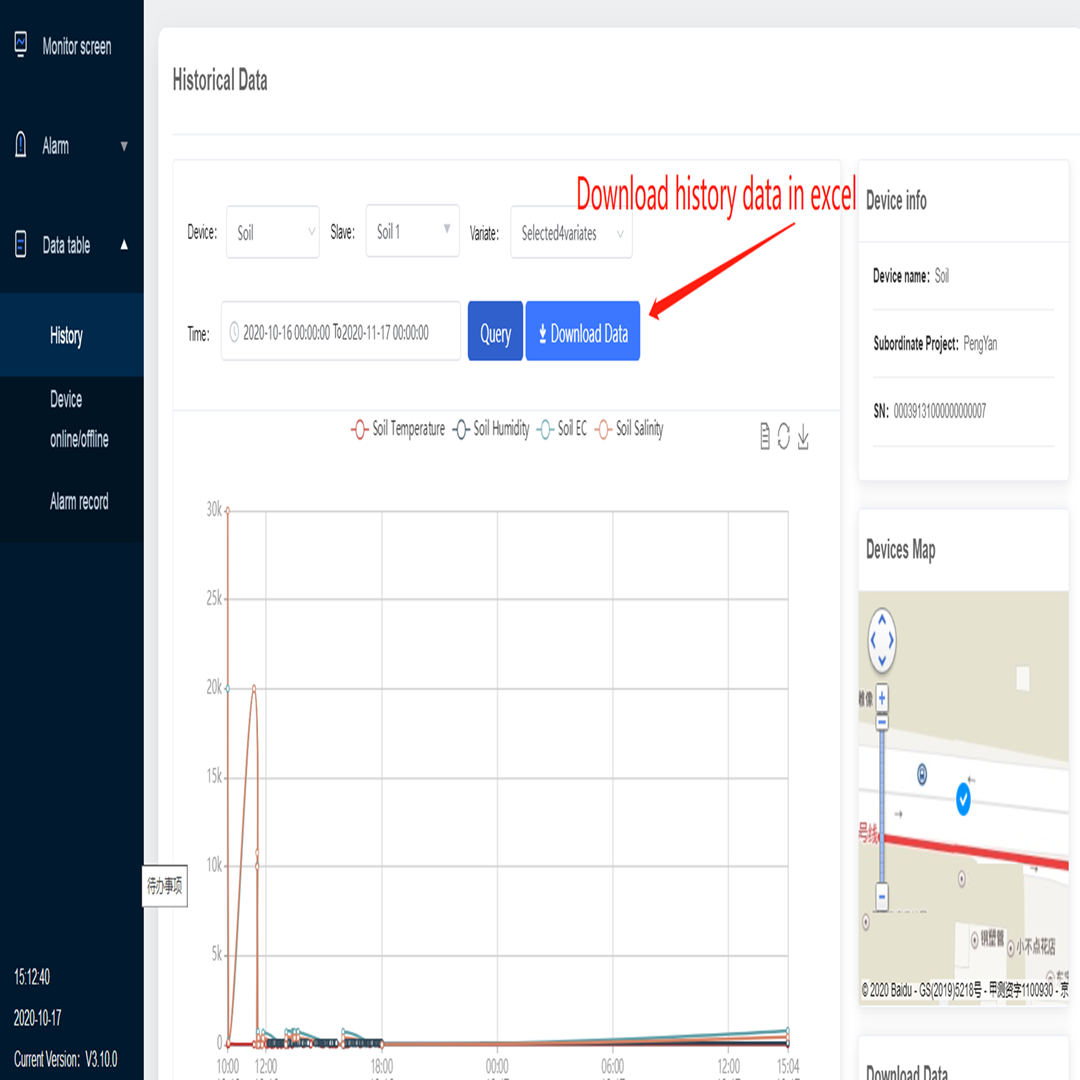

5.Supply the matched cloud server and software

Supply the matched cloud server and software to see real time data in PC or Mobile

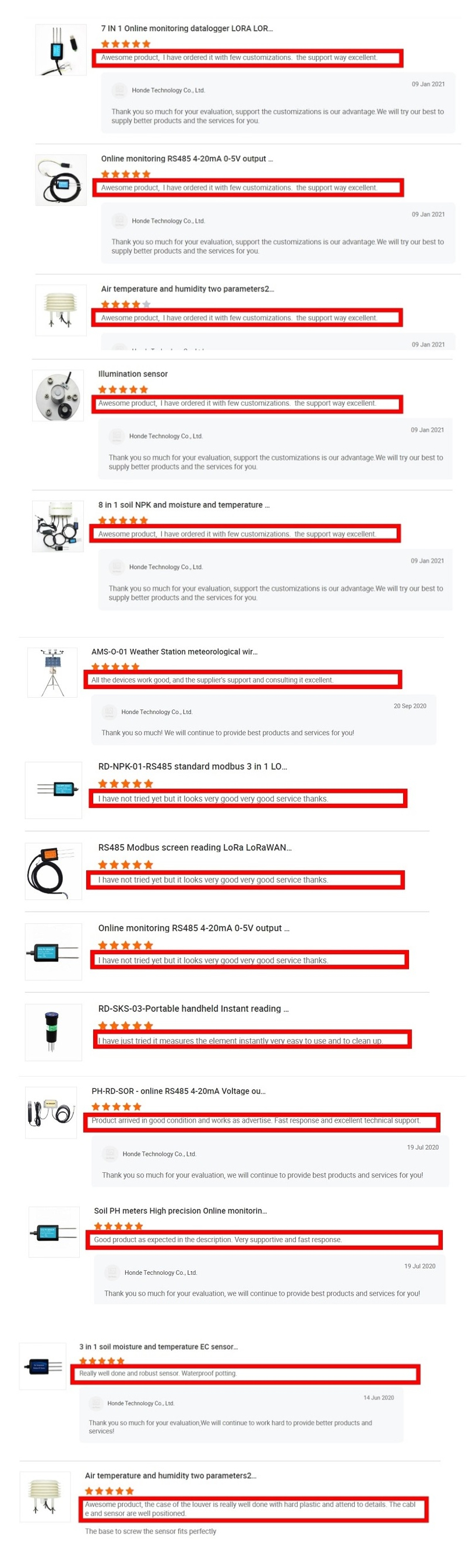

Good reviews

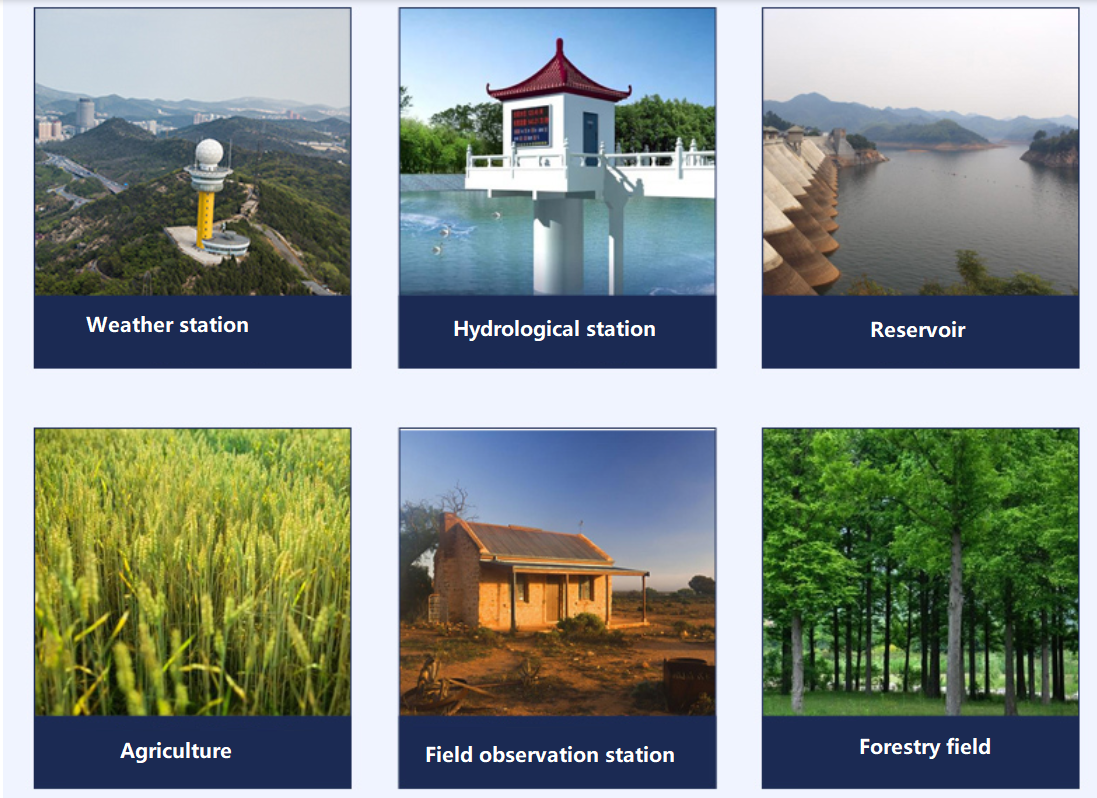

Product Applications
Recommend Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get a quote? A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once. Q: What are the main features of this rain gauge sensor? A: It is a stainless steel piezoelectric rain gauge which can also measure the Snow, Freezing rain,Hail with no maintenance. Q: Can I get samples? A: Yes, we have stock materials and can help you get samples as soon as possible. Q: What is the output type of this rain gauge? Answer: Including 0-5v/0-10v/4-20mA/RS485 output.

Q: What is the wireless module can you supply?
Answer: We can integrate the GPRS/4G/WIFI/LORA/LORAWAN wireless modules.

Q: Can you supply the data logger and the cloud server and software?
Answer: We can integrate the data logger with the U disk to store the data in Excel or Text and we can also supply the matched cloud server and software to see the real time data in the PC or Mobile. Q: May I know your warranty? A: Yes, usually one year. Q: When is the delivery time? A: Usually, the goods will be delivered within 1-3 working days after receiving your payment. But it depends on your quantity. Just click on the picture below to send us an inquiry, learn more, or get the latest catalog and competitive quotation.
