LDM-100 Laser Diameter/Laser Diameter
- $1000.00 /set
- 1 set
- Zhengzhou Mercury-Tech Co., Ltd.
- Henan, China
- Mr Winston Lan
| brand: | Mercury Technology | Package preview: | |
| Origin: | Henan, China | Customization support: | OEM、ODM |
| Packaging Details: | carton or wooden box | Laser type: | semiconductor |
| Warranty: | 1 year | Operating Voltage: | 220V±10% |
| payment terms: | wire transfer | accuracy: | 0.001 |
| model: | LDM-80 | Supply capacity: | 1000 pieces per quarter |
| application: | Laser Caliper |

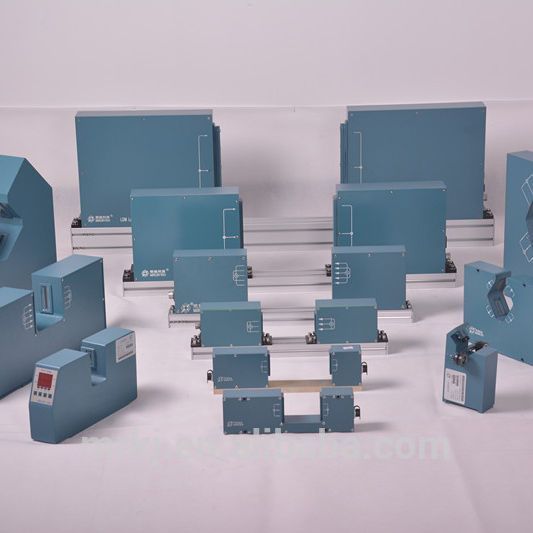

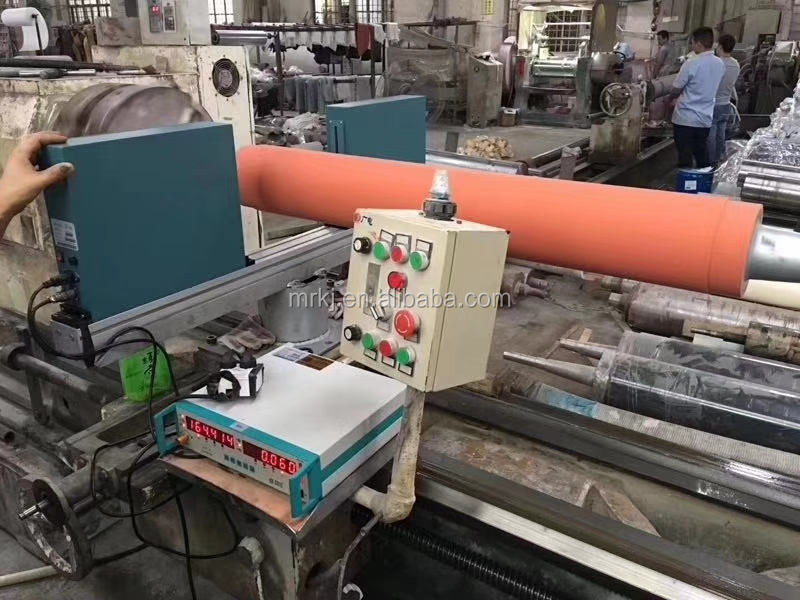

Laser CaliperIt is a high-precision measuring device that uses laser scanning to perform contact on-line measurement. It is mainly used in various wire, cable and pipe production lines to measure the outer diameter and adjust the screw speed or traction speed of the extruder to achieve the purpose of controlling the outer diameter. It can be applied to the outer diameter and size measurement of workpieces.
|
Model |
LDM-25 |
LDM-50 |
LDM-100B |
LDM-150 |
||
|
Measuring range |
0.2-20mm |
0.2-45mm |
0.2-95mm |
0.2-145mm |
||
|
smallest size |
0.2mm |
0.2mm |
0.2mm |
0.2mm |
||
|
biggest size |
20mm |
45 mm |
95mm |
145mm |
||
|
accuracy* |
±0.001 |
±0.002 |
±0.002 |
±0.01 |
||
|
Repeatability** |
0.5μm |
0.5μm |
0.5μm |
1μm |
||
|
solve |
0.001mm |
0.001mm |
0.001mm |
0.001 mm |
||
|
aspect |
48.5x20x8.5 cm |
48.5x20x8.5 cm |
62x25x6 cm |
92x29x9.5 cm |
||
|
Units of measurement |
mm |
mm |
mm |
mm |
||
|
strength |
~220V±15%, 50-60HZ |
|||||
|
temperature |
-10~40℃ |
|||||
|
humidity |
<85% relative humidity |
|||||
|
Probe serial input/output |
Standard: RS485 Option: RS232 / USB |
|||||
|
Protocol |
Modbus/Fieldbus |
|||||
|
preset |
Diameter, +Tol, -Tol, alarm settings |
|||||
|
transparent measurement |
options |
options |
options |
options |
||
|
control output |
||||||
|
serial input/output |
RS485 |
|||||
|
Analog output |
16-bit ±10V DC output |
|||||
|
Relay output |
2 V Free (Status, Tolerance High, Tolerance Low) |
|||||
Measurement method: laser scanning method
Laser unit: red visible semiconductor laser
Laser work function: <2mW
Working voltage: 220V±10%
Working temperature: -10~40℃
Environment: <95%RH
Working method: continuous
Power consumption: <30W
External dimensions:
LDM-80/LDM-150 measuring head: 910mm×80mm×292mm
The device has the following characteristics
1. It can be connected with PLC and industrial computer.
2. RROFIBUS-DP can be equipped with MODBUS converter to connect with PLC and IPC.
3. It can be equipped with remote control DDC-3 and DDC-5, which can automatically feedback control the extruder to control tolerance, improve product quality and reduce consumption.
