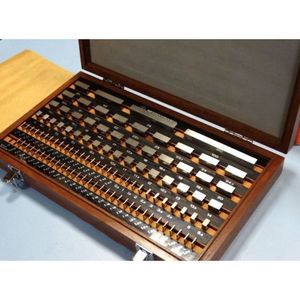

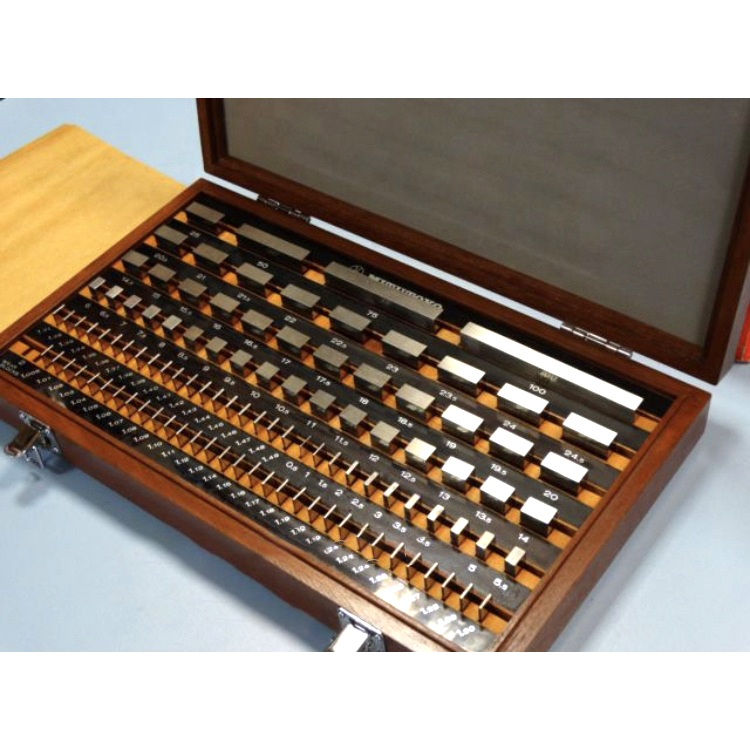

Block gauge set 32PCS 38PCS 47PCS 83PCS 87PCS 103PCS 112PCS 122PCS, individual block gauge
- $5.00 /piece
- 1 piece
- Zigong Dingli Alloy Material Co., Ltd.
- Sichuan, China
- Ms Hua Li
PRODUCT DETAIL
| Measuring range: | standard mode | model: | TG-8 |
| Supply capacity: | 10000 pieces per month | Material: | carbide or steel |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Visa | surface: | Grounded/Ungrounded |
| length: | 50mm or customized | product name: | gauge block |
| Origin: | Sichuan Province, China | grade: | Steel, YG6X/YG8, etc. |
| shape: | Custom/Standard | size: | custom made |
| tolerant: | +/-0.001mm | type: | Tungsten carbide plug gauge |
| port: | Chongqing, Shanghai, Guangdong, Qingdao, Shenzhen, etc. | Packaging Details: | Plastic, wooden box, carton, metal box, etc. Measuring block set 32PCS 38PCS 47PCS 83PCS 87PCS 103PCS 112PCS 122PCS Micrometer block high-precision carbide measuring block |
| Warranty: | 3 years | Customization support: | OEM, ODM, OBM |
Product Description
Measuring block set 32PCS 38PCS 47PCS 83PCS 87PCS 103PCS 112PCS 122PCS Micrometer block high-precision carbide measuring block
Material | Tungsten carbide/steel |
coating | no or as your request |
chemical composition | WC≥85.0% or as your request |
Hardness (HV) | 1475~1675 |
Hardness (HRC) | 45/50/55/58/60/65 |
Compressive strength (N/mm2) | 5600 |
Transverse breaking strength (N/mm2) | 3600 |
Fracture toughness | 10.0 |
-Carbide grade:
grade | ISO code | chemical composition (%) | grain size Micron | physical and mechanical properties (≥) | ||||||||
bathroom | cobalt | others | Density grams/cubic centimeter3 | Hardness (HRA) | TRS N/mm2 | |||||||
D10UF | K05-K15 | 93 | 6 | 1 | 0.6 | 14.80 | 93.0 | 2600 | ||||
D30UF | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 92.0 | 3800 | ||||
D30SF | K20-K30 | 89 | 10 | 1 | 0.5 | 14.40 | 92.5 | 4000 | ||||
D40SF | K40 | 87 | 12 | 1 | 0.4 | 14.15 | 92.5 | 4200 | ||||
DB10X | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 91.5 | 3800 | ||||
DP12X | K30-K40 | 87 | 12 | 1 | 0.6 | 14.15 | 91.0 | 3300 | ||||
DP13X | K40 | 87 | 12 | 1 | 1.0 | 14.10 | 90.0 | 3800 | ||||
YG6 | K05-K10 | 94 | 6 | 0 | 1.2 | 14.80 | 91.0 | 2600 | ||||
YG6X | K10 | 94 | 6 | 0 | 1.0 | 14.80 | 92.0 | 2500 | ||||
YG8 | K20-K30 | 92 | 8 | 0 | 1.2 | 14.70 | 90.0 | 2800 | ||||
YG10X | K30-K40 | 89 | 10 | 1 | 0.8 | 14.50 | 91.0 | 3500 | ||||
YG15 | K40 | 85 | 15 | 0 | 1.2 | 13.95 | 87.5 | 4500 | ||||
D20UF | K20-K30 | 91 | 8 | 1 | 0.6 | 14.6 | 92.5 | 3000 | ||||
YG25 | -- | 75 | 25 | 0 | 1.2 | 13.15 | 82.5 | 4800 | ||||
