140mm long inverted tapered special serdi carbide guide, carbide guide drill pipe
- $26.00 / 1 - 2 pieces
$23.00 / 3 - 9 pieces
$22.00 / 10 - 99 pieces
$14.80 / >=100 pieces - 1 piece
- Zigong Dingli Alloy Material Co., Ltd.
- Sichuan, China
- Ms Hua Li
PRODUCT DETAIL

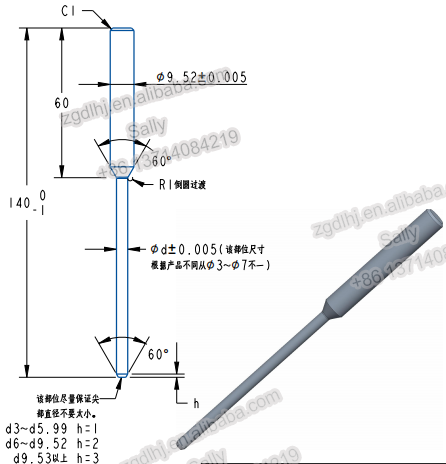

| length: | 140mm | Man: | 9.52 ± 0.01mm |
| d: | 3~9.51mm | density: | 14.15~14.7 g/cm^3 |
| port: | any port in China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Visa |
| Packaging Details: | Wooden case/carton/iron case and other plastic bags or boxes. | Grain Size: | 1.0~1.2 microns |
| brand: | Dingli | model: | d*D9.52*L140mm |
| hardness: | High Intensity Radiation 90 | Origin: | Sichuan, China |
| d Tolerance: | ±0.005mm | Supply capacity: | 1000 pieces per month |
| ISO code: | K20~K40 | Package preview: | |
| TRS: | 2800~3800 N/mm² | grade: | DP13X (YG8) |
Product Description
-Other types:
Material | Tungsten carbide |
chemical composition | WC≥85.0% |
Hardness (high pressure) | 1475~1675 |
Compressive strength (N/mm2) | 5200 |
Transverse breaking strength (N/mm2) | 3300 |
Fracture toughness | 10.0 |
-Tungsten carbide grade:
grade | ISO code | chemical composition (%) | grain size Micron | physical and mechanical properties (≥) | ||||||||
bathroom | limited company | others | Density g/cm3 | Hardness (HRA) | TRS Newton/mm2 | |||||||
D10UF | K05-K15 | 93 | 6 | 1 | 0.6 | 14.80 | 93.0 | 2600 | ||||
D30UF | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 92.0 | 3800 | ||||
D30SF | K20-K30 | 89 | 10 | 1 | 0.5 | 14.40 | 92.5 | 4000 | ||||
D40SF | K40 | 87 | 12 | 1 | 0.4 | 14.15 | 92.5 | 4200 | ||||
DB10X | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 91.5 | 3800 | ||||
DP12X | K30-K40 | 87 | 12 | 1 | 0.6 | 14.15 | 91.0 | 3300 | ||||
DP13X | K40 | 87 | 12 | 1 | 1.0 | 14.10 | 90.0 | 3800 | ||||
YG6 | K05-K10 | 94 | 6 | 0 | 1.2 | 14.80 | 91.0 | 2600 | ||||
YG6X | K10 | 94 | 6 | 0 | 1.0 | 14.80 | 92.0 | 2500 | ||||
YG8 | K20-K30 | 92 | 8 | 0 | 1.2 | 14.70 | 90.0 | 2800 | ||||
YG10X | K30-K40 | 89 | 10 | 1 | 0.8 | 14.50 | 91.0 | 3500 | ||||
YG15 | K40 | 85 | 15 | 0 | 1.2 | 13.95 | 87.5 | 4500 | ||||
D20UF | K20-K30 | 91 | 8 | 1 | 0.6 | 14.6 | 92.5 | 3000 | ||||
YG25 | -- | 75 | 25 | 0 | 1.2 | 13.15 | 82.5 | 4800 | ||||
