SML Tungsten Nickel Iron Rod Tungsten Bar WNiFe Tungsten Heavy Metal Alloy Price Per KG
- $5.00 / >=20 kilograms
- 20 kilograms
- Wuhan SML Tools Limited
- Hubei, China
- Ms Jodie SML Drilling
| Payment Terms: | Western Union,T/T,MoneyGram,Credit Card; | Packaging Detail: | Wooden case / Carton box; |
| Product name: | Tungsten Bar; | Supply Ability: | 100 Kilograms per Month; |
| Port: | Any China Port; | Density: | 15.8g/cc --19.3g/cc; |
| Condition: | cold roll, hot roll; | Place of Origin: | China; |
| Purity: | 99.95%min; | Melting point: | 3410°c; |
| Advantage: | Competitive; | Brand Name: | SML; |
| Shape: | Bar\rod\sheet\special; | Grade: | W1,W2,WAL,WLa,WNiFe; |
Tungsten carbide is a hard material composed of a metal matrix composite where carbide particles act as the aggregate and a metallic binder serves as the matrix. It is one of the most successful composite engineering materials ever produced. Its unique combination of strength, hardness and toughness satisfies the most demanding applications.
Tungsten carbide is used in machining tough materials such as cast iron or steel, as well as in situations where other tools would wear away, such as mining tools and wear parts. Most of the time, carbide will leave a better finish on the part,and allow faster machining. Carbide tools can also withstand higher temperatures than standard high speed steel tools.

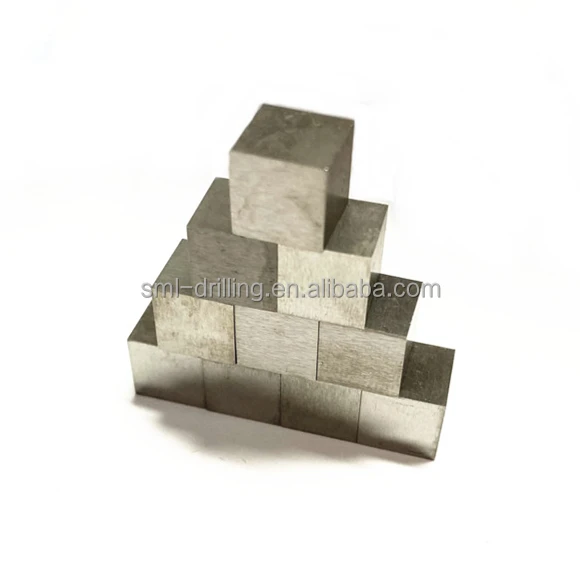

99.95 Pure Tungsten Alloy Cube
| Product Name | Tungsten Cube |
| Material | pure tungsten and tungsten heavy alloy |
| Surface | clean, alkali wash, polished |
| Density | 18.0 g/cm³ --19.2 g/cm³ |
| Dimension | Minimum size: 3*3*3mm Maximum size:customized |
| Application | Ornament, decoration, balance weight, desktop, gift, target, military industry |
1 inch cube: 25.4*25.4*25.4mm 296g/pcs
1.5 inches cube: 38.1*38.1*38.1mm 1kg/pcs
2 inches cube: 50.8*50.8*50.8mm 2.5kg/pcs
2.5inches cube: 63.5*63.5*63.5mm 4.74kg/pcs

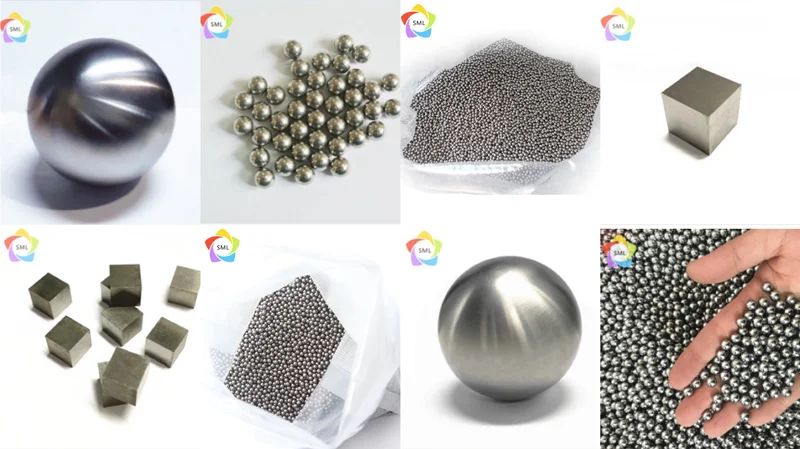

Tungsten Ball (Tungsten Sphere)
|
Product Name |
Tungsten Ball |
| Material | 97WNiFe/95WNiFe/93WNiFe/90WNiFe |
| Purity | ≥95% |
| Diameter | 1.8mm,1.9mm,2.0mm, 2.2mm, 2.25mm,2.5mm,2.75mm,3.0mm and etc. |
| Character | Melting Point: 3410℃ Boiling Point: 5927℃ Density: 18.2g/cm³ |
| Color | silver metallic luster |
| Advantages | high density, high melting point, small volume |
|
Application |
ball bearing, seat valve |
|
Package |
metal bucket or carton box |

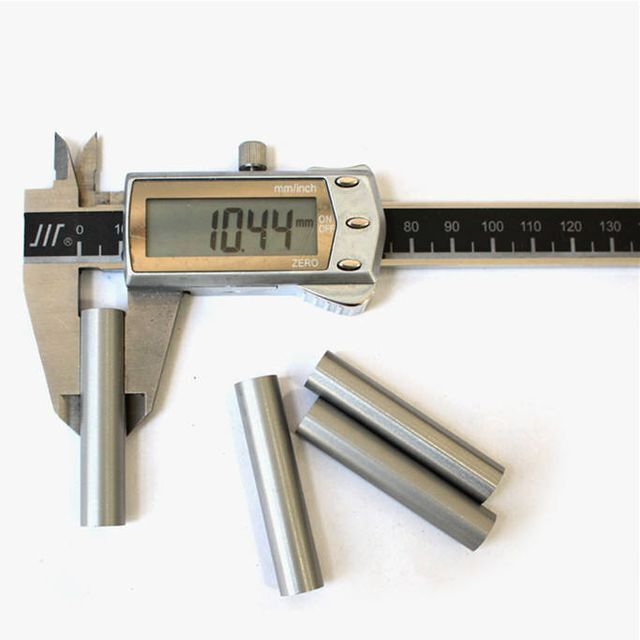

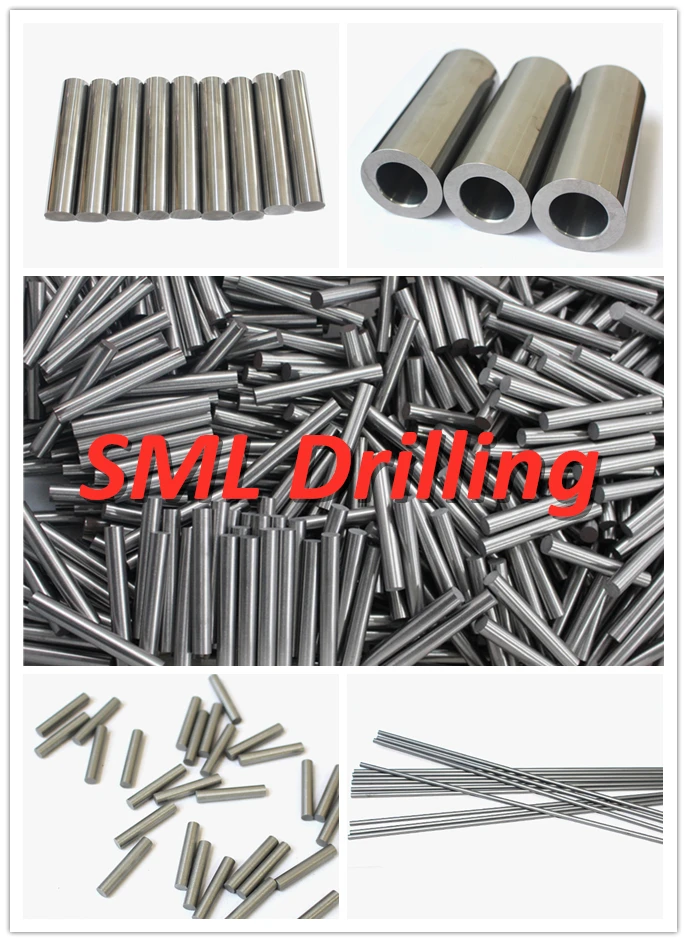

Tungsten Bars
|
Product Name |
Tungsten Bar |
|
Material |
99.95% tungsten |
|
Grade |
W1,W2,WAL,WLa,WNiFe |
|
Dimension |
customized |
|
Density |
19.3g/cm3 |
|
Melting point |
3410℃ |
|
Design&Size |
OEM or ODM acceptable |
|
Properties |
high hardness and strength, excellent corrosion resistance |
|
Surface |
sintered, sandblasting or polishing |
Tungsten Cube is widely used for Ornament, decoration, gift, Balance weight, collection, target, Military industry, and so on.
Tungsten Nickel Iron is a high-density alloy suitable for high-temperature environments and applications such as bearing assembly, ballast, casting, step soldering, and radiation shielding. Tungsten,nickel and iron alloys are available in numerous machined shapes such as bar, ingot, ribbon, wire, shot, sheet, and foil, in various dimensions.
| Type |
Density (g/cm³) |
Tensile Strength (MPa) |
Elongation (%) |
Hardness (HRC) |
| 85W-10.5Ni-4.5Fe | 15.8~16.0 | 700 to 980 | 20 to 33 | 20 to 28 |
| 90W-7Ni-3Fe | 16.9~17.15 | 700 to 980 | 20 to 33 | 24 to 32 |
| 90W-6Ni-4Fe | 16.8-17.0 | 700 to 980 | 20 to 33 | 24 to 32 |
| 91W-6Ni-3Fe | 17.1-17.3 | 700 to 980 |
16 to 25 |
25 to 32 |
| 92W-5Ni-3Fe | 17.3-17.5 | 700 to 980 | 18 to 24 | 25 to 32 |
| 92.5W-5Ni-2.5Fe | 17.4-17.6 | 700 to 980 | 24 to 30 | 25 to 32 |
| 93W-4Ni-3Fe | 17.5-17.6 | 700 to 980 | 15 to 25 | 26 to 30 |
| 93W-4.9Ni-2.1Fe | 17.5-17.6 | 700 to 980 | 18 to 28 | 26 to 30 |
| 93W-5Ni-2Fe | 17.5-17.6 | 700 to 980 | 15 to 25 | 26 to 30 |
| 95W-3Ni-2Fe | 17.9-18.1 | 600 to 750 | 8 to 15 | 28 to 35 |
| 95W-3.5Ni-1.5Fe | 17.9-18.1 | 600 to 750 | 8 to 13 | 28 to 35 |
Tungsten Bars (Tungsten Rods) are used to make emission cathodes, high temperature forming rods, support wires, lead-in wires, printer pins, various electrodes, heating elements of quartz furnace, etc
SML Drilling, loacated in Wuhan, was established in 2008. We manufacture drilling tools and provide varieties of accessories.
With more than 13 years of experience in drilling industry, we have a complete line to take care of your drilling needs and have always prioritized our customers'goals. Through promoting reliable drilling solutions at affordable prices, our business has slowly been able to add new products while maintaining the focus on customer service.
We strive to exceed customers’ expectations in affordability, quality and on-time delivery.
SML research and produce the following range of drilling tools:
* PDC cutter/insert 0808, 1013, 1108, 1305, 1308, 1313, 1613, 1616, 1913, 1916...oil or mining type.
* PDC Bit for Oil Drilling, PDC Round Blade Bit, PDC Tip/Anchor Bit, PDC Matrix Body Bit, PDC Hole Opener, PDC Drag Bit, PDC Non bit, PDC Core Bit...
(Diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm, 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm...190mm, 216mm…)
* Tricone Bit with Milled tooth or TCI, Single roller cone bit
*Diamond Core Drill bit: impregnated diamond core bit, brazed diamond core bit, glass core bit, sintered core bit...
* Tungsten carbide drill bit: two wings coal bit, carbide drag bit, chisel bit, cross bit, button bit,
DTH hammer bit...
* PCD Insert & Cutting tools / PCD Blank, CBN&PCBN Insert & Cutting tools
* Metal Materials:
Metal Welding Material: silver solder, surfacing material and tungsten electrode
Other Nonferrous Metals:
pure tungsten, tungsten alloy (tungsten carbide insert, TSS super tungsten shot, Tungsten nickel copper / W-Ni-Cu alloy, W-Ni-Fe, W-Cu Alloy/Tungsten Copper Alloy), Mo Alloy, Copper Alloy..
* Drill bit accessaries: diamond burr, tungsten carbide nozzle, graphite displacement, adapter, TSP...
* Drill rods – hex, twist, spiral…
* Samplers
* Other drill tools: tungsten powder, silver solder, boron carbide sandbladster...
