High precision inverted cone 190mm long serdi carbide guide, carbide pilot drill pipe
- $23.00 /piece
- 1 piece
- Zigong Dingli Alloy Material Co., Ltd.
- Sichuan, China
- Ms Hua Li
PRODUCT DETAIL

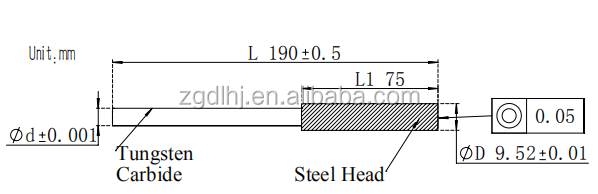

grade: | DP13X (YG8); | model: | d(3~4.49)*D9.52*L190mm; |
length: | 190 mm; | d: | 3~4.49mm; |
Grain size: | 1.0~1.2 microns; | density: | 14.15~14.7g/cm^3; |
TRS: | 2800~3800 N/mm2; | Packaging Preview: | ; |
hardness: | Human Resources Administration90; | Packaging Details: | Plastic bags or plastic boxes in wooden boxes/cartons/iron boxes, etc.; |
Origin: | Sichuan, China; | Gross weight per piece: | 0.150 kg; |
brand: | vigorous; | Sales unit: | single item; |
Single package size: | 25X4X4 cm; | Ding: | 9.52±0.01mm; |
d Tolerance: | ±0.005 mm; | International Organization for Standardization Code: | K20~K40; |
product description
-Other types:
Material | Tungsten Carbide |
chemical composition | WC≥85.0% |
Hardness (HV) | 1475~1675 |
Compressive strength (N/mm2) | 5200 |
Transverse breaking strength (N/mm2) | 3300 |
fracture toughness | 10.0 |
-Carbide grade:
grade | ISO code | chemical composition (%) | grain size microns | physical and mechanical properties (≥) | ||||||||
bathroom | company | other | Density g/cm3 | Hardness (HRA) | TRS N/mm2 | |||||||
D10UF | K05-K15 | 93 | 6 | 1 | 0.6 | 14.80 | 93.0 | 2600 | ||||
D30UF | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 92.0 | 3800 | ||||
D30SF | K20-K30 | 89 | 10 | 1 | 0.5 | 14.40 | 92.5 | 4000 | ||||
D40SF | K40 | 87 | 12 | 1 | 0.4 | 14.15 | 92.5 | 4200 | ||||
DB10X | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 91.5 | 3800 | ||||
DP12X | K30-K40 | 87 | 12 | 1 | 0.6 | 14.15 | 91.0 | 3300 | ||||
DP13X | K40 | 87 | 12 | 1 | 1.0 | 14.10 | 90.0 | 3800 | ||||
YG6 | K05-K10 | 94 | 6 | 0 | 1.2 | 14.80 | 91.0 | 2600 | ||||
YG6X | K10 | 94 | 6 | 0 | 1.0 | 14.80 | 92.0 | 2500 | ||||
YG8 | K20-K30 | 92 | 8 | 0 | 1.2 | 14.70 | 90.0 | 2800 | ||||
YG10X | K30-K40 | 89 | 10 | 1 | 0.8 | 14.50 | 91.0 | 3500 | ||||
YG15 | K40 | 85 | 15 | 0 | 1.2 | 13.95 | 87.5 | 4500 | ||||
D20UF | K20-K30 | 91 | 8 | 1 | 0.6 | 14.6 | 92.5 | 3000 | ||||
YG25 | -- | 75 | 25 | 0 | 1.2 | 13.15 | 82.5 | 4800 |
Popular products
Tungsten carbide rod
single/Double straight hole
Tungsten Carbide Tube
Tungsten carbide tape
milling cutter
thread cutter
drill
Carbide inserts
Reamer
Deep hole gun drill
Anti-vibration boring holder
Reamer
Wear parts
Measurement
Molybdenum wire
Carbide electrode

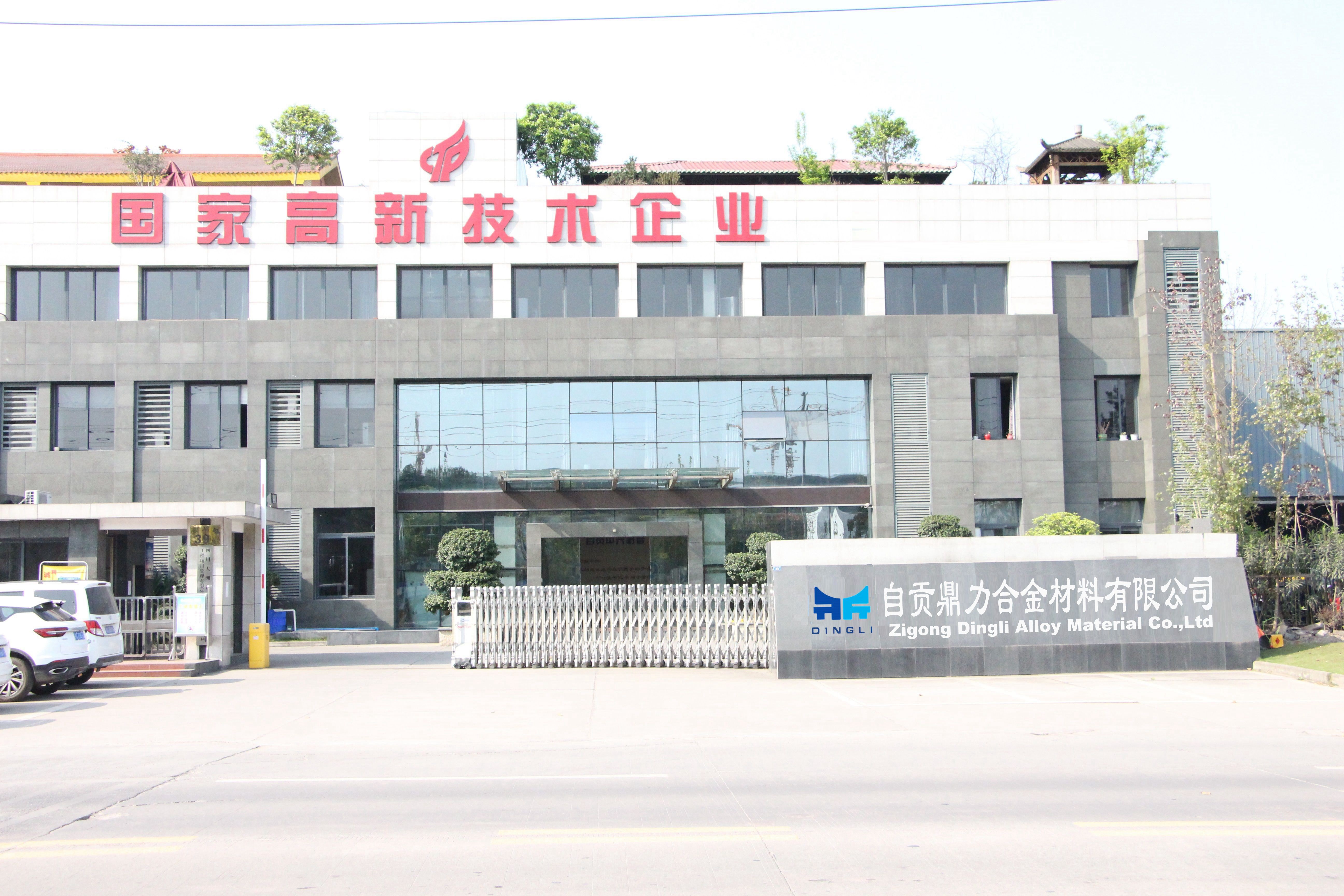

Company Profile
Zigong Dingli Alloy Materials Co., Ltd.
Located in the new industrial parkZigong, Sichuan, China's famous cemented carbide production base.thisfactoryMainly committed to the production and development of various productsCarbide Products, picturerod tube, carbideboring bar,flat steelandtool,In China, our goal is to become a central manufacturing base for extruded bars, carbide boring bars, standard tools, non-standard tools and hard machining tools, and to establish a good and healthy corporate image in the industry.

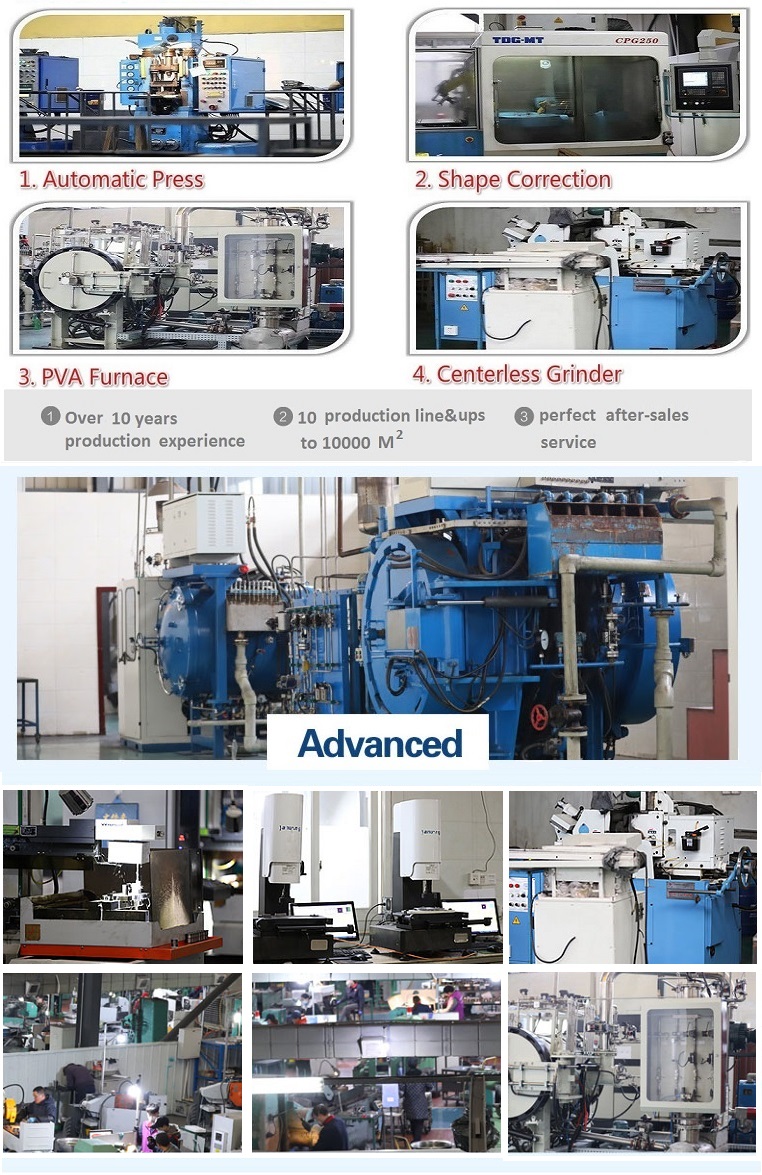

The main production equipment:
Currently, companies can.In general, our products can be used to make molds, electronics, automobile engines and accessories, military equipment, petroleum machinery, machinery manufacturing, etc.We have stable customers such asUnited States, Russia, Indonesia, South Korea, Japan, Australiaand many more.

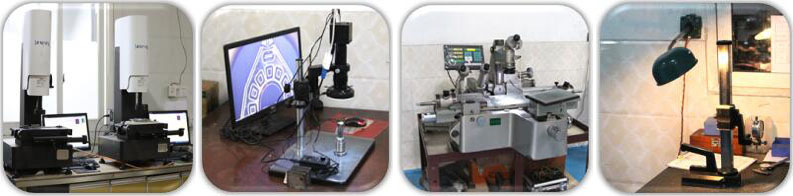

Testing Machine:
Our company was established in July 2011. The company's product quality and reputation have reached the domestic middle and upper level, second only to several most competitive cemented carbide enterprises.We continue to improve technology and introduce advanced equipment, which greatly improves the professionalism and production scale.

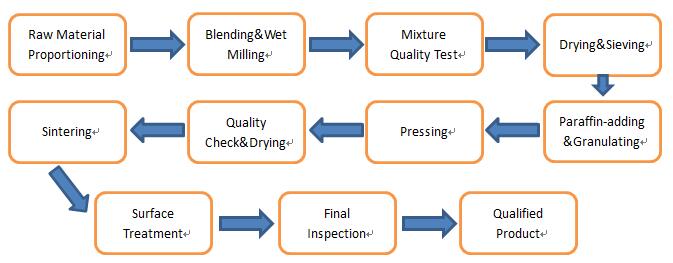

Production flow chart:
Packaging and Delivery
custom packaging
1> Put the goods packed in plastic bags or plastic boxes into wooden boxes/cartons/iron boxes, etc.
2>Other packaging will accept customization.
1> Put the goods packed in plastic bags or plastic boxes into wooden boxes/cartons/iron boxes, etc.
2>Other packaging will accept customization.
FAQ
Q1: How long is your delivery time?
A1: It depends on the specific situation.However, it may take 10 to 15 days on average.
Q2: Do you provide samples?
A2: Yes, we provide samples.However, buyers need to pay for shipping.Also, whether the sample is free or not depends on the quantity you purchase.
Q3: How do you package the product?
A3: Generally, we use wooden boxes, plastic boxes or carton boxes.We also put some soft material inside to prevent possible damage to the product.
Q4: How much prepayment do I need to pay?
A4: If the product you purchased is in stock, you need to pay in full; if the product is out of stock, you need to pay about 50% of the full payment, then we will start the production process.However, you still need to pay the rest of the cost before we deliver the product.
Q5: What payment methods do you accept?
A5: In addition to the payment methods shown above, you can also discuss with us which method you would like to pay.
If you have any other questions, please contact us:
Contact: Gorgeous
Phone/whatsapp/WeChat: +86 13890019405
Tel: +86-0813-3803811
A1: It depends on the specific situation.However, it may take 10 to 15 days on average.
Q2: Do you provide samples?
A2: Yes, we provide samples.However, buyers need to pay for shipping.Also, whether the sample is free or not depends on the quantity you purchase.
Q3: How do you package the product?
A3: Generally, we use wooden boxes, plastic boxes or carton boxes.We also put some soft material inside to prevent possible damage to the product.
Q4: How much prepayment do I need to pay?
A4: If the product you purchased is in stock, you need to pay in full; if the product is out of stock, you need to pay about 50% of the full payment, then we will start the production process.However, you still need to pay the rest of the cost before we deliver the product.
Q5: What payment methods do you accept?
A5: In addition to the payment methods shown above, you can also discuss with us which method you would like to pay.
If you have any other questions, please contact us:
Contact: Gorgeous
Phone/whatsapp/WeChat: +86 13890019405
Tel: +86-0813-3803811
QQ: 2635367055
01About chromatic aberration
The product pictures are all taken in kind. Due to camera technology, light, display parameters and other reasons, there may be
Please refer to the actual product for the difference between the actual product received and the photos.
02cargo receipt
All our products are strictly inspected and counted before shipment.Please check it yourself when you receive it.
If you find that the CTN number, model is wrong or the product is damaged in transit, please refuse to sign for it and contact us.
03notes
In order to obtain a better cutting surface and prolong the service life of the tool, please use a high-precision tool holder,
Rigidity and dynamic balance.
The product pictures are all taken in kind. Due to camera technology, light, display parameters and other reasons, there may be
Please refer to the actual product for the difference between the actual product received and the photos.
02cargo receipt
All our products are strictly inspected and counted before shipment.Please check it yourself when you receive it.
If you find that the CTN number, model is wrong or the product is damaged in transit, please refuse to sign for it and contact us.
03notes
In order to obtain a better cutting surface and prolong the service life of the tool, please use a high-precision tool holder,
Rigidity and dynamic balance.
