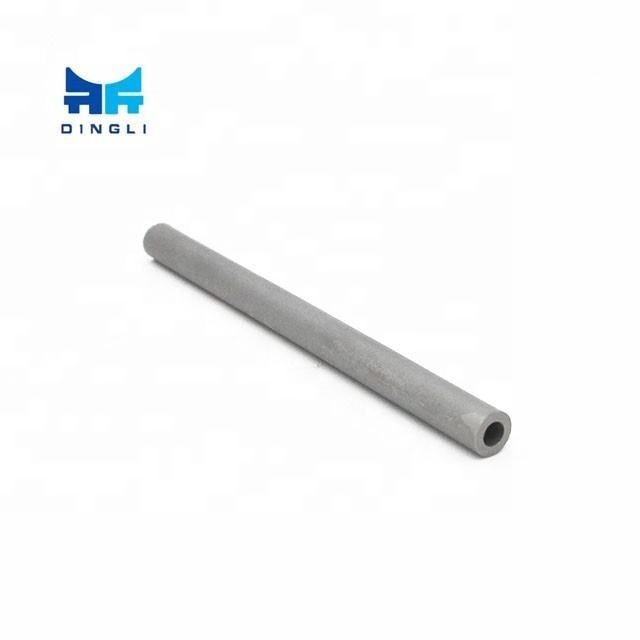

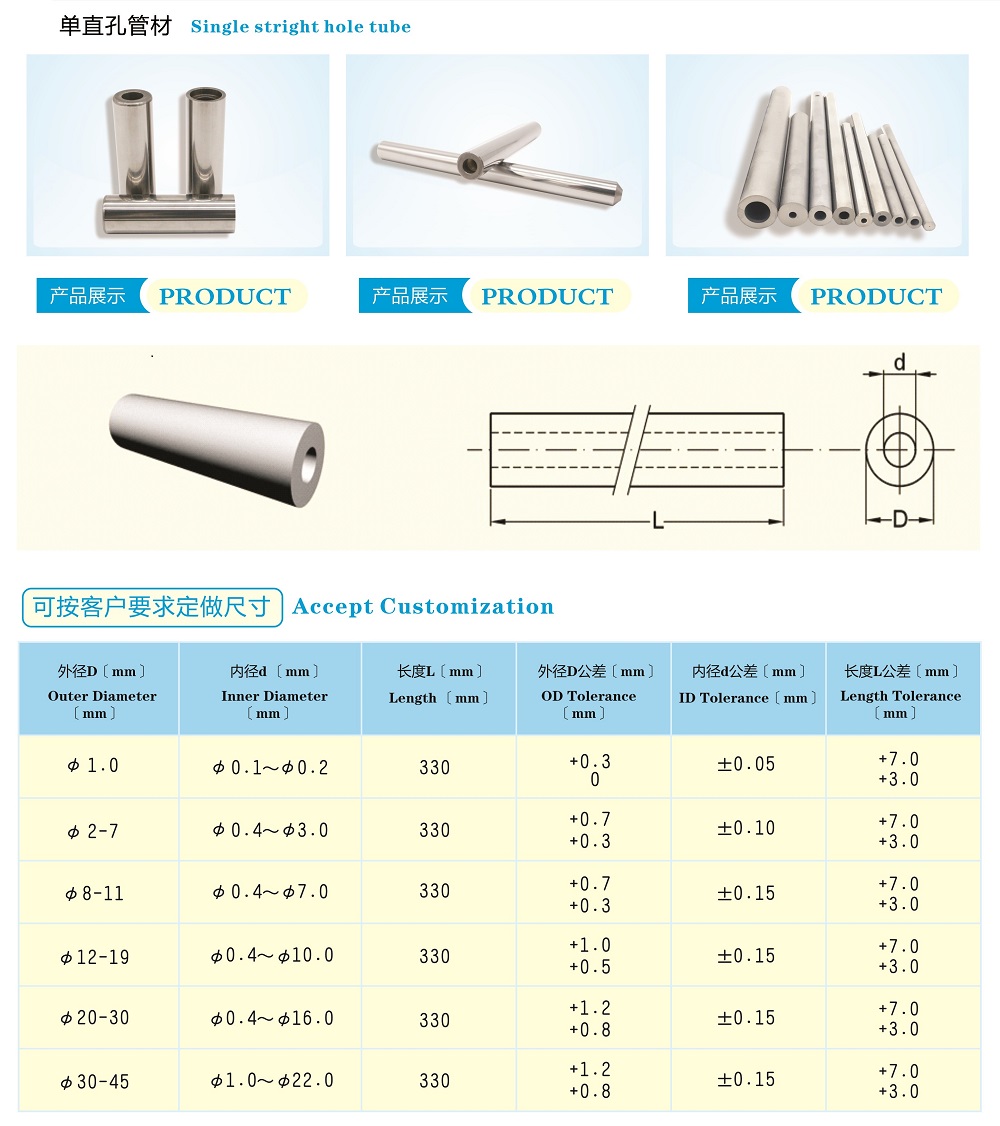

unground tungsten cemented carbide single straight hole tube

PRODUCT DETAIL
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Visa;T.R.S:2500~4500 N/mm2;
Material:Wc+Co;Hardness:HRA 87~93;
ID:0.1~22 mm;Density:13.95~19 g/cm3;
Brand Name:DINGLI;ISO Code:K05-K40;
Model Number:TG-2;Grade:D30UF/DP12X/D10UF/YG8, etc.;
Place of Origin:Sichuan, China;Grain Size:0.4~1.2 μm;
Package Preview:;Supply Ability:10 Tons per Month;
Length:10~335 mm;Packaging Detail:plastic bag or plastic case in wooden box/carton/iron box,etc.;
OD:0.8~45 mm;Port:Chongqing,Shanghai,Guangdong,Qingdao,Shenzhen,etc.;





- Tungsten Cemented Carbide Grade:

 Grade   ISO  Code

   Chemical Component

(%)

  Grain size um

   Physial Mechanical Properties

(≥)

WC Co Others  Density g/cm3 Hardness (HRA) T.R.S   N/mm2
  D10UF  K05-K15  93  6 1  0.6 14.7093.0 2600
 D30UF K20-K30  89 10 1 0.6 14.5092.0 3800
 D30SF K20-K30  89 10 1 0.5 14.4092.5   4000
 D40SFK40 87121 0.4 14.3092.5 4200
 DB10X K20-K30   89  10  1   0.6  14.50 91.5   3800
 DP12XK30-K40  87  12  1   0.6   14.15  91.0   3300
 DP13XK40  86  13  1   0.8   14.10  90.5   4400
  YG6 K05-K10  93    6  0  1.2  14.95  91.0   2600
 YG6X K10   93    6  0   1.0   14.95 92.0  2500
 YG8K20-K30 92  80  1.2  14.70 90.0   2800
 YG10XK30-K40  89  10 1  0.8   14.50  91.0   3500
 YG15K40  85  15 0 1.2 14.0087.5  4500
 YG25 --  75  25 0 1.2  13.15 82.5  4800

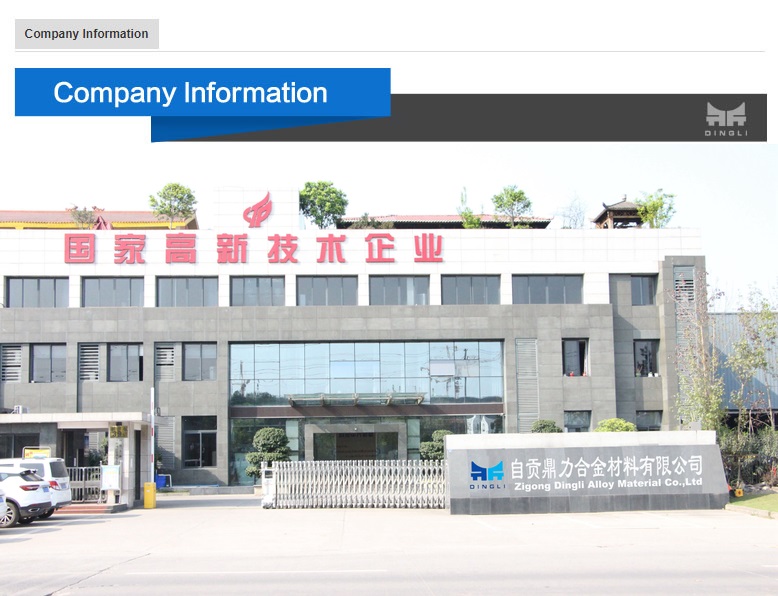

Zigong Dingli Alloy Co., LTD. Locates at the new industrial park in Zigong, Sichuan, the famous production base for cemented carbide in China. The factory is mainly working on the production and development of all kinds of cemented carbide products, like rods pipe, cemented carbide single straight hole tube and flat bars. In China, our goal is to become the central base of manufacture of extruded rods, carbide boring bar, standard cutters, non standard cutters and hard-machining cutters, establishing a good and healthy company image among coterie.

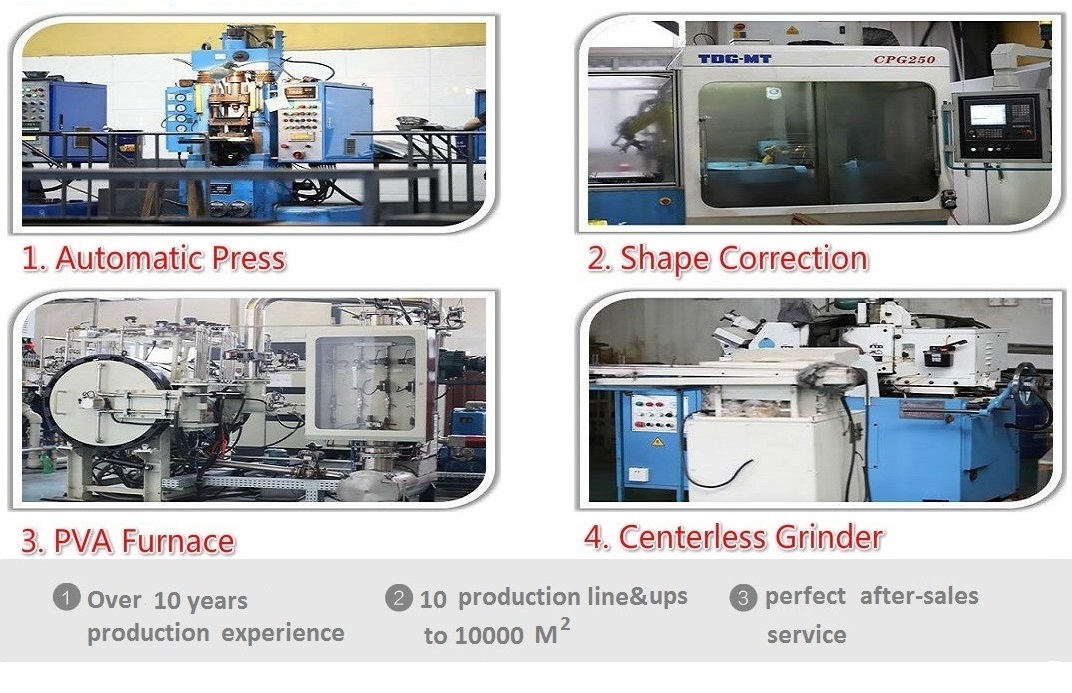

Main Production Equipment:

At present,the company can. In general, our products can be used in manufacture of mould, electronics, car engine and accessories, military device, petroleum machinery, machinofacture, etc. We have stable customers, such as the United States, Russia, Indonesia, South Korea, Japan, Australia and so on.



Testing Machine:

Our company was established in July, 2011, the company’s product quality and public praise have reached the domestic middle upper level, merely behind several the most competing cemented carbide companies. we continuously improve techniques and introduce advanced equipment, enhancing the professionalism and production scale to a large extent.





Production Flow Chart:

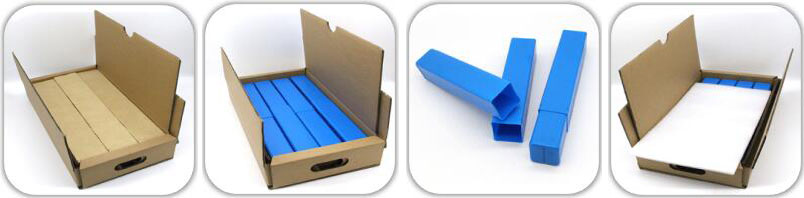

                        Packing
                        1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box,etc.
                        2>Other packing will be accept according to your needs.





FAQ

 Q1: How long is your delivery period?

A1: It depends on specific conditions. However, it could be 10 to 15 days on average.

Q2: Do you offer samples?

A2: Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy.

Q3: How do you pack the products?

A3: In general, we use wood, plastic or carton boxes. We also put some soft materials inside to prevent possible damage on products.

Q4: How much advance payment do I need to make?

A4: If the products you buy are in stock, you need to make full payment; if the products are out of stock, you need to make about 50 percent of full payment and then we will start the production process. However, you still need to pay the rest of charges before we deliver the products.

Q5: What kinds of payment do you accept?

A5: In addition to the patterns of payment shown above, you can discuss with us about in which way you would like to pay.

Please contact us if you have any other questions:



01  About Color Aberration

Product pictures are all physical photography, due to photo-taking technology, light, display parameters, etc., there may be differences between the received physical objects and photos, please refer to the physical.

02  Cargo Receipt

All our products go through strict inspection and count before shipment. Please check the goods in person when they receive them. Please refuse to sign and contact us if you find that the CTN number and model is wrong or the product is damaged in transit.
