RS485 output 4-20ma online electrode polarographic residual chlorine sensor
- $375.20 / 1 - 9 pieces
$372.20 / 10 - 99 pieces
$365.20 / 100 - 999 pieces
$360.20 / >=1000 pieces - 1 piece
- Honde Technology Co., Ltd.
- Beijing, China
- Mr Marvin Li
PRODUCT DETAIL
| Gross weight of single piece: | 0.500kg | theory: | Electrochemical principles |
| describe: | Free residual chlorine sensor, HONDETECH residual chlorine sensor | Package preview: | |
| model: | RD-WQRC-02 | Sales unit: | Single product |
| series: | water quality sensor | brand: | Hong Deqi |
| Single piece packaging size: | 10X5X5 cm | Minimum order quantity: | 1 |
| Temperature compensation: | automatic / manual | output signal: | 4-20mA |
| Warranty: | 1 year | usage: | Residual chlorine in water |
| Place of origin: | Beijing China | Correction method: | laboratory comparison |
| Packaging details: | 1 piece/pack | Protection level: | IP68 |
| Output: | RS485 output | Communication signal: | RS485-MODBUS |
| type: | water quality sensor | Certification: | CE |
| feature: | High accuracy | Instrument/Transmitter: | No |
| Installation type: | put in water | product name: | HONDETECH chlorine sensor |
Product Description
product name | Residual chlorine sensor | |
Input residual chlorine sensor | 1 | |
Measuring range | 0.00-20.00mg/L | |
measurement accuracy | 2%/±10ppb HOCI | |
temperature range | 0-60.0℃ | |
Temperature compensation | automatic | |
output signal | RS485/4-20mA | |
Withstand voltage range | 0-1 bar | |
Material | PC+316 stainless steel | |
Wire | 3/4NPT | |
cable length | Straight out 5m signal line | |
Protection level | IP68 | |
Flow-through residual chlorine sensor | ||
Measuring range | 0.00-20.00mg/L | |
measurement accuracy | ±1mV | |
Temperature compensation range | -25-130℃ | |
Current signal output | 4-20mA (adjustable) | |
Data communication | RS485 (MODBUS protocol) | |
Current signal output load | <750MPa | |
Material | personal computer | |
Operating temperature | 0-65℃ | |
Protection level | IP68 | |
detailed picture

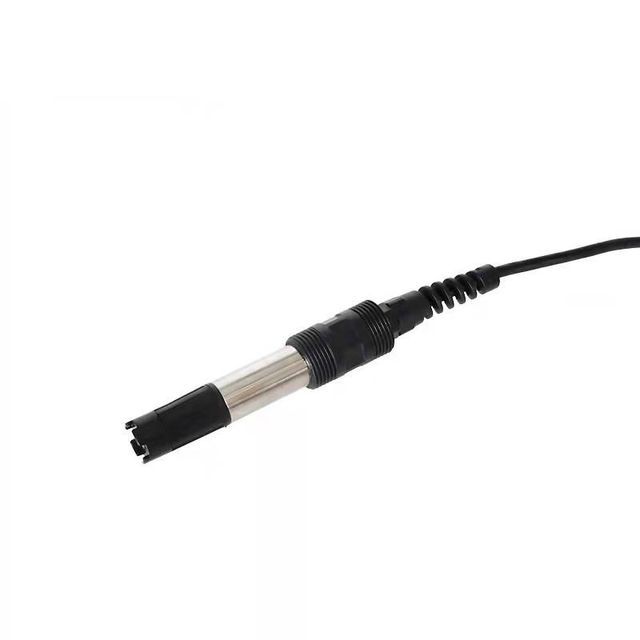

Residual chlorine sensor

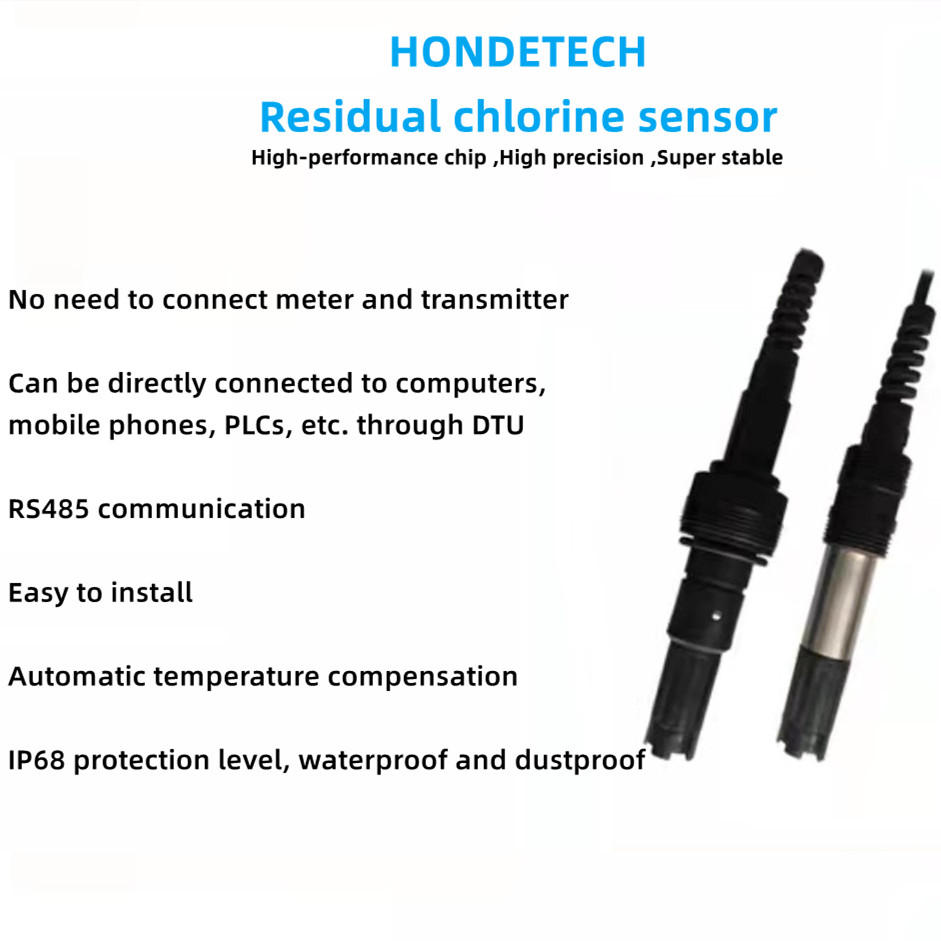

The intelligent residual chlorine sensor is an instrument that can quickly detect residual chlorine. It can be directly connected to computers and mobile phones through DTU to transmit data in real time.
High-performance chip, high-precision measurement, temperature

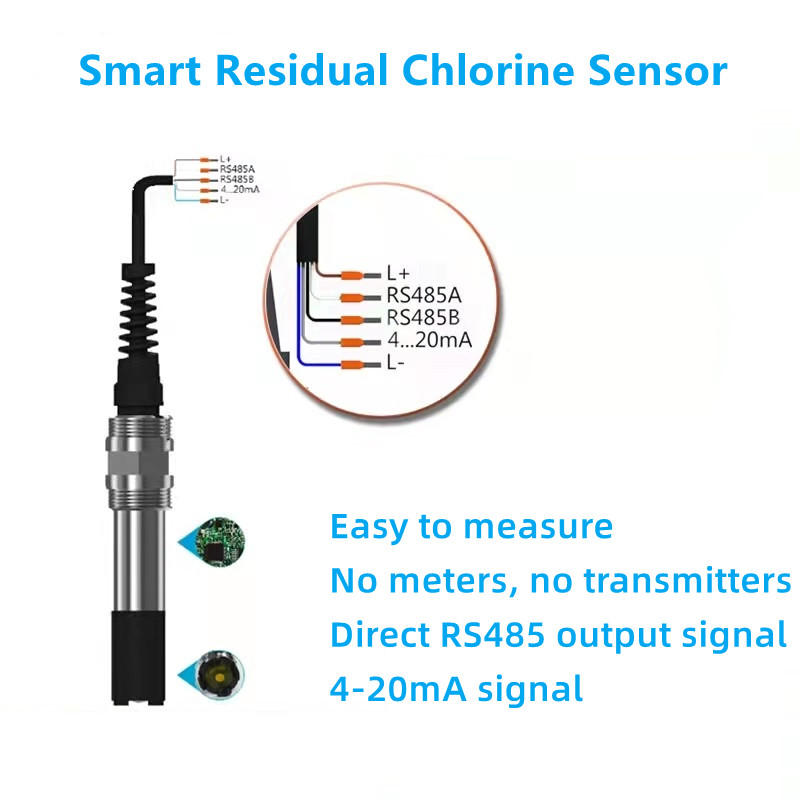

No instrument or transmitter required, RS485 direct connection

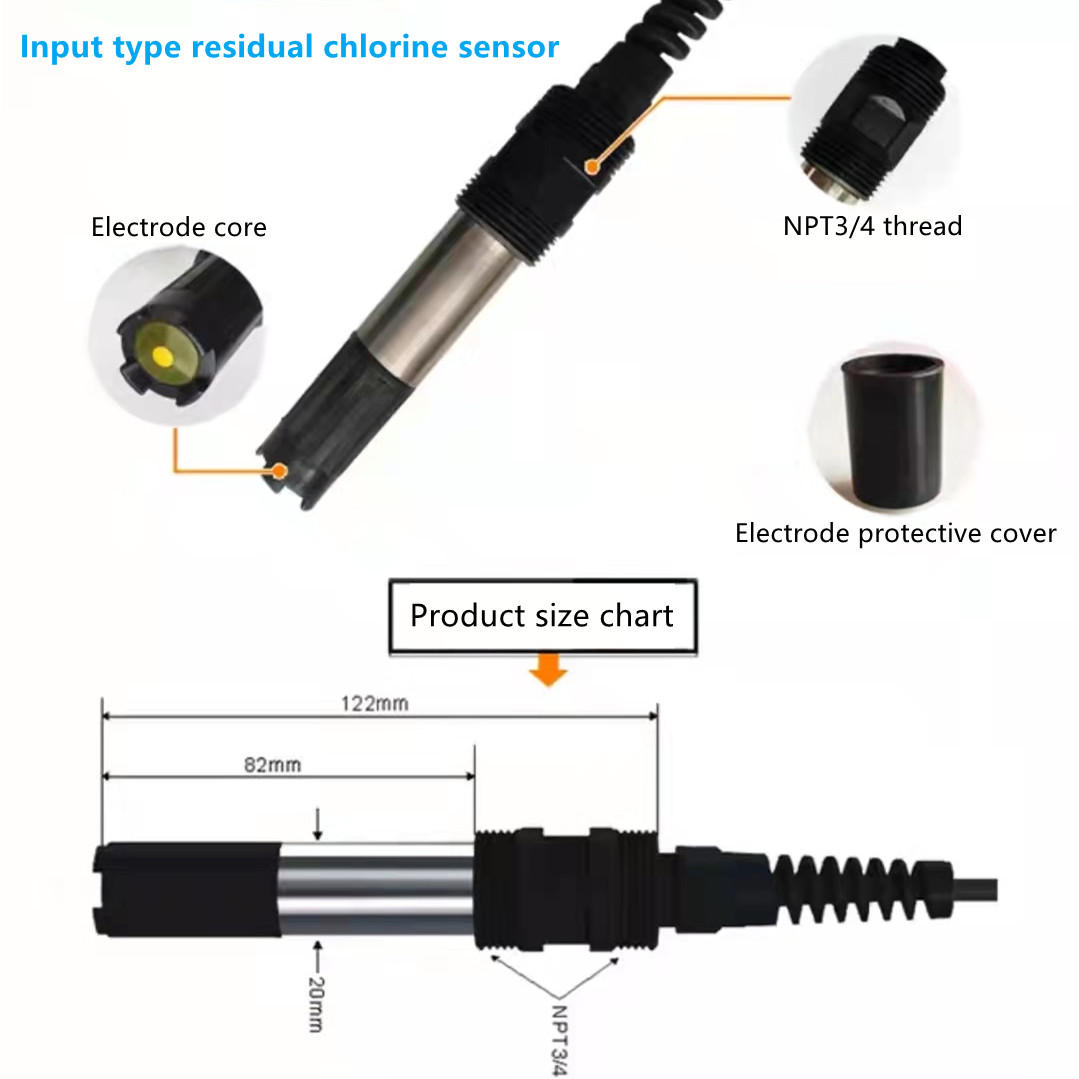

Product Size. Easy to install and easy to use

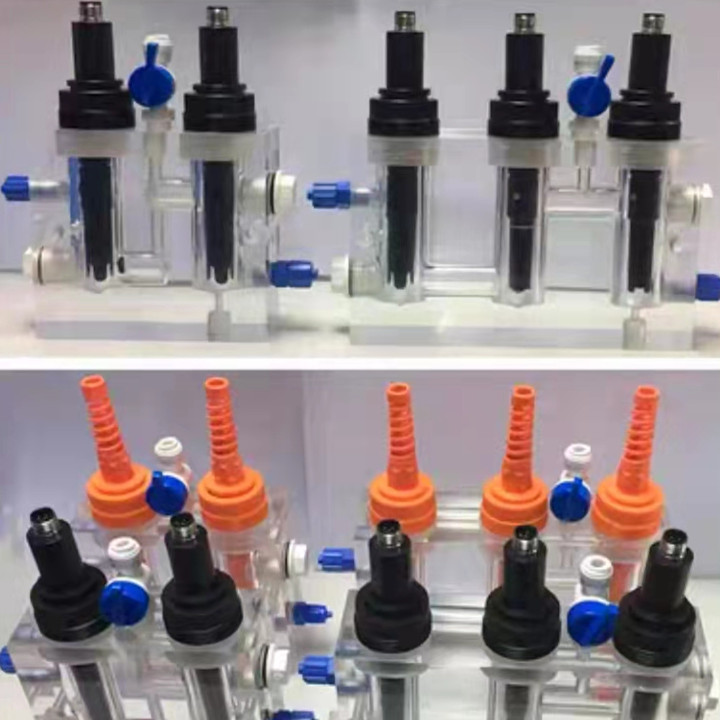

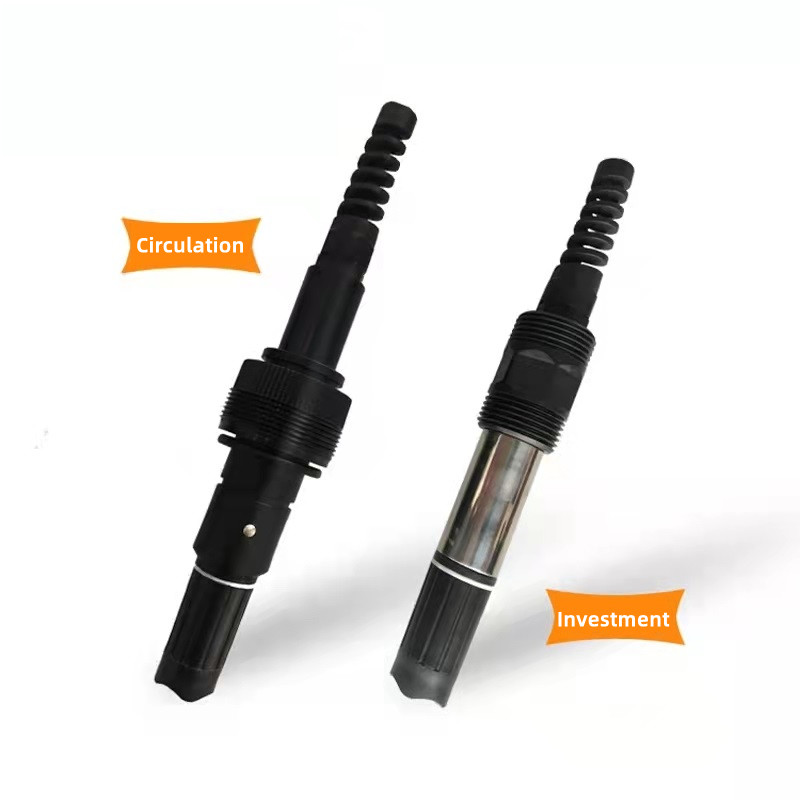

Residual chlorine sensor specifications: flow type, input type
