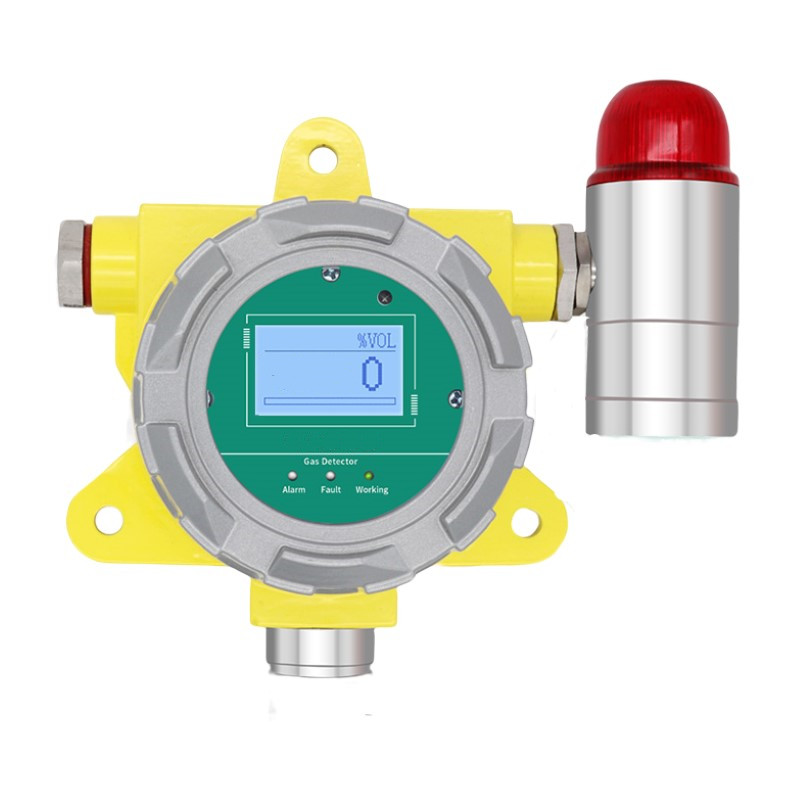

FIXED O2 NH3 H2 CO H2S CH4 NO2 SO2 O3 PH3 EXPLOSION PROOF COMBUSTIBLE GAS DETECTOR

  • $75.00 / 1 - 9 pieces
    $70.00 / 10 - 99 pieces
    $60.00 / >=100 pieces
  • 1 piece
  • Honde Technology Co., Ltd.
  • Beijing, China
  • Mr Marvin Li
PRODUCT DETAIL
Output:RS485/4-20mA/0-5V/0-10V/LCD screen,RS485/4-20mA/0-5V/0-10V/LCD screen;Shell material:Cast aluminum explosion-proof enclosure;
MOQ:1pc;Temperature range:-10~50℃;
Place of Origin:Beijing, China;Cloud server and software:Support;
Model Number:RD-EPGD-01;Wireless module:GPRS/4G/WIFI/LORA/LORAWAN;
Warranty:1 Year Under Normal;Product name:Explosion-proof combustible gas detector;
Application:Power plant/Paint house/Gas station/Chemical plant/LPG station;Brand Name:HONDETECH;
Payment Terms:Western Union,T/T,MoneyGram,Paypal;Usage:Gas detection;
Description:Explosion-proof combustible gas detector;Package Preview:;
Theory:Gas volume converted into electrical signal;Port:Tianjin Port;
Power supply:DC10-30V;Type:Smoke Detector,co2 sensor,Humidity Sensor,Air quality sensor,Gas Sensor,flammable gas,explosive gas;
Supply Ability:1000 Pieces per Month;Packaging Detail:Carton box;
Product Description
Measurement parameters

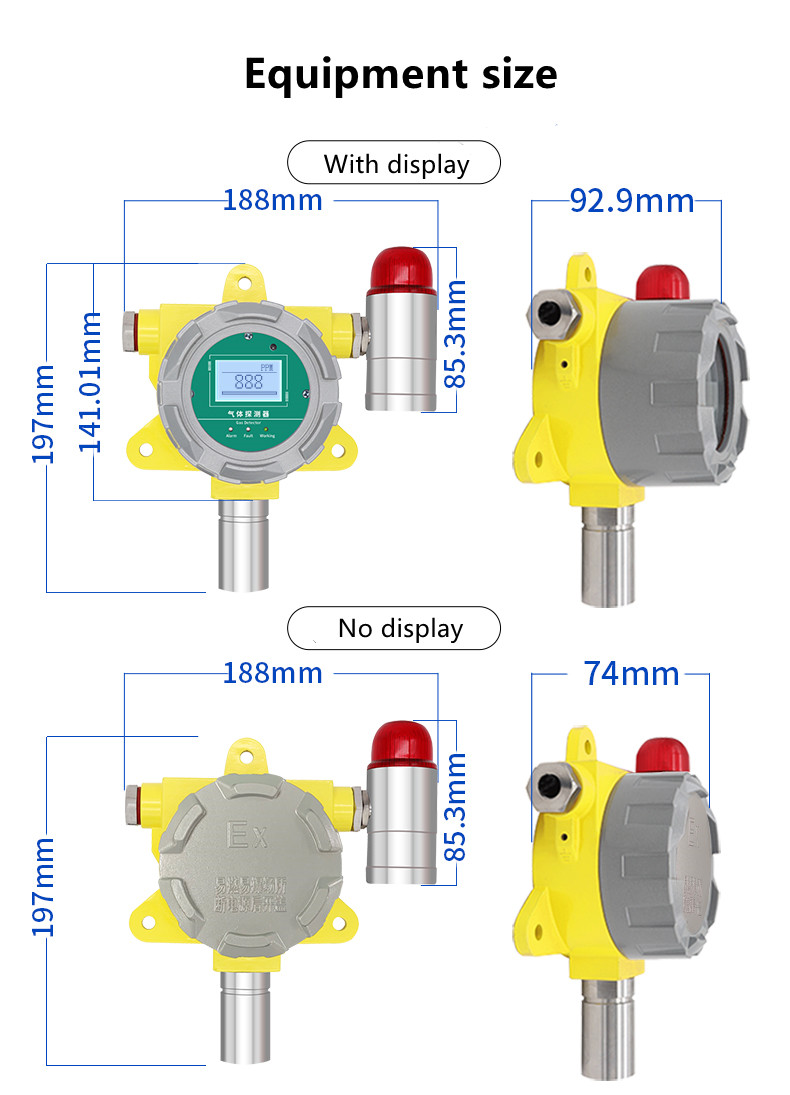

Product size
No sound and light alarm Length * width * height: about 197 * 154 * 94mm
With sound and light alarm Length * width * height: about 197 * 188 * 93mm
Shell material
Cast aluminum explosion-proof enclosure
Screen specifications
LCD screen
O2
Measuring range
Resolution
Accuracy
0-25 %VOL
0.1 %VOL
±3%FS
H2S
Measuring range
Resolution
Accuracy
0-100 ppm
1 ppm
±3%FS
0-50 ppm
0.1 ppm
±3%FS
CO
Measuring range
Resolution
Accuracy
0-1000 ppm
1 ppm
±3%FS
0-2000ppm
1 ppm
±3%FS
CH4
Measuring range
Resolution
Accuracy
0-100 %LEL
1 %LEL
±5%FS
NO2
Measuring range
Resolution
Accuracy
0-20 ppm
0.1 ppm
±3%FS
0-2000 ppm
1 ppm
±3%FS
SO2
Measuring range
Resolution
Accuracy
0-20 ppm
0.1 ppm
±3%FS
0-2000 ppm
1 ppm
±3%FS
H2
Measuring range
Resolution
Accuracy
0-1000 ppm
1 ppm
±3%FS
0-40000 ppm
1 ppm
±3%FS
NH3
Measuring range
Resolution
Accuracy
0-50 ppm
0.1 ppm
±5%FS
0-100 ppm
1 ppm
±5%FS
PH3
Measuring range
Resolution
Accuracy
0-20ppm
0.1 ppm
±3%FS
O3
Measuring range
Resolution
Accuracy
0-100ppm
1 ppm
±3%FS
The other gas sensor
Support the other gas sensor
Out
 RS485/4-20mA/0-5V/0-10V/LCD screen
Supply voltage
DC 10~30V
Wireless module and Matched server and software
Wireless module
GPRS/4G/WIFI/LORA/LORAWAN ( Optional)
Matched server and software
We can supply the matched cloud server and software which you can see the real time data in the PC end.
Detailed Images

Product features

● Industrial grade sensor
●High precision and sensitivity
●Light-emitting diode digital display
●High and low alarm points
●DC 10~30V power supply
●RS485/4-20mA/0-5V/0-10V/LCD screen
● Waterproof and dustproof
●Relay switch signal
●Aluminum shell material

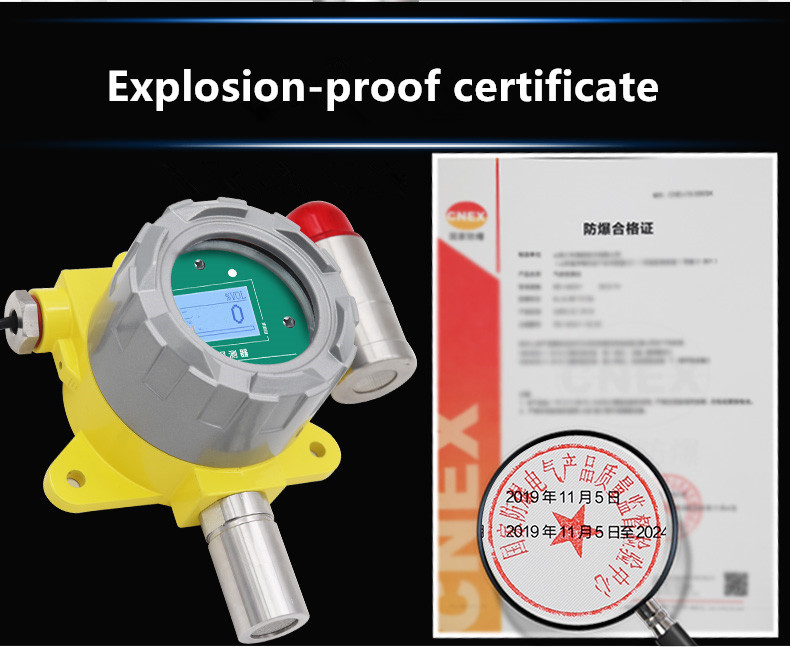

● Industrial explosion-proof
● One year warranty

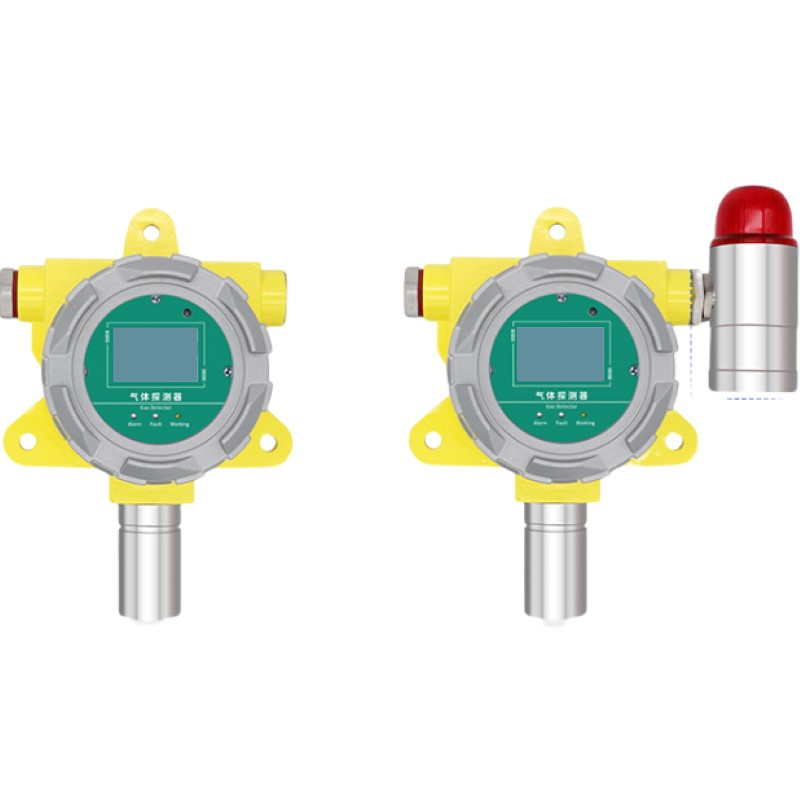

Two styles to choose

Digital display Digital display + sound and light alarm light

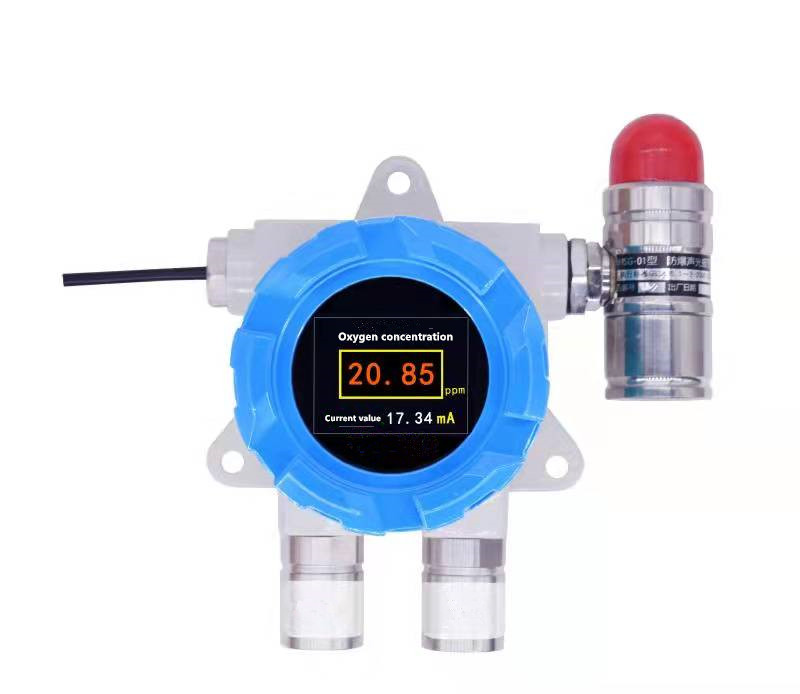

Data show
LED display can be selected according to your needs;Or there is no direct display, but the value is read on the PC side.

Parameter
●Sulfur dioxide ●Carbon monoxide ●Nitrogen dioxide ●Hydrogen sulfide ●Hydrogen ●Ammonia ●Oxygen ●Methane ●Temperature ● Humidity
●Other ●Customize the parameters you need

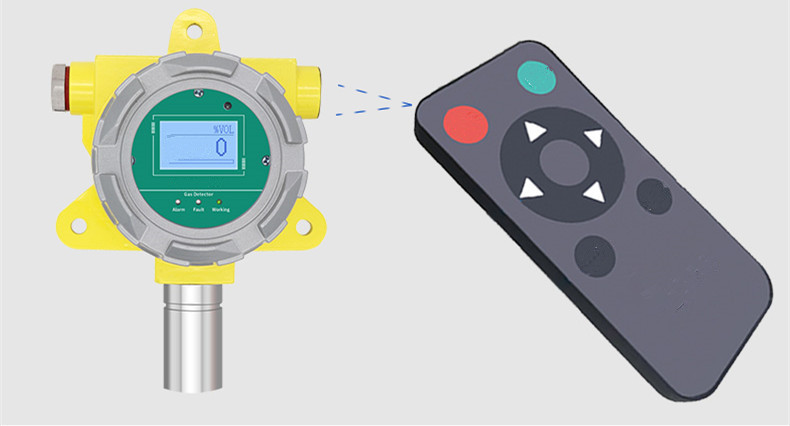

Remote control
Safe and practical

Using remote infrared remote control technology, parameters can be modified without disassembly, which is more practical and convenient.


Product Highlights
High quality industrial gas components;

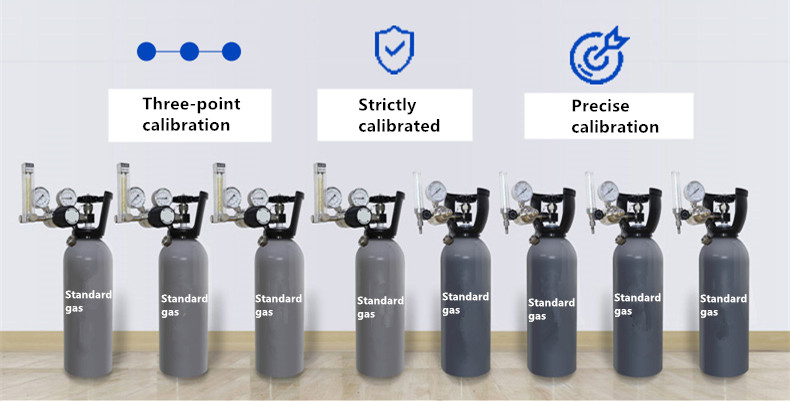

Strict calibration, high precision; Multi-point calibration, good consistency; Checked by Provincial Metrology Institute

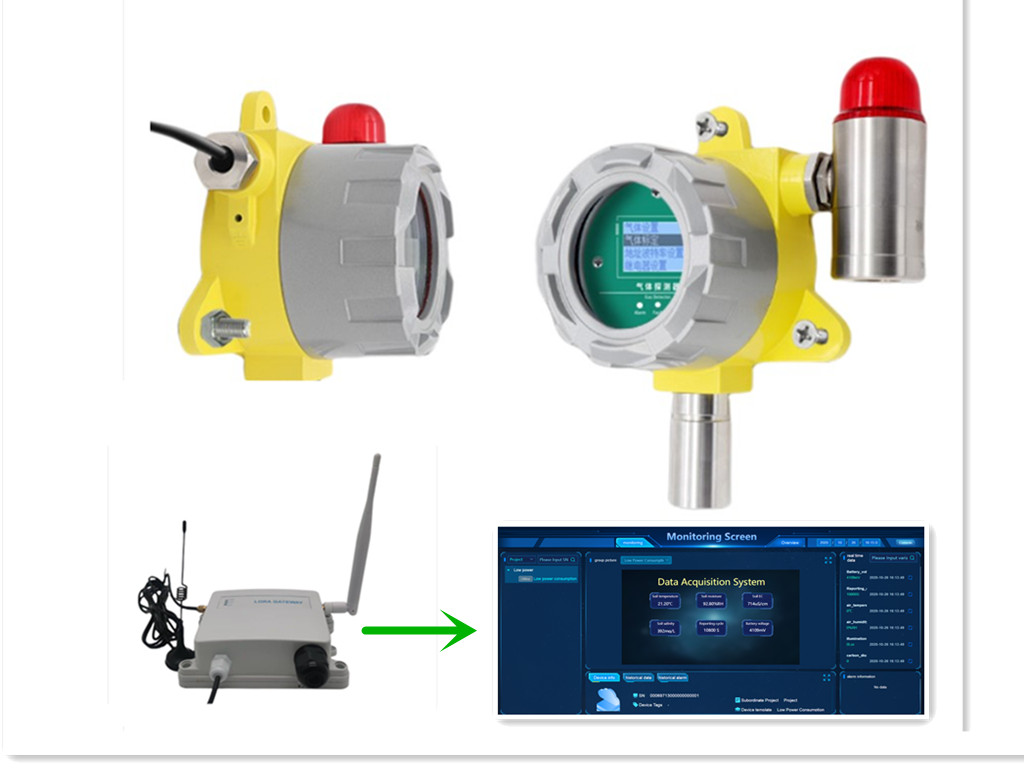

Output and supporting software
Out: RS485/4-20mA/0-5V/0-10V/LCD screen
Connect to wireless module including WiFi GPRS 4G Lora Lorawan, and we also can supply the matched server and software to see the real time data in PC

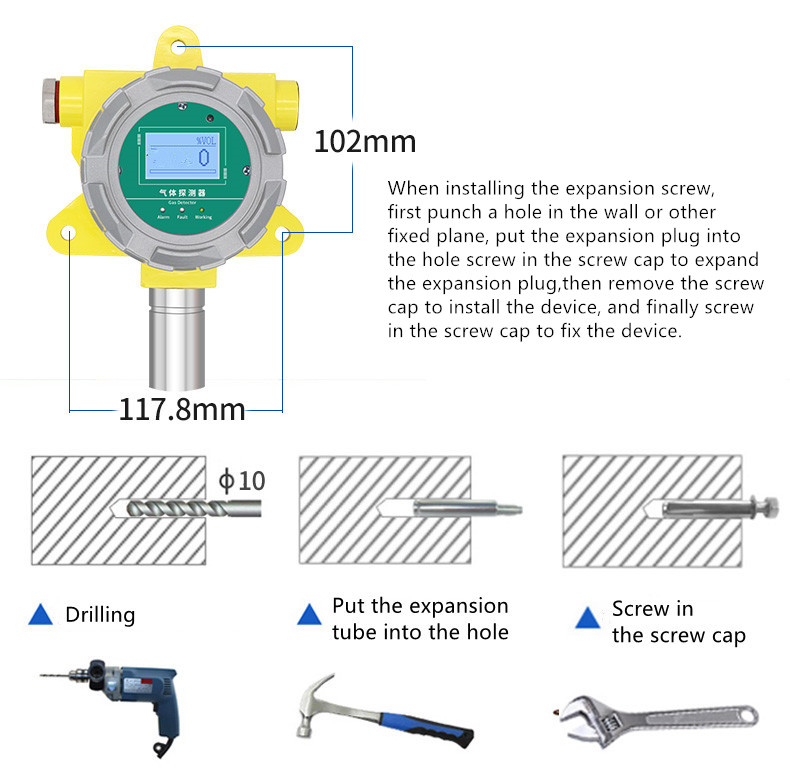

Product Install
Product Applications
Related Products
Packing&Shipping

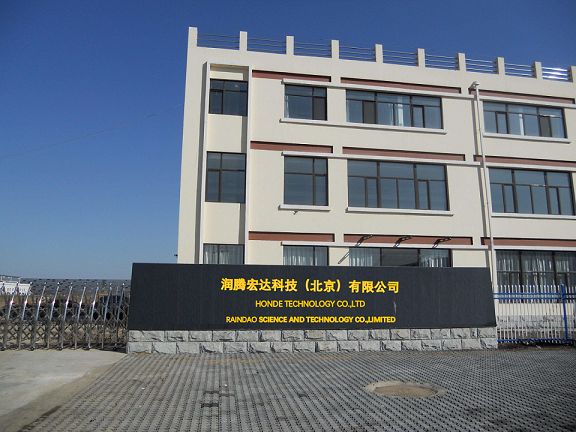

Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation? A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once. Q: What's the main characteristics of the sensor? A: This product adopts high-sensitivity gas detection probe,explosion-proof, stable signal, high precision, fast response and long service life. It has the characteristics of wide measuring range, good linearity, convenient use, easy installation and long transmission distance.Note that the sensor is used for air detection, and the customer should test it in the application environment to ensure that the sensor meets the requirements.
Q:What are the advantages of this sensor and other gas sensors? A:This gas sensor can measure many parameters, and can customize the parameters according to your needs, and can display real-time data of multiple parameters, which is more user-friendly. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q: What is the output signal? A: A: Multi-parameter sensors can output a variety of signals. Wired output signals include RS485 signals and 0-5V/0-10V voltage output and 4-20mA current signals; wireless outputs include LoRa, WIFI, GPRS, 4G, NB-lOT, LoRa and LoRaWAN.

Q: Can you supply the matched server and software?
A: Yes, we can supply the matched cloud server and software with our wireless modules and you can see the real time data in software in the PC end and we can also have the matched data logger to store the data in excel type.
Q: May I know your warranty? A: Yes, usually it’s 1 year, it also depends on the air types and the quality. Q:What’s the delivery time? A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
