CNC Iron Plate Bending Machine Metal Plate Bending Machine 3 Rolls Steel Plate Bending Machine
- $5500.00 / 1 - 4 sets
$3200.00 / 5 - 9 sets
$2100.00 / >=10 sets - 1 set
- Anhui Runbang Heavy Industry Machinery Co., Ltd.
- Anhui, China
- Ms Sammi Rbqlty
| Voltage: | 220V/380V/400V | Mechanical test report: | if |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | automation: | automatic |
| Model: | 3 roll steel plate bending machine | Core Components Warranty: | 24 months |
| Packaging Preview: | Applicable industries: | Building materials stores, manufacturing plants, machinery repair shops, advertising companies | |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Showroom location: | Sri Lanka, Malaysia, Mexico, Thailand |
| maximum. Working Length (mm): | 2500 mm | Material/Metal Finishing: | aluminum |
| application: | Steel plate rolling | Material: | Q235 |
| Health status: | new | brand: | rqlty |
| Warranty: | 12 months, 1 year | Number of rollers: | 3 |
| maximum. Plate thickness (mm): | 12 mm | Type of machine: | Roll bender |
| type: | Hydraulic bending tools | Rolling speed (m/min): | 1 - 4 |
| Video external inspection: | if | color: | custom made |
| Supply capacity: | 5 3-roll benders per month | Name: | 3 roll bending machine |
| place of origin; place of origin: | Anhui, China | Marketing Type: | New Products 2020 |
| Main selling point: | High security level | Weight (kg): | 10000kg |
| Packaging Details: | Usually plastic film | port: | Shanghai/Wuhu/Tianjin/Shanghai |
| usage: | Sheet metal hobbing and bending | Motor power (kW): | 11kW |
| Key words: | Sheet metal rolling machine |
Features
1. High-precision end pre-bending
The length of the straight side can be freely set, and the pre-bending of the upper roller press is controlled by numerical control, and the productivity is high. Parameter numerical control control, easy to operate, greatly improve productivity
2. Good precision
The upper roller is like a drum, and the lower roller is matched with it through the support roller. Continuous bending, ideal for rolling a wide range of thin to thick plates
3. Safety
The lower roller is fixed, and the upper roller moves vertically and horizontally. This job does not apply to work rolls. The structure is complete, the foundation is simple, and the movement is convenient. The machine has a single basement, does not require anchor bolts, has a simple foundation
main part:
1. Work roll: cast steel ingot (chemical composition analysis): check performance - forging blank - forging annealing - UT flaw detection - rough machining (chemical test) - heat treatment (quenching and tempering) - UT flaw detection - semi-finishing - finishing -MT.
2.. Large forgings: Cylinder block, gear, gear shaft forging blanks - surface inspection - rough machining - UT flaw detection - UT flwa detector processing - finishing - semi-finishing - MT.
3. Welding structure: rack, chassis, wheel box plate into the factory (chemical composition analysis, mechanical test) - pretreatment - sheet metal cutting - weld UT or RT flaw detection - annealing treatment - rough machining - finishing - vibration stress relief - Hot pressing 5-4 sandblasting of the main components of the manufacturing process.

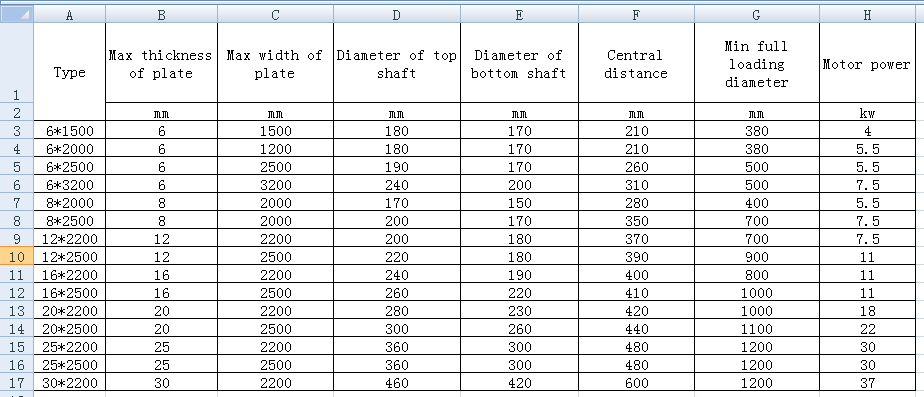

technical parameter
Optional special device
