Cam indexer for packaging machinery

PRODUCT DETAIL

Single package size:	22X26X16 cm	Sales unit:	Item
brand:	Cheng Chang	Applicable industries:	Packaging Machinery
place of origin; place of origin:	China Shanghai	Gross weight per piece:	20.000 kg
Packaging Details:	wooden box or carton

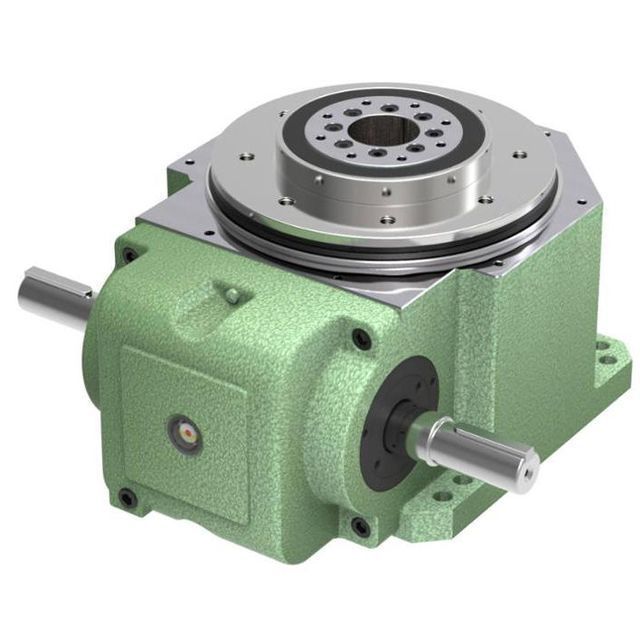

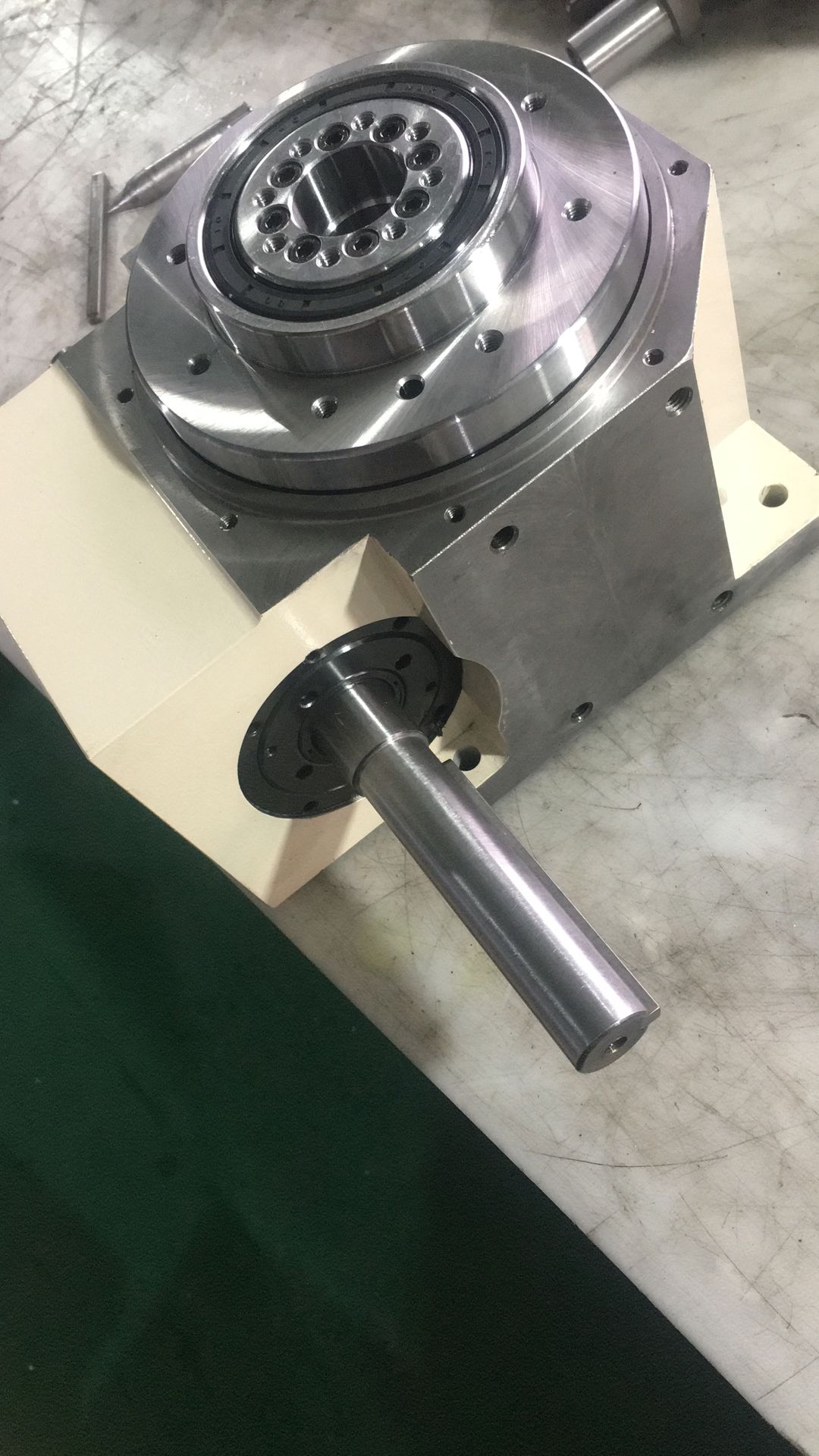

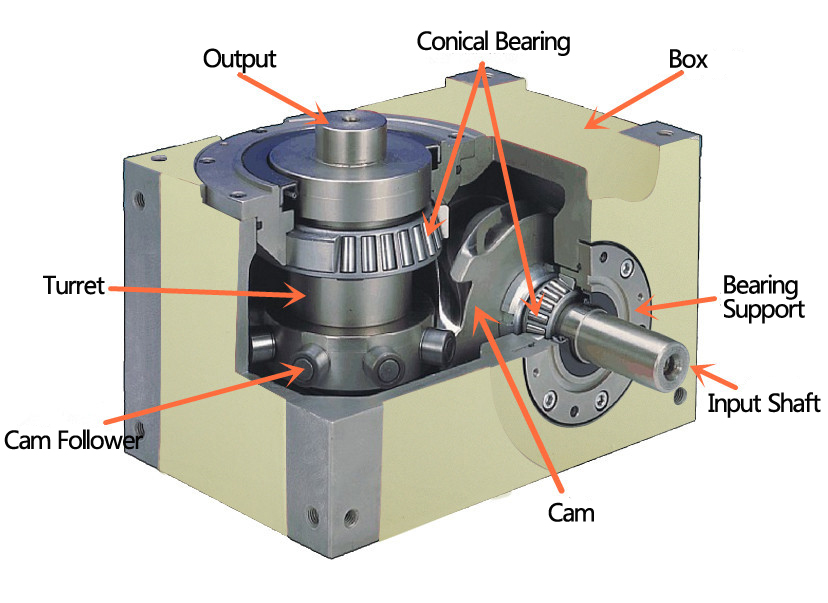

80DT Series Cam Indexers

Product Description:

Brand: Chengchang	Product certification: ISO9001	Custom processing: Yes

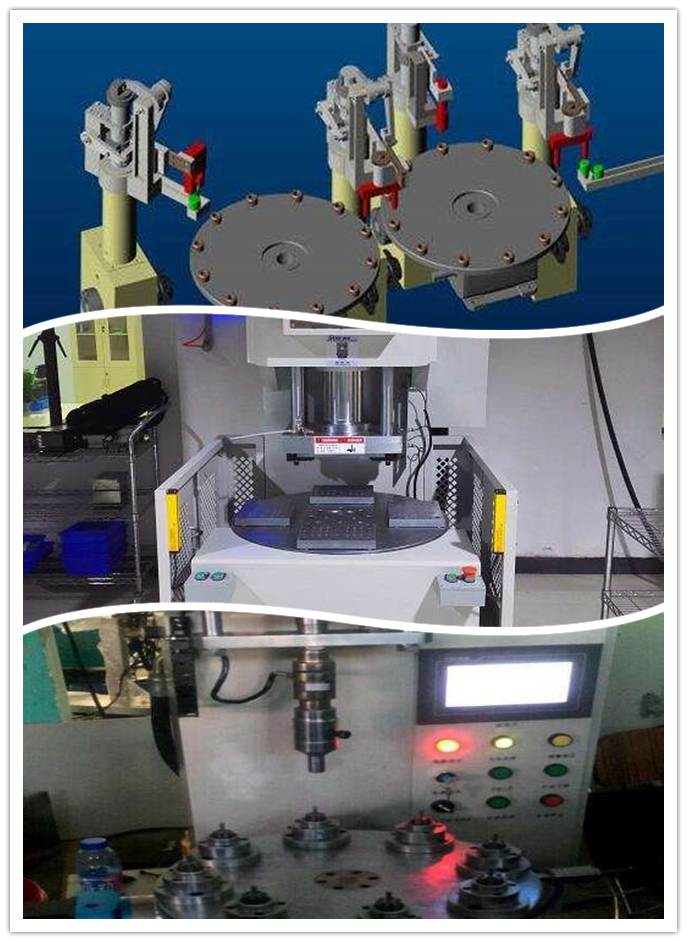

Disc diameter: 250-700mm	Bearing capacity: 0-45KG	Mainly used in: automatic assembly machine, printing machine
Positioning and division of equal parts: 2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48
Drive angle: 90°, 120°, 150°, 180°, 210°, 240°, 270°, 300°
Cam Curves: Deformation Curve, Deformation Sine Curve and Deformation Velocity Curve.
Cam rotation direction: left, right.

Standard accuracy: ±30 seconds, can be customized ±15 seconds high precision.

Weight: 20 kg Torque limiter (TL): 350 Lubricating oil: 90-140#

Matching motor: 200W motor speed 1400 or 1450.

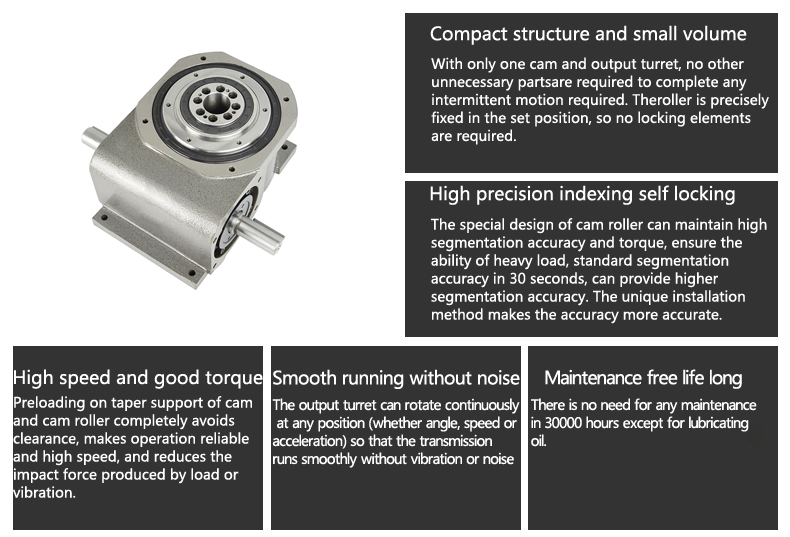

Advantage:

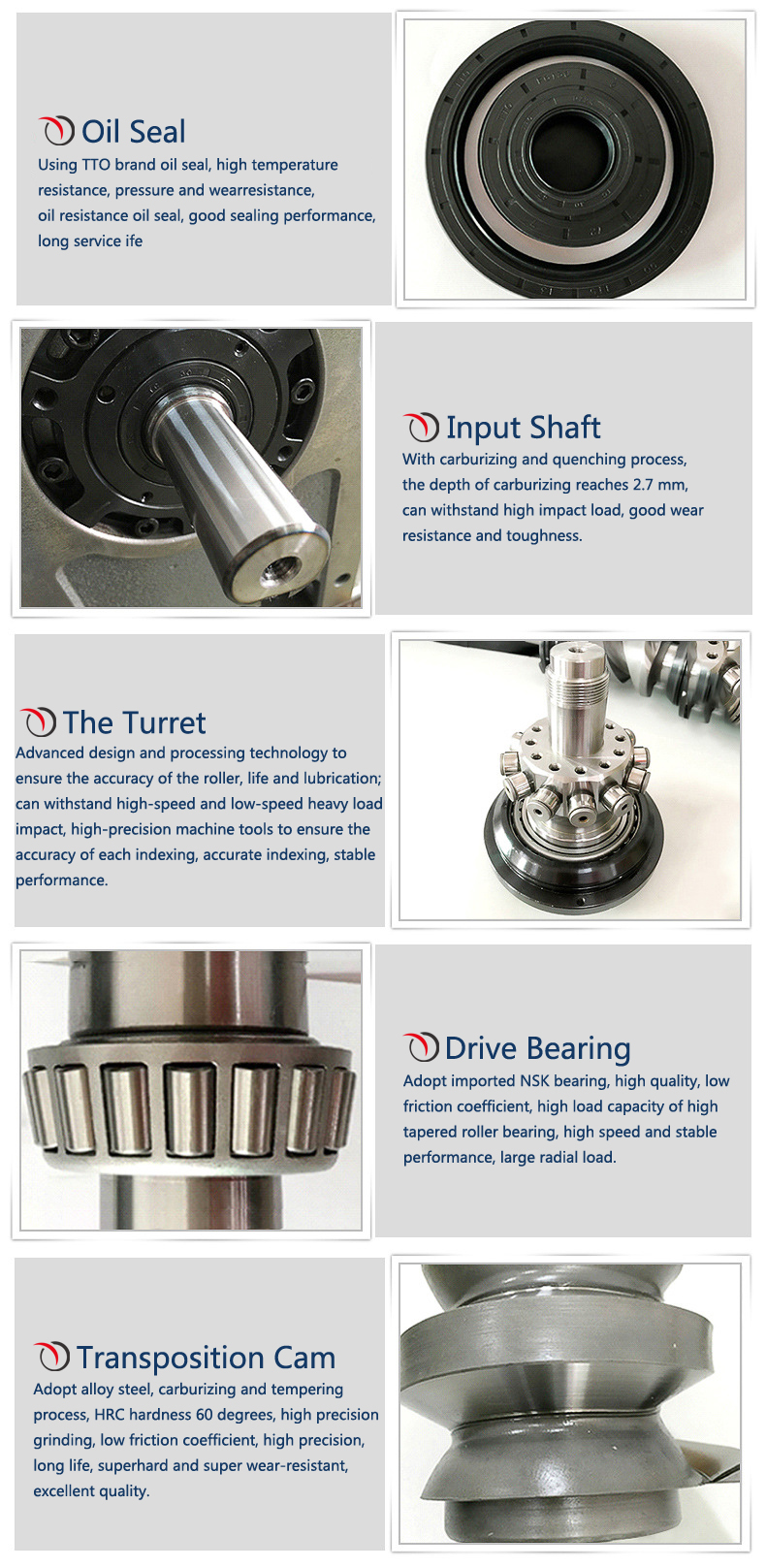

one. durability

1. The cam processing technology is carburized grinding, and the hardened layer is about 5mm.

2. The surface spray paint is diaphragm type dry anti-rust oil.

3. The internal bearings are imported from Japan, NSK/NTN.

two. discount price. The same quality, our price is the best.

three. L.

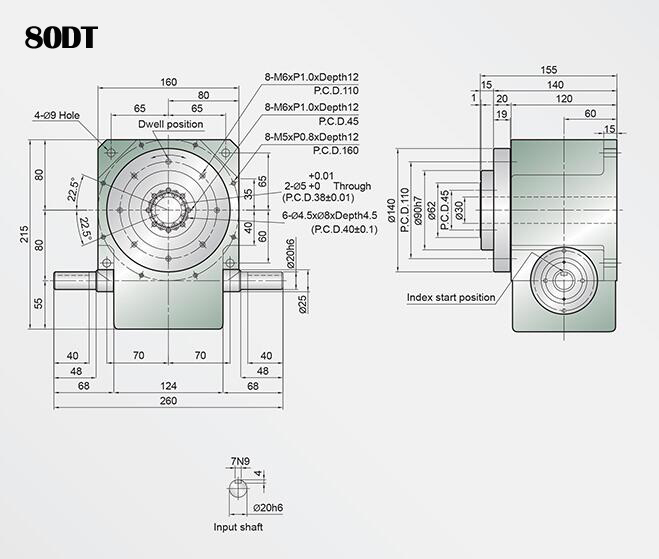

Parameters Table:

All allowable radial loads on output shaft (C1): 520 kgf	Maximum repetitive torque on input shaft (C5): 9.5 kgf-m
All allowable axial loads on output shaft (C2): 220 kgf	CD² on input shaft (Note 1): 0.03 kgf-m²
All Output shaft allowable torque (Ts): refer to the torque table	Graduation accuracy: ±30 seconds.
All allowable radial loads on the intake shaft (C3): 220 kgf	Weight: 20kg
Ma Maximum repetitive bending force on input shaft (C4): 160 kgf
