Z3 Lockout Assembly Replaceable Shrink Disc Keyless Coupling
- $1.00 / >=10 pieces
- 10 pieces
- Foshan Aodisi Transmission Technology Co.,ltd.
- Guangdong, China
- Ms xiaotao chen
| place of origin; place of origin: | China | Packaging Details: | Standard Export Value Packaging |
| Material: | 40Cr | Advantage: | Easy disassembly and compact design |
| Supply capacity: | 1000 pieces per day | port: | Foshan |
| Applicable industries: | Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Retail, Construction Engineering, Energy and Mining | payment terms: | letter of credit, wire transfer |
| brand: | Odis | product name: | Z3 40Cr locking device |

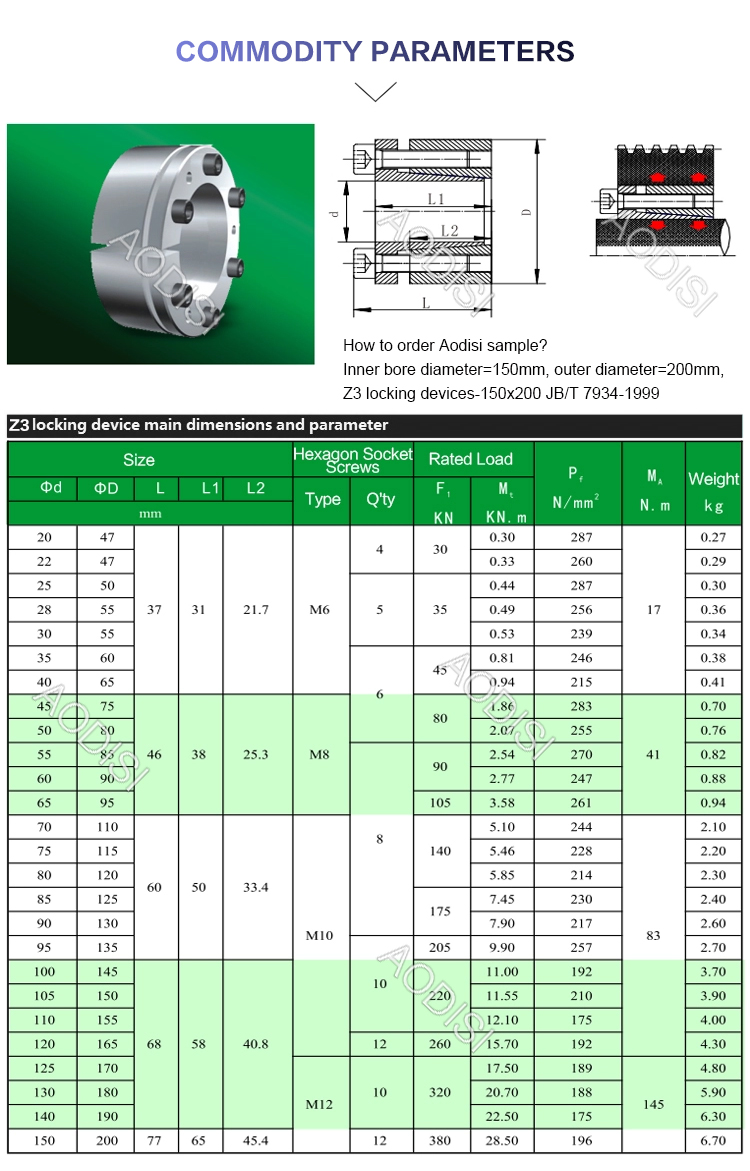

Z3 Locking Device/Locking Assembly/Shrink Disc (JB/T7934-1999)

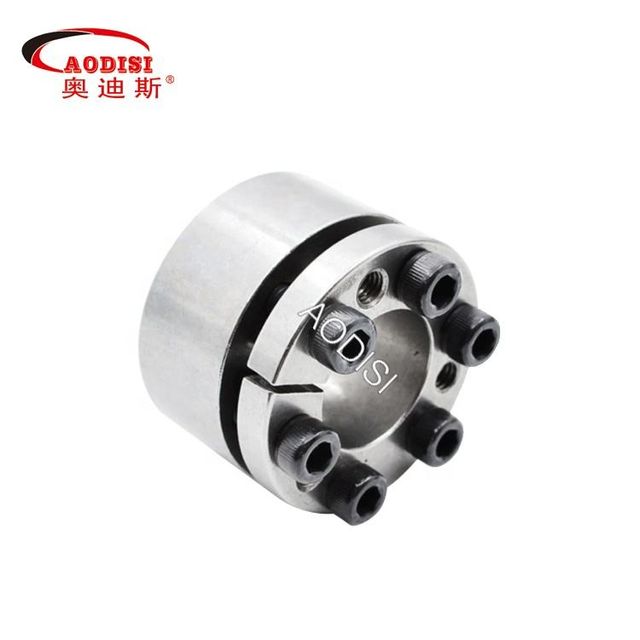

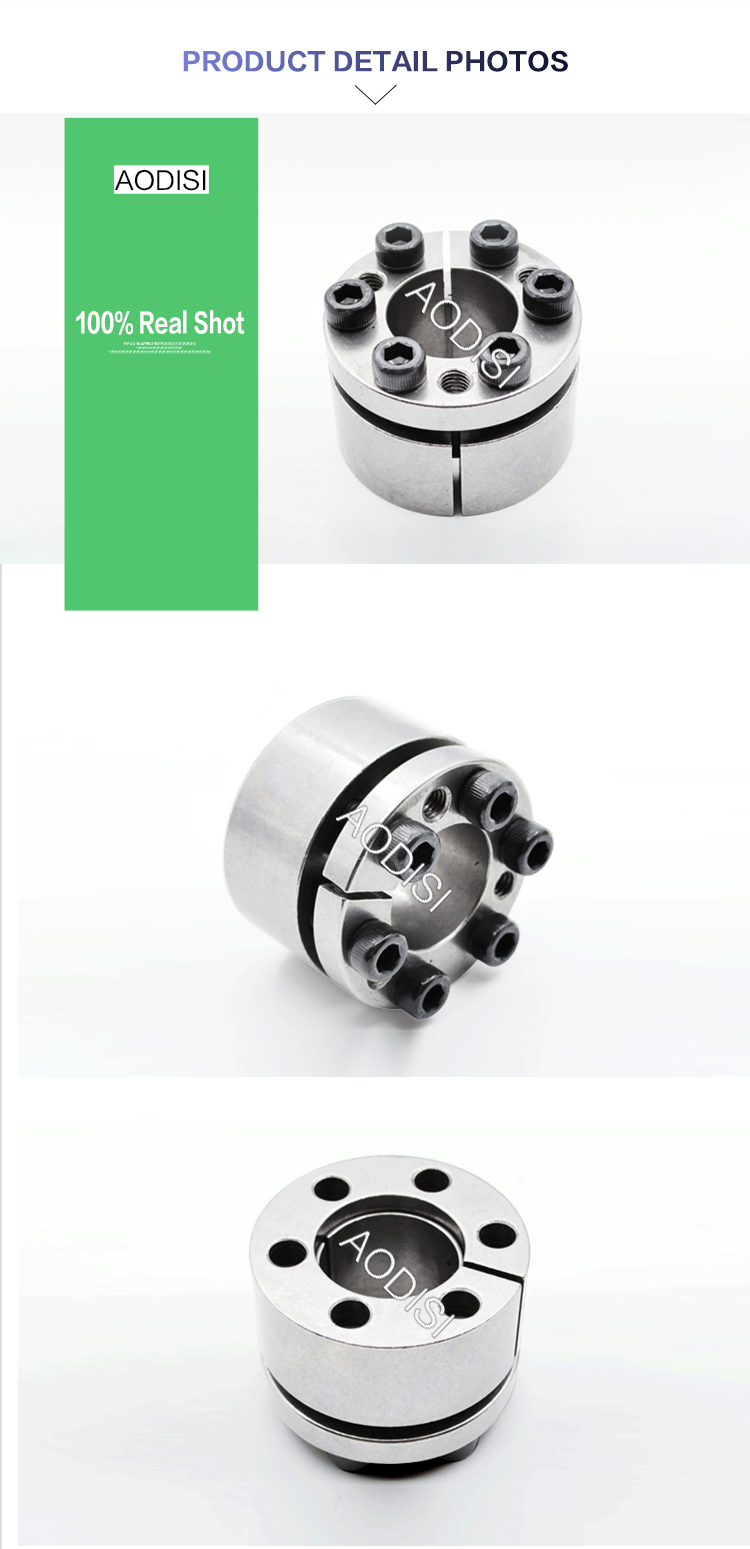

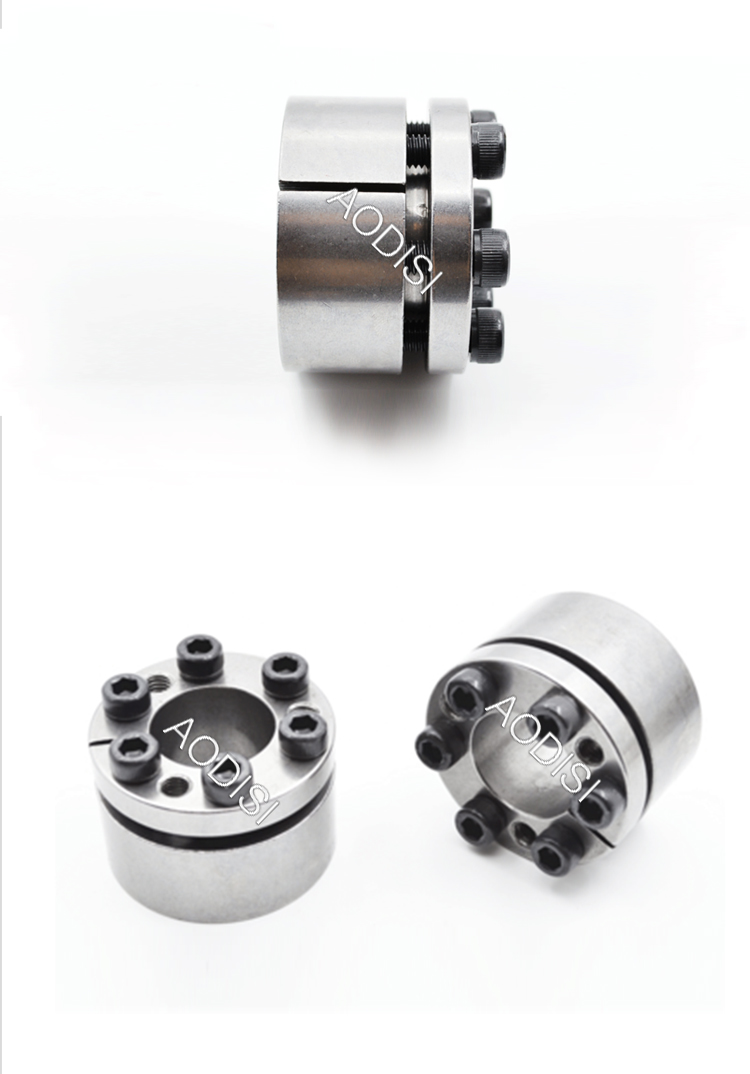

Model: Z3 Sleeve Locking Device
The inner and outer cone rings of the Z3 expansion sleeve are fastened with inner hexagon bolts, which can transmit large loads. There are threaded holes on one cone ring; the joint surface is long and neutral, suitable for high rotation accuracy and large transmission. during load.
The Z3 expansion sleeve is suitable for the coupling of the shaft and the parts on the shaft to transmit torque, axial force or the combined load of the two;
The structure has high positioning accuracy and simple processing of the hub hole. Couplings widely used in shaft parts;
When selecting, the tolerance zones of the shaft and the hole combined with the expansion sleeve are h8 and h9 respectively;
Material: 45# steel
Nominal torque/rated torque: 0.3KNm-28.5KNm
Aperture: 20mm-150mm
