Large 3535 Cone Roller Lock Bushes
- $23.80 /piece
- 1 piece
- Sichuan Dawn Precision Technology Co., Ltd.
- Sichuan, China
- Mr CPT World
PRODUCT DETAIL
| Tightening tool: | Allen key 3/8" | Applicable industries: | Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Energy and Mining |
| product name: | Large pulley taper lock bushing 3535 | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Large Pulley Taper Lock Sleeve 3535 |
| Aperture (inches): | 1" ~ 3-1/2" | port: | Shanghai |
| Surface treatment: | Phosphating | Transmission torque: | 5060 Nm |
| Screw Specifications: | 1/2-12BSW*1-1/2 | place of origin; place of origin: | Sichuan, China |
| Material: | Cast iron GG20 | Supply capacity: | 730,000 large pulley conical lock sleeves per day 3535 |
| Number of screws: | 3 | Packaging Details: | "1. Individually packaged - each cone lock sleeve is protected 2. Standard size carton 3. Customized wooden case - save space 4. OEM/ODM available" |
| Screw tightening torque: | 112 Nm | brand: | CPT |
| Aperture(mm): | 24 ~ 95 mm |

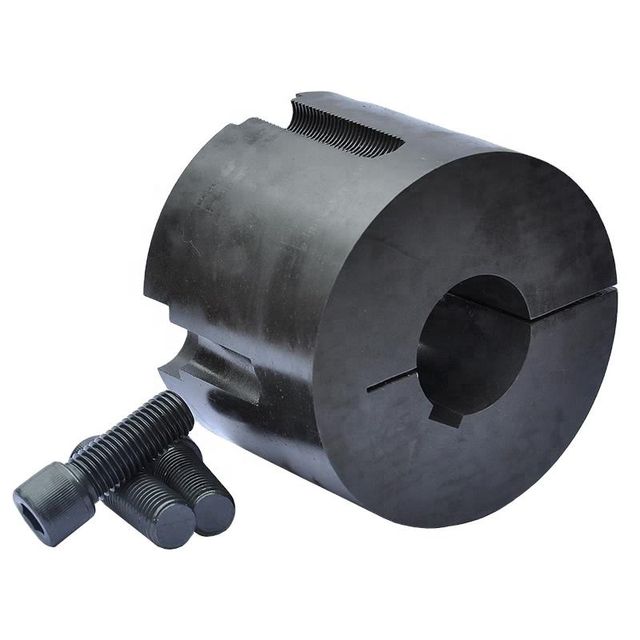

Large pulley taper lock bushing 3535
Product Description
usage
Tapered lock bushings are used to transmit torque in cooperation with pulleys.
| CPT Tapered Lock Bushings |
1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2017, 2517, 2525, 3020, 3030, 3525, 3535, 4030, 4040, 4535, 4545, 5040, 5050, 6050, 7060, 8065 |
| standard |
American Standard - Inches European standard-mm |

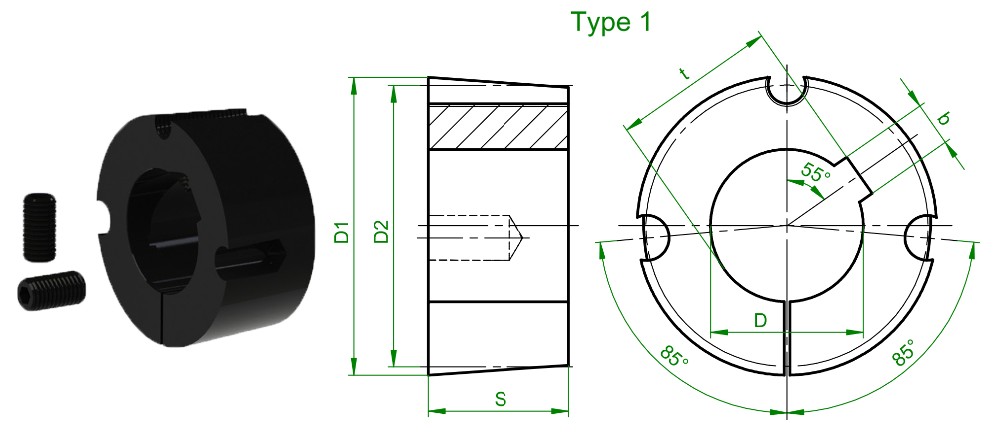

Product structure type

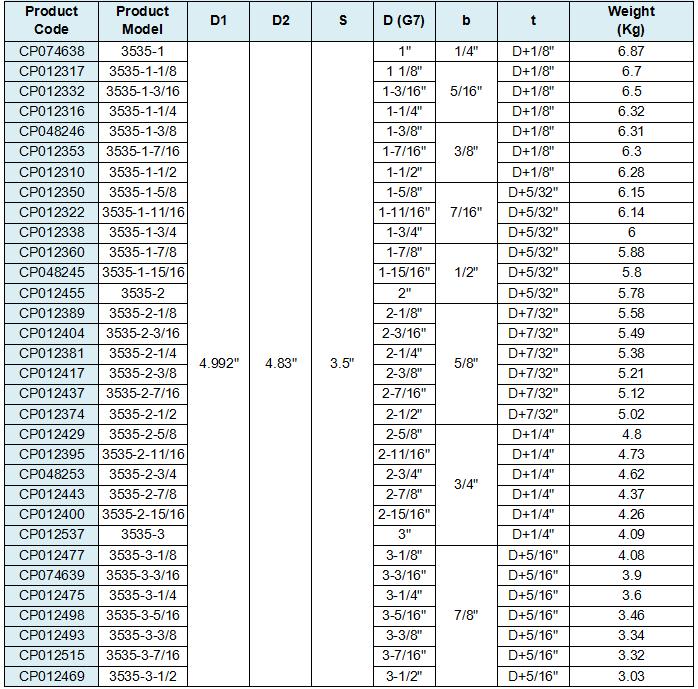

Specification
Product Name: Conical Lock Bushing 3535
Bore (Metric)
Bore (Imperial)
