Casting machine for underground application
- $3000.00 /set
- 1 set
- Zhengzhou Lead Equipment Co., Ltd.
- Henan, China
- Ms Nancy Liu
PRODUCT DETAIL
| type: | Shotcrete machine | Showroom location: | Malaysia |
| Gas consumption: | 16 cubic meters/minute | Supply capacity: | Annual output of 10,000 concrete spraying machines |
| Air consumption of pneumatic motor: | 7.5 cubic meters/minute | Core component warranty: | 1 year |
| port: | Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or others | Applicable industries: | construction project |
| Air consumption for conveying materials: | 7-8 cubic meters/minute | Output: | 2.5-5.5 cubic meters/hour |
| Maximum aggregate size: | 20mm | brand: | lead concrete |
| Packaging details: | Shotcrete machine: plastic wrap, plywood box, fumigation-free, standard export packaging. As follows. Or customized. | Voltage: | Pneumatic motor drive |
| maximum. Conveying distance: | 200m | Marketing type: | 2020 new products |
| Warranty: | 1 year | Core components: | / |
| Unique Selling Points: | High operating efficiency | Hoses inner diameter: | 51 mm |
| Mechanical test report: | if | Conveyor hose ID: | 51mm |
| Pneumatic motor air pressure: | 0.5 MPa | color: | custom made |
| Health status: | new | weight: | 720kg |
| Drive mode: | Air motor | Dimensions: | 1.35*0.75*1.2 meters |
| Rotor speed: | 11 rpm | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance |
| Place of origin: | China | strength: | Pneumatic motor drive |
| Video outbound inspection: | if | Dimensions (length*width*height): | 1.35*0.75*1.2m |

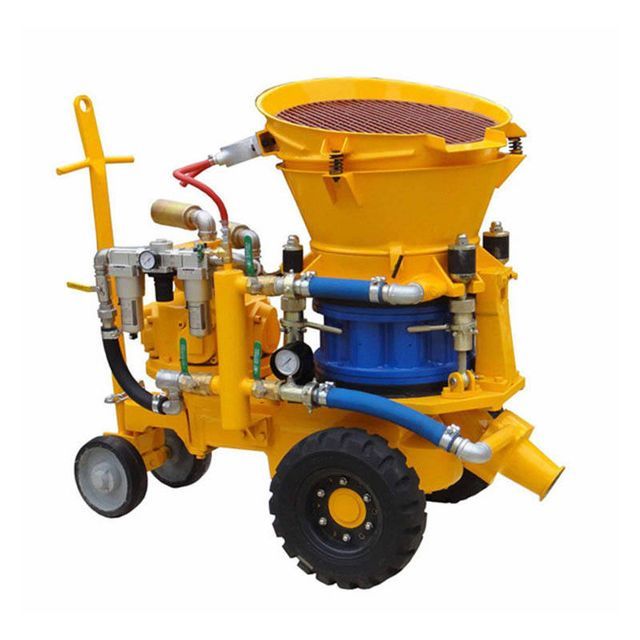

Shotcrete machine for underground applications
Product Description
LZ-5 series shotcrete machineIt is a medium-sized shotcrete machine used for processing dry mix. It is widely used by many contractors.
The LZ-5 series jetting machine is based on our company's original LZ-5 concrete jetting machine and can be used for tunnel excavation, mining operations, hydropower projects and hillside protection, etc.
Our machine is designed and manufactured on the basis of our company's original LZ-5 tunnel shotcrete machine and is driven by our customers.
In addition to inheriting all the advantages of the LZ-5 tunnel spraying machine, the LZ-5A pneumatic concrete spraying machine also has the following new features:
At the job site, just connect a compressed air hose to the air inlet of the LZ-5A pneumatic motor-driven spray gun equipment, and the machine can work without a power source.
The LZ-5 series jetting machine is based on our company's original LZ-5 concrete jetting machine and can be used for tunnel excavation, mining operations, hydropower projects and hillside protection, etc.
Our machine is designed and manufactured on the basis of our company's original LZ-5 tunnel shotcrete machine and is driven by our customers.
In addition to inheriting all the advantages of the LZ-5 tunnel spraying machine, the LZ-5A pneumatic concrete spraying machine also has the following new features:
At the job site, just connect a compressed air hose to the air inlet of the LZ-5A pneumatic motor-driven spray gun equipment, and the machine can work without a power source.
Technical Parameters
Specification | ||
Rated output | 5m 3 /hour | |
maximum. Horizontal conveying distance | 200m | |
Applicable mix ratio (cement/sand) | ≤1.3~5 | |
water-cement ratio | < 0.4 | |
maximum. Aggregate size | Φ15mm | |
Delivery hose inner diameter | 51mm | |
working pressure | 0.2-0.4MPa(29-58PSI) | |
Air consumption | 8~9m 3 /minute (285-325CFM) | |
Motor Power | 5.5kW (7.5 horsepower) | |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz | |
charging height | 1.1m | |
Rotor speed | 11 rpm | |
Overall dimensions (length × width × height) | 1.35×0.75×1.2m | |
net weight | 720kg | |
The machine's output can be varied from 2.5-5 cubic meters/hour (or from 3.3-6.6 cubic yards/hour).
The WZ-5A tunnel shotcrete machine can be used in explosion-proof construction sites.
WZ-5A pneumatic tunnel shotcrete machine has the following models:
Electric motor drive or diesel drive combined with skid or rail wheel
Basics: Electric drive can be combined with tire chassis
Extensions (optional): electric motor drive with variable speed gearbox, air motor drive or diesel drive with skid or
rail wheel
The WZ-5A tunnel shotcrete machine can be used in explosion-proof construction sites.
WZ-5A pneumatic tunnel shotcrete machine has the following models:
Electric motor drive or diesel drive combined with skid or rail wheel
Basics: Electric drive can be combined with tire chassis
Extensions (optional): electric motor drive with variable speed gearbox, air motor drive or diesel drive with skid or
rail wheel

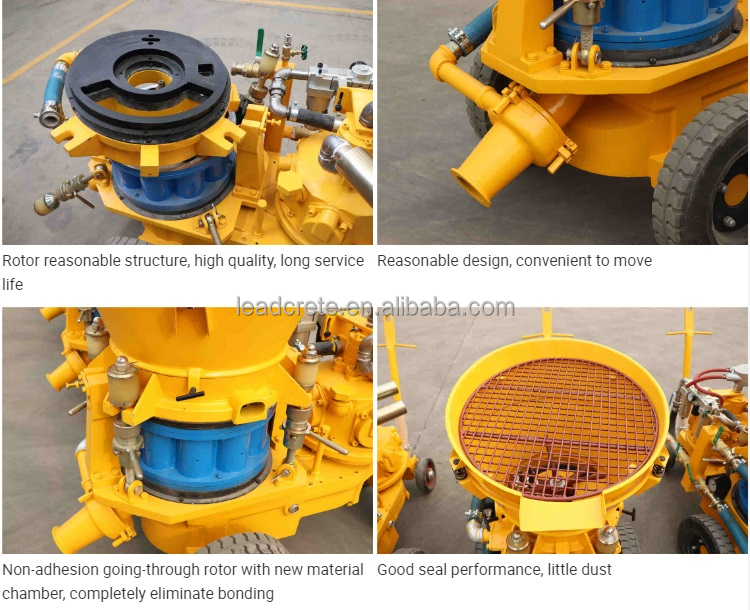

Product Details
Advantage
1. Excellent quality and reliable performance.
2. Good sealing performance and less dust.
3. Reasonable design and easy to move.
4. Easy to operate and long service life.
5. The new type of non-adhesive continuous rotor in the material chamber completely eliminates adhesion and blockage during operation, reducing gaps and maintenance cycles.
6. Eddy current dilute flow transportation method, the spray flow is uniform, continuous and stable, improving the quality of shotcrete.
7. The four-point clamping device can easily adjust the pressure between the sealing plate and the turntable, without leakage or air leakage, and prolongs the life of wearing parts.
8. Widely used in mines, tunnels, culverts, bank protection, etc.
2. Good sealing performance and less dust.
3. Reasonable design and easy to move.
4. Easy to operate and long service life.
5. The new type of non-adhesive continuous rotor in the material chamber completely eliminates adhesion and blockage during operation, reducing gaps and maintenance cycles.
6. Eddy current dilute flow transportation method, the spray flow is uniform, continuous and stable, improving the quality of shotcrete.
7. The four-point clamping device can easily adjust the pressure between the sealing plate and the turntable, without leakage or air leakage, and prolongs the life of wearing parts.
8. Widely used in mines, tunnels, culverts, bank protection, etc.

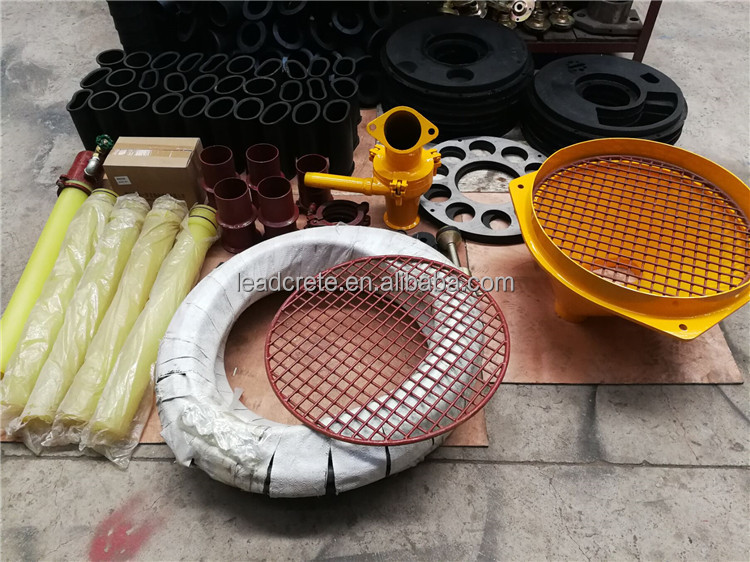

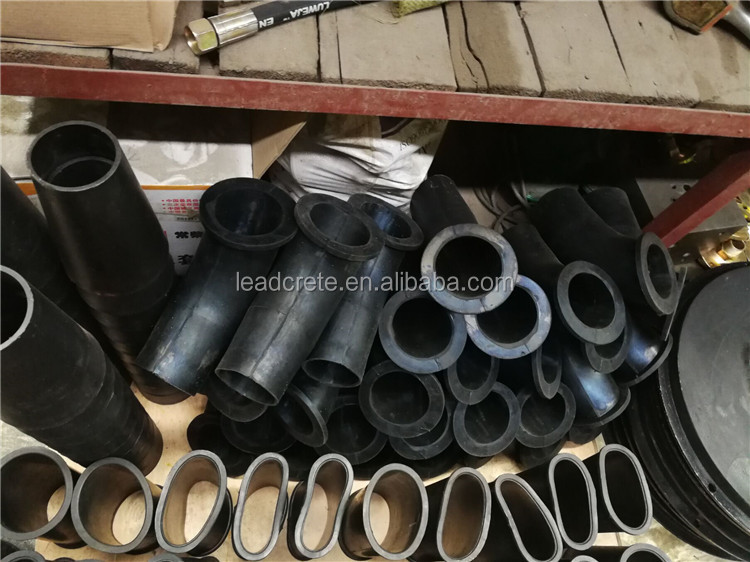

Product spare parts

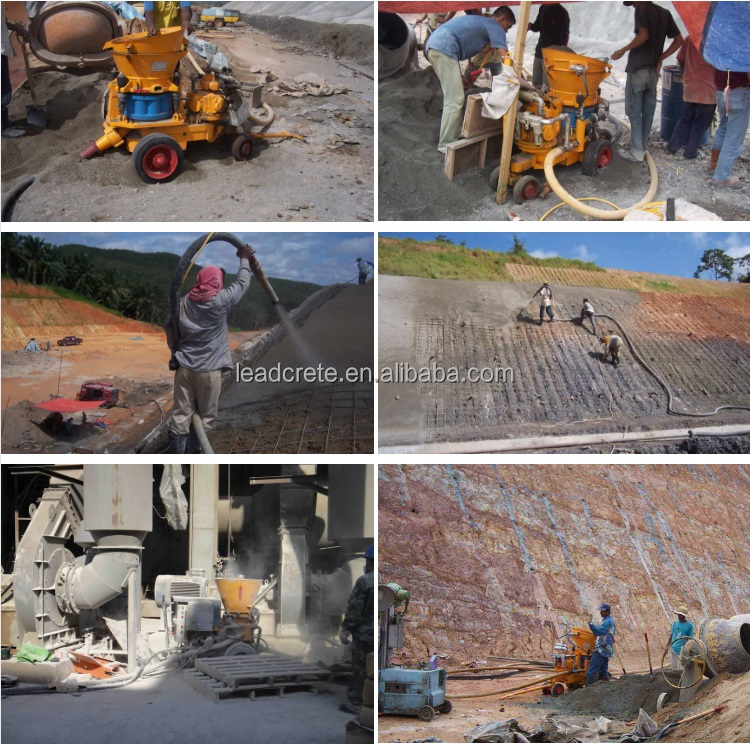

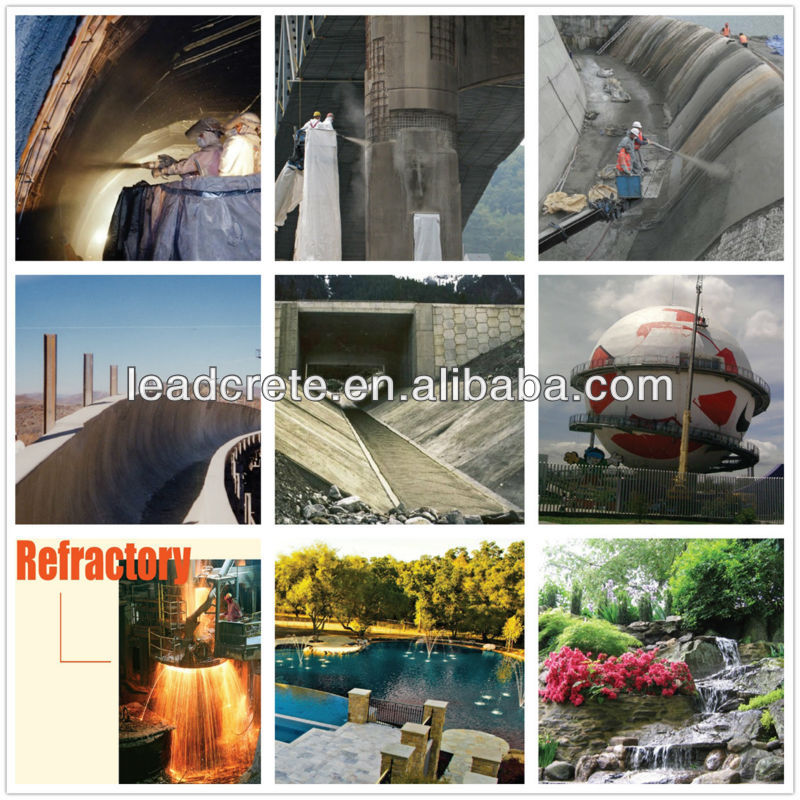

application
Trade assurance advantages:
1. Quickly lock in trusted sellers, saving time and effort;
2. Reduce the risk of online purchasing;
3. If a trade dispute occurs, you can complain to Alibaba and obtain benefit compensation.
We are Alibaba trade assurance member, our trade assurance amount is USD99000.00 Through trade assurance you can 100%
Refunds are available up to the Trade Assurance amount for orders that do not meet agreed delivery or quality terms.
1. Quickly lock in trusted sellers, saving time and effort;
2. Reduce the risk of online purchasing;
3. If a trade dispute occurs, you can complain to Alibaba and obtain benefit compensation.
We are Alibaba trade assurance member, our trade assurance amount is USD99000.00 Through trade assurance you can 100%
Refunds are available up to the Trade Assurance amount for orders that do not meet agreed delivery or quality terms.

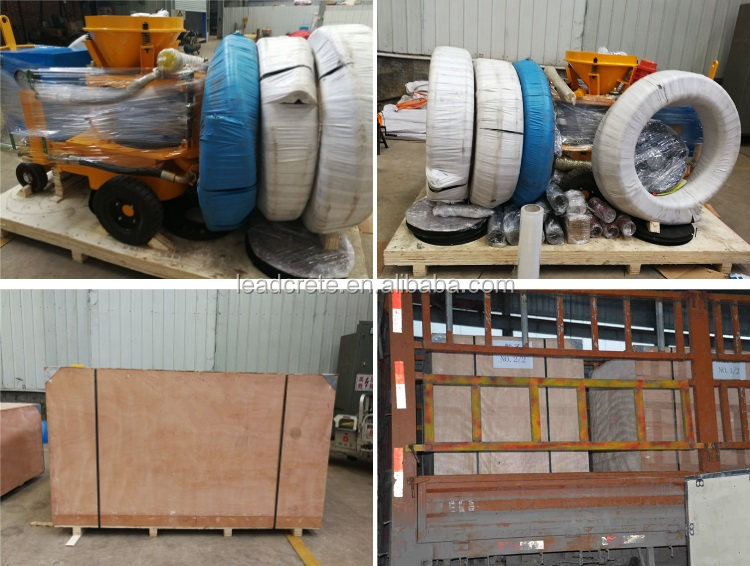

Product packaging
