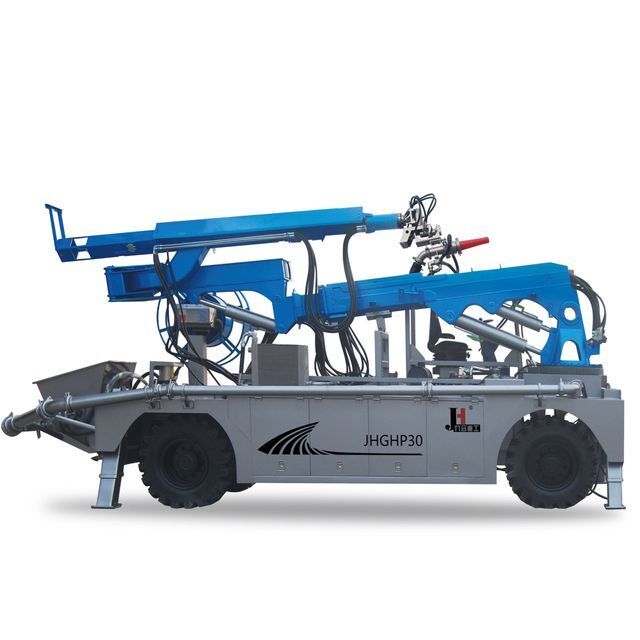

JIuhe brand 4x4 drive Tunnel construction Robotic Shotcrete Machine/Shotcrete robotarm/Concrete shotcrete pump
- $135000.00 / 1 - 1 sets
$130000.00 / >=2 sets - 1 set
- Qingdao Jiuhe Heavy Industry Machinery Co., Ltd.
- Shandong, China
- Ms Ruth Song
Core Components: | PLC,Pressure vessel,Pump; | Supply Ability: | 20 Sets per Month; |
Brand Name: | Jiuhe; | After-sales Service Provided: | Video technical support,Field maintenance and repair service,Free spare parts,Online support; |
Machinery Test Report: | Provided; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Power: | 75kw; | Warranty of core components: | 1 Year; |
Driving mode: | 4X4; | Main oil pump: | Rexroth; |
Certification: | CE&CCC&ISO; | Dimension(L*W*H): | 7900*2580*3200; |
Local Service Location: | Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,Thailand,Malaysia,Colombia,Bangladesh; | Package Preview: | ; |
System pressure: | 24Mpa; | Hose Inner Diameter: | 80 mm; |
Marketing Type: | New Product 2020; | Diesel power: | 93kw; |
Port: | QINGDAO PORT&TIANJIN PORT&SHAGNHAI PORT; | Video outgoing-inspection: | Provided; |
UNIQUE SELLING POINT: | Imported hydraulic system; | Electric components: | Schneider; |
Condition: | New; | Packaging Detail: | Nude packing; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Weight: | 17400KG; |
Applicable Industries: | Construction works ; | Motor power: | 75KW; |
Showroom Location: | None; | Max. Conveying Distance: | 24m; |
Voltage: | 380V; | Place of Origin: | Shandong, China; |
Muti-way valve: | HAWE; | Output pressure: | 7.5Mpa; |
Air Consumption: | 13; | Max Aggregate Size: | 15mm; |
Warranty: | 1 Year; |
JIuhe brand 4x4 drive Tunnel construction Robotic Shotcrete Machine/Shotcrete robotarm/Concrete shotcrete pump
Technical Parameter
JHGHP30 |
Item |
Unit |
Parameter |
Whole machine |
Dimension |
mm |
7900*2580*3240 |
Weight |
Kg |
17400 |
|
Working driving mode |
- |
Electromotor+Diesel |
|
Diesel power |
Kw |
93 |
|
Spraying boom |
|
|
|
Turntable rotation angle |
° |
-5 ~ +290 |
|
Big arm pitching angle |
° |
-30 ~ +60 |
|
Small arm pitching angle relative with big arm |
° |
-60 ~ +30 |
|
Small arm rotation angle relative with big arm |
° |
-70 ~ +180 |
|
Spraying vertical height |
m |
17.5 |
|
Spraying horizontal distance |
m |
14.5 |
|
Max,spraying depth |
m |
6.5 |
|
Spraying head rotation angel |
° |
360 |
|
Spraying head vertical axial swing angle |
° |
240 |
|

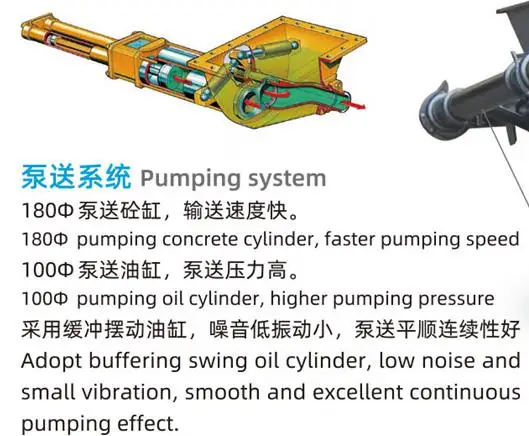

Pumping system |
Rated output capacity |
m³/h |
30 |
Max.output pressure |
Mpa |
7.5 |
|
Reversing times |
time |
24 |
|
System pressure |
Mpa |
24 |
|
Concrete cylinder inner dia. |
mm |
180 |
|
Main oil cylinder inner dia/Rod dia |
mm |
Φ100/Φ70 |
|
Concrete cylinder stroke |
mm |
1000 |
|
Delivery pipe size |
mm |
Φ100-Φ80 |
|
Distribution valve type |
- |
S Tube valve |
|

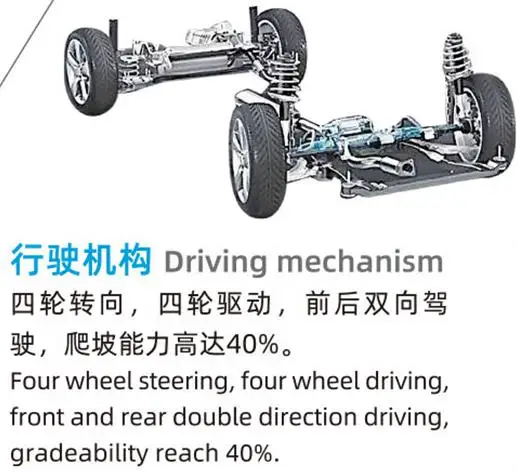

Driving system |
Alex base |
mm |
4500 |
Front and rear axle driving mode |
- |
Four-wheel drive two-way driving |
|
Max. speed |
Km/h |
30 |
|
Ground clearance |
mm |
350 |
|
Braking length |
m |
≤5 |
|
Hydraulic system |
Rated motor power |
Kw |
|
75 |
|||
Rated voltage/frequency |
- |
380v-50hz |
|
Rated speed |
R/min |
1480 |
|
Model |
- |
Full hydraulic reversing open hydraulic system |
|
Oil pump assembly |
- |
A11VLO130+A11VO60+A10VO28 |
|
Pumping oil pressure |
Mpa |
31.5 |
|
Hydraulic tank capacity |
L |
600 |
|
Oil cylinder capacity |
L |
150 |
|
Auxiliary system |
Cable speci,length |
- |
Φ50*3+Φ16*1*100 |
Additive output flow |
L/h |
0~1000 |
|
Additive output pressure |
Mpa |
1.8 |
|
Accelerator tank capacity |
L |
1000 |
Configuration:
4x4 Drive:
Truck chassis:
4X4 Drive Manipulator ready to delivery:
Two sets truck chassis concrete shotcrete machine ready to delivery:

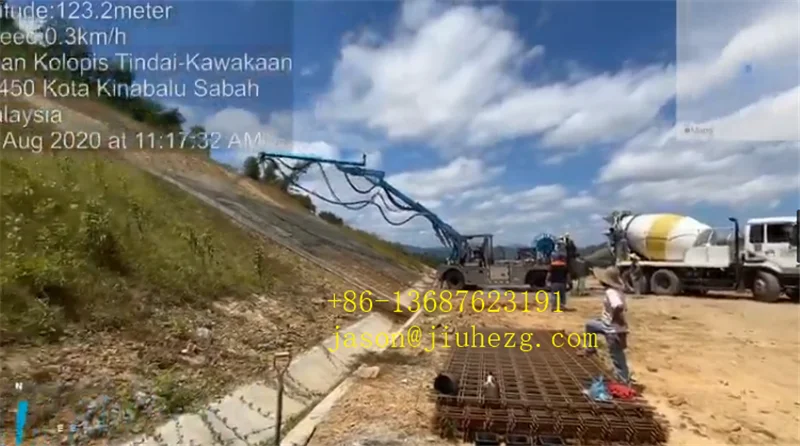

Overseas construction cases
4x4 Drive Model
Truck Chassis Model:

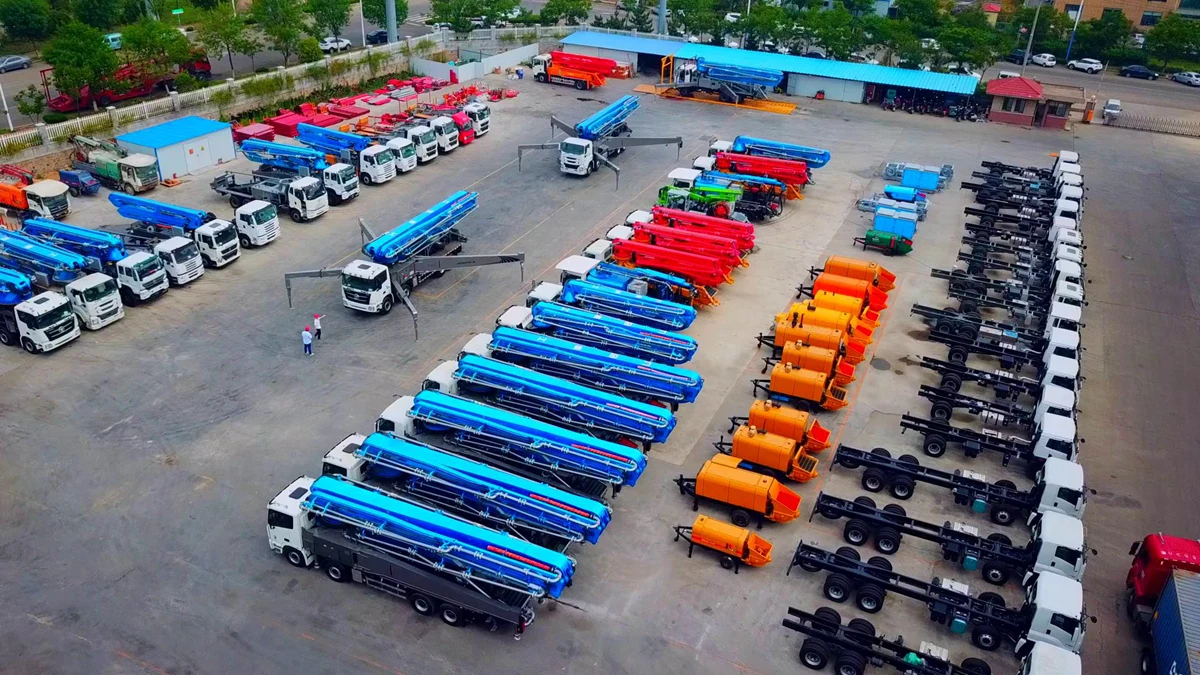

About our company:
Boom processing
Swing techanism:

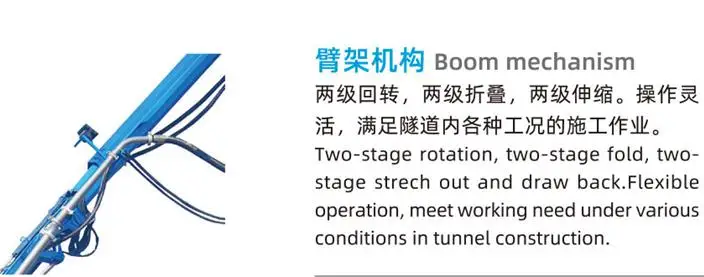

Boom:
Elbow:
Other products:
Contact with us:
Sale manager:Mr jason
Mobile/WhatsApp:+86-13687623191;
Wechat:ytqdzhou;
