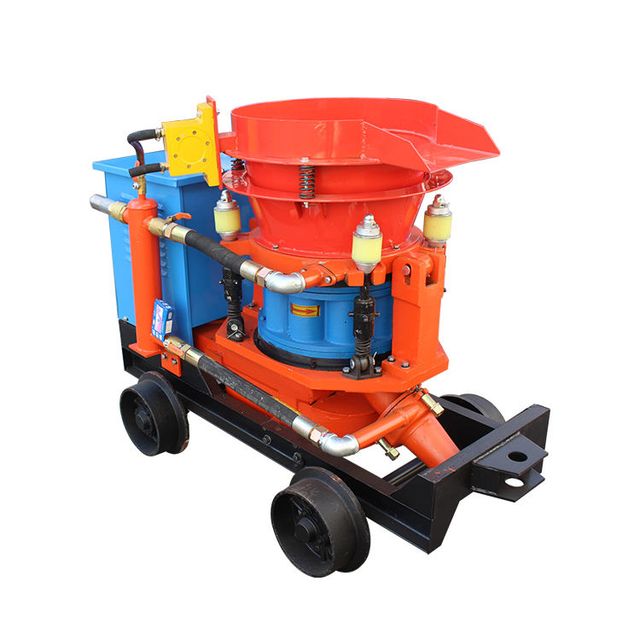

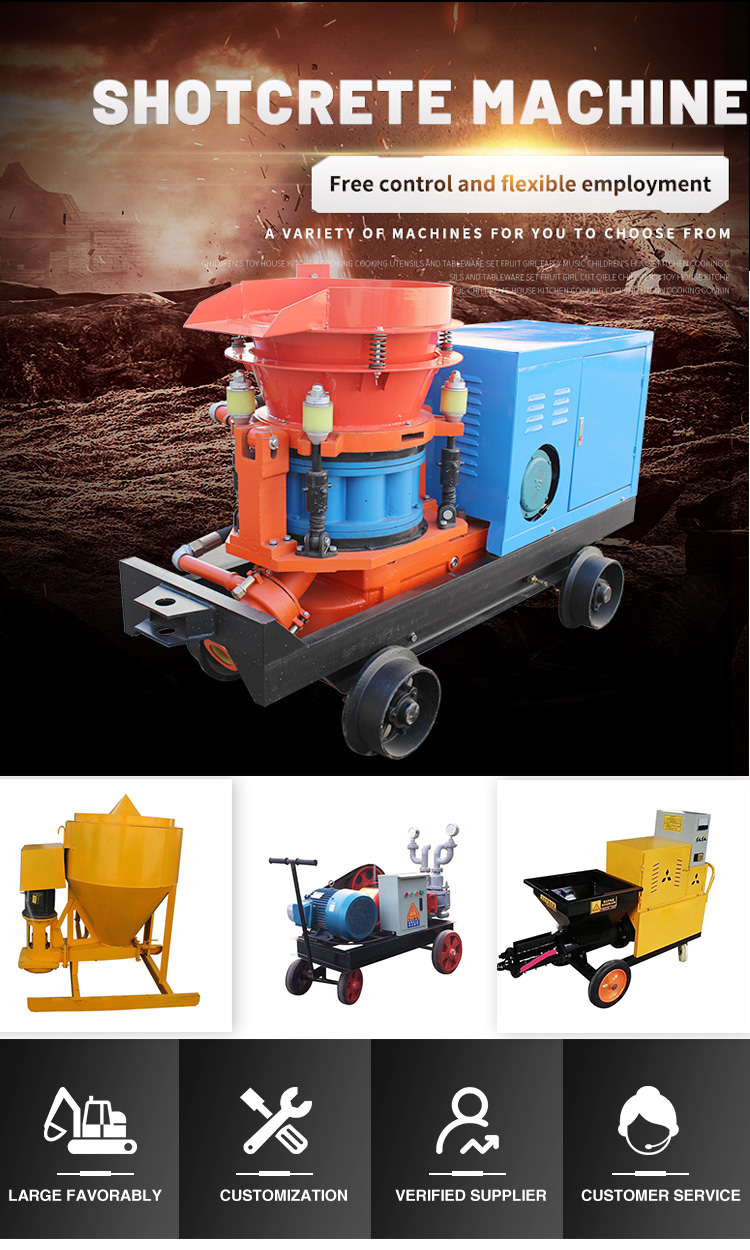

Dry Mix Shotcrete Sprayer
- $1500.00 /piece
- 1 piece
- Henan Early Bird Machinery Co., Ltd.
- Henan, China
- Ms Anny Liang
PRODUCT DETAIL
| Applicable material ratio: | Cement/Sand 1:3.5 | Core components: | gear pump |
| Air consumption: | 7-15 m3/min | manufacturer: | Early bird |
| Unique Selling Points: | Full hydraulic system | Dimensions (L*W*H): | 1650*800*1280MM |
| Video external inspection: | if | Hose inner diameter: | 57 mm |
| model: | EB-7 | Showroom location: | not any |
| size: | 1650*800*1280MM | OEM/ODM: | acceptable |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | maximum. Conveying distance: | 100m |
| Warranty: | 1 year | Throughput: | 7 cubic meters/hour |
| place of origin; place of origin: | Henan, China | strength: | 4KW |
| Core Components Warranty: | 1 year | Minimum order quantity: | 1 |
| port: | Qingdao Ningbo Shenzhen Guangzhou | Supply capacity: | 1000 pieces per month |
| brand: | Early bird | weight: | 700 kg |
| Maximum aggregate size: | 20mm | Health status: | new |
| Maximum conveying distance: | Horizontal 200m, Vertical 50m | Packaging Details: | carton |
| color: | customer request | Mechanical test report: | if |
| Marketing Type: | normal product | Applicable industries: | Building Materials Store, Manufacturing Plant, Construction Engineering, Energy & Mining, Other |
| ID: | custom | Voltage: | 380V |
Product Description
Model | EB-5 Dry Spray | EB-7 Dry Spray | EB-5 Wet Spray | EB-7 Wet Spray |
efficiency | 5 cubic meters/hour | 7 cubic meters/hour | 3-5m3/h | 5-7m3/h |
Maximum aggregate diameter | Φ20mm | Φ20mm | Φ15mm | Φ15mm |
Pipe inner diameter | Φ51mm | Φ51/64mm | Φ51mm | Φ51/64mm |
Rotor diameter | Φ438mm | Φ480mm | Φ438mm | Φ480mm |
work pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.3-0.6MPa | 0.4-0.6MPa |
Air consumption | 7-15 m3/min | 7-15 m3/min | 15-20 m³/min | 15-20 m³/min |
motor | 5.5kW | 7.5kW | 5.5kW | 7.5kW |
Voltage | 380v | 380v | 380v | 380v |
weight | 600kg | 700kg | 700kg | 800kg |
*A wide variety of hoses and nozzles are available to meet the needs of every shotcrete/shotcrete spraying application.
* Motor driven, equipped with ABB inverter, the flow can be adjusted according to needs
* Motor driven, equipped with ABB inverter, the flow can be adjusted according to needs

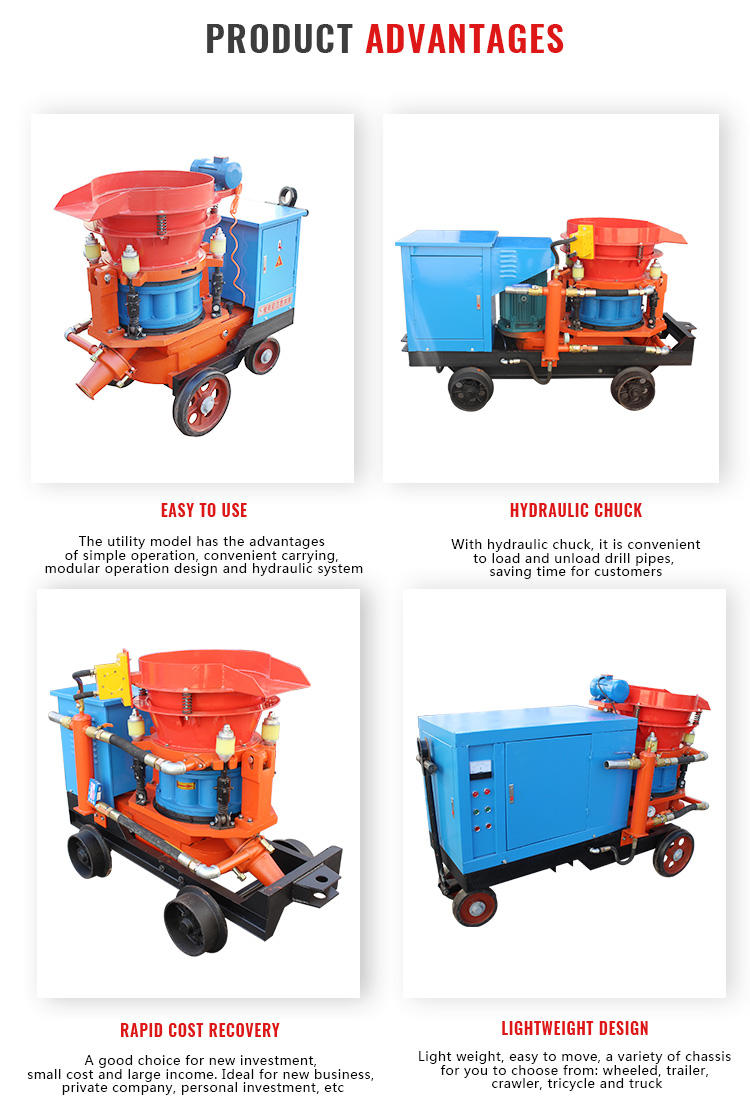

Product advantages

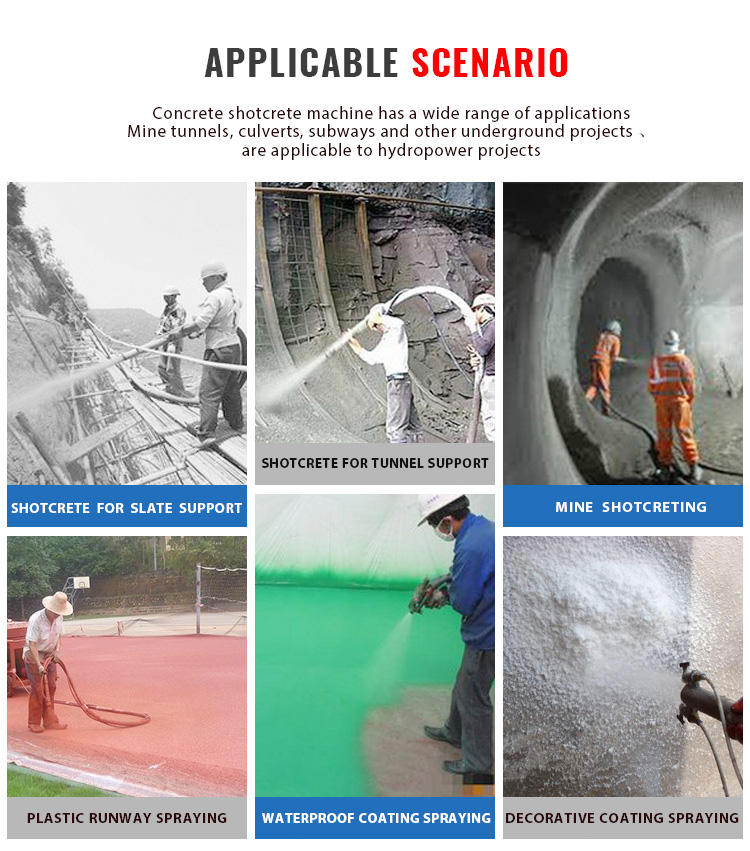

Application scenarios
Mine shotcrete machine uses a concrete pump to transport concrete through a pipeline to the nozzle of the manipulator, and uses compressed air with an accelerator to spray the concrete onto the shotcrete roadway wall.
It is widely used in various working environments such as tunnels, culverts, subways, hydropower projects, underground projects, slope protection and high gas mine roadways.
It is widely used in various working environments such as tunnels, culverts, subways, hydropower projects, underground projects, slope protection and high gas mine roadways.

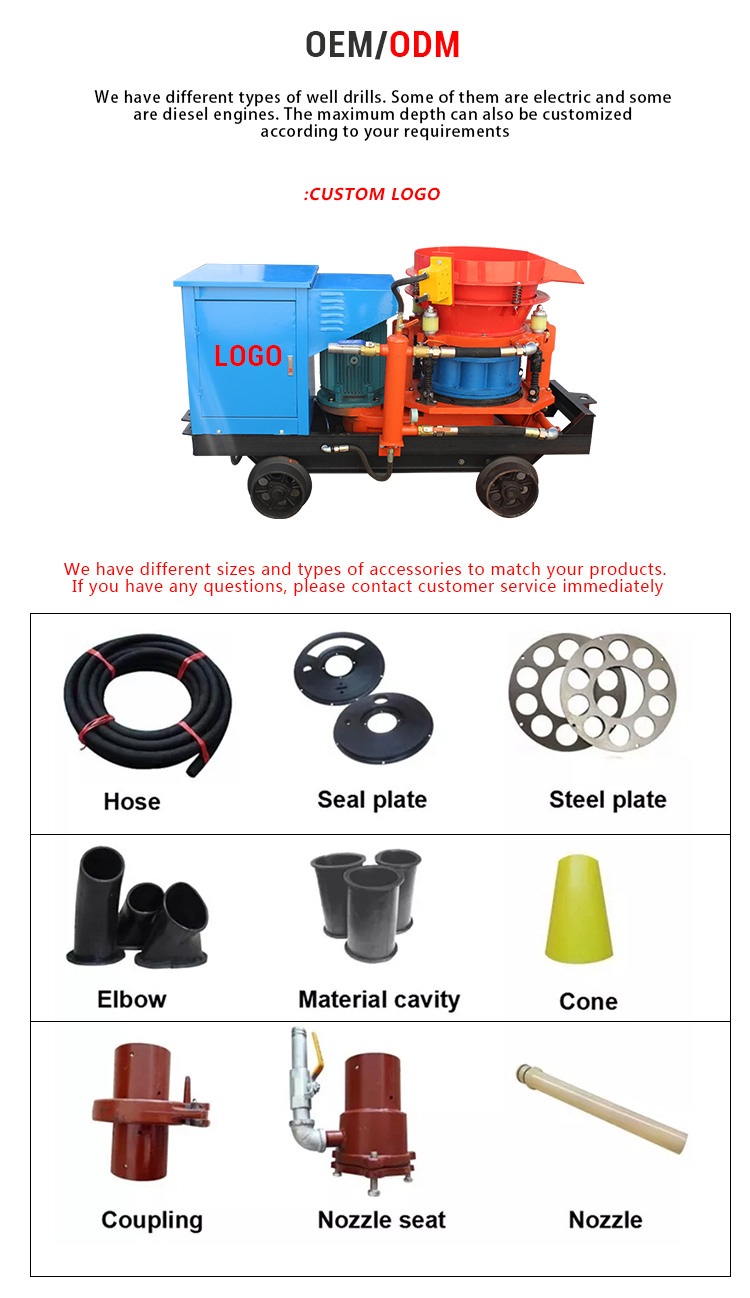

OEM/ODM

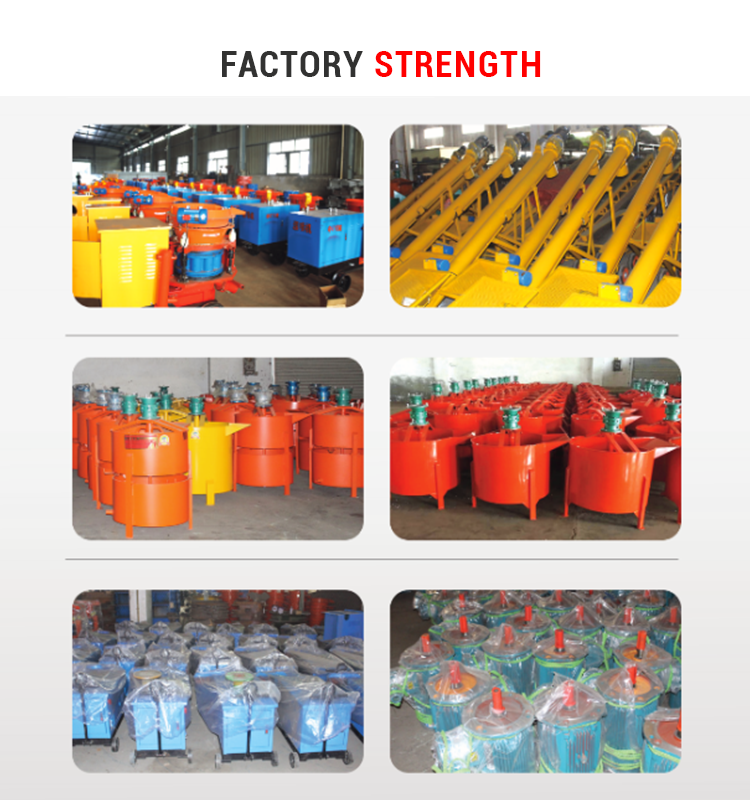

factory
We are a manufacturer with 6 years of production experience. Whatever you need, we have it in stock. Please contact us as soon as possible for more detailed parameters.
