Cheap price 6 way Dozer Blades for Skid steer loaders
- $989.00 /piece
- 1 piece
- Boleo Machinery Equipment (Changzhou) Co., Ltd.
- Jiangsu, China
- Mr Kevin Hsing
PRODUCT DETAIL
| After Warranty Service: | Video technical support,Spare parts; | Machinery Test Report: | Provided; |
| Showroom Location: | Canada,United Kingdom,United States,France,Germany,Brazil,Russia,Spain,UAE,South Africa,Australia; | Place of Origin: | Jiangsu, China; |
| Brand Name: | BOLEO; | Warranty: | 1 Year; |
| Applicable Industries: | Building Material Shops,Farms,Home Use,Construction works ,Energy & Mining,Retail,Garden; | Width During 30° Deflection Angle(mm): | 1270/1519/1845/2180; |
| Video outgoing-inspection: | Provided; | Core Components: | Bearing,Pump; |
| Suitable Excavator(ton): | 5 Ton; | Model Number: | BDB96; |
| Local Service Location: | Canada,United Kingdom,United States,France,Germany,Brazil,Russia,Australia,UAE,South Africa; | Port: | Shanghai; |
| Overall Width(mm): | 1530/1830/2130/2400; | Certification: | CE; |
| Working Voltage(V): | DC12/24; | Max.defection Angle(°): | ±30; |
| Weight(Kg): | 525/556/575/625; | Package Preview: | ; |
| After-sales Service Provided: | Video technical support,Online support,Free spare parts; | Packaging Detail: | Steel Crates and Ply-wood Cases; |
| Marketing Type: | Designed in Germany and assembled in China; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Overall Height(mm): | 700; | Hydraulic Flow(L/Min): | 20-30; |
| Overall Length(mm): | 965; | Supply Ability: | 20 Pieces per Day; |
| Max.working Pressure(MPa): | 21; | Max.yaw Angle(°): | ±10; |
| Condition: | NEW; |
Product Description
FEATURES

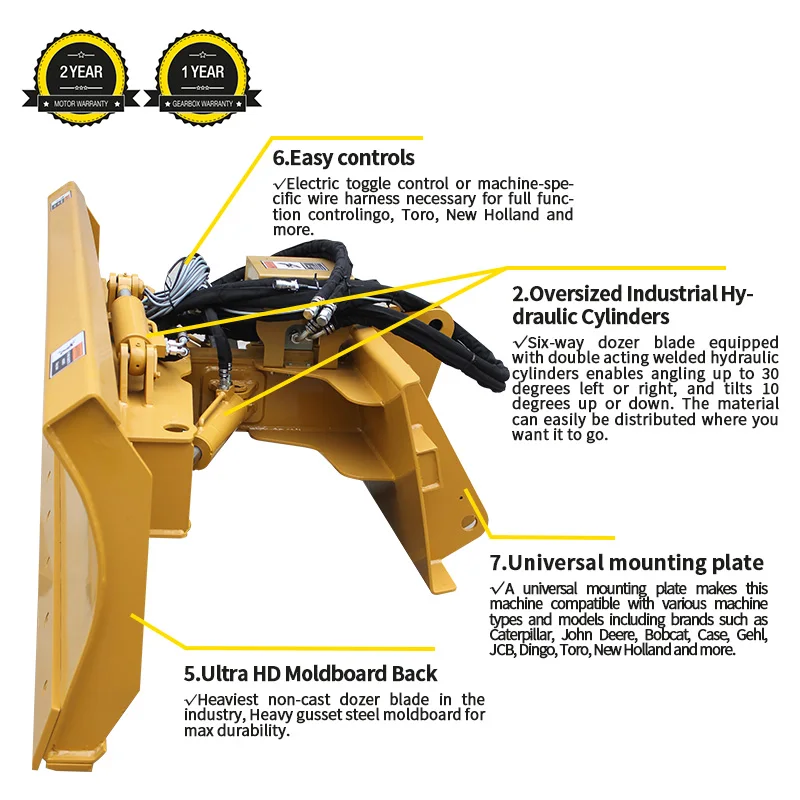

● 6-ways hydraulic adjustments provides for quick and easy blade positioning to meet operator needs

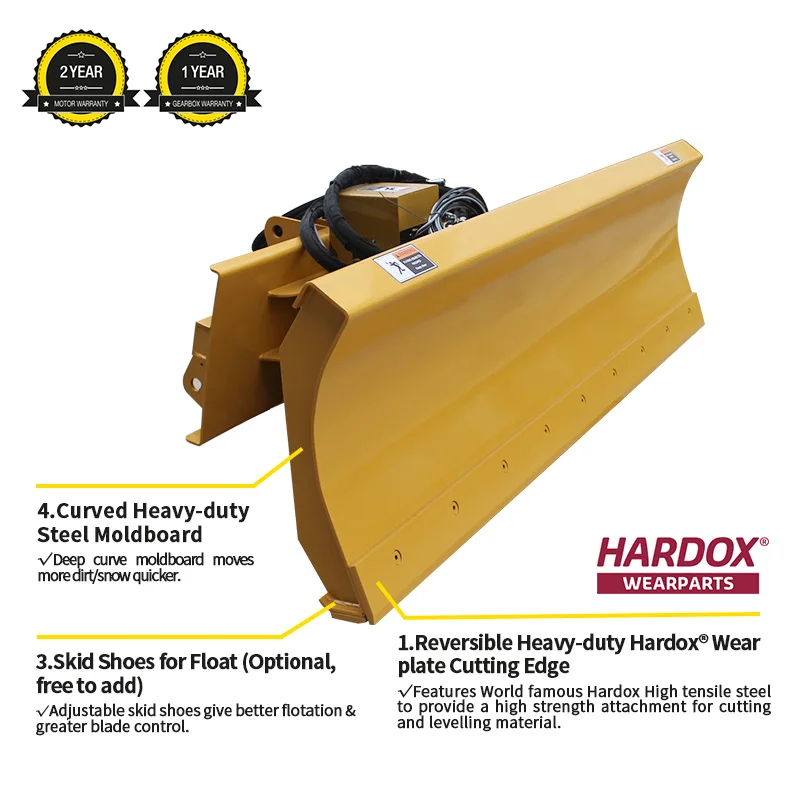

● Equipped with heavy duty Hardox® steel Cutting wear edge, ensuring the Cutting wear edge and allowing for aggressive cuts at maximum Cutting engagement

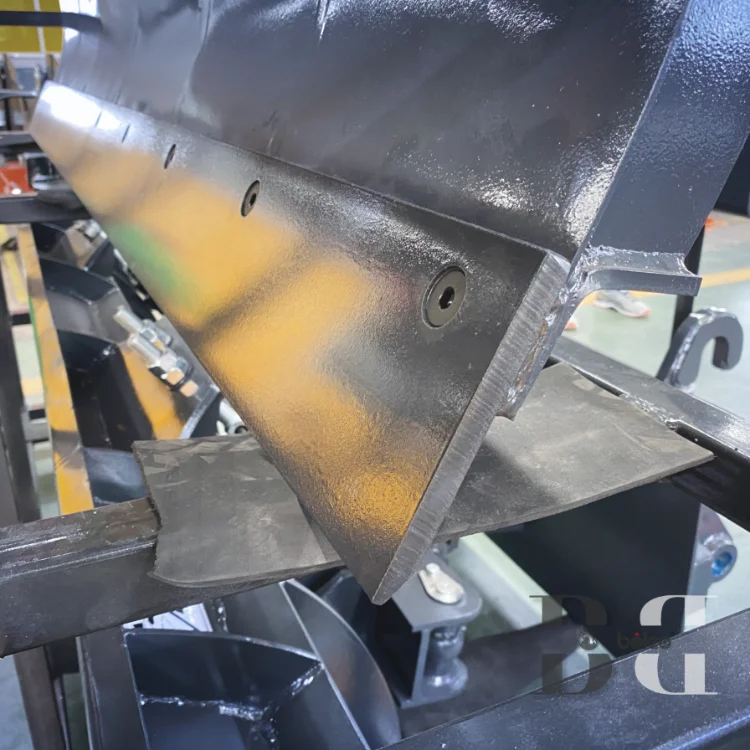

● 2-Piece reversible and replaceable cutting edge so that the end user can replace the entire cutting edge to reduce maintenance cost.

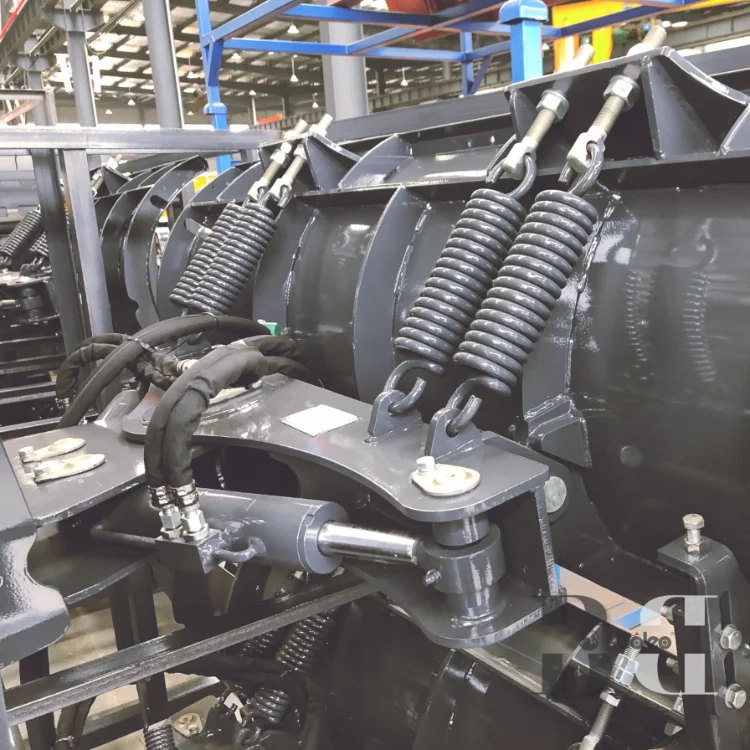

● Double acting welded hydraulic cylinders enables angling up to 30 degrees left or right, and tilts 10 degrees up or down. The material can easily be distributed where you want it to go.
● Deck material is Grade 50 Steel Plate (345 MPa or 50,000 PSI Minimum Yield Strength)
● Reinforced moldboard with fully boxed bracing provides added strength and durability
● Choice of 60'' , 72'', 84" or 96" working widths
● Universal Mounting Quick Attach, included to suit your machine
● Available colors
SPECIFICATIONS | ||||||||
Model | BDB60 | BDB72 | BDB84 | BDB96 | ||||
Overall Width(mm) | 1530 | 1830 | 2130 | 2400 | ||||
Width During 30° Deflection Angle(mm) | 1270 | 1519 | 1845 | 2180 | ||||
Overall Height(mm) | 700 | 700 | 700 | 700 | ||||
Overall Length(mm) | 965 | 965 | 965 | 965 | ||||
Max.defection Angle(°) | ±30 | ±30 | ±30 | ±30 | ||||
Max.yaw Angle(°) | ±10 | ±10 | ±10 | ±10 | ||||
Weight(Kg) | 525 | 556 | 575 | 625 | ||||
Hydraulic Flow(L/Min) | 20-30 | 20-30 | 20-30 | 20-30 | ||||
Working Voltage(V) | DC12/24 | DC12/24 | DC12/24 | DC12/24 | ||||
Max.working Pressure(MPa) | 21 | 21 | 21 | 21 | ||||
Compatible Carrier | Skid Steer Loader/Compactor Loader | |||||||
