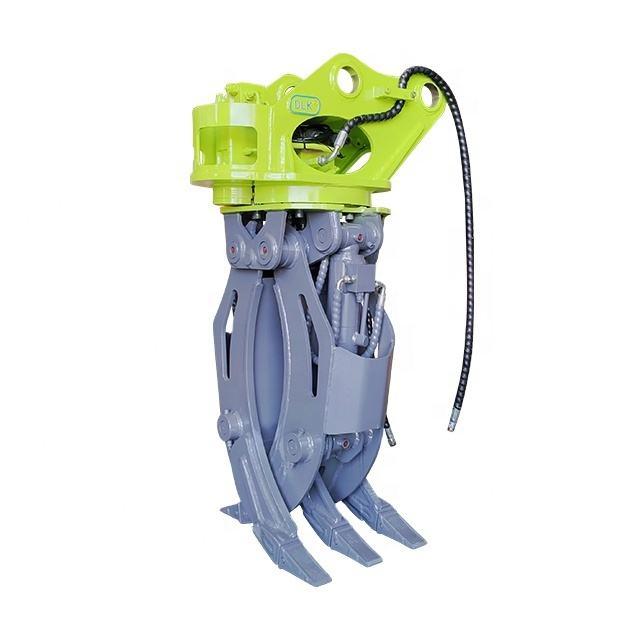

Hydraulic Log Grab Steel Log Grab Hydraulic Log Grab
- $10000.00 /piece
- 1 piece
- Shandong Aumach Machinery Co., Ltd.
- Shandong, China
- Mr Mach J
PRODUCT DETAIL
| Classification: | Recycling end-of-life equipment | Applicable industries: | construction project |
| Showroom location: | not any | Core components: | Hydraulic steel stone log grab |
| Origin: | Shandong China | Applicable excavator (ton): | / |
| model: | AML02 | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Marketing Type: | normal product | main feature: | NM400 steel, light weight, wear-resistant |
| Video shipment inspection: | if | Warranty: | 1 year |
| product name: | Hydraulic steel stone log grab | Mechanical test report: | if |
| weight: | 320 |
Specification
PC60 6 Ton Excavator Mounted Hydraulic Rotary Rock Grab Bucket | ||
Suitable | Simple loosening, cleaning debris, loading and unloading | |
main feature | NM400 steel, light weight and wear-resistant. The pin shaft is made of 42CrMo alloy steel, with built-in oil passage, high strength and good toughness. The rotary motor is imported from Switzerland. Adopt vertical trolley motor rotation system, 360° rotation, with trolley brake function. The oil cylinder adopts honing tube, imported HALLITE oil seal, Short working cycle and long life. The teeth are made of manganese molybdenum alloy material, It is durable. | |
others | including moving stones, logs, pipes, rebar, marble blocks, Disposable garbage, landscaping works, etc. 1. Light weight, large jaw opening, outstanding gripping performance, and maximum operating efficiency. 2. Unlimited clockwise and counterclockwise 360-degree rotation. 3. The specially designed swing bearing is durable. 4. Adopt high-performance check valve to ensure the safety of the operator. 5. The operator can control the speed according to different work sites. 6. Made of wear-resistant steel, equipped with a large oil cylinder to prolong the service life and improve on-site productivity. | |
Product Description
Item/Model | unit | AML02 | AML04 | AML06 | AML08 | AML10 | AML14 |
Applicable excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 |
weight | Kilogram | 320 | 390 | 740 | 1850 | 1950 | 2200 |
jaw opening | mm | 1300 | 1400 | 1600 | 2100 | 2300 | 2800 |
oil pressure | kg/cm² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
set pressure | kg/cm² | 170 | 180 | 190 | 200 | 210 | 250 |
Workflow | l/min | 35-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
Cylinder volume | Ton | 4.0*2 | 4.5*2 | 8.0*2 | 9.7*2 | 12*2 | 12*2 |
Item/Model | unit | AM40A | AM60A | AM150A | AM220A | AM300A | AM150A+ | AM220A+ |
Applicable excavator | Ton | 4-6 | 6-9 | 9-16 | 20-30 | 27-30 | 9-16 | 20-30 |
weight | Kilogram | 360 | 460 | 950 | 1600 | 2000 | 600 | 2350 |
high | mm | 1200 | 1400 | 1635 | 2100 | 2425 | 1360 | 2300 |
width | mm | 560 | 500 | 893 | 990 | 1570 | 500 | 940 |
opening ceremony | mm | 1060 | 1400 | 1600 | 2260 | 2500 | 1400 | 2200 |
driving pressure | bar | 180 | 180 | 250 | 280 | 280 | 180 | 280 |
drive flow | low speed | 60 | 100 | 160 | 220 | 220 | 100 | 220 |
two tooth width | mm | 236 | 250 | 320 | 558 | 630 | ||
Trident width | mm | 396 | 420 | 550 | 794 | 940 | 420 | 817 |
Four tooth width | mm | 600 | 1157 |
