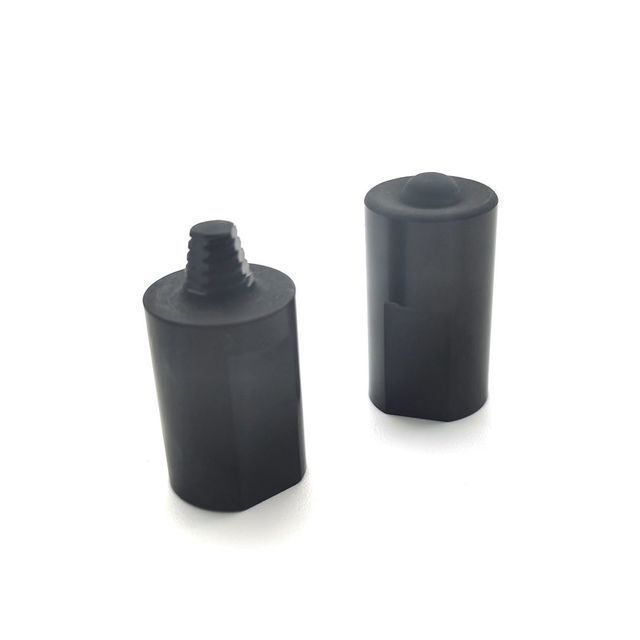

Custom High Quality Friction Stir Welding Tool PCBN FSW Tool
- $700.00 / 1 - 4 pieces
$600.00 / >=5 pieces - 1 piece
- Funik Ultrahard Material Co., Ltd.
- Henan, China
- Ms Sharly Han
PRODUCT DETAIL
| After-sales service provided: | Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support | Applicable industries: | factory, other |
| Certification: | ISO9001, ISO14001, ISO45001 | Heat coefficient: | 100-250 |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | brand: | Fornic |
| payment terms: | Western Union, T/T | Core components: | polycrystalline cubic boron nitride |
| Weight (kg): | 0.1 kg | Local service location: | not any |
| Mechanical test report: | if | Welding strength: | High |
| State of health: | new | place of origin; place of origin: | Henan, China |
| Core component warranty: | 1 year | Thermal expansion coefficient: | 4.6-4.9 |
| Certification: | International Organization for Standardization | Material: | polycrystalline cubic boron nitride |
| usage: | friction stir welding | port: | Zhengzhou/Guangzhou/Shanghai |
| aspect: | custom made | Package preview: | |
| Main selling points: | competitive price | Packaging Details: | According to customer requirements (plastic box/polybag/carton) |
| Showroom location: | not any | Marketing Type: | 2019 Hot Products |
| Operating temperature: | 1000℃ | Soldering temperature: | Not more than 70% of the melting point |
| Supply capacity: | 500,000 pieces per year | Types of: | friction welding machine |
| Warranty: | 1 year | Hardness (HV): | 2600-3500 |
| application: | friction stir welding | Video shipment inspection: | if |
Product Description
FUNIK unites top research institutions and universities, introduces high-tech equipment, and develops high-quality polycrystalline cubic boron nitride (PCBN) friction stir welding tools, which are available in a wide range of sizes for various applications. FUNIK is now the first and only PCBN FSW tool manufacturer in China.

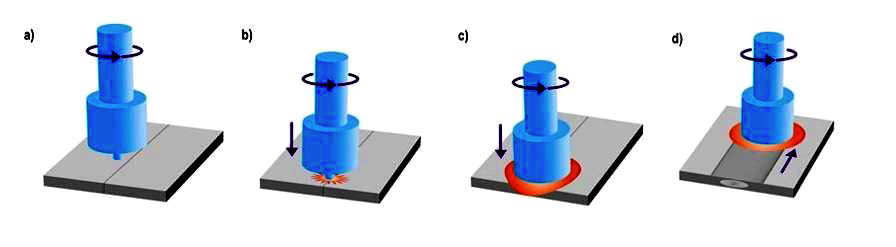

Friction stir welding (FSW) is a solid-state joining process widely used for soft materials such as aluminum alloys because it avoids many of the laudable problems of fusion welding. However, the commercial viability of the FSW process for harder alloys such as steel and titanium alloys awaits the development of cost-effective and durable tools that can consistently achieve structurally sound welds. Due to its high strength and hardness at high temperatures and high temperature stability, PCBN is the tool material of choice for hard material welding FSW. In addition, PCBN's low coefficient of friction results in a smooth soldering surface.
Our advantage
Comparison of Fusion Welding and Friction Stir Welding | ||||
project | Welding | friction stir welding | ||
soldering temperature | above melting point | Not more than 70% of the melting point | ||
structure microhumid | Structural solidification, severe segregation | Uniform fine-grained structure | ||
residual stress distribution | Big | very small | ||
welding strength | low | High | ||
Energy consumption | High | About 65% fusion welding | ||
Welding technology qualification | necessary | unnecessary | ||
operating environment | difficult | OK | ||

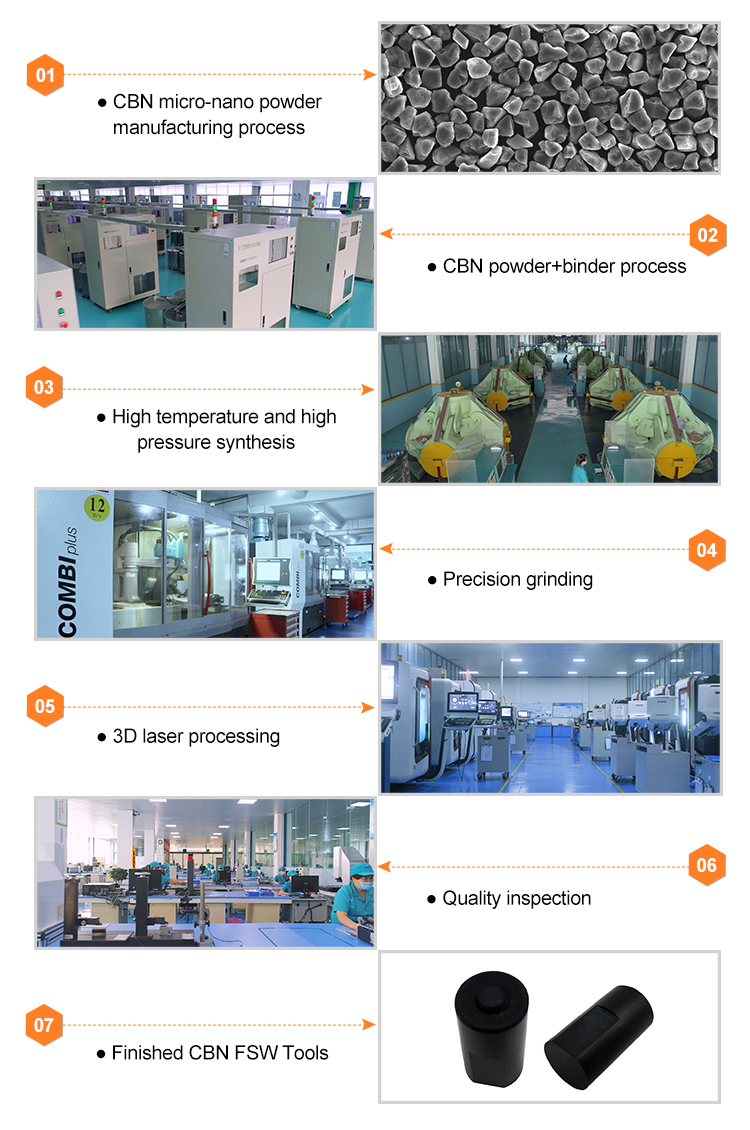

Manufacturing and Inspection Process
application

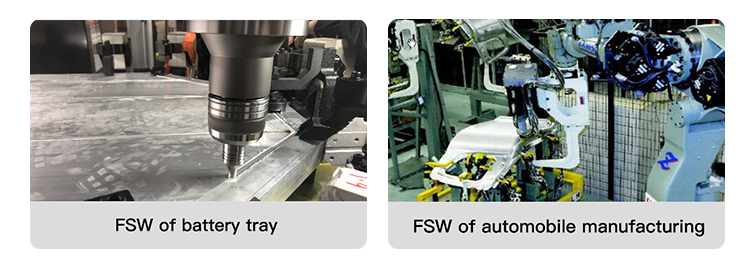

Friction stir welding technology has been successfully applied in aviation, aerospace, shipbuilding, trains, automobiles, electronics, electric power and other industrial fields. Specifically include: aerospace cylindrical structure, aviation thin-walled structure, wide rib plate of ship, high-speed train car body structure, large thickness radar plate, automobile wheel hub, container profile wall plate, radiators of various structures, heat sinks, etc.
Packaging and Shipping
