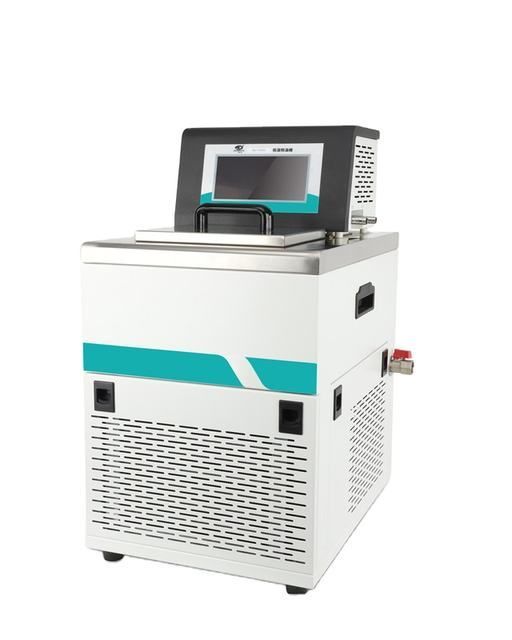

DC Series Cooling Circulating Water Bath

PRODUCT DETAIL
Model Number:DC-2010;Packaging Detail:Standard export packing;
Digital display resolution:0.1℃;Place of Origin:Zhejiang, China;
Display:Touch Screen;Volume:10L;
Warranty:1 Year,1year;Heating Power:1000W;
Power Supply:220V/110 50HZ/60HZ;Classification:Laboratory Thermostatic Devices;
Customized support:OEM;Cooling capacity(25℃/W):620W;
Brand Name:SCIENTZ;Supply Ability:2000 Pieces per Month;
Pump flow:0-15L/min;Pump pressure:0.45bar;
Temperature Range:-20-100℃;Port:NINGBO, SHANGHAI;
Payment Terms:T/T;

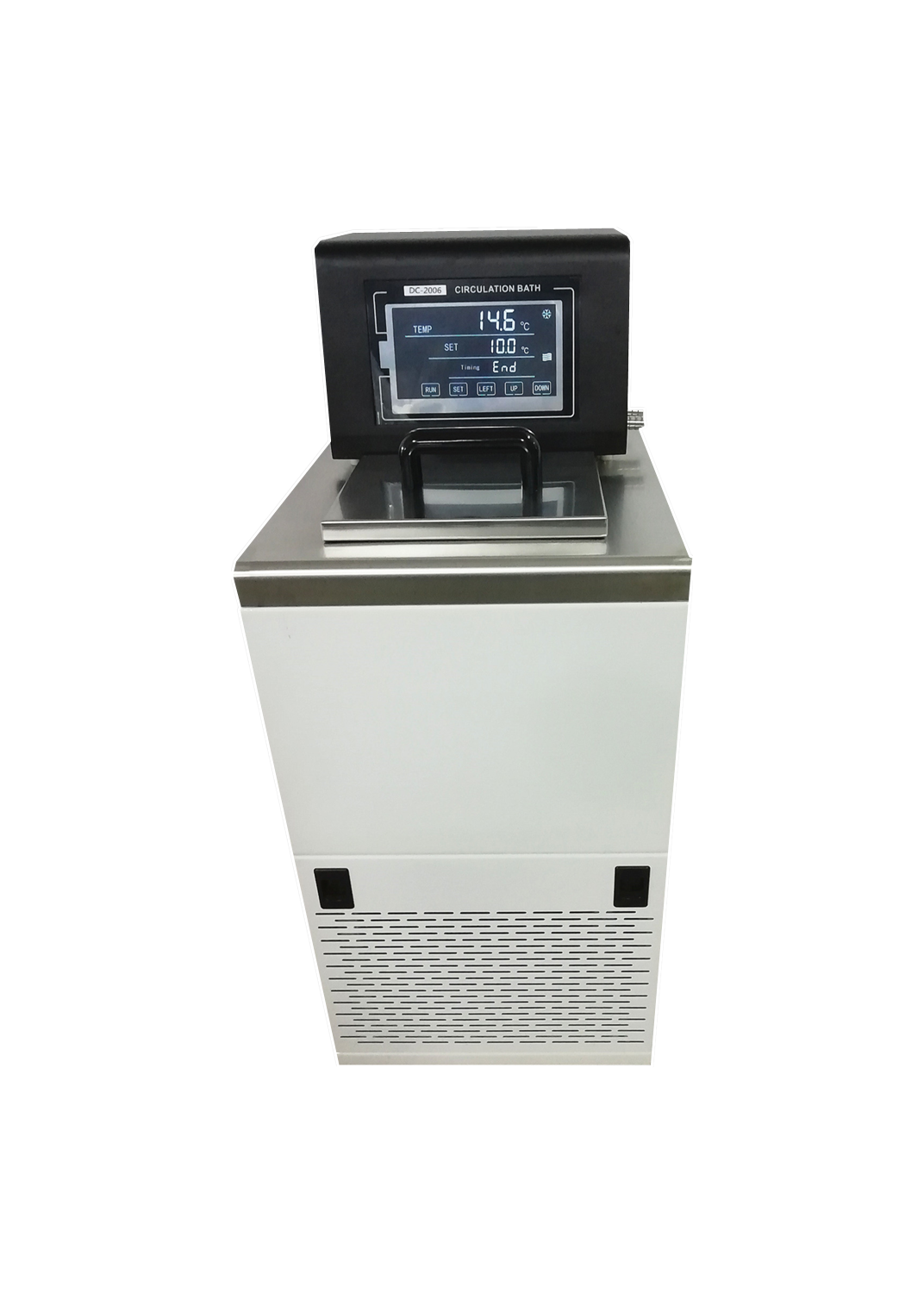

Product Description
DC series recirculating chillers are the true thermostatic control laboratory chiller

This closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laseretching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

They are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use.

Powerful force/suction pump provides constant flow rates, while 2nd generation controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
Feature
2nd generation 7" TFT touch screen controller
Adjustable pumping speed up to 20 liters per minute
ANSI standard all stainless steel reservoir
All steel construction for durability
No dry ice or liquid nitrogen needed
Plug and play, no assembly required
Connection tubing included
Specification
Model
Temperature
Range(℃)
Temperature
Stability(℃)
Tank size
(mm3)
Capacity
(m)
Pump flow
(L/min)
Tank size
(mm2)
Cooling capacity(25℃)
SDC-6
-5~100
±0.1
260*200*140
6
0-15
180*140
420W
DC-1006
-10~100
±0.1
260*200*140
6
0-15
180*140
320W
DC-2006
-20~100
±0.1
260*200*140
6
0-15
180*140
420W
DC-3006
-30~100
±0.1
260*200*140
6
0-15
180*140
420W
DC-4006
-40~100
±0.1
260*200*140
6
0-15
180*140
480W
DC-0510
-5~100
±0.1
260*200*200
10
0-15
180*140
520W
DC-1010
-10~100
±0.1
260*200*200
10
0-15
180*140
420W
DC-2010
-20~100
±0.1
260*200*200
10
0-15
180*140
620W
DC-3010
-30~100
±0.1
260*200*200
10
0-15
180*140
540W
DC-4010
-40~100
±0.1
260*200*200
10
0-15
180*140
460W
DC-0515
-5~100
±0.1
300*250*200
15
0-15
235*160
760W
DC-1015
-10~100
±0.1
300*250*200
15
0-15
235*160
760W
DC-2015
-20~100
±0.1
300*250*200
15
0-15
235*160
760W
DC-3015
-30~100
±0.1
300*250*200
15
0-15
235*160
730W
DC-4015
-40~100
±0.1
300*250*200
15
0-15
235*160
1240W
DC-2020
-20~100
±0.1
300*250*260
20
0-15
235*160
1550W
DC-0530
-5~100
±0.1
440*325*200
30
0-15
310*280
1800W
DC-1030
-10~100
±0.1
440*325*200
30
0-15
310*280
2000W
DC-2030
-20~100
±0.1
440*325*200
30
0-15
310*280
2400W
DC-3030
-30~100
±0.1
440*325*200
30
0-15
310*280
2500W
DCW-1015
-10~100
±0.1
280*250*220
15
0-15
235*160
760W
DCW-2008
-20~100
±0.1
280*250*140
10
0-15
235*160
620W
DCW-3506
-35~100
±0.1
260*200*140
7
0-15
180*140
750W
DCW-3510
-35~100
±0.1
250*200*200
10
0-15
180*140
750W
DCW-0506
-5~100
±0.1
260*200*140
7
0-15
180*140
520W
DCW-4006
-40~100
±0.1
260*200*140
7
0-15
180*140
750W

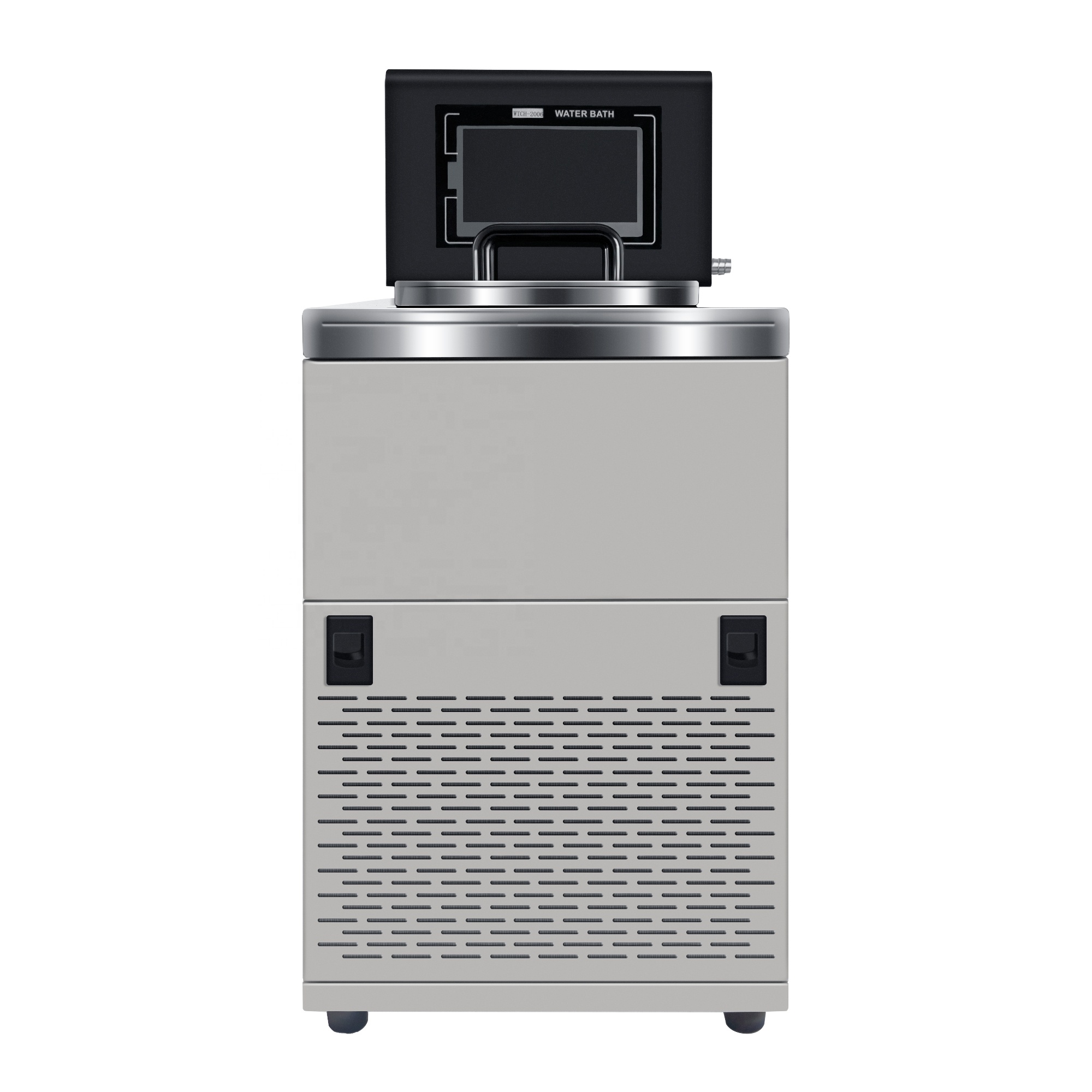

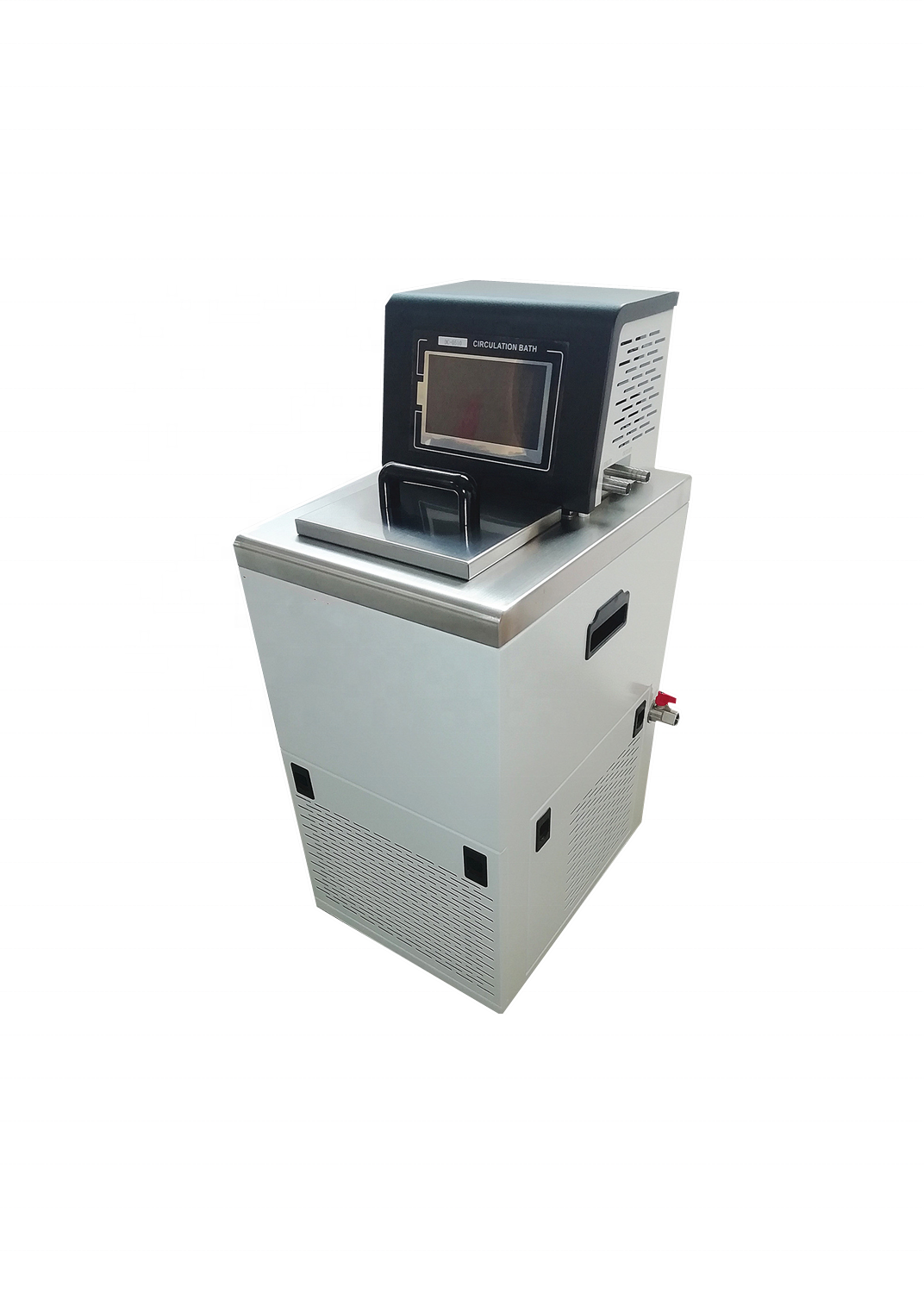

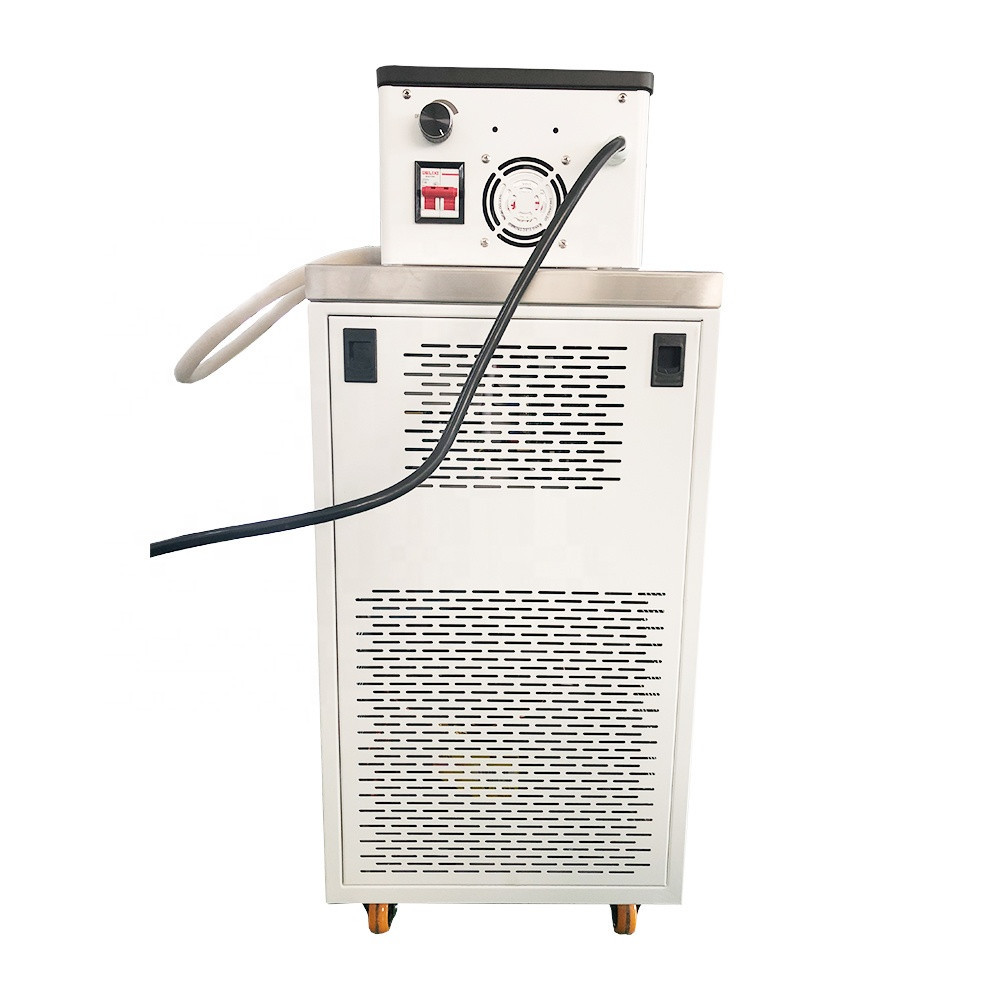

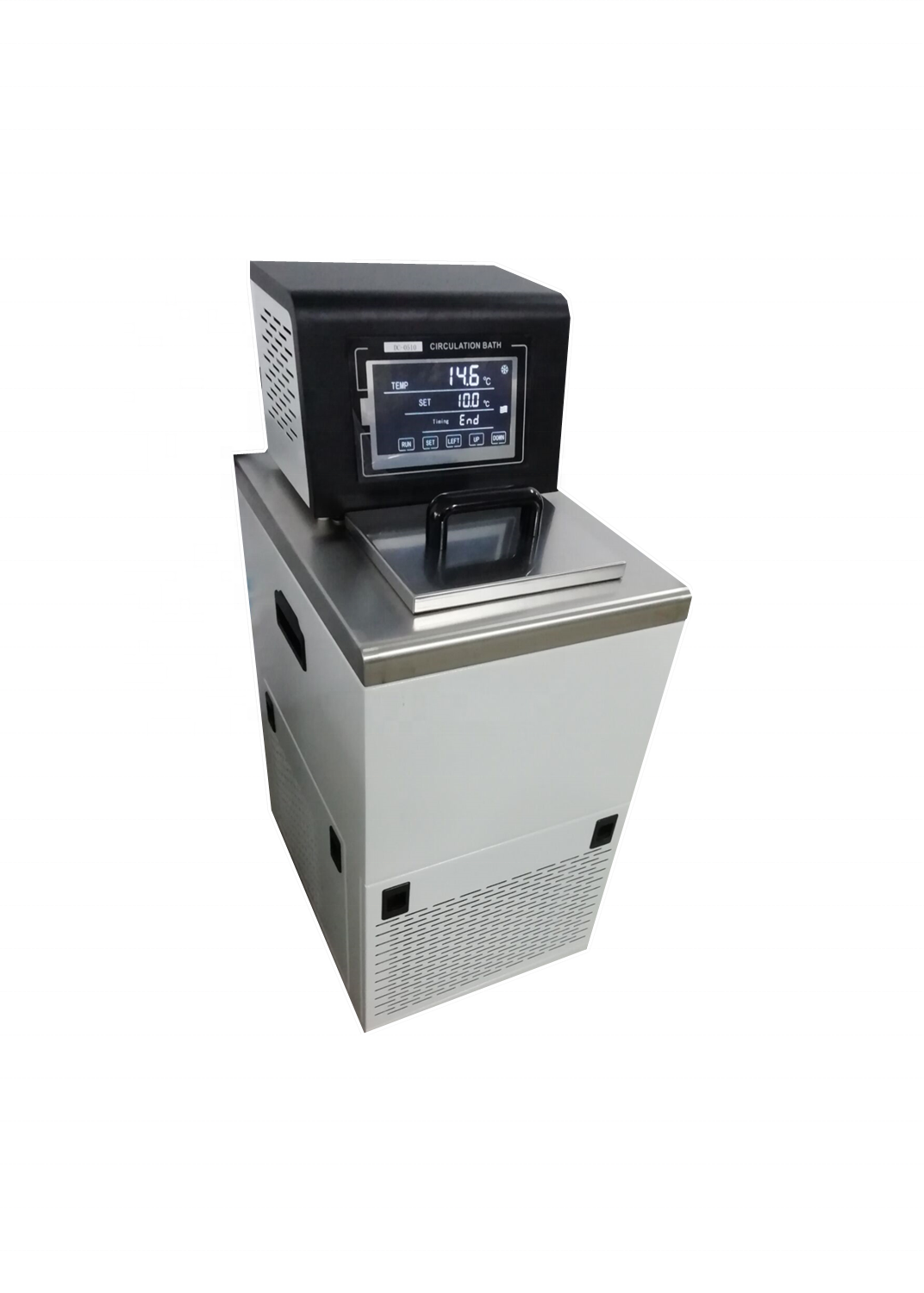

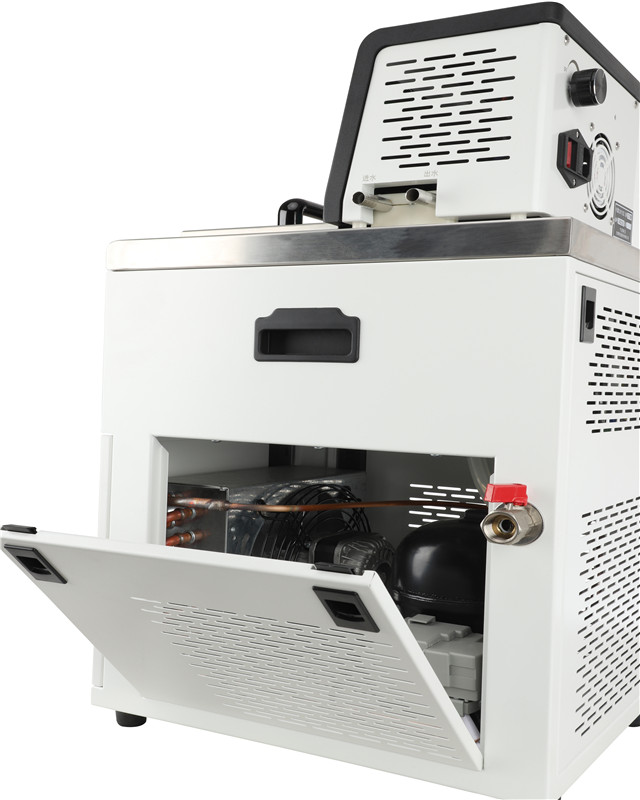

Product Detail

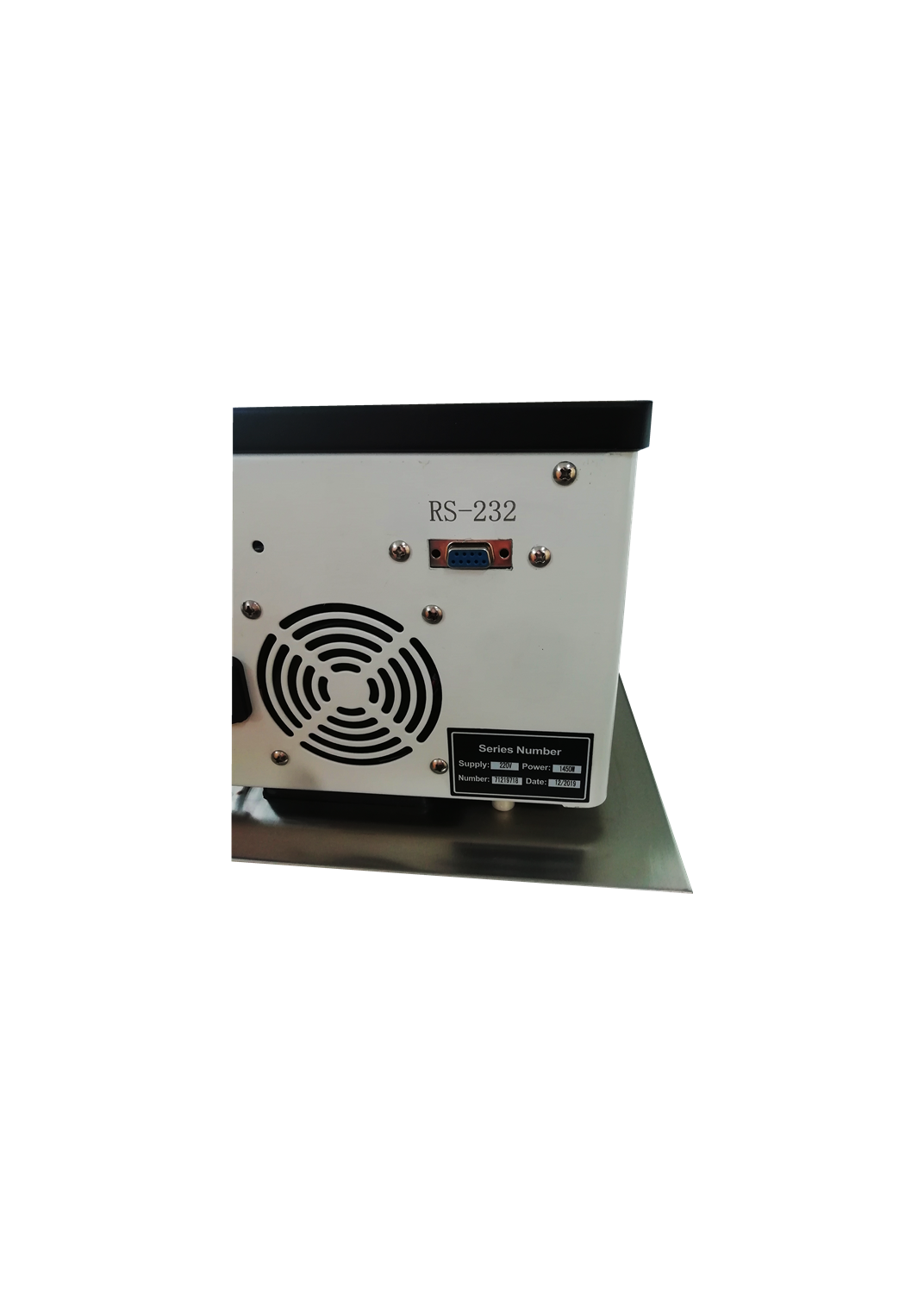

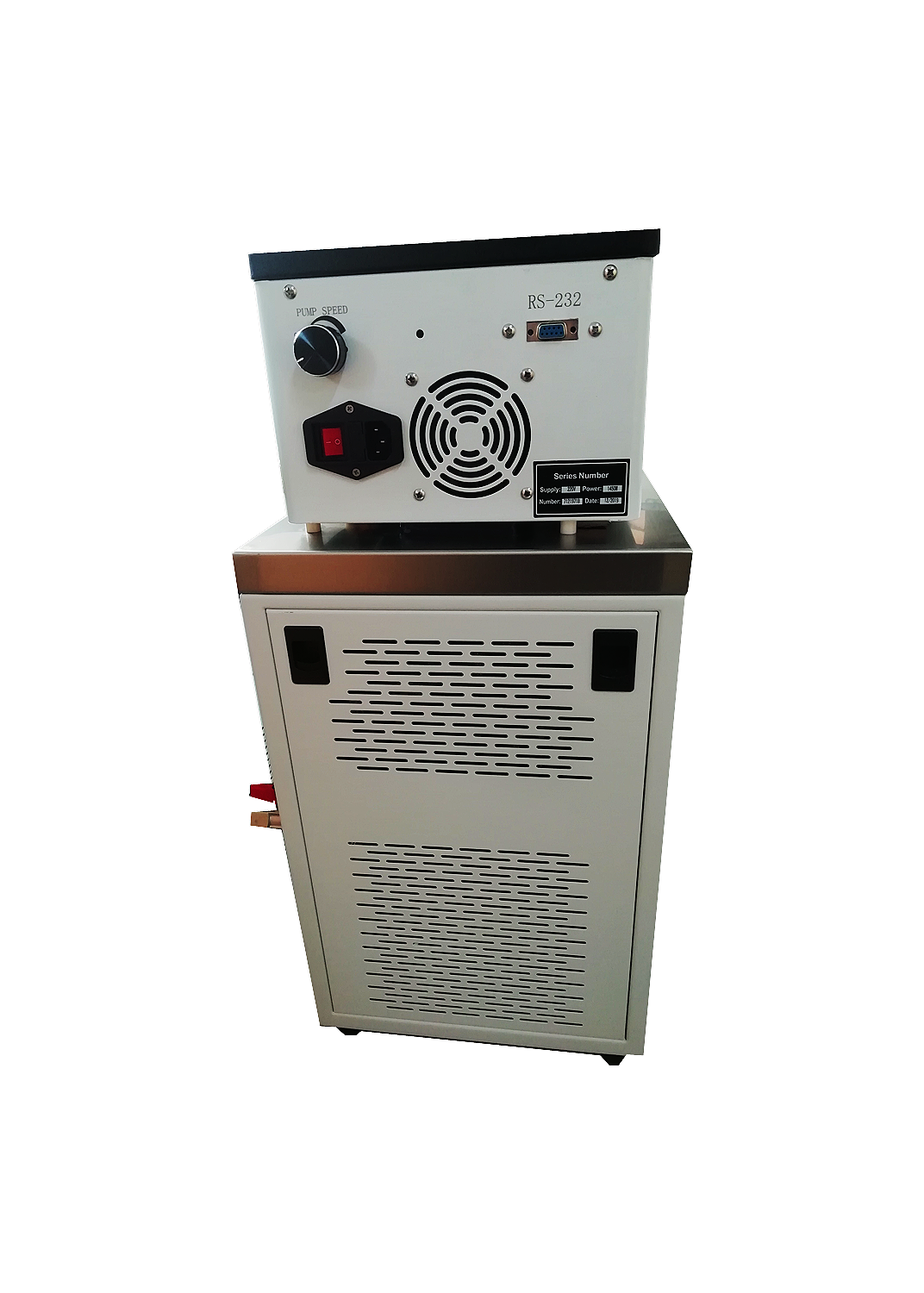

The circulating bath can be connected to RS232 or 485 communication (customize this function)

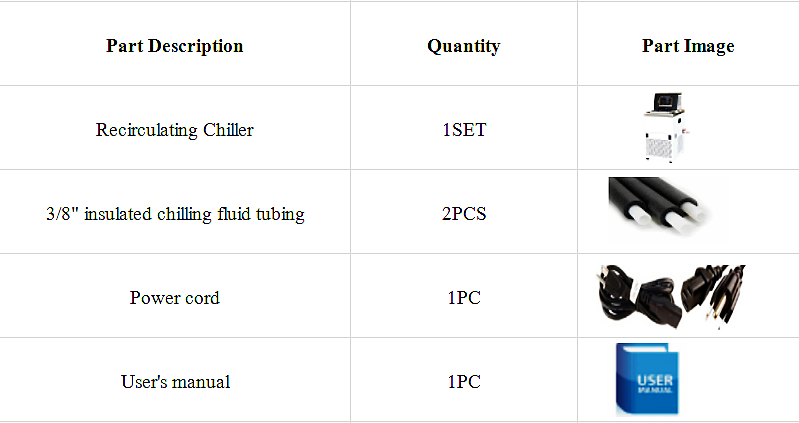

Packing List

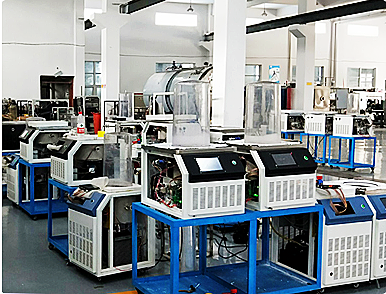

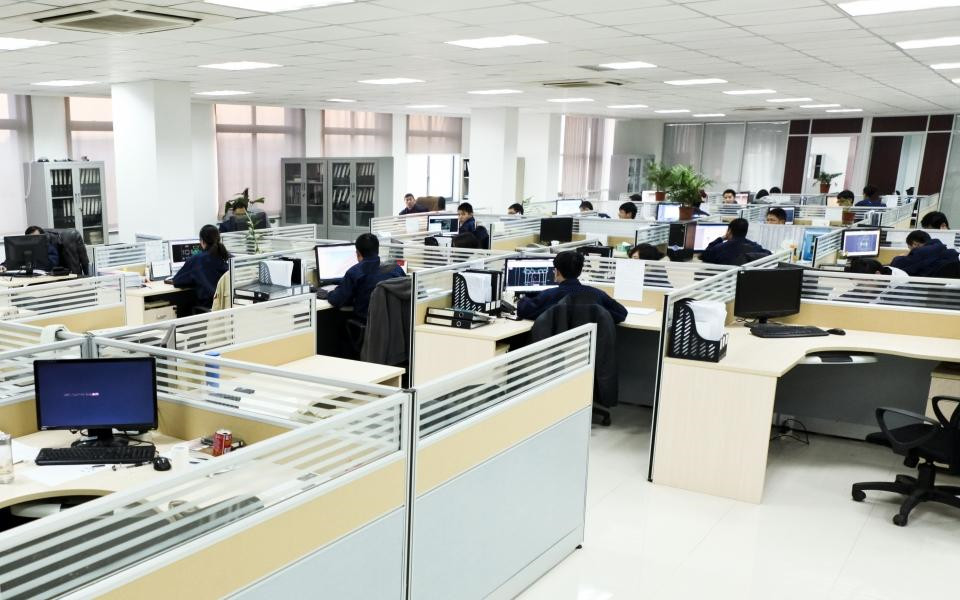

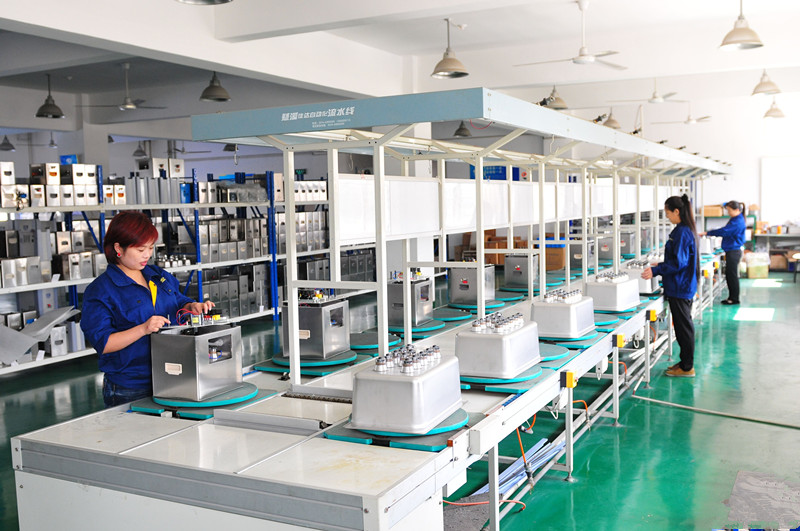

Company Profile

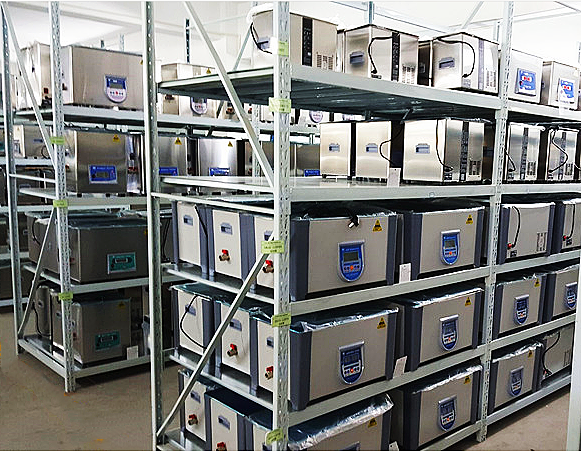

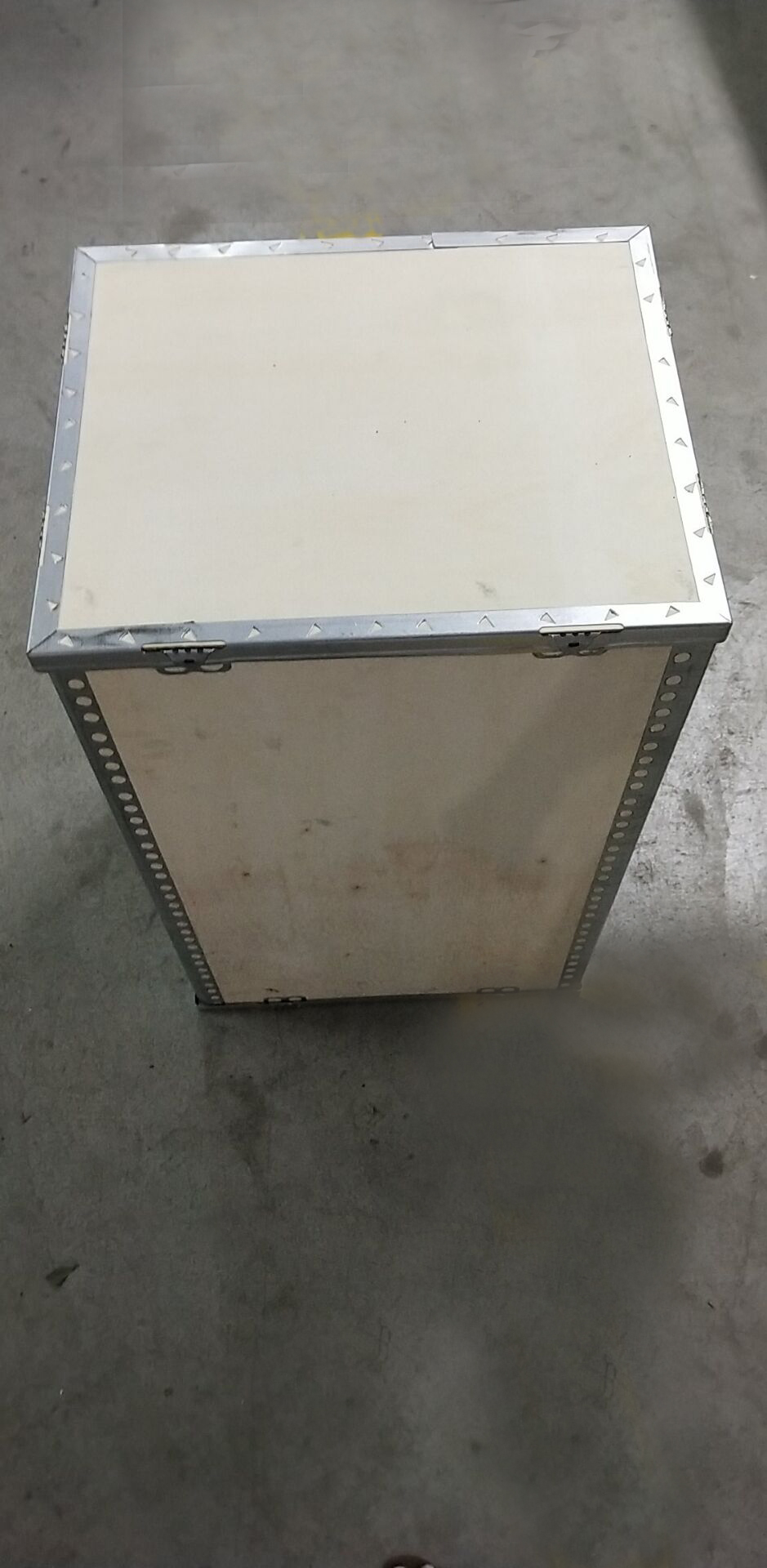

Packing&Delivery
