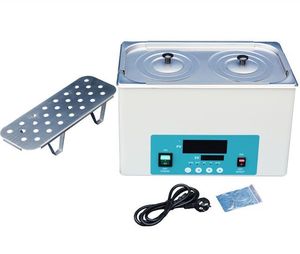

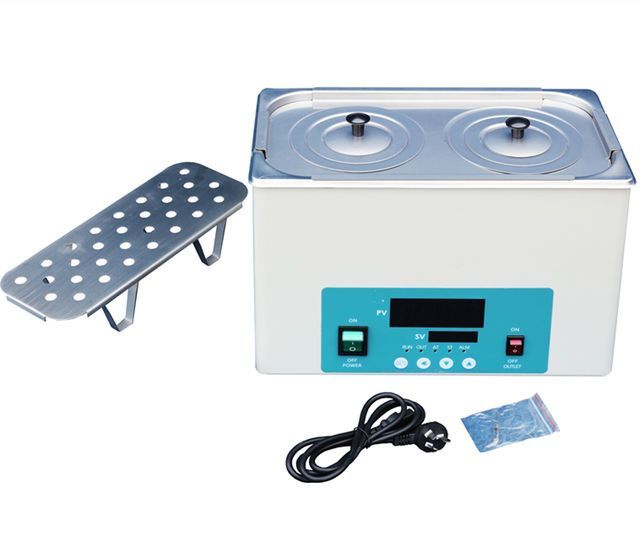

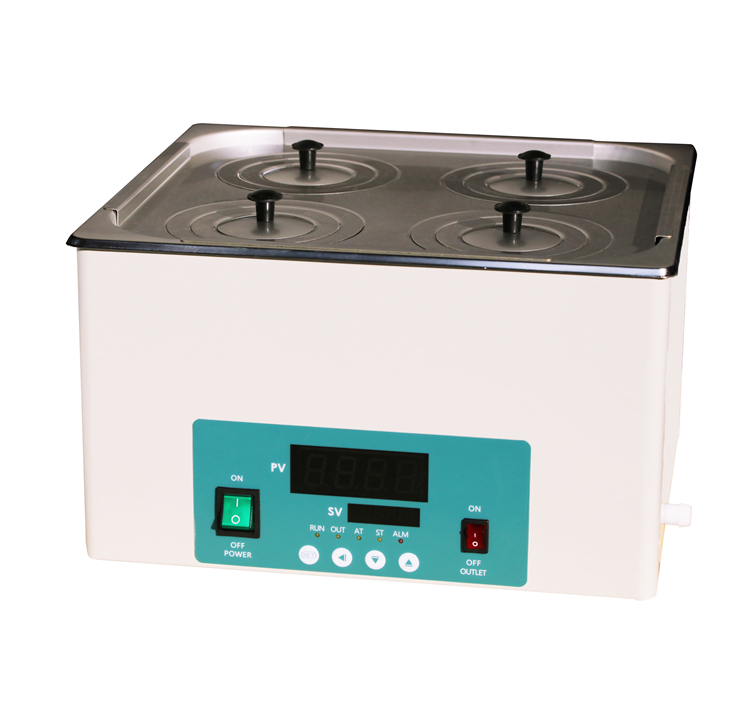

Digital stainless steel thermostatic water bath machine laboratory usage

PRODUCT DETAIL
Temperature range:RT+5~100℃;Place of Origin:Shanghai, China;
Port:shanghai guagnzhou;Timer:0-999 min;
Temperature Resolution:±0.5℃;Capacity:One,two,four ,six holes;
Payment Terms:T/T;Product name:Water Bath;
Heater:Stainless steel U type heating tube;Model Number:DK series;
Material:Stainless steel;Supply Ability:1000 Units per Month;
Control mode:PID;Power Supply:800W;
Brand Name:lianhua;Dimensions(mm):340*350*210;
Classification:Laboratory Thermostatic Devices;
Product Description

Inner tank: 1 hole, 2 holes, 2 rows & 4 four holes, 2 rows & 6 holes are stainless steel stretching inner chamber. 1 row & 4 holes, 1 row & 6 holes, 2 rows & 8 holes are stainless steel inner chamber.





Features



1.Stainless steel stretching inner container and roof cover.

2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.









Specifications





Classification Specifications  1 hole  1 row & 2 rows &  2 rows &
2 holes4 holes6 holes
  Model DK-2000-IIIL  √  √  √  √
  Heating ModeNature water convection heat transfer
  FunctionTemp. Range  RT+5~100℃
Temp. Resolution   0.1℃
Ratio
Temp. Motion  ±0.5℃
Temp. Uniformity  ±1.0℃
 Structure Inner Chamber  Stainless steel
 Outer ShellCold - rolled steel plate,
resistance to chemical reagents
 coating on the surface
 Heater Stainless steel heating tube
 Power Rating  0.4kW0.5kW1.0kW 1.5kW
 Controller Temp. Control   PID (without DK-98-II)
Mode
Temp. Setting  Touch button setting
Mode
Temp. Display  Measuring temperature displays on
Modethe three digital tubes upper row,
 set temperature displays on the l
 ower row
 Timer 0~9999min(with timing wait function)
Operation Function Fixed temperature operation,
timing function, auto stop.
 Program Mode Optional
Additional FunctionDeviation Correction, menu key locked,
power failure back-up, power-off memory
 Sensor CU50
 Safety Device Over  temperature alarm
  Specification Inner Chamber 150*135300*135325*300500*300
size(W*L*H)*150*150*150*150
(mm))
Exterior size 170*154318*2168350*318524*322
(W*L*H)(mm)*210*210*210*210
 Packing size 240*230390*240420*390600*390
(W*L*H)(mm)*280*280*280*280
 Volume 3.4L6.6L12.7L18.7L
Load per rack 5kg
Shelf Number1
Power Supply AC220V/AC220V/AC220V/AC220V/
(50/60Hz)1.8A2.3A4.5A6.8A
Current rating
 NW/GW (kg) 3.3/4 4.5/56/7kg7.5/9
Optional AccessoriesShelf, RS485 interface, Recorder, External Communication
