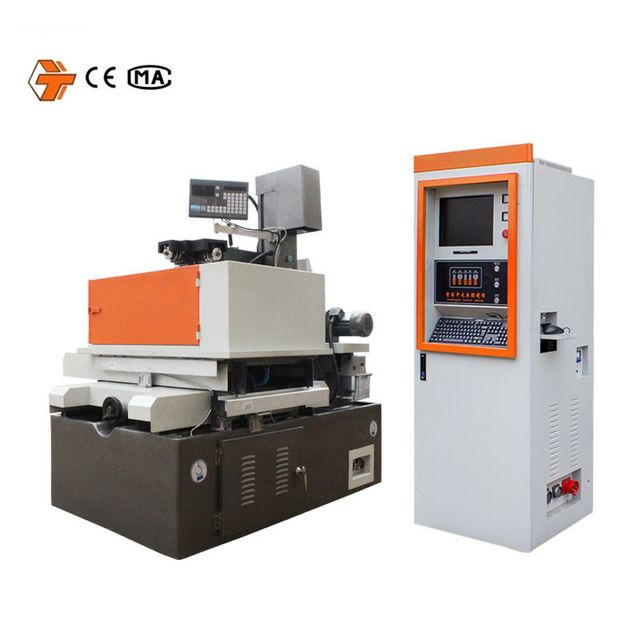

DK7745 Economical 5 Axis Fast DK77 CNC Wire Cutting EDM Machine

Taizhou Terui CNC Machine Tool Co., Ltd. produces a full range of DK77 CNC wire EDM machines, which use high-precision V-type guide rails (linear guide rails are optional) and P3-level high-precision ball screws. The products are of high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs, non-standard models DK7740(45)F, DK7750(55)F, DK7763F, DK7780F, DK77100F, DK77120F and even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision medium-speed wire EDM machines (accuracy≤±0.005mm, roughness≤1.0μm). The following are the main parameters of DK77 series machines:

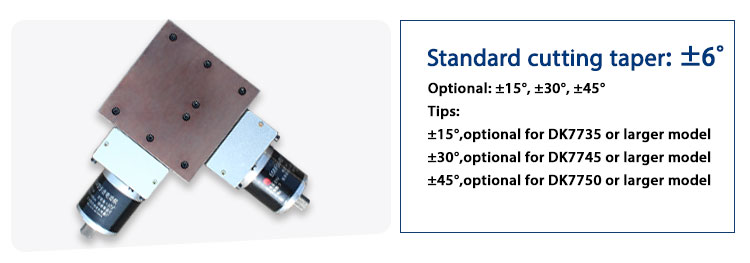

1. Standard maximum cutting taper: ±6°/80mm; (optional ±15°, ±30°, ±45°)
2. Accuracy ≤0.02mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness is less than or equal to Ra2.5μm (single knife), Ra1.5μ​​​​m (multiple knife);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Max. Cutting speed≥120mm^2/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 1.5KW;
7. Working fluid: water-based emulsion.
