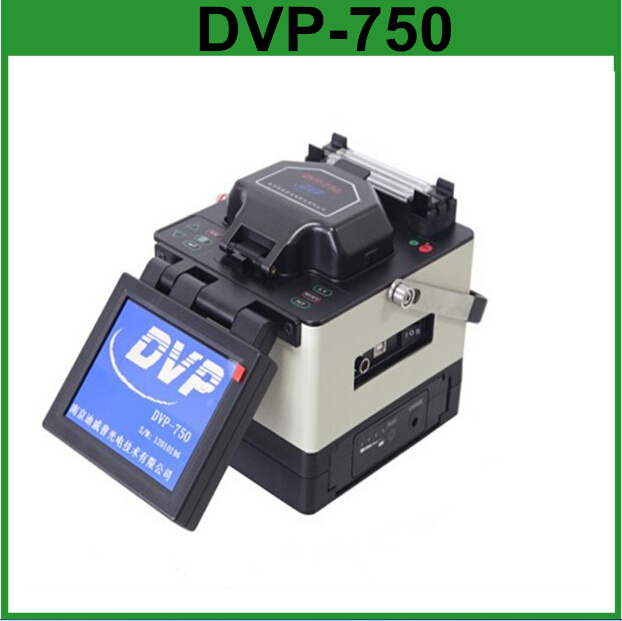

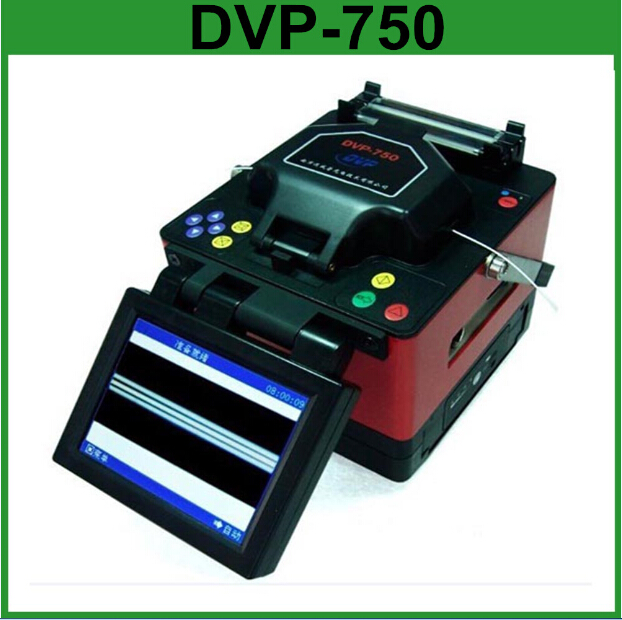

DVP-750 Optical Fiber Fusion Splicer Fusion Splicer
- $200.00 /piece
- 1 piece
- Combasst Industry Development (Shanghai) Co., Limited
- Shanghai, China
- Ms Daisy Wang
| Packaging Details: | Carton packing or customer requirements | Splicing scheme: | 80 groups of manual settings |
| brand: | vice president | Supply capacity: | 200 pieces per week |
| payment terms: | T/T, Western Union, PayPal | Applicable fiber: | SM, MM, NZ-DS(G655), EDF, etc. |
| aspect: | 14 x 15 x 16 cm | Coating Diameter: | 100~1000 microns |
| Shipping Details: | Within 5 working days after receiving payment | Origin: | China Shanghai |
| Fiber Cut Length: | 8-22mm | model: | DVP-750, DVP-750 |
| Tension test: | 2.0N (200gf) (Standard) | Stitching time: | 8 seconds |
| port: | Shanghai | Tube heating time: | 30 seconds |
DVP-750 Optical Fiber Fusion Splicer Fusion Splicer
DVP focuses on the industrialization and marketing of high-tech products, and implements a modern enterprise management system. Adhering to the principle of "Quality, Integrity, and Service", we continue to develop and produce first-class products, and provide customers with the best and fastest service.
DVP-750 Digital Single Fiber Fusion Splicer is designed for single-mode and multi-mode fiber optic cables, easy to use
Features:
- HD LCD display
- PAS technology
- Core or Cladding Alignment
- Dual heater 0.30 second tube heating time
- 3 magnification modes, the fiber core is visible
- 8 seconds welding time
- lithium battery
- maximum. Wind speed 15m/s
- Stitching method: automatic, manual
- Store 8000 sets of splicing results
- USB interface
Specification
Applicable fiber | SM, MM, NZ-DS(G655), EDF, etc. |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM). 0.04dB (NZD) |
return loss | ≥60dB |
Tensile test | 2.0N (200gf) (standard) |
Case length | 20mm, 40mm, 60mm and other series of miniature protective sleeves |
splicing scheme | 80 groups |
language | English, Chinese, Korean, Russian, Spanish, French, German, |
Environmental conditions: | -25~+50 (working temperature), 0~95%RH (humidity), 0~5000m (altitude) |
storage environment | -40~+80 (temperature), 0~95%RH (humidity) |
power supply | AC adapter: 85~260V input voltage |
size and weight | 140(D)×150(W)×160(H)mm/2.8kg |

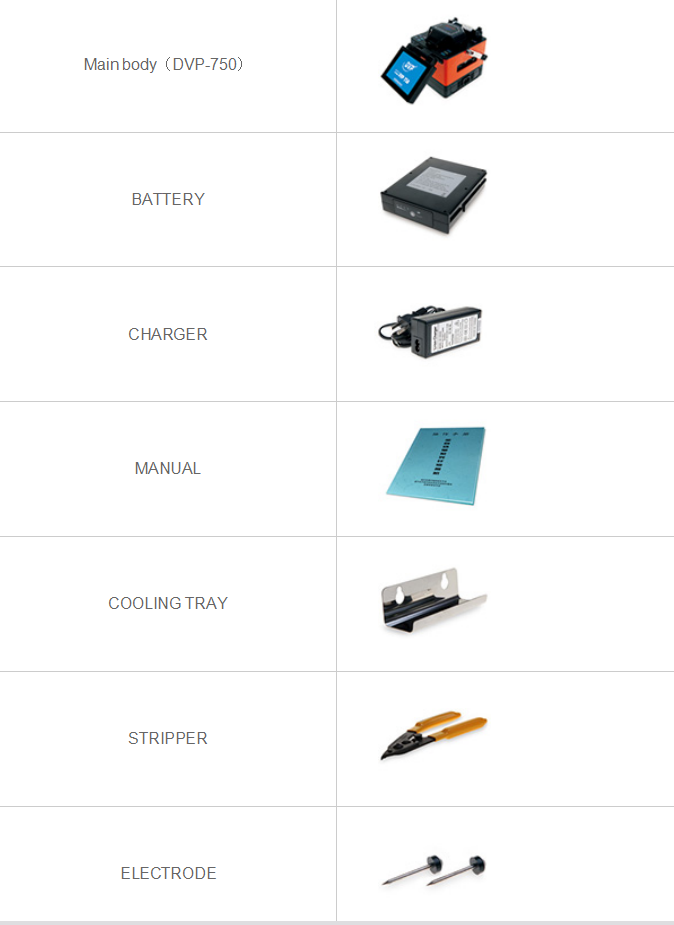

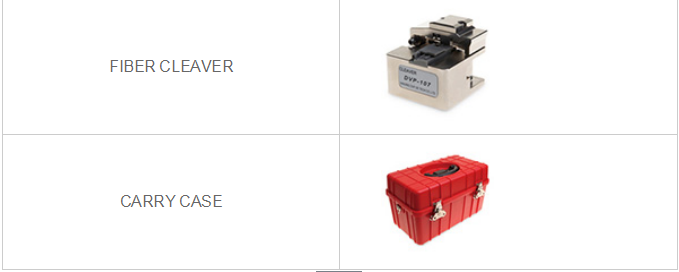

Package
1. All products are packed in cartons, and the products are effectively protected from damage.
2. Packaging according to customer requirements.
shipping
1. We ship small orders by DHL / FedEx / TNT etc. You can receive your package in about 3-5 days anywhere in the world.
2. For big order, we will arrange air shipment for you, so it will be much cheaper than DHL, UPS, etc.
3. You can choose your own freight forwarder, we will provide good cooperation for it.
1, Customers can contact us for any questions by phone, Skype, Trademanager, Email, Whatsapp, QQ, etc.
2, All products are tested and well packaged before shipment.
3. COMBASST will be responsible for the workmanship and material defects and product quality problems when the product is used correctly in accordance with the instructions and within the warranty period.
4, We provide 3-5 years warranty and lifetime technical support for all products.
5. Any parts that are proved to be defective by COMBASST inspection shall be returned or other solutions shall be negotiated.
6. Return shipping fee:
1). During the warranty period: the customer is responsible for the shipping and insurance costs, including customs fees
When equipment and/or parts are shipped to the manufacturer/supplier for repair.
COMBASST is responsible for paying the shipping and insurance costs to the customer.
2).Warranty Period: Customer is responsible for any shipping and insurance charges.
7. If necessary, we can provide detailed documentation and remote technical support for equipment installation and configuration
