High Stability Low Polarization Dependent Loss Fiber Optical Micro PLC Splitter
- $2.20 / 80 - 1999 pieces
$2.10 / 2000 - 9999 pieces
$2.00 / >=10000 pieces - 80 pieces
- Wuhan B&R International Co., Ltd.
- Hubei, China
- Mr Kong Ding
| Place of Origin: | Hubei, China; | Operating Wavelength(mm): | 1260~1650; |
| Payment Terms: | L/C,T/T,Western Union,PayPal O/A; | Package: | Standard Package; |
| Feature: | High-performance; | Keywords: | Splitter; |
| Color: | WHITE; | Payment: | T/T, L/C, O/A, and Western Union or PayPal; |
| Use: | FTTH; | Brand Name: | WHB&R; |
| Model Number: | SC/UPC 1xN; | Service: | OEM ODM; |
| Sample: | YES; | Type: | Single Mode,PLC Splitter; |
| Operating Temperature (℃): | -40~85; | Supply Ability: | 100000 Pieces per Month; |
| Packaging Detail: | 1 Pc per PE Bag or Plastic box, 20Pcs per outer carton box.; | Port: | shenzhen, Shanghai, Wuhan; |
| Package Preview: | ; | No. of Fiber: | 8.; |

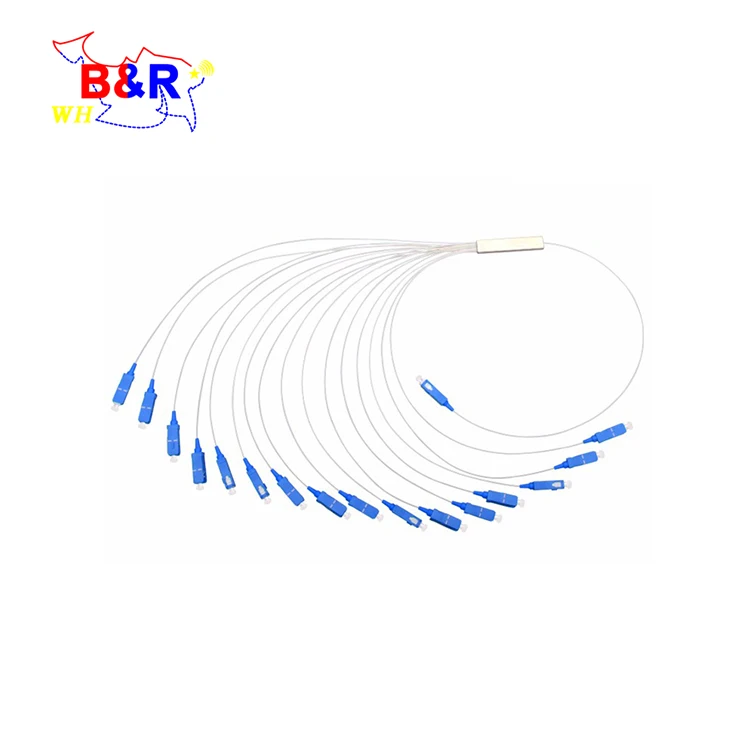

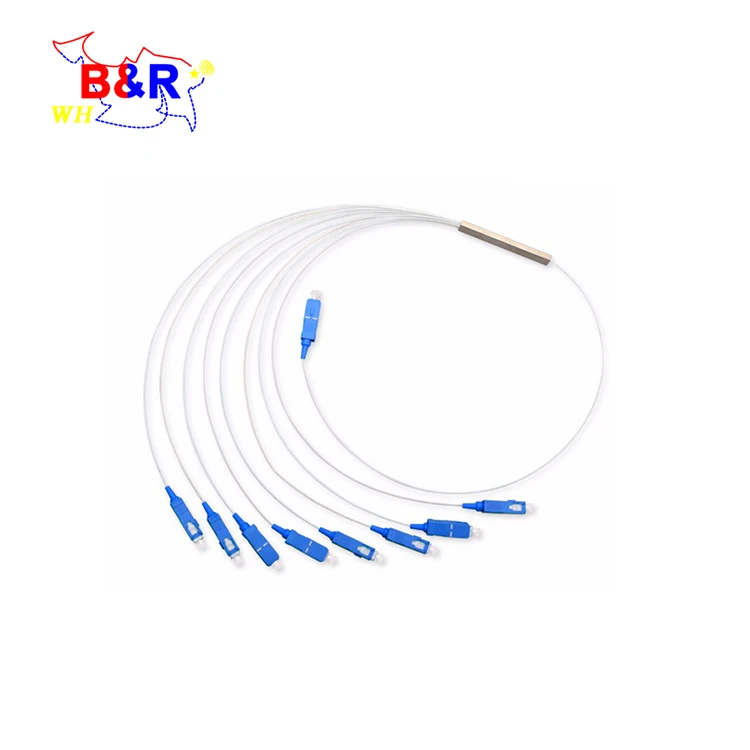

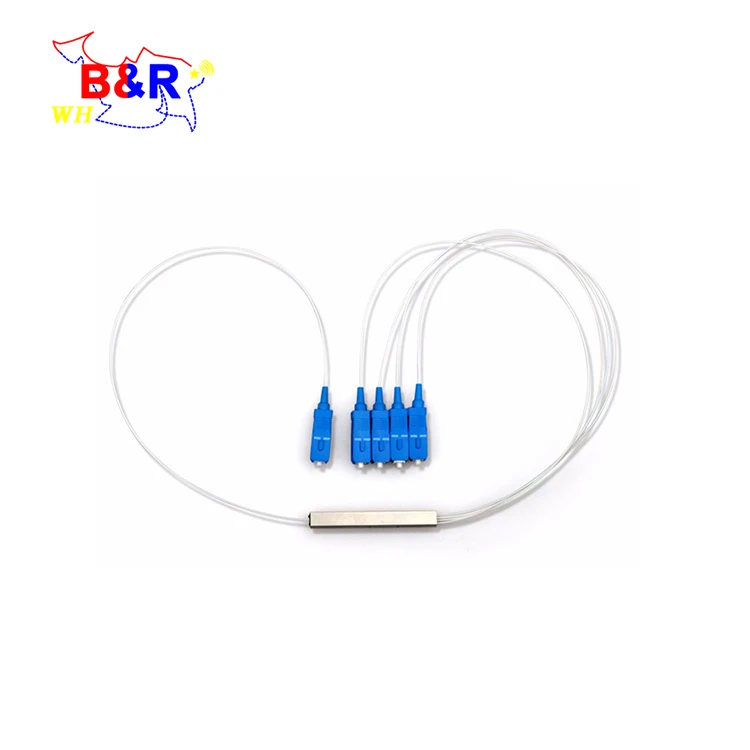

High Stability Low Polarization Dependent Loss Micro PLC Fiber Optical Splitter
Description:
WHB&R PLC Splitters are Single Mode Splitters with an equal split ratio from one input fiber to multiple output fibers, which based on PLC (planar light wave circuit) technology and provide low-cost light distribution solution with small form factor and high reliability.
WHB&R PLC fiber optical splitters offer superior optical performance, high stability, and high reliability to meet various application requirements.
Micro PLC splitters are used for small spaces that can be easily placed in formal joint boxes and splice closure, in order to facilitate welding, it does not need specially designed for space reserved.
WHB&R PLC optical splitter technical data as below:
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
|
Operating Wavelength(mm) |
1260~1650 |
||||||
|
Insertion loss (dB)
|
Typical |
3.6 |
6.8 |
10.0 |
13.1 |
16.2 |
20 |
|
Max(P/S) |
3.8/4.0 |
7.2/7.4 |
10.5/10.7 |
13.6/13.7 |
16.5/16.8 |
20.5/21.0 |
|
|
Uniformity (dB)
|
Typical |
0.3 |
0.4 |
0.5 |
0.6 |
0.8 |
1.2 |
|
Max |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
|
PDL (dB)
|
Typical |
0.1 |
0.1 |
0.15 |
0.15 |
0.15 |
0.2 |
|
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
|
Reture Loss (dB) |
Min |
55 |
|||||
|
Directivity (dB) |
Min |
55 |
|||||
|
Fiber Length (m) |
1 (+/-0.05) or customer specified |
||||||
|
Fiber Type |
ITU-T G657A1 or customer specified |
||||||
|
WDL (dB)
|
Typical |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
|
Max |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
|
TDL (dB) (-40~85℃)
|
Typical |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
|
Max |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
|
Operating Temperature (℃) |
-40~85 |
||||||
|
Storage Temperature (℃) |
-40~85 |
||||||
|
Product Size (mm)
|
Bare Splitter |
40x4x4 |
50x7x4 |
60x12x4 |
|||
|
Mini Module |
60x7x4 |
60x12x4 |
80x20x6 |
100x40x6 |
|||
|
Cassette Type |
100x80x10 |
120x80x18 |
|||||
Features & Advantages:
1.WHB&R PLC splitters have wide operating wavelength range.
2.WHB&R optical splitters have excellent light splitting uniformity.
3.WHB&R optic splitter have low polarization dependent loss.
4.WHB&R PLC splitters are small in size, compact structure, easy for integration.
5.WHB&R fiber splitter have higher reliability and better failure mode.
6.WHB&R fiber optical splitter have advanced cutting devices, mature mechanical centering techniques, skilled workers and mature products.
7.WHB&R optical splitter has good-quality glue and V-groove, highly reliable products.
1. What’s your Lead time?
WHB&R: We have a certain amount of stocks for some normal products, so we can deliver fastest one day for some products. For general products which stocks are not enough, our lead time is 7-15days for ordering.
2. What’s your MOQ requirement?
WHB&R: Low MOQ, 1pc for sample checking is available.
3. What’s your Payment Term?
WHB&R: We accept T/T, L/C, O/A, and Western Union or PayPal are accepted for small orders or samples.
4. What’s your product quality guarantee policy?
WHB&R: We promise different quality guarantee period for different products, we will be responsible for any quality problems in guarantee period.
5. Do you offer OEM Service?
WHB&R: We accept OEM, ODM. We will produce according to your requirement and description.
6. How do you ship the goods and how long does it take to arrive?
WHB&R: We usually shipped the goods by DHL, UPS, FedEx or TNT for small weight or volume goods, which take 3-5 days. Airline and Ocean shipping are also optional for mass goods.
