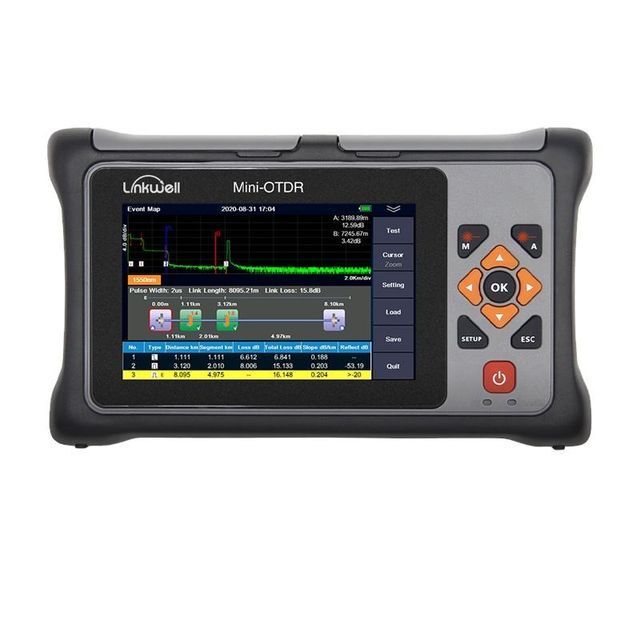

OTDR 1310/1550 24/22dB 100km 4.3 inch screen IOLM customization 20-45dB 850-1650nm
- $368.00 / 1 - 99 pieces
$250.00 / >=100 pieces - 1 piece
- Shanghai Linkwell Telecom Tech. Co., Ltd.
- Zhejiang, China
- Mr Esmond Chen
PRODUCT DETAIL
| Use: | FTTx; | Net work cable test: | support; |
| Wavelength: | 1310/1550nm; | Fiber Detect: | support; |
| Package Preview: | ; | optical power meter: | support; |
| VFL: | support; | Model Number: | LW-A1-D24; |
| Packaging Detail: | One OTDR into one carry bag, one carry bag into one carton; | Network: | None; |
| testing range: | 100KM; | Selling Units: | Single item; |
| Place of Origin: | China; | Warranty Time: | 3 year; |
| IOLM: | support (Event Map); | Single gross weight: | 1.000 KG; |
| Dynamic range: | 24/22 dB; | Single package size: | 29.5X21X8 cm; |
| laser source: | support; | Brand Name: | Linkwell; |
| Type: | OTDR; |
Products Description
Display | 4.3 inch HD (touch screen) | ||||||
Battery | 3.7 V/5200mAh X 1 lithium battery Continuously test: > 8 hours (back light off) Charging time: 3 hours with adapter; 10 hours with USB | ||||||
Data Storage | 100,000 groups of curves | ||||||
Interface | USB A Type×1, Micro-USB×1, 16GB SanDisk | ||||||
Working Temp | -10℃~+50℃ | ||||||
Storage Temp | -20℃~+70℃ | ||||||
Humidity | ≤95% (non-condensation) | ||||||
| Wavelength (2 wavelengths maximum for each unit) | Single Mode | Multi-Mode | |||||
| 1310nm、1550nm （Standard） 1625nm、1650nm (Optional with MOQ) | 850nm、1300nm (Optional with MOQ) | ||||||
Dynamic Range | 20-26dB | ||||||
Sampling Resolution | Minimum 10cm | ||||||
Sampling Point | Maximum 64,000 points | ||||||
Linearity | ≤0.05dB/dB | ||||||
scale Indication | X axis: 4~70m/div, Y axis: 0.09~5dB/div | ||||||
Loss Threshold | 0.01dB | ||||||
Loss Resolution | 0.001dB | ||||||
Distance Resolution | 0.01m | ||||||
Distance Accuracy | ±(1m+measuring distance×3×10 -5 +sampling resolution) (excluding IOR uncertainty) | ||||||
Refraction Setting | 1.2000~1.5999, 0.0001 step | ||||||
Dead Event Zone | 1.2m/5.5m | 2m/8m | |||||

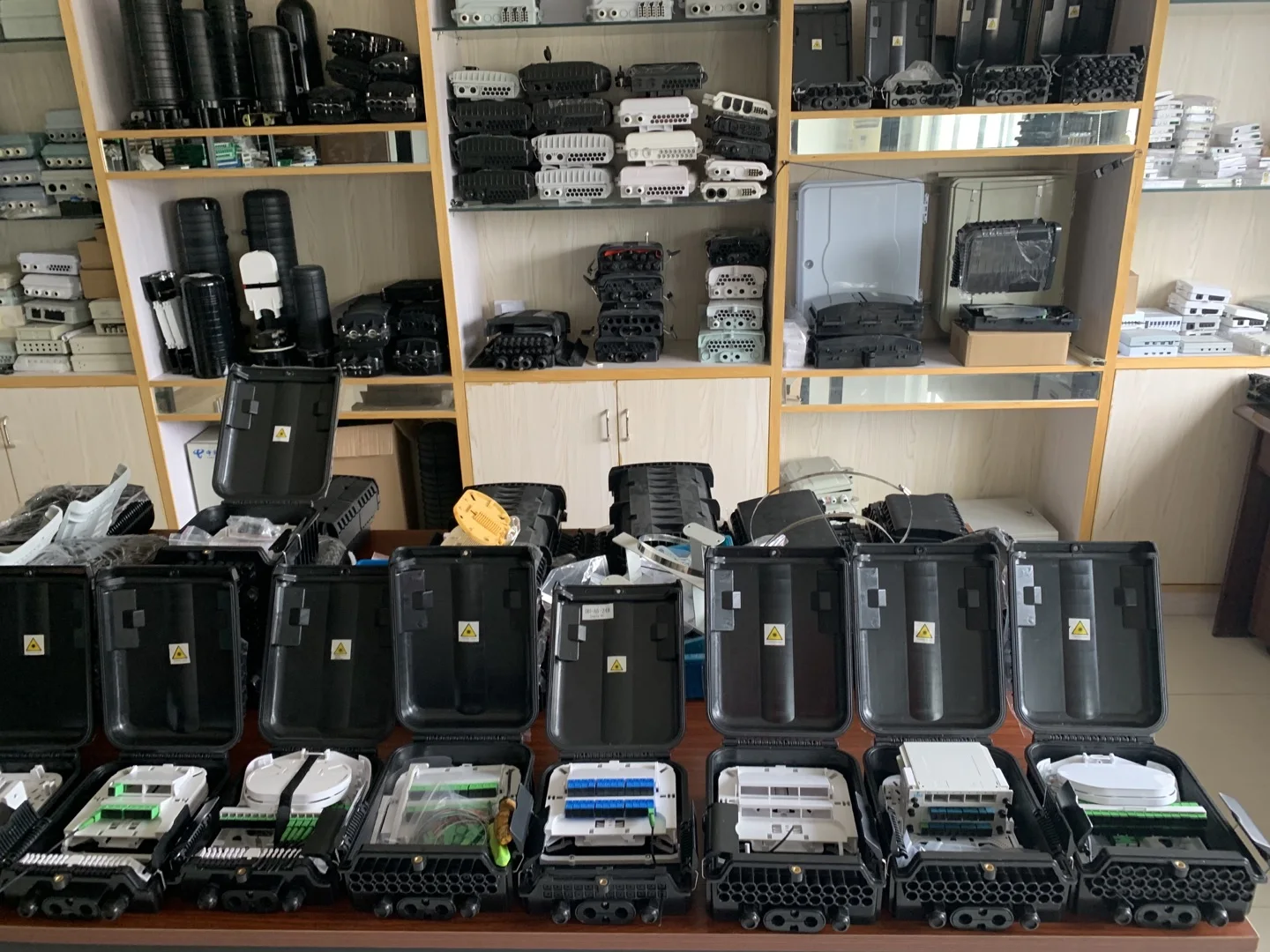

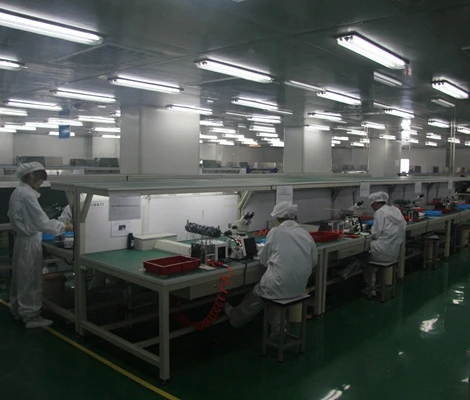

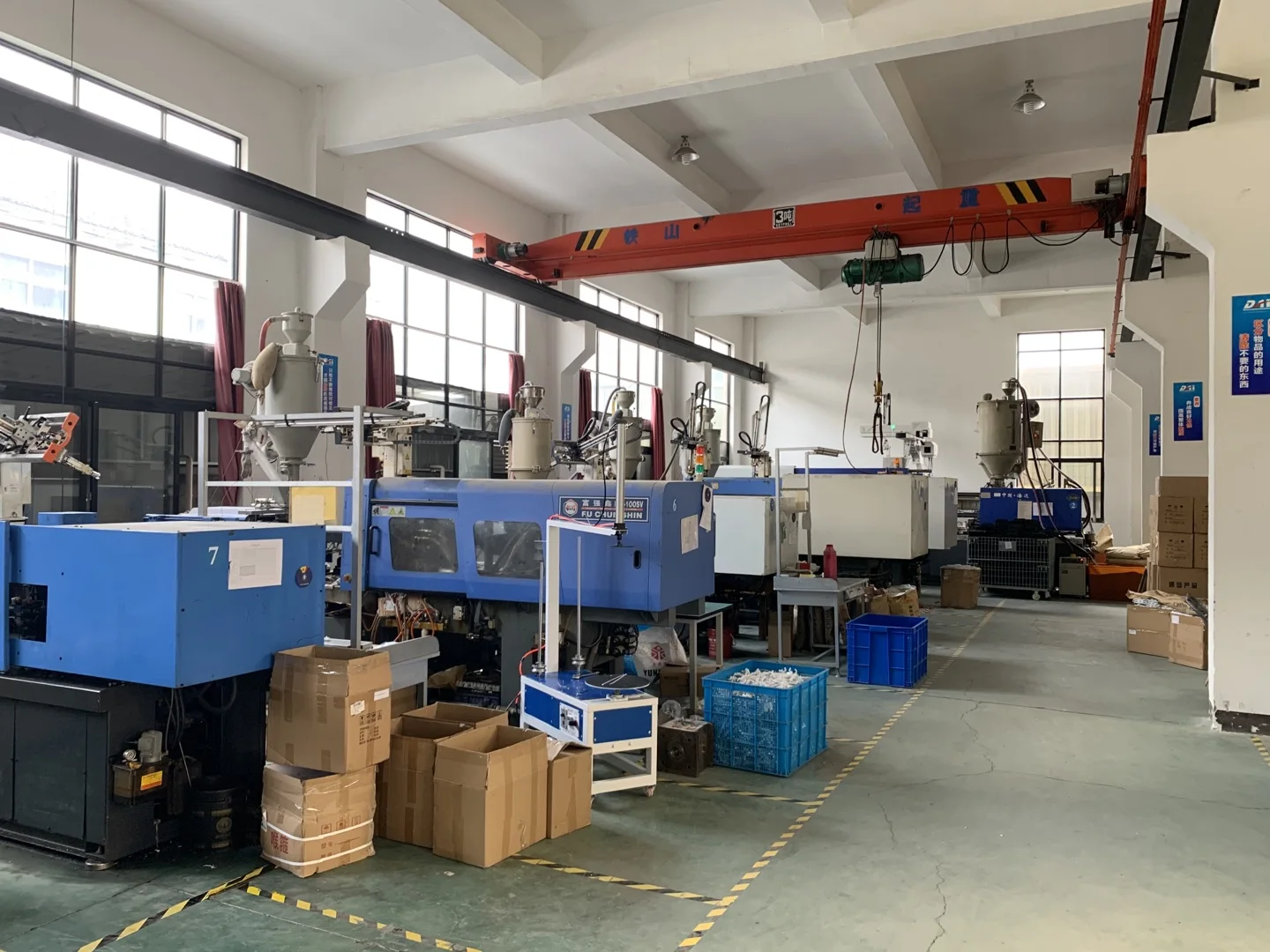

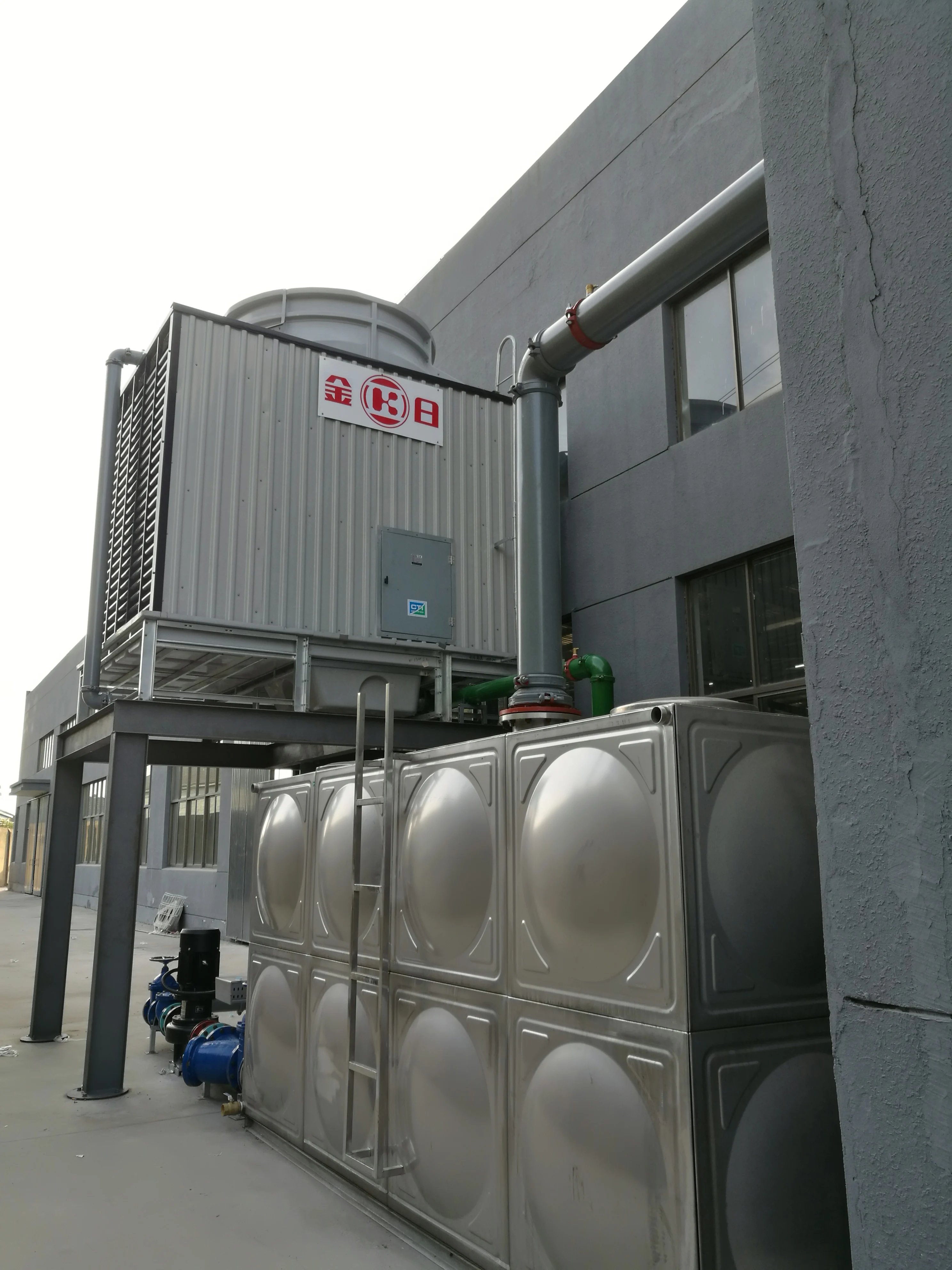

Company Profile
Why Choose Us
Our Advantages
Q1.About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.
Q2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.
Q3.What are your terms of payment?
Re.30% in advance,and 70% before shipment
Q4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.
Q5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
Q6.Can you send me a free sample?
Re.Yes,We are willing to send free sample,if you would like to pay the shipping costs.
Q7.Do you accept OEM or ODM?
Re.Yes,we're factory controlling shareholder. any your customized requirements we can do our best to help you realize.
About us
Linkwell is a Fiber Optic company, focused as a "Reliable Partner" on offering solutions and suitable products to Operators and Partners.With our vendor experience for China Telecom 9 years, We combine installation experience, inspection experience, manufacturing experience, and delivering experience es to deliver first-in-class solutions and products. Linkwell was founded initially by 33-Year experienced Engineers, a 21-years-experienced Factory Owner, and 16-Years experienced constantly.At LinkWell, All of our staff were training to adopt a customer-driven approach as our strategic focus with fundamental values and generally accepted moral principles such as respect and honesty being the basis of all our dealings. These inculcated values in our staff have led to the establishment of LinkWell as a mainstay force in this industry. Our staff has been extensively trained to harness the company's strategic strengths and core competencies to provide the highest level of satisfaction to our valued clients.

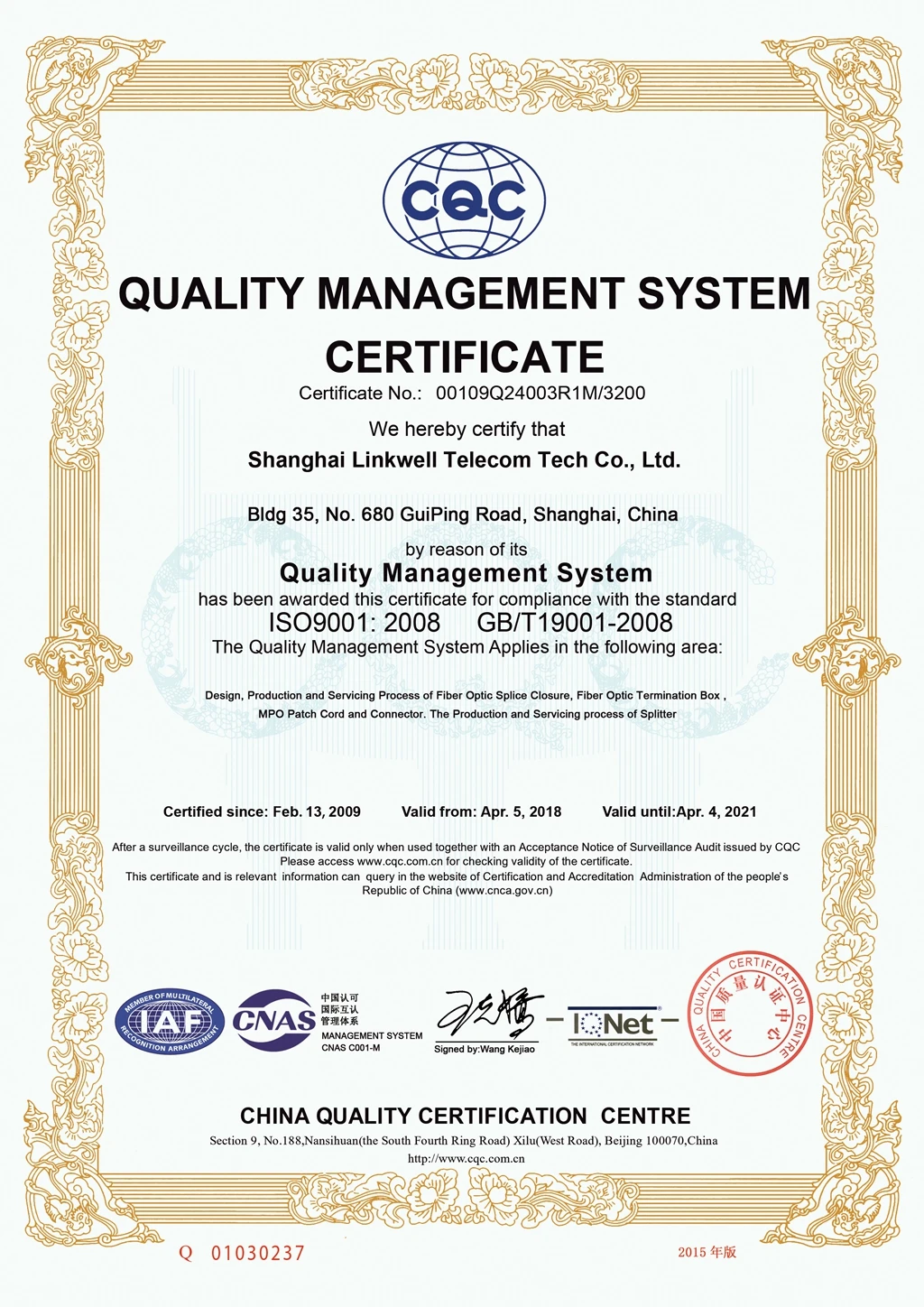

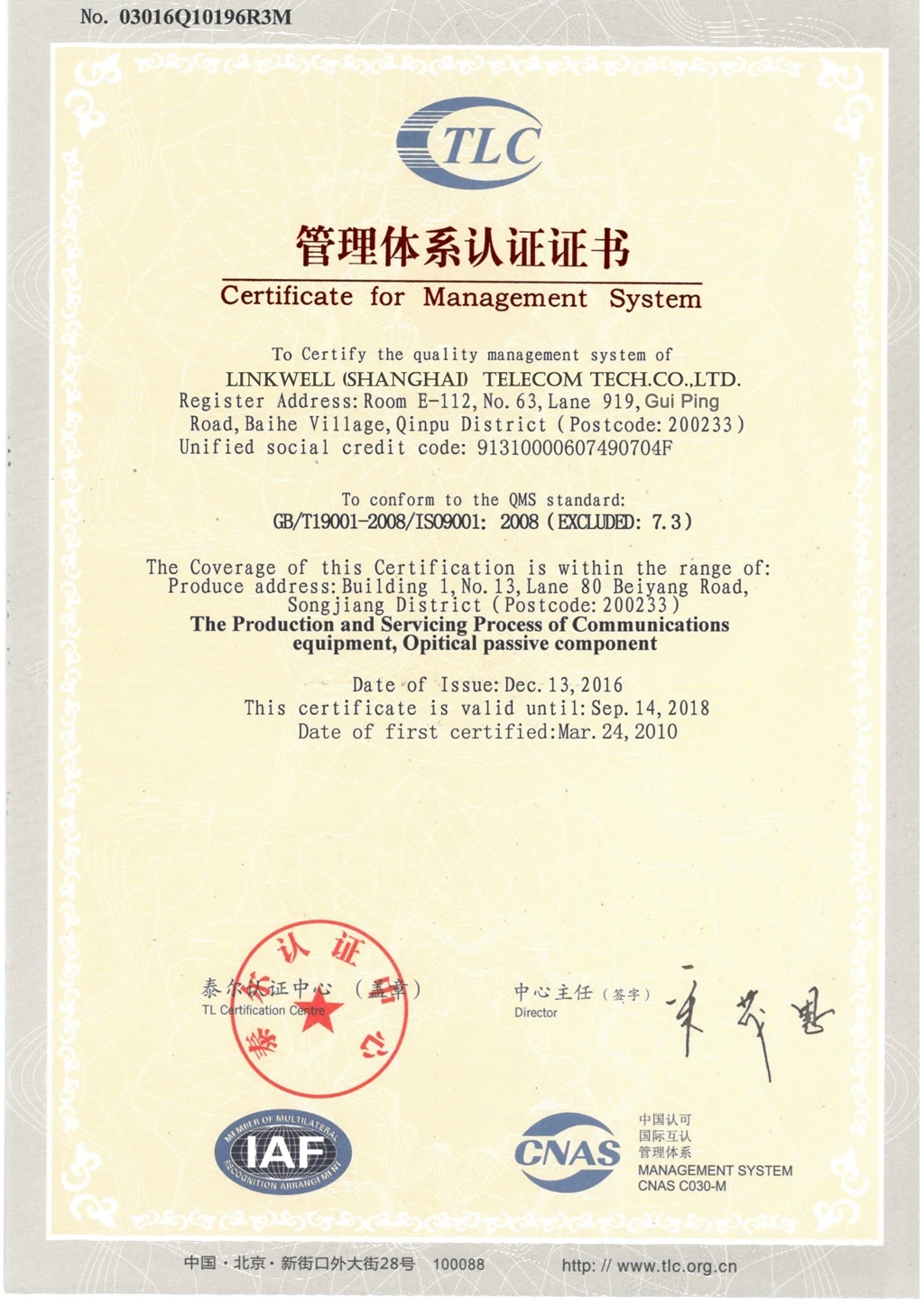

Certifications
