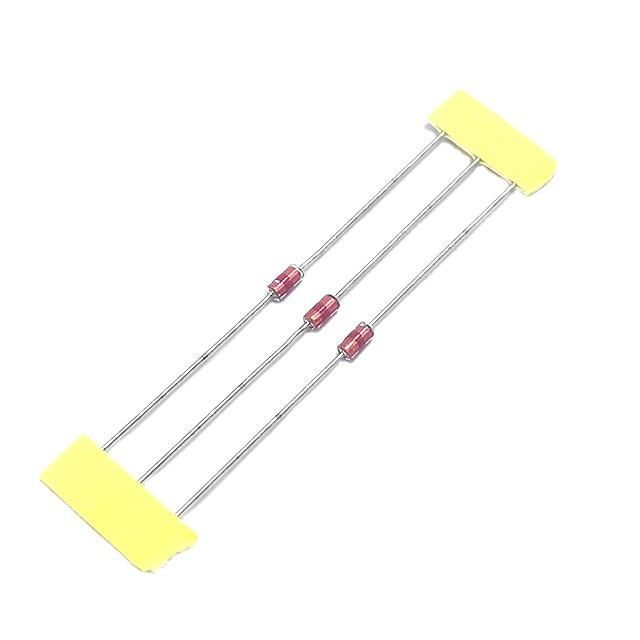

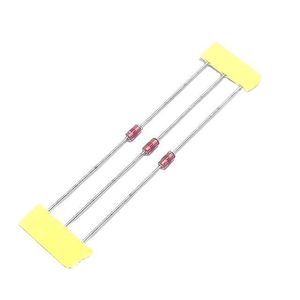

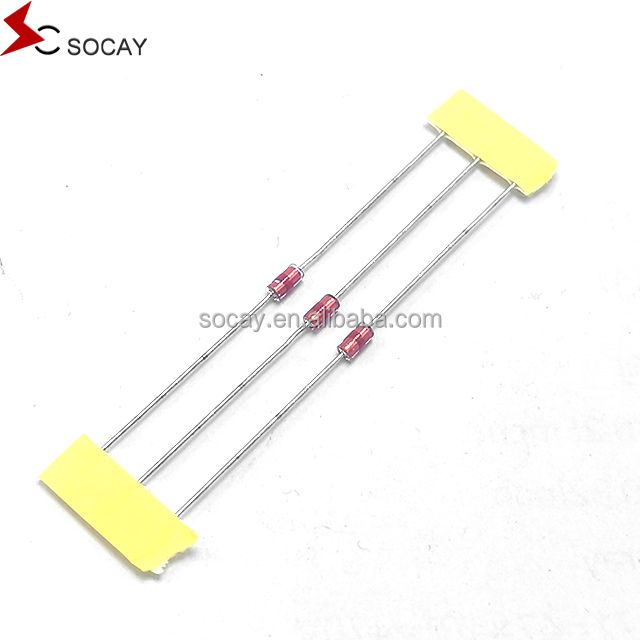

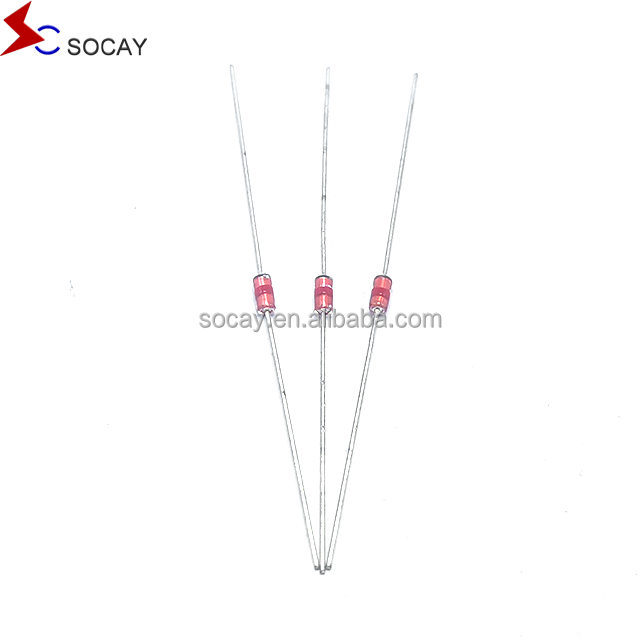

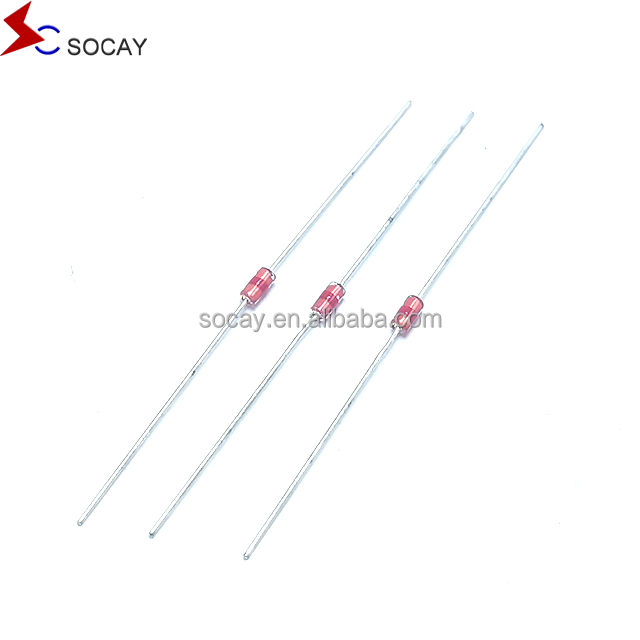

Discharge glass tube 500A plug

PRODUCT DETAIL
payment terms:Western Union, T/T, MoneyGramComment:RoHs compliant, UL approved.
type:gas discharge tubeMaximum Capacitance:1.0
Surge current capacity:500ADC breakdown voltage:140-1500 volts
Supply capacity:50000000 pieces per monthMOQ:1000
brand:social contacttype of packaging:through hole
sample:freemodel:SCA series
Storage temperature:-45℃~+85℃Packaging/Case:dip
Origin:Guangdong, Chinapayment method:wire transfer
Operating temperature:-45℃~+85℃


feature
 Leakage current is approximately zero before clamping voltage
 Low attenuation for ON/OFF state.
 Strong ability to resist repeated lightning strikes.
 Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).
 RoHS compliant.
 Bilateral symmetry.
 Not sensitive to temperature, humidity and light.
 Working temperature: -45℃~+85℃
 Storage temperature: -45℃~+85℃
 MSL Level 1 per J-STD-020



application
 Power supply
 Motor spark elimination
 Relay switch spark absorption
 Data line pulse protection
 Electronic equipment that is required to comply with UL497A and UL497B standards
 Telephone/Fax/Modem
 High frequency signal transmitter/receiver
 Satellite dish
 Radio Amplifier
 Alarm system
 Cathode ray tubes in monitors/TVs

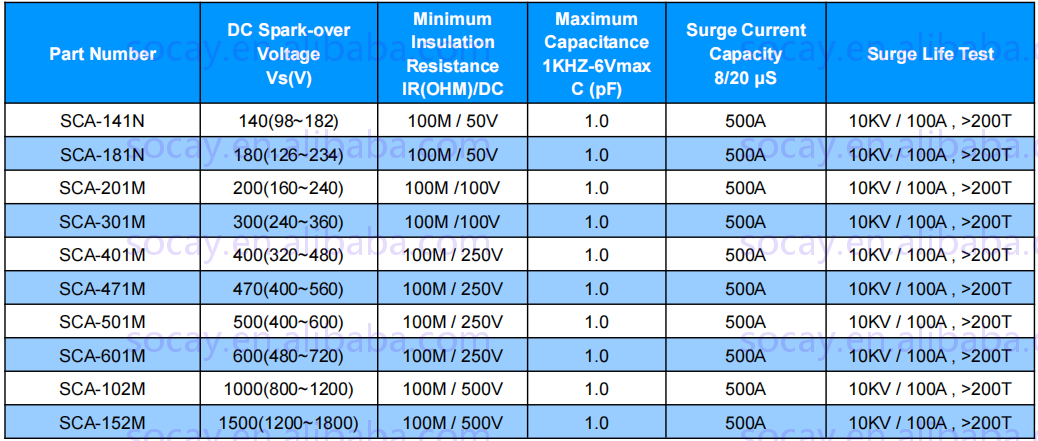

electrical characteristics

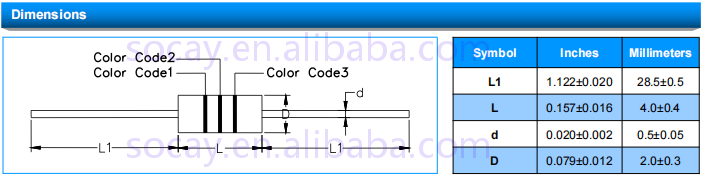

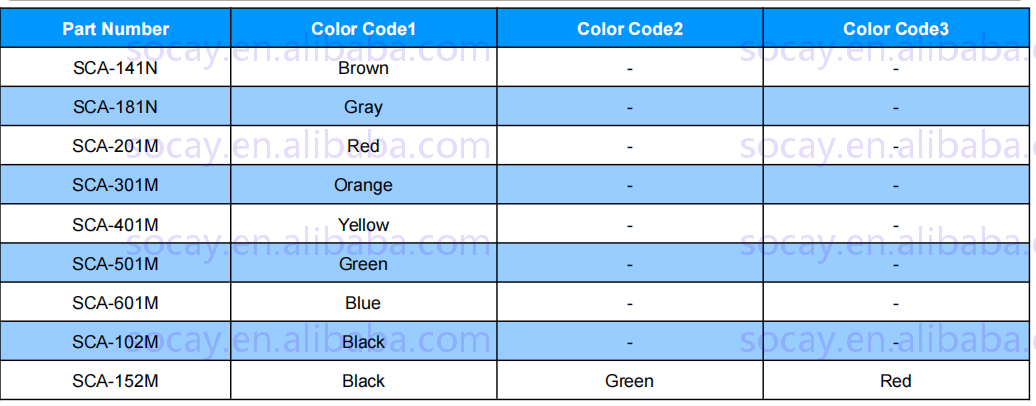

Color code

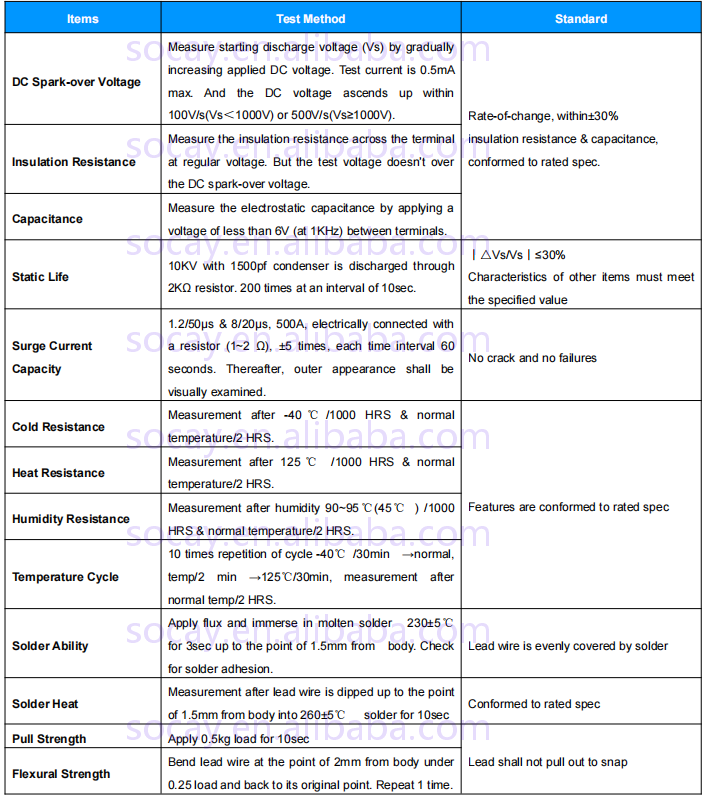

Test Method and Results

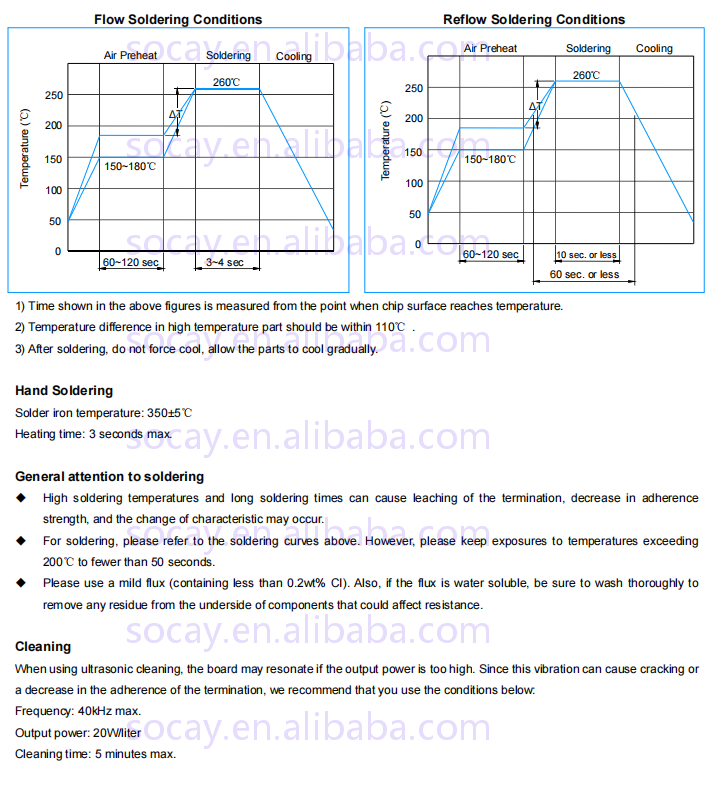

Recommended Soldering Conditions

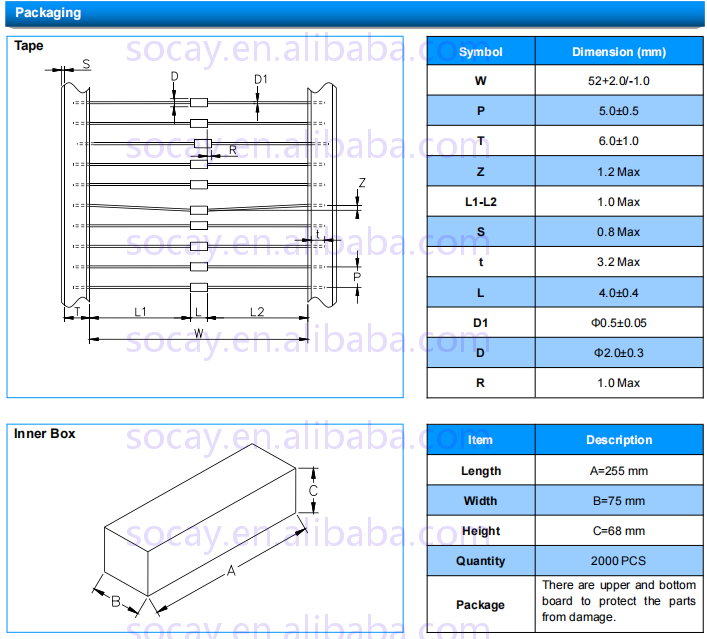

Packaging Information
