EPCOS A71-H10X B88069X3820S102 1000V 10KA 8*8mm gas discharge tube arrester
- $0.70 / >=500 pieces
- 500 pieces
- Shenzhen Shaoxin Electronics Co., Ltd.
- Guangdong, China
- Mr sky xu
PRODUCT DETAIL
| Supply capacity: | 100,000 pieces per day | type: | circuit breaker, 2 pole |
| size: | 8*8mm | port: | Shenzhen |
| tolerant: | 20% | Card: | EPCOS |
| DC spark voltage: | 1000V | Impulse discharge current: | 10KA |
| Packaging Preview: | place of origin; place of origin: | Japan | |
| application: | lightning arrester | Packaging Details: | 100 pcs/roll |
| model: | A71-H10X | payment terms: | L/C,T/T,Western Union |
| pack: | original packaging | Material: | Ceramic products |
Product Description
Product Specifications
Shaoxin Electronics
| type | 2- Electrode |
| Card | EPCOS |
| Material | Ceramic products |
| size | 8*8mm |
| DC breakdown voltage | 270V-7500V |
| Impulse discharge current | 10KA |

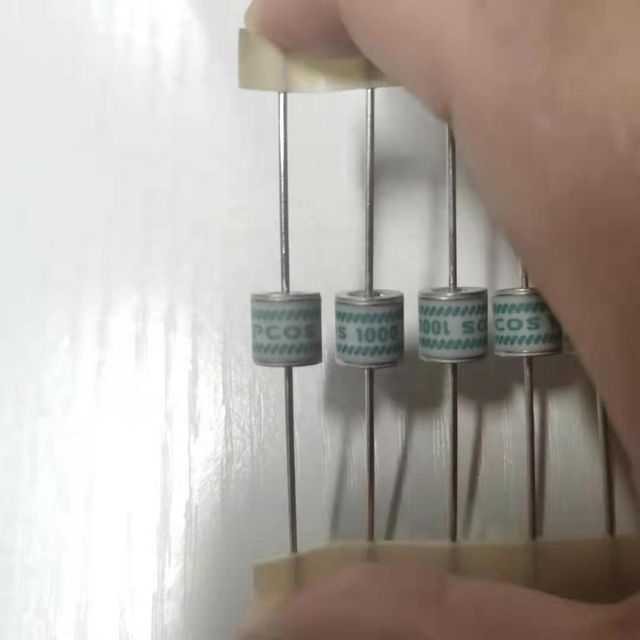

Product display
Introduction to GDT
Gas discharge tubes (GDTs) use an inert gas encapsulated in a ceramic tube to provide an alternative circuit path for voltage spikes. Ceramic housings and nickel connectors allow for high loads, and Surge offers products that work at 20KA, 40KA, 50KA, 60KA, 100KA and 150KA. The device has a wide range of breakdown voltages (up to 20% tolerance). Main applications are high frequency telecommunication lines, stations, security systems, HID and high quality surge protection devices (SPD).

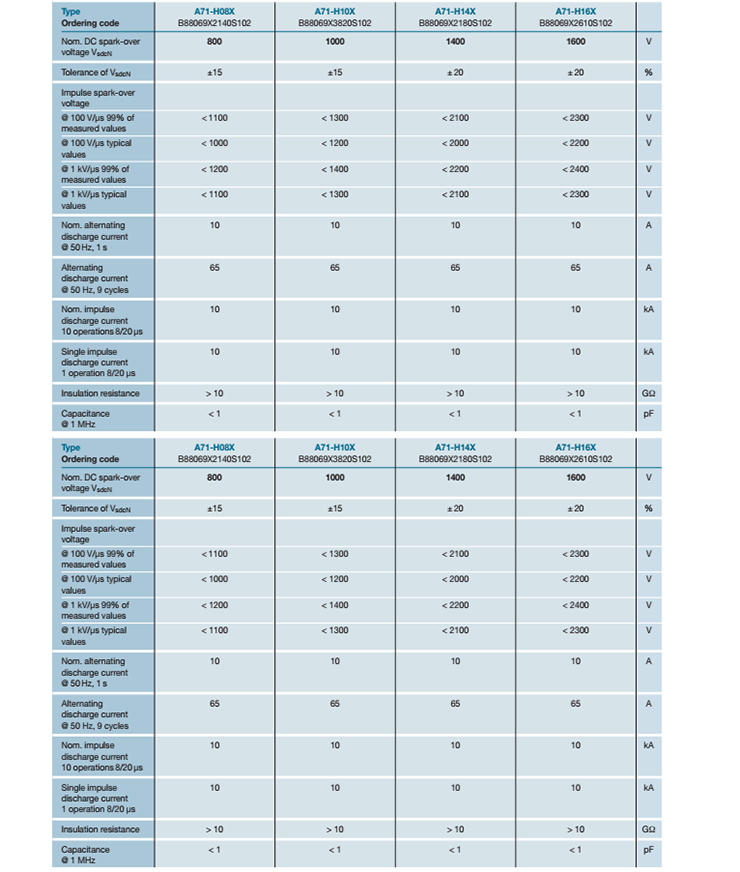

Electrical Characteristics
aspect
