GXH20 Spark Spark Glass Exhaust Pipe
- $183.00 / >=1000 pieces
- 1000 pieces
- Shenzhen Ruilongyuan Electronics Co., Ltd.
- Guangdong, China
- Ms Candy Ruilon
PRODUCT DETAIL
| radioactivity: | Tritium (3H), 5.44 MBq (147 mCi) max per device | Package preview: | |
| Cumulative charge transfer: | 6000C at 0.81 mC per discharge at 1 Hz | Install: | screw installation |
| payment terms: | L/C, Western Union, D/A, T/T, MoneyGram, PayPal | Packaging Details: | 30 pieces per carton Package size: 39.5*26.7*28.5cm |
| Card: | Ryzen | port: | Shenzhen |
| place of origin; place of origin: | Guangdong, China | model: | GXH20 |
| Supply capacity: | 10000 pieces per week | Maximum pulse discharge current: | 30kA |
| maximum. energy level: | 60J | DC breakdown voltage: | 2000V |
| Maximum Capacitance: | 5 picofarads | Mechanical shock, half sine wave: | 40 grams for 4 ms |
| type: | gas discharge tube | Charge transfer, single discharge: | 0.5C max |
| Operating temperature: | -55 to +125°C |

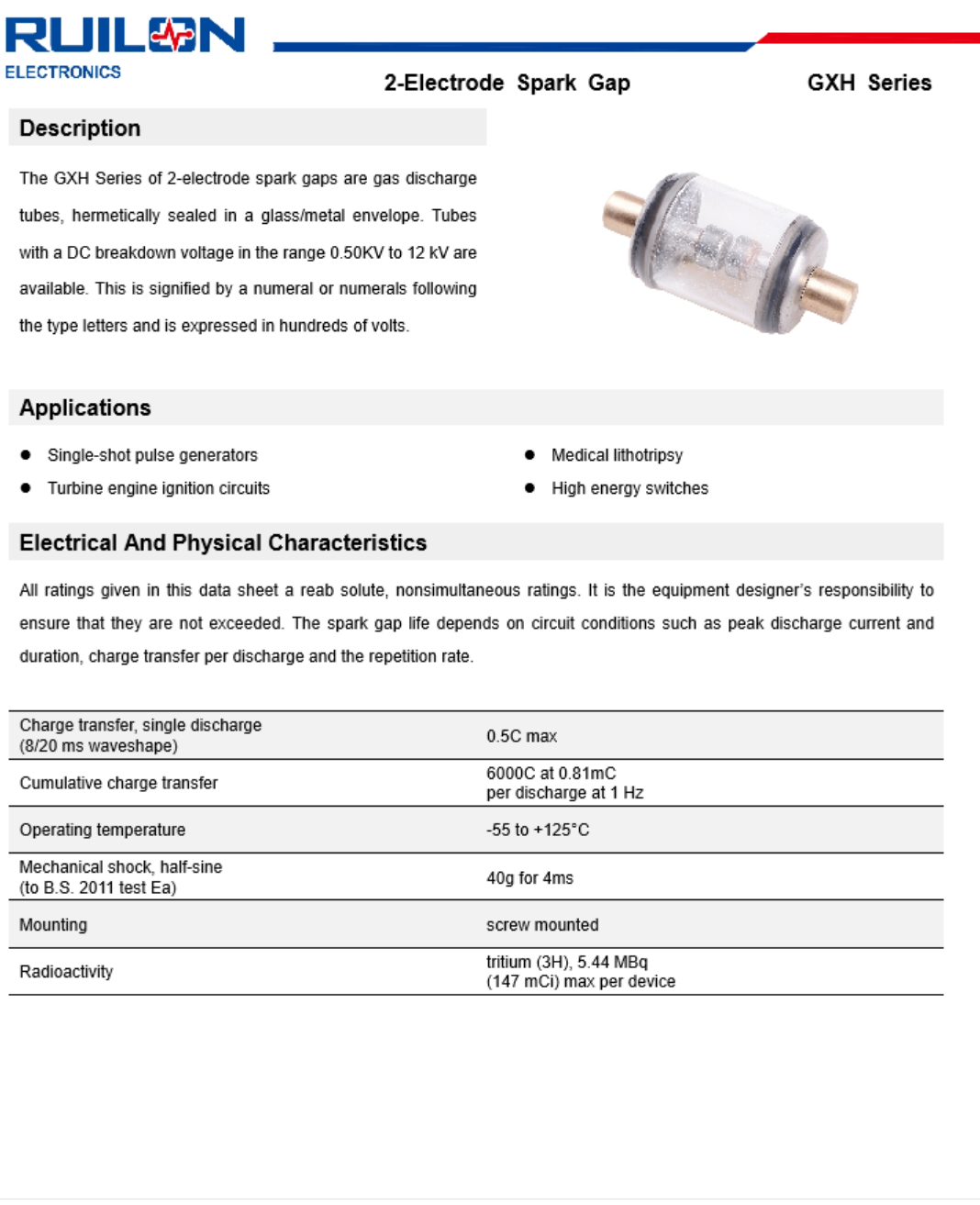

Product Description

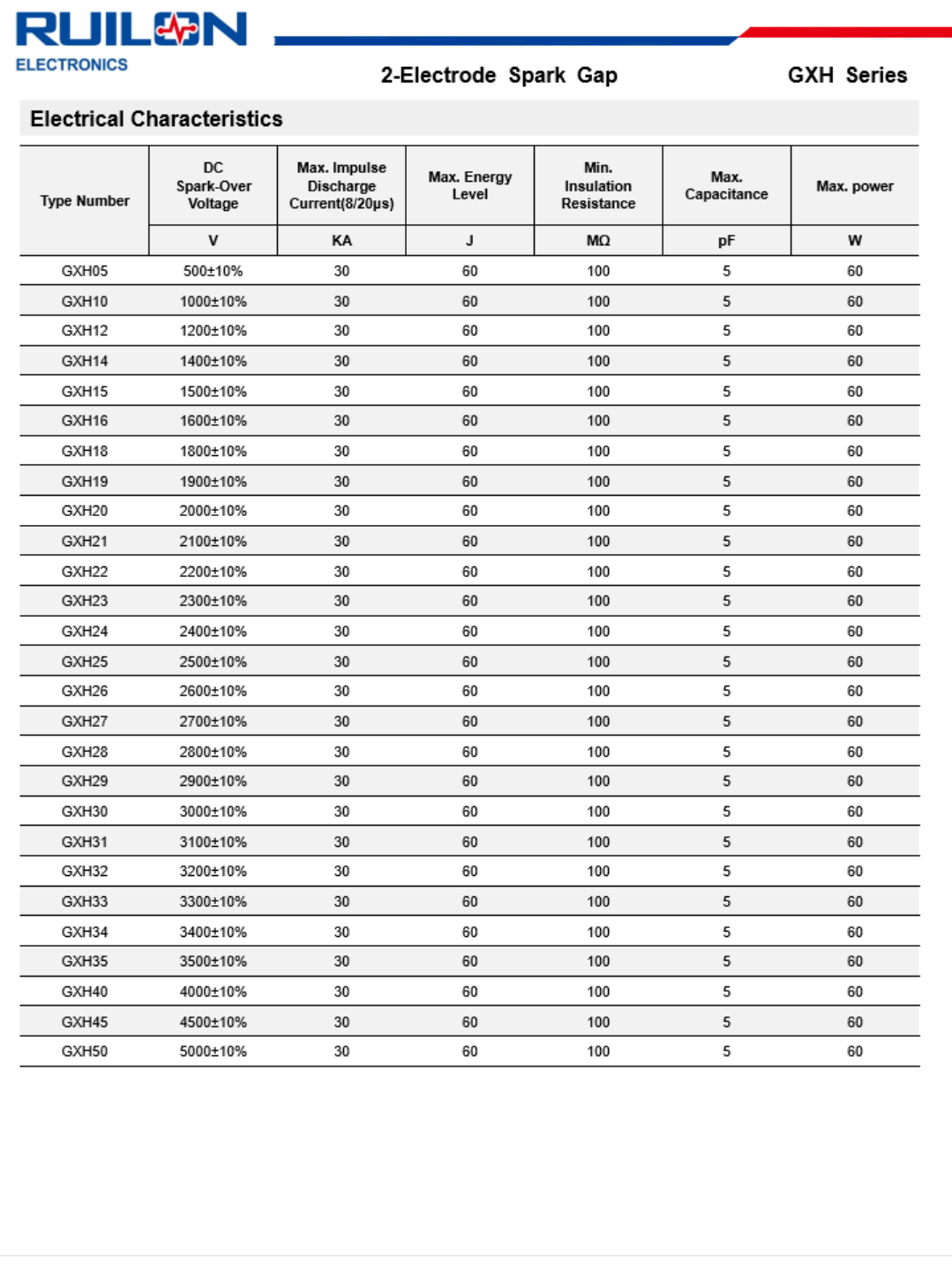

Specification
thing | value |
model | GXH20 |
place of origin; place of origin | China |
type | gas discharge tube |
Card | Ryzen |
charge transfer, single discharge | 0.5C max |
Operating temperature | -55 to +125°C |
radioactivity: | Tritium (3H), 5.44 MBq (147 mCi) max per device |
maximum. energy level: | 60J |
Cumulative charge transfer: | 6000C at 0.81 mC per discharge at 1 Hz |
Mechanical shock, half sine wave: | 40 grams for 4 ms |
Install: | screw installation |
Maximum pulse discharge current: | 30kA |
Maximum capacity | 5 picofarads |
DC breakdown voltage: | 2000V |
