EU 868MHz US 915MHz amplifier helium miner lora signal rf flame enhancer for TX 0-12dB auto adjustable
- $38.00 / 1 - 49 units
$32.00 / 50 - 499 units
$30.00 / >=500 units - 1 unit
- Shenzhen Chufeng Communication Technology Co., Ltd.
- Guangdong, China
- Ms lian xie
PRODUCT DETAIL
| Voltage: | 5V (4.75V-5.25V) | Working current: | ≤720mA |
| Transmit gain: | 0-10dB (adjustable) | type: | RF module |
| brand: | No brand | Gross weight per piece: | 0.200 kg |
| Packaging Details: | Static bag + carton packaging | Receive gain: | 11dB±2dB |
| size: | 75*60*1.5mm | Input power range: | 1dBm-31dBm |
| TX/RX switching threshold: | -2dBm | application: | Micropower Wireless Products |
| Frequency Range: | 850MHz-930MHz | Maximum transmit power: | 31dBm (1.3w) |
| Receive noise figure: | ≤0.9dB | model: | AB-89-T1 |
| Packaging Preview: | Single package size: | 14X10X5 cm | |
| Sales unit: | single product | chipset: | 1 |
| place of origin; place of origin: | Guangdong, China |
Product Description
product name | AB-868-T1 |
Frequency Range | 850-930MHZ |
receive gain | 11±2dB |
receive noise factor | ≤0.9dB |

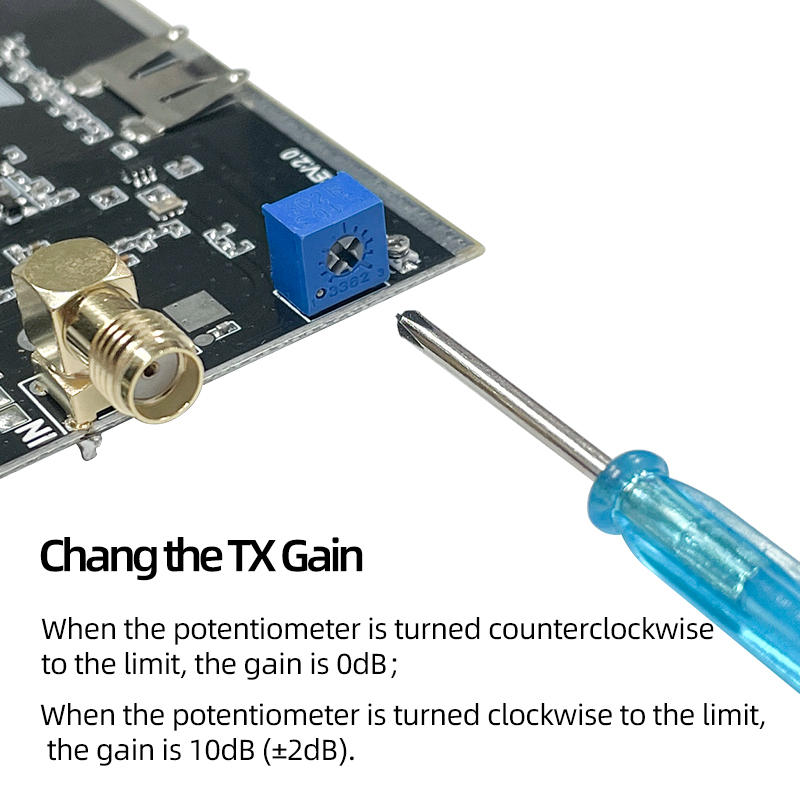

Transmission gain | 0dB – 10dB (±2dB) adjustable |
Discrimination threshold | -2dBm |
Input power range | 1-31dBm |
Maximum transmit power | 31dBm (1.3W) |
Status indication: | RX status: green light on, blue light off |
TX status: blue light on, green light off | |
Voltage | 4.75V5.25V(DC-DC/LDO) |
Average current | ≤720mA |

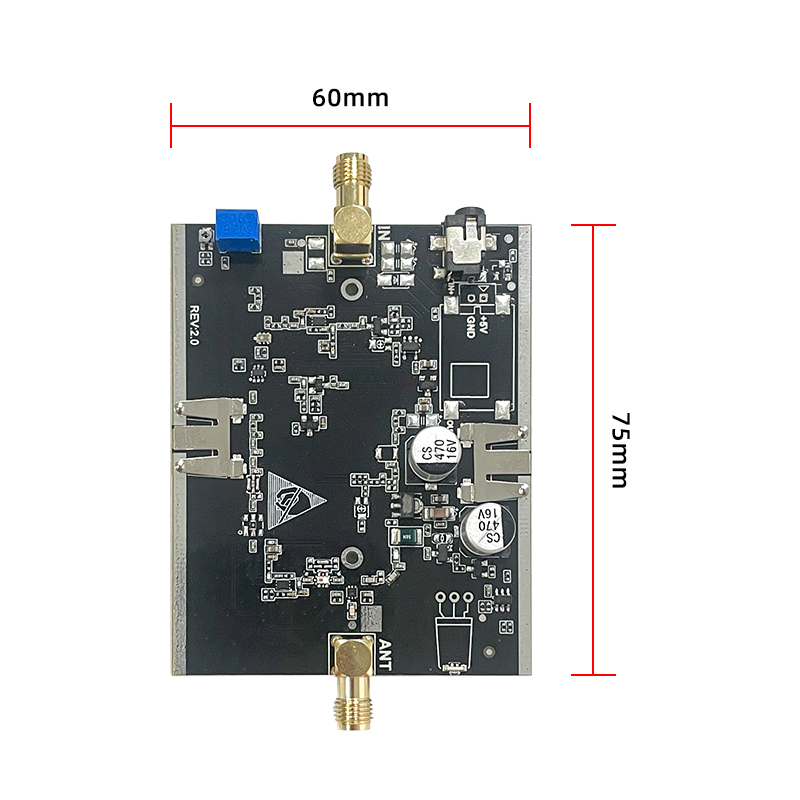

dimension | 75*60*2MM |
Tip: The output power of the upper-level device must be at least 3dB higher than the switching threshold, that is to say, the output power of the upper-level device cannot be lower than 1dBm, otherwise it may cause unstable operation
