rtls wristband system rtls professional rtls rfid employee uwb tracking indoor positioning system
- $45.00 / 1 - 99 sets
$44.00 / 100 - 999 sets
$43.00 / >=1000 sets - 1 set
- Shenzhen Xexun Technology Co., Ltd.
- Guangdong, China
- Ms Abby Hou
PRODUCT DETAIL
| Battery: | 1000mAh | CPU: | 52832 |
| model: | DDX05 | network: | Wifi |

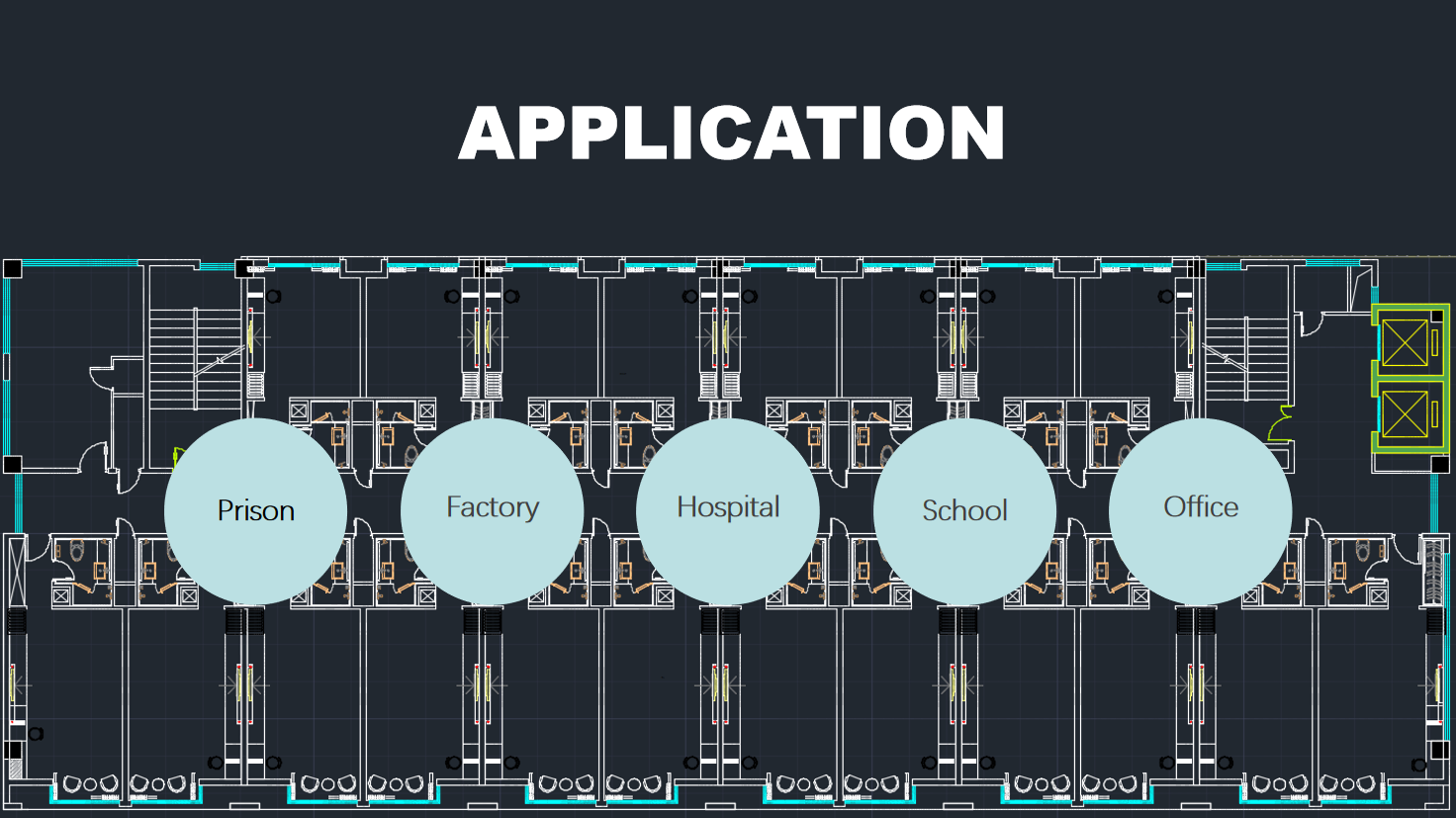

| system: | free real-time operating system | application: | Social distance, factory, hospital, school, nursing home, etc., social distance, factory |
| payment terms: | T/T, Western Union, MoneyGram, PayPal | port: | Shenzhen |
| color: | Black | product name: | UWB Tracker |
| Package preview: | Origin: | Shenzhen | |
| brand: | Xi Xun | chipset: | DW1000 |
| Supply capacity: | 600,000 sets per month | waterproof: | IP68 |
| Certificate: | FCC CE ROHS | Key words: | UWB |
Related Products
Product parameters
System functions
No. | Name | describe |

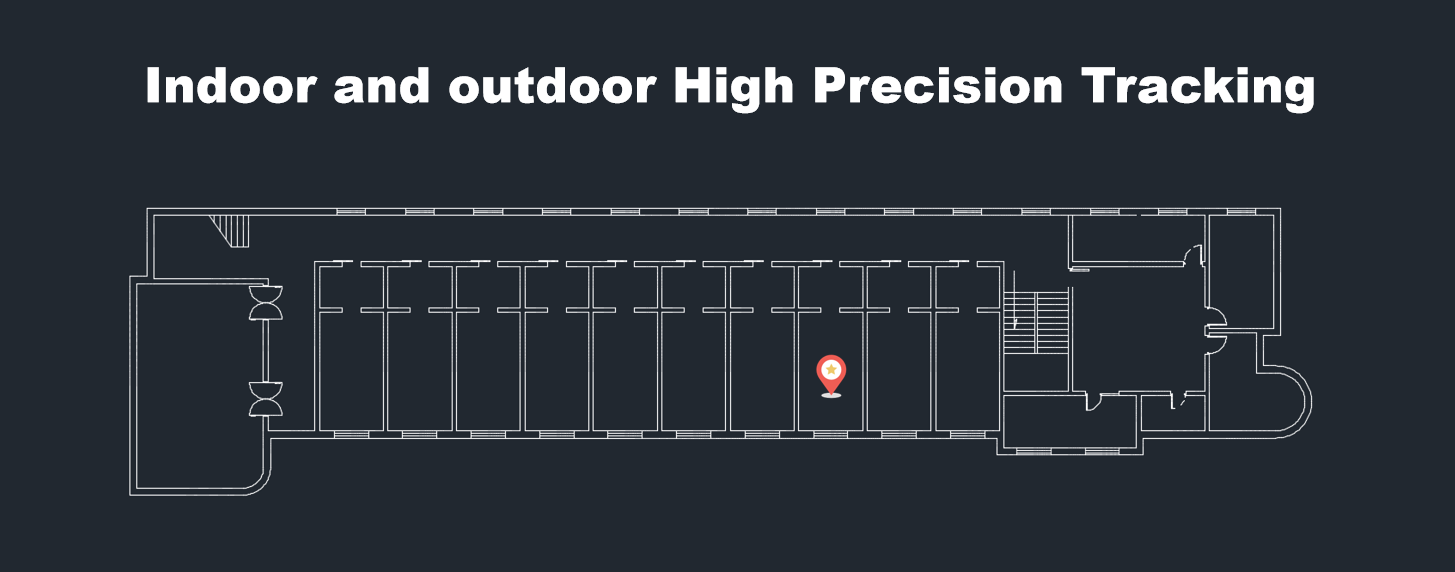

1 | real-time tracking | You can view the real-time location, name and other detailed information of the tracked person on the map. |

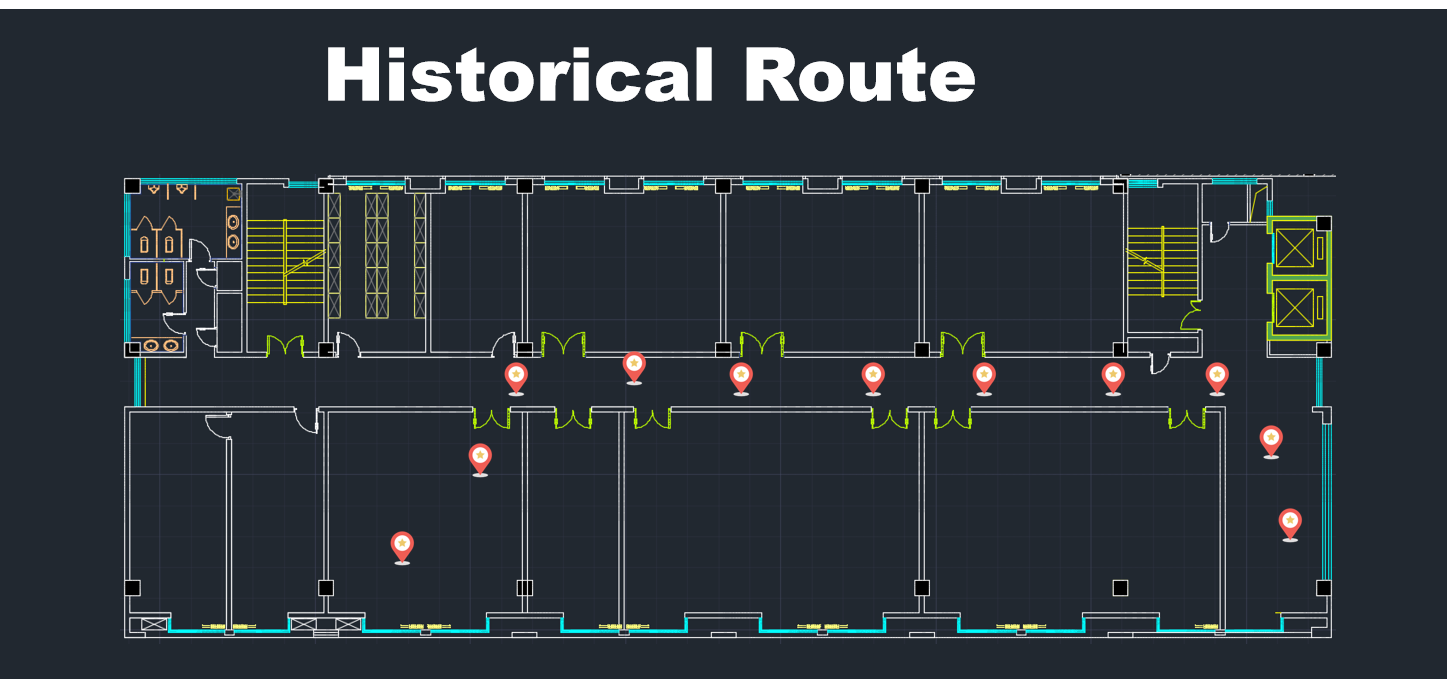

2 | historical route | You can query the historical walking route of the tracked object at different times at any time. |

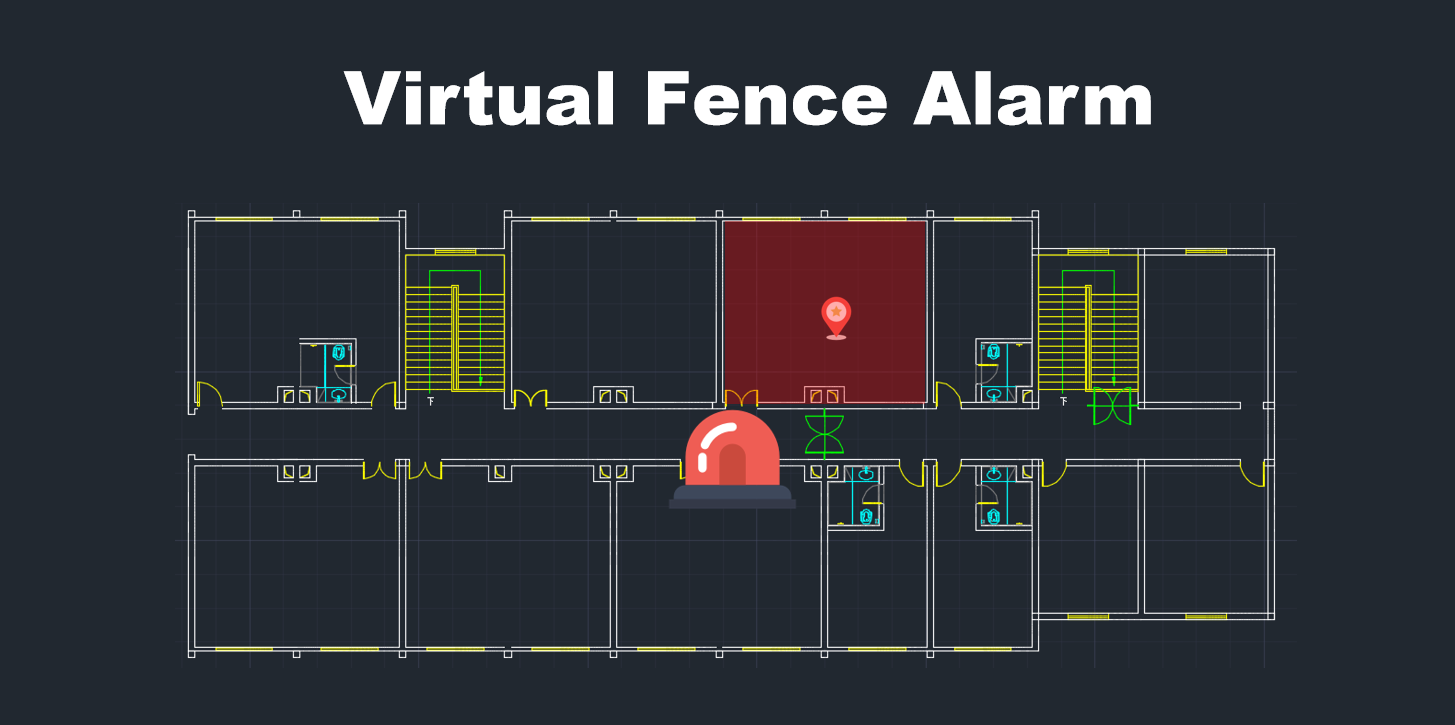

3 | virtual fence | You can set up any area as a virtual fence and add valid time periods and tracking objects to the fence. Once the set rule is triggered, the system will immediately alarm. |

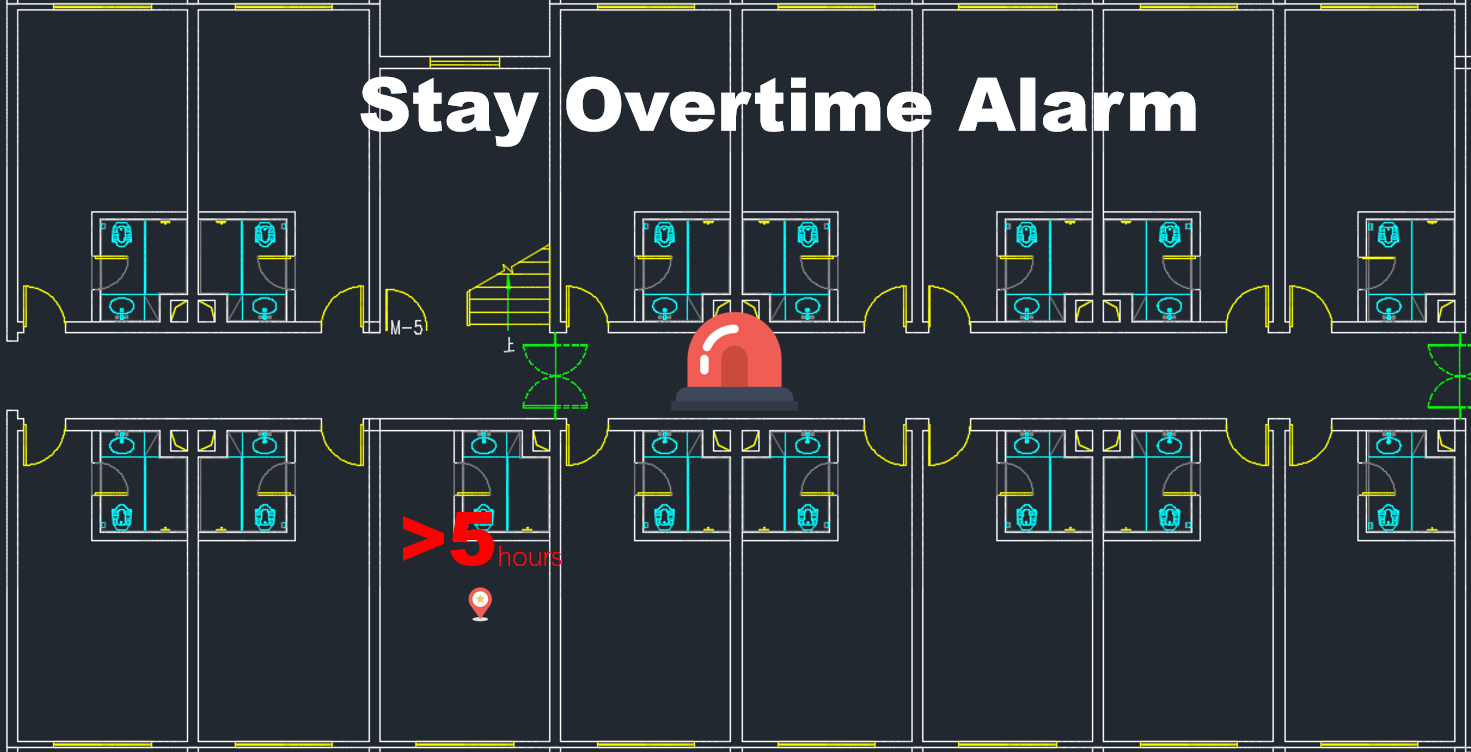

4 | Timeout alarm | You can set the maximum time allowed for the tracked object to stay in the specified area. If the specified time is exceeded, the system will immediately issue an alarm. |

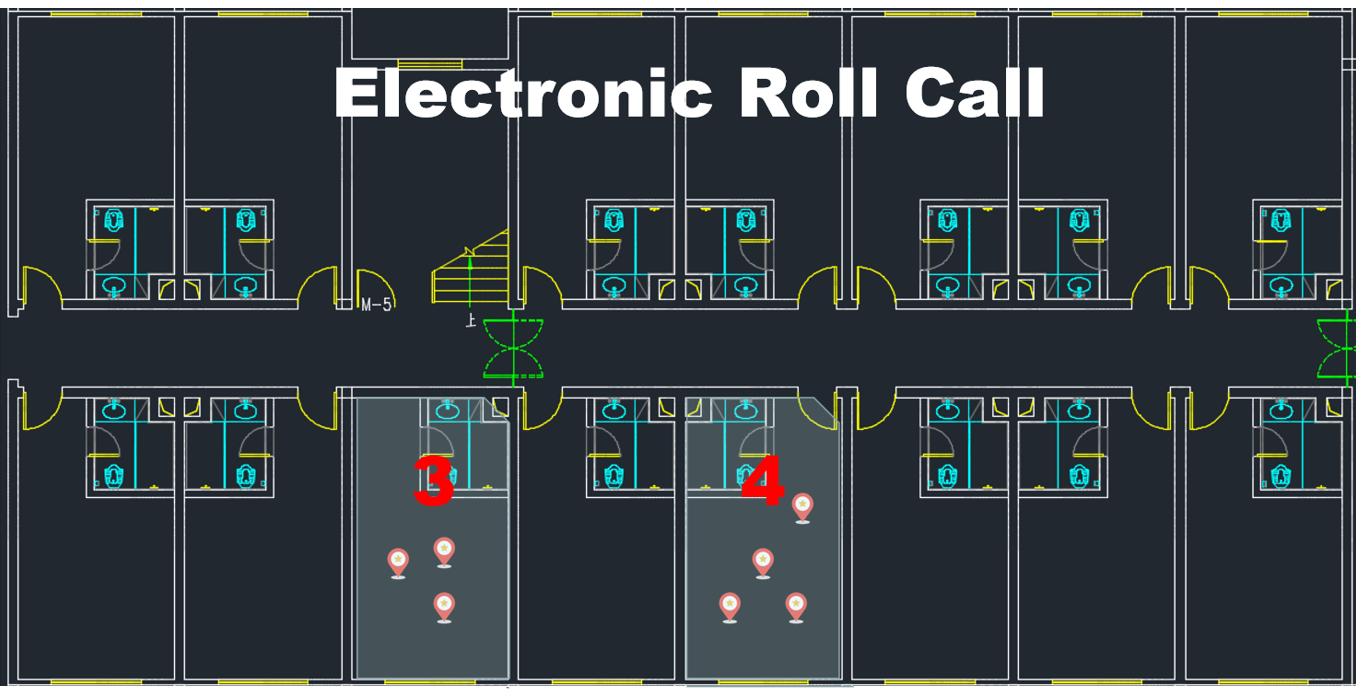

5 | electronic roll call | The system can count and display the number of personnel in each area in real time, and managers can easily grasp the real-time distribution of personnel in each area. |
6 | Electronic attendance | The attendance area and time period can be set for the tracking object, and the attendance results can be automatically counted according to the tracking data. |

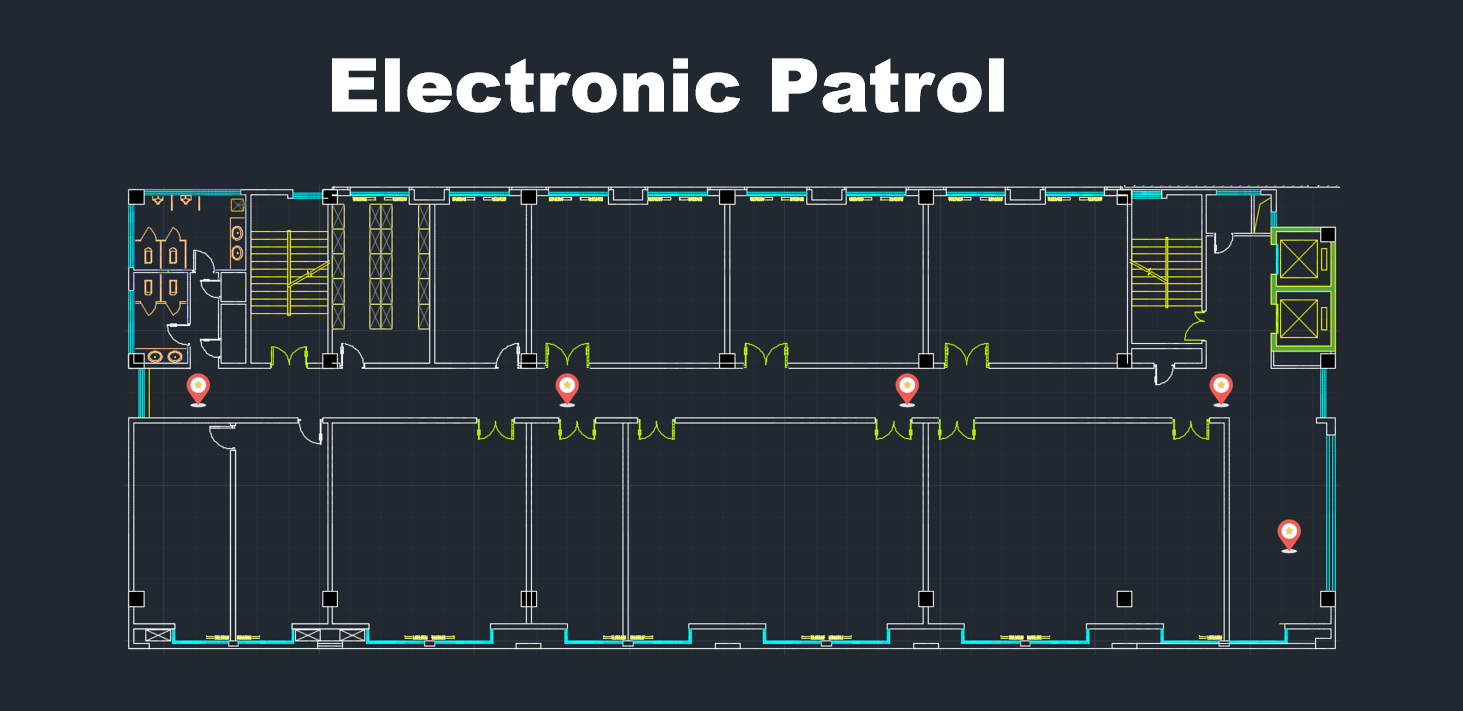

7 | electronic detection | You can pre-set inspection tasks for tracked objects, including inspection time/route/name. Once the inspector fails to inspect according to the specified time/route, the system will immediately call the police. |
8 | Group management | It is possible to set some tags to be in the same group, and a maximum allowed distance between them can be set. Once the distance between them exceeds the set threshold, the system will immediately alarm. |

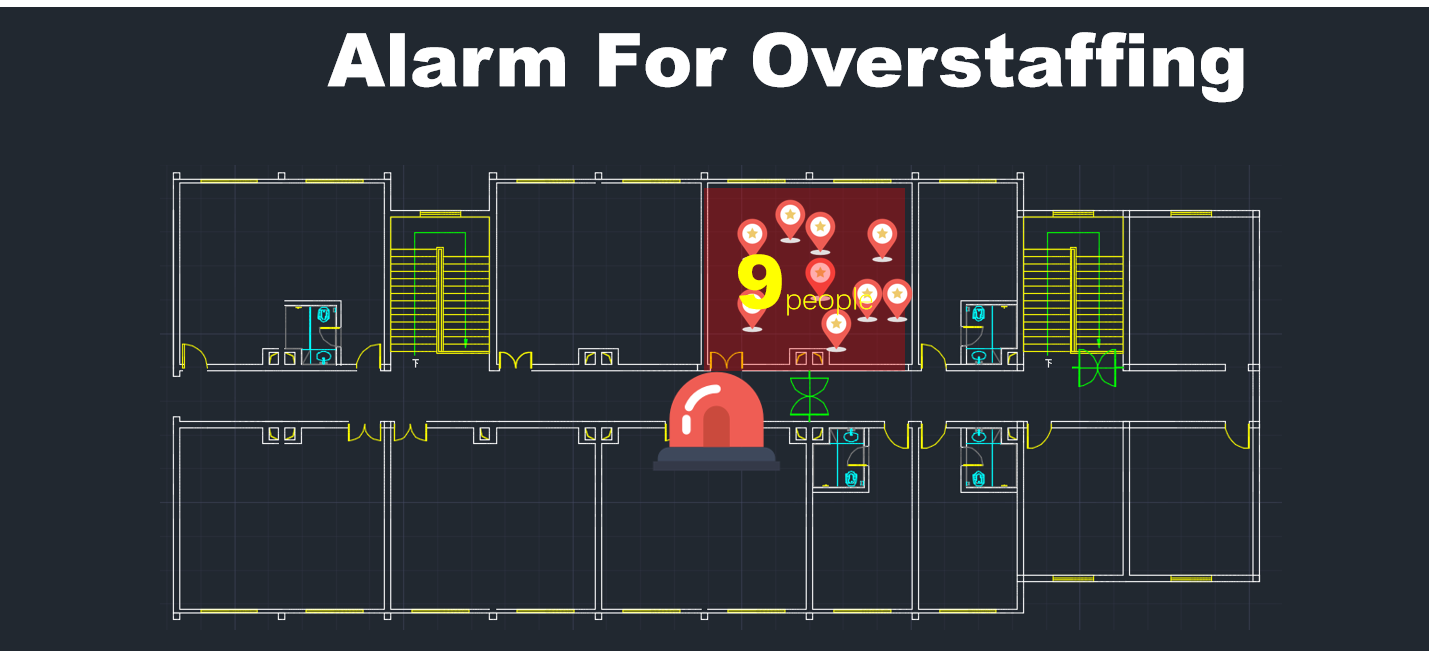

9 | overload alarm | The maximum number of people allowed to stay in a certain area can be set. Once the threshold is exceeded, the system will alarm immediately. |
10 | disappear alarm | When the battery power of the tag is exhausted, the tag fails or is in a signal blind area, the system will immediately alarm. |
11 | emergency alert | When encountering an emergency, the wearer can long press the SOS button on the tag, and the administrator will immediately receive the SOS alarm and the current location of the wearer, and can obtain real-time video through video linkage. |
12 | static alarm | When the tag is still for a long time, a static alarm will be generated. |
13 | message push | You can send messages to all or some tags in the system, and check whether the messages have been read at any time. |
14 | video linkage | Once an alarm occurs in a certain area, the system can automatically call the video screen of the camera in this area. |
15 | personnel management | Detailed personnel data (such as name and job ID) can be entered into the system and bound to the tag ID, which is globally unique and cannot be changed. |
16 | role management | Tracking objects can be classified and managed, such as administrators/employees/visitors/vehicles, etc., and displayed on the map with different icons. |

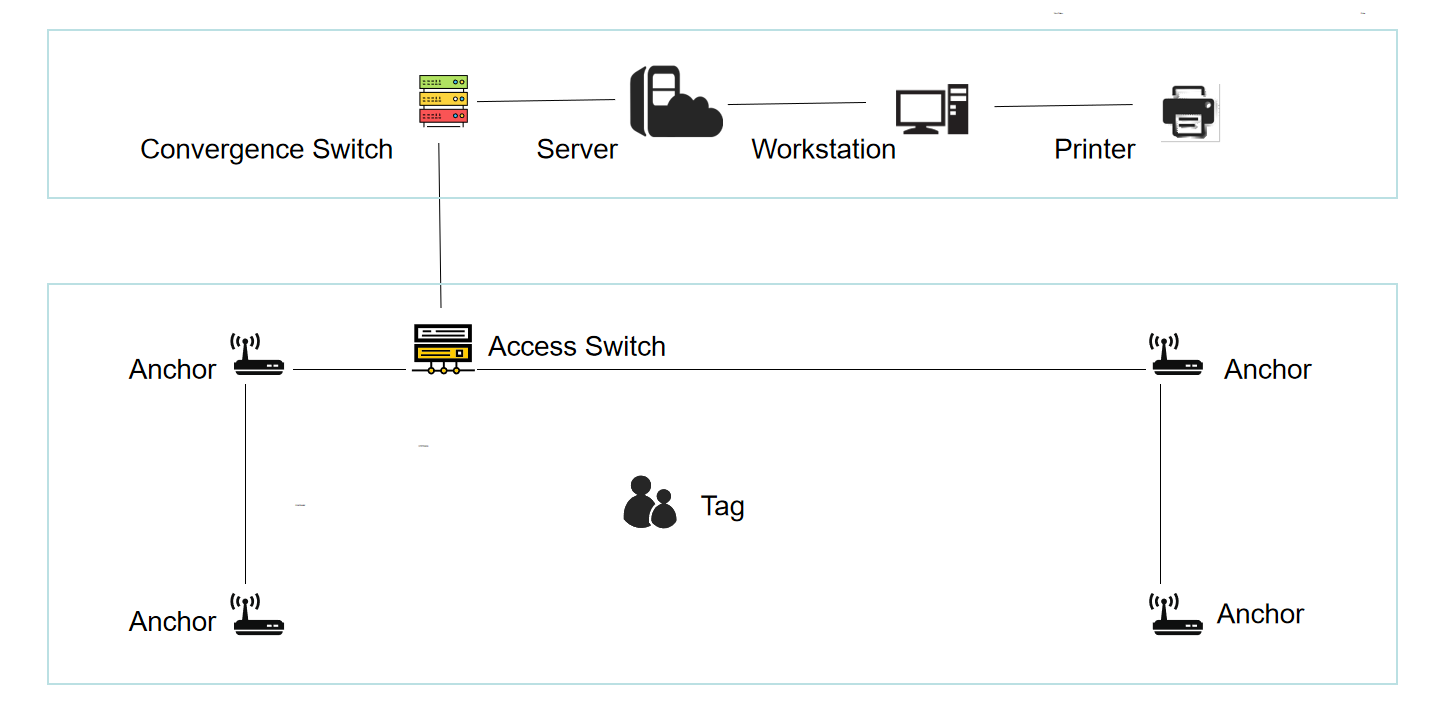

number 17 | system structure | The system adopts BS structure, which is easy to install. |
18 | Installation Environment | Windows server. |
No. 19 | system capacity | There is no limit to the number of tabs and logged-in clients. |

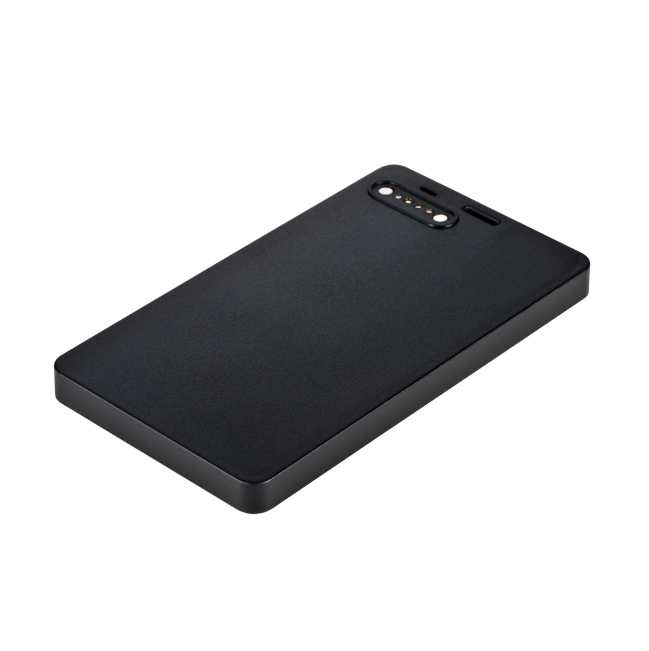

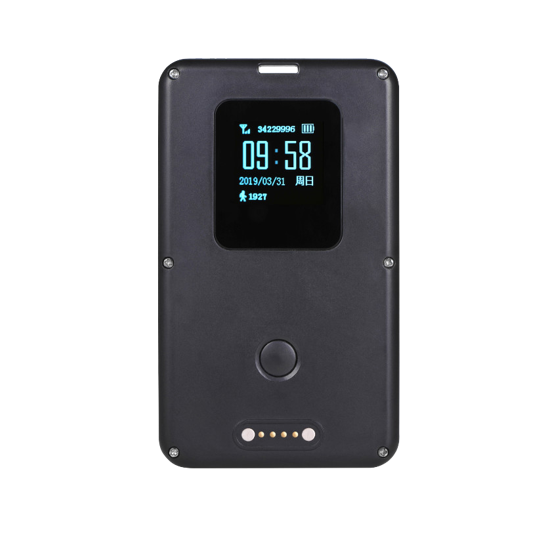

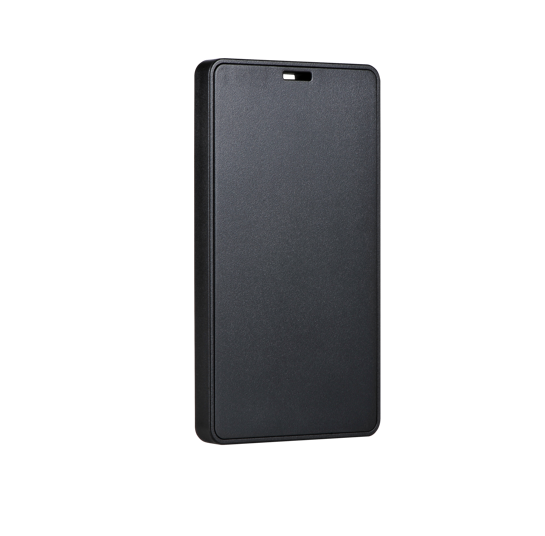

UWB card parameters
No. | Name | describe |
1 | Model | DDX07 |
2 | tracking mode | TDOA technology based on UWB |
3 | Tracking Accuracy | In the case of no occlusion, the maximum tracking accuracy can reach 0.3 meters |
4 | tracking interval | It can be set to track 3 times every 1 second when moving, and track once every 3 seconds when stationary |
5 | coverage | Up to 60m without shelter |
6 | working frequency | 3.75-4.25GHz |
7 | transmit power | 27 decibels |
8 | Antenna type | Built-in omnidirectional antenna |
9 | safety performance | Built-in encrypted transmission and security authentication to ensure data security. |
10 | remote upgrade | Yes |
11 | motion monitoring | It can realize step counting and motion monitoring, with automatic sleep function |
12 | message reception | Can receive SMS messages pushed by the platform |
13 | near field communication | Yes |
14 | shell material | Eco-friendly plastic |
15 | key | Can only be turned on, not turned off. Can be used for emergency alarm |
16 | low battery alarm | When the terminal power is lower than 20%, a low battery alarm will be generated |
number 17 | Reminder | vibration reminder |
18 | external interface | Magnetic charging and data interface |
No. 19 | Battery | Built-in rechargeable 800MAH battery |
20 | Standby time | 60 days |
twenty one | Charging voltage | 5V |
twenty two | charging time | 2 hours |
twenty three | weight | 60 grams |
twenty four | size | 86*54*10mm (length/width/height) |
25 | waterproof | IP67. |
26 | use environment | Operating temperature: -30°C-+60°C; Operating humidity: 10% to 90% RH, non-condensing |

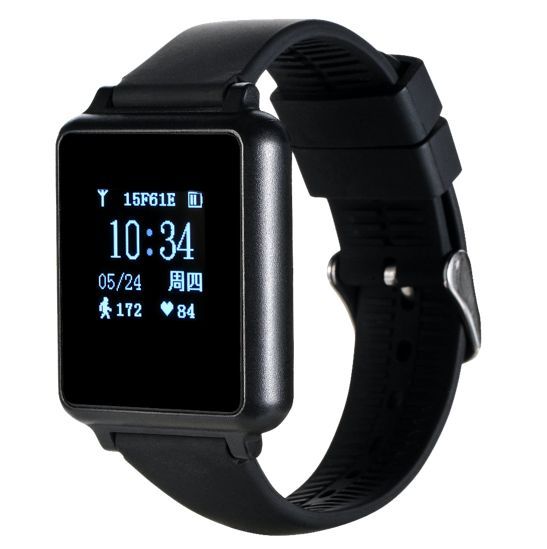

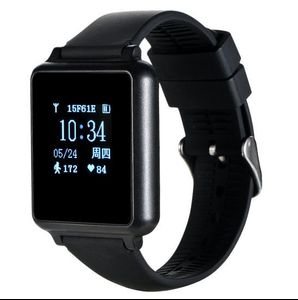

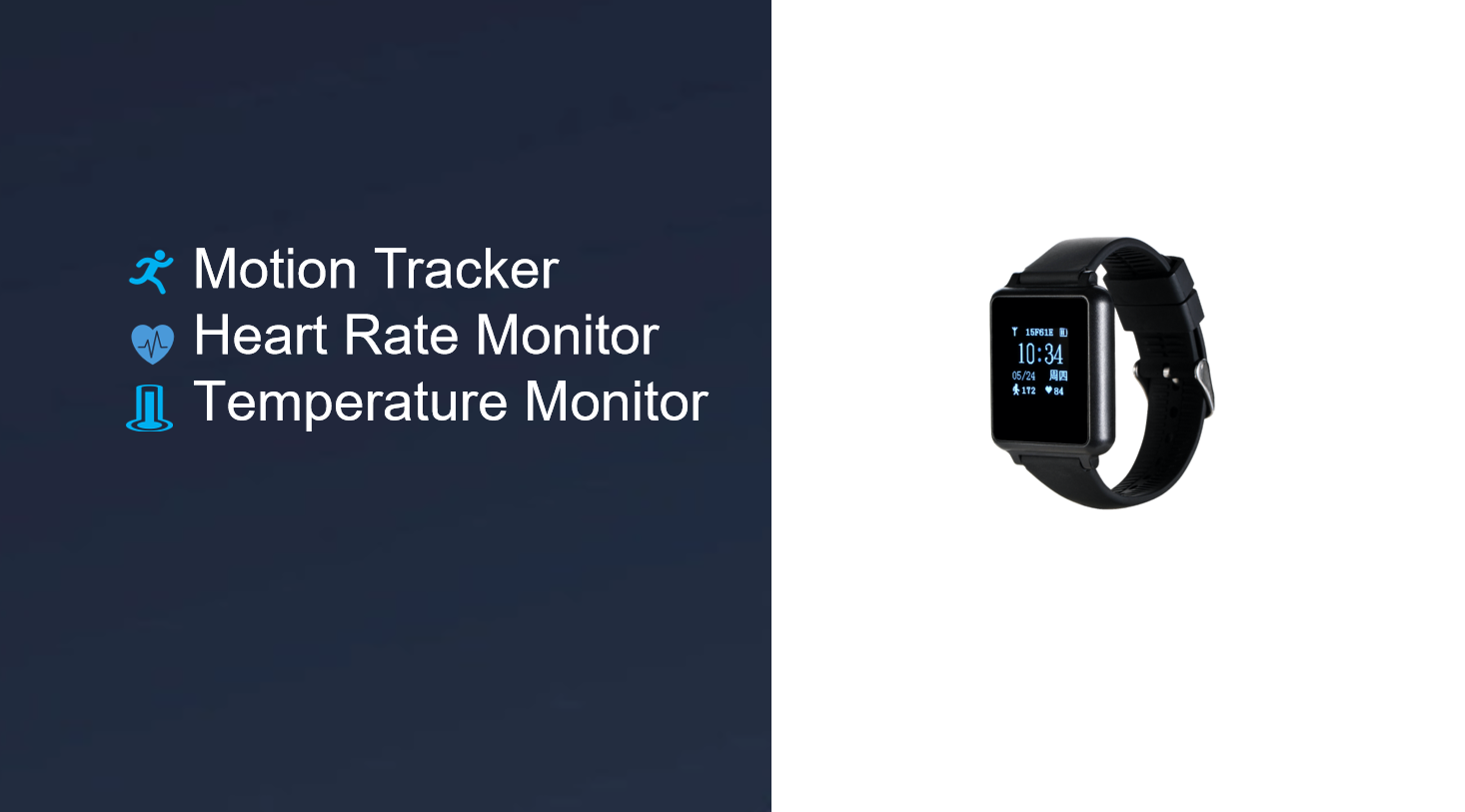

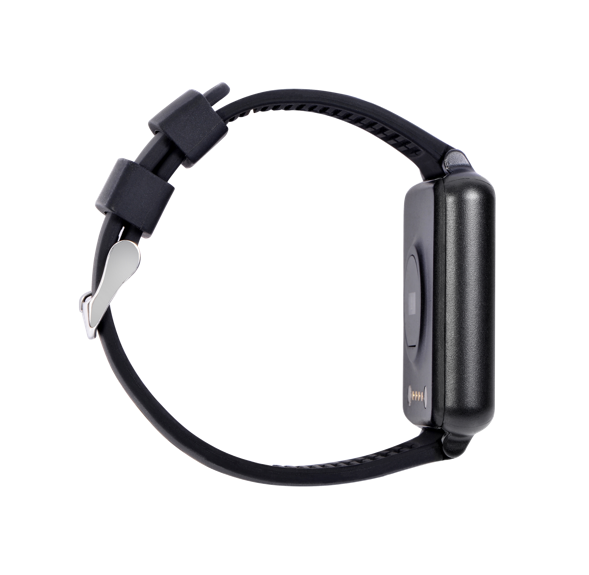

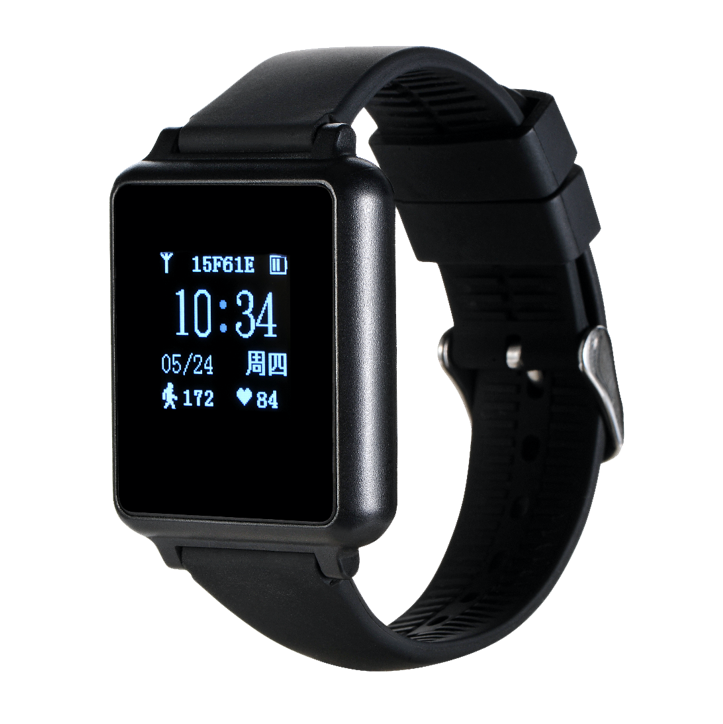

UWB watch parameters
No. | Name | describe |
1 | Model | DDX05 |
2 | tracking mode | TDOA technology based on UWB |
3 | Tracking Accuracy | In the case of no occlusion, the maximum tracking accuracy can reach 0.3 meters |
4 | tracking interval | It can be set to track 3 times every 1 second when moving, and track once every 3 seconds when stationary |
5 | coverage | Up to 60m without shelter |
6 | working frequency | 3.75-4.25GHz |
7 | transmit power | 27 decibels |
8 | Antenna type | Built-in omnidirectional antenna |
9 | safety performance | Built-in encrypted transmission and security authentication to ensure data security. |
10 | remote upgrade | Yes |
11 | motion monitoring | It can realize step counting and motion monitoring, with automatic sleep function |
12 | vital signs | Support real-time/timing heart rate monitoring. |
13 | message reception | Can receive SMS messages pushed by the platform |
14 | near field communication | Yes |
15 | shell material | Eco-friendly plastic |
16 | low battery alarm | When the terminal power is lower than 20%, a low battery alarm will be generated |
number 17 | Screen | One-inch low-power OLED black and white display |
18 | key | The touch button can only be turned on, not turned off, and can also be used for emergency alarm |
No. 19 | Reminder | vibration reminder |
20 | external interface | Magnetic charging and data interface |
twenty one | Battery | Built-in rechargeable 200MAH battery |
twenty two | Standby time | 14 days |
twenty three | Charging voltage | 5V |
twenty four | charging time | 2 hours |
25 | weight | 40 grams |
26 | size | 30*40*10mm (length/width/height) |
No. 27 | waterproof | IP67. |
28 | working environment | Operating temperature: -30°C-+60°C; Operating humidity: 10% to 90% RH, non-condensing |
29 | Accessories Details | Includes terminal, magnetic data cable, user manual and warranty card. |

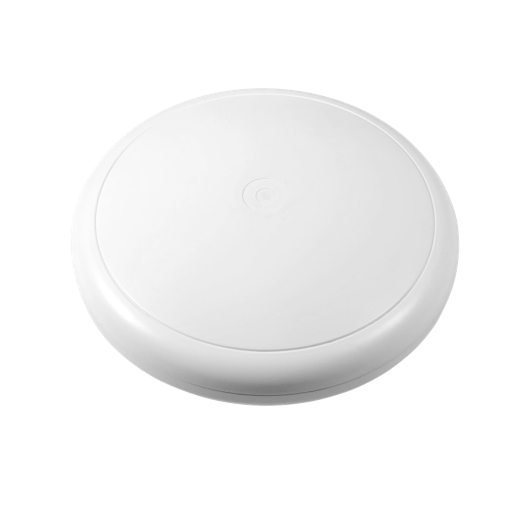

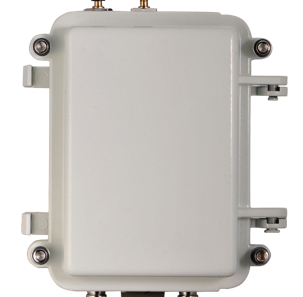

UWB anchor parameters
No. | Name | describe |
1 | Model | DDX08 |
2 | tracking mode | TDOA technology based on UWB |
3 | Tracking Accuracy | In the case of no occlusion, the maximum tracking accuracy can reach 0.3 meters |
4 | coverage | Up to 60m without shelter |
5 | working frequency | 3.75-4.25GHz |
6 | transmit power | 26 decibels |
7 | Receiver sensitivity | -100dBm |
8 | total power consumption | 3W |
9 | Antenna type | Built-in omnidirectional antenna |
10 | transfer method | POE transmission |
11 | safety performance | Built-in encrypted transmission and security authentication to ensure data security |
12 | remote upgrade | Yes |
13 | shell material | Eco-friendly plastic |
14 | indicator light | Power and working status indicators |
15 | size and weight | The size of the base station is 200*200*40MM/100g. The color box size is 240*240*50mm/150g. The carton size is 500*500*300mm/3.5kg (20pcs). |
16 | installation method | wall mount |
number 17 | waterproof level | IP57 level |
18 | working environment | Operating temperature: -30°C-+60°C; Operating humidity: 10% to 90% RH, non-condensing |
No. 19 | Accessories Details | Includes terminal, user manual and warranty card. |
