RF Module, 433Mhz, 868Mhz, 915Mhz, Radio data 300M-12Km, RS232/RS485/TTL data transmitter, Wireless transmitter and receiver
- $17.00 / 2 - 49 pieces
$16.50 / >=50 pieces - 2 pieces
- Shenzhen Yishi Electronic Technology Development Co., Ltd.
- Guangdong, China
- Mr Overseas Dept.
| Packaging Details: | Standard export carton | port: | Shenzhen |
| model: | YS-C10 20 30 | Supplier type: | General |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | type: | radio frequency transceiver |
| brand: | OEM production | chipset: | CC1020, CC1101 |
| Supply capacity: | 3000 pieces per day | place of origin; place of origin: | Guangdong, China |

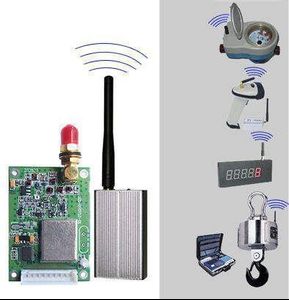

RF Module, 433Mhz, 868Mhz, 915Mhz, 300M-12Km Data Radio, RS232/RS485/TTL Data Transceiver, Wireless Transmitter and Receiver
RF module, 433Mhz, 868Mhz, 915Mhz, 300M-12Km wireless data modem:
Most distinctive:
*IC: Based on Chipcon CC1020 RF chip, high SINAD;
* The bare volume is small, suitable for embedding;
* Narrowband and anti-jamming are commendable;
* Power saving mode: wake up from Hardware, wake up from COM Port, wake up from Air;

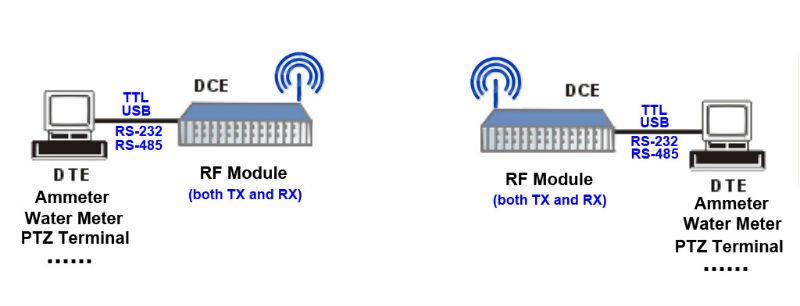

*Transparent data interface, applicable to any standard or non-standard user agreement;
* Automatically filter false data generated in the air, and can transmit long data frames;
*Good long-term use reliability, low failure rate, suitable for indoor and outdoor use
Product main features:
* Carrier frequency: 315M, 433M, 434M, 450M, 670M, 868M, 915MHz or ISM others.
* Provide rich interfaces: standard: RS-232/TTL/RAS-485;
* Interface format: 8N1/8E1 user-defined, or customize other format interface;
* 8 channels, can be expanded to 16/32 channels according to customer requirements;
* Baud rate: 1200/2400/4800/9600/19200/38400bps;
* Transceiver integrated, half-duplex;
* Low power consumption and sleep function;
* Working temperature: -20~+65 degrees Celsius (industrial grade customized bulk order);
temperature range. -40 to 80 C (-40 to 176 F).
* Impedance: 50&Omega (SMA antenna interface, a variety of antennas are optional);
* Conforms to EN 300220 and ARIB STD-T67;
Application fields:

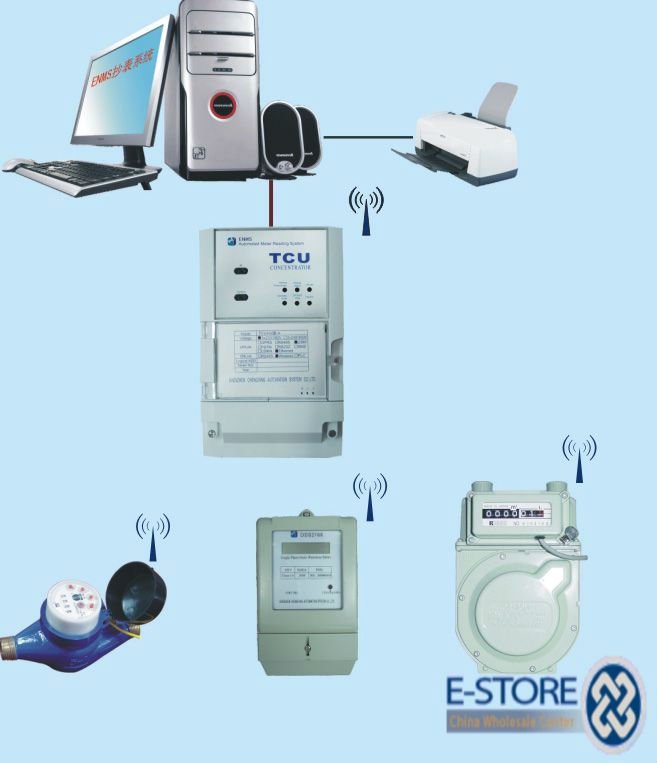

* Automatic meter reading (AMR) and home automation;
* Monitoring and Data Acquisition (SCADA);
* Remote control, industry data collection;
* Remote system monitoring
* Production reports for active systems
* Wireless remote alarm, wireless sensor;
* Sports training and competition;
* Wireless POS, PAD, wireless smart terminal;
* Electronic bus stops and intelligent transportation;
* Wireless electronic display screen and queuing machine;
OEM and customizable software.
One year quality guarantee and lifetime maintenance.
