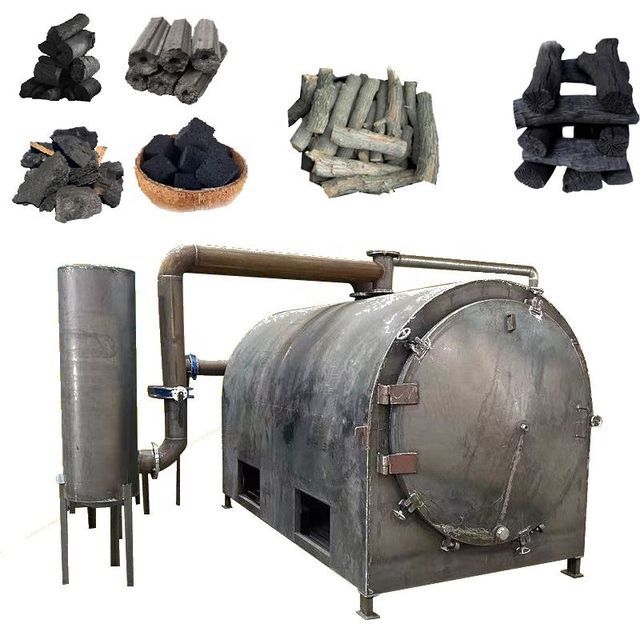

Energy-saving charcoal carbon stove smokeless coconut shell bamboo bio charcoal grill machine
- $1350.00 / 1 - 49 pieces
$750.00 / >=50 pieces - 1 piece
- Zhengzhou Songbai Machinery Equipment Co., Ltd.
- Henan, China
- Ms Grace Qin
PRODUCT DETAIL
| Health) status: | new | Core components: | Engines, bearings, gearboxes, motors, pressure vessels, gears, pumps |
| Mechanical test report: | if | Effective volume: | 1.2 cubic meters |
| usage: | making charcoal | Dimensions (length*width*height): | 1.8*1.1*1.3m |
| Warranty: | 1 year | Product name: | Hardwood charcoal carbonization furnace |
| Core component warranty: | 1 year | raw material: | coconut shell bamboo wood |
| Showroom location: | without any | Keywords: | carbonization furnace charcoal |

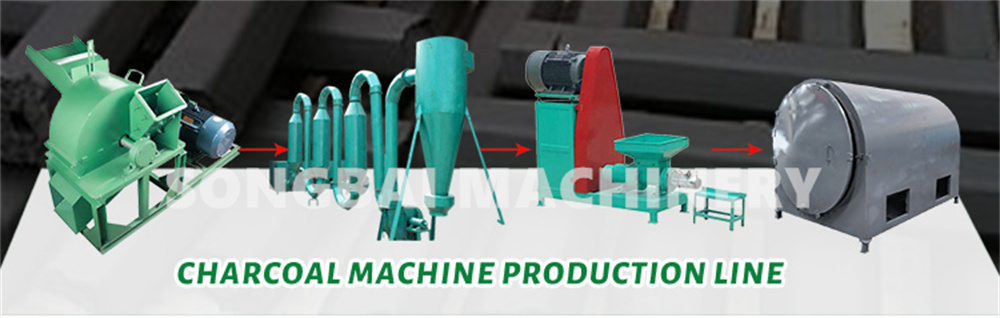

| fuel: | Firewood gas natural gas | application: | Charcoal molding production line |
| Carbonation rate: | 88%-99% carbonization furnace | feature: | Smokeless charcoal carbonization furnace |
| Marketing type: | 2020 new products | Brand name: | OEM processing |
| Applicable industries: | Machinery Repair Shops, Manufacturing Plants, Farms, Household, Retail, Energy & Mining, Other | Keywords: | Wood chip coal charcoal making machine |
| Weight (kg): | 400 | Video outbound inspection: | if |
| capacity: | 150-3000KG/24H | Origin: | Henan, China |
| Payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Main selling points: | Long service life |
Energy-saving charcoal carbon stove smokeless coconut shell bamboo bio charcoal grill machine
Product Description

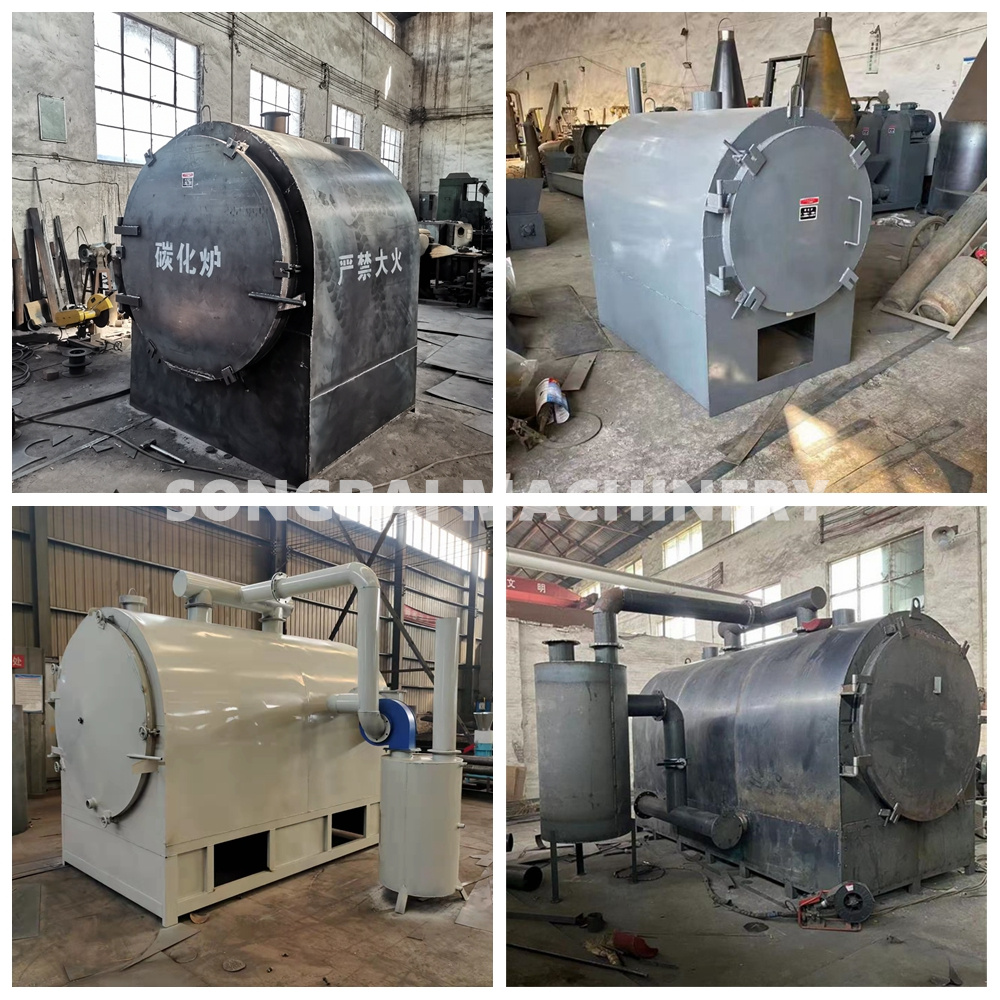

Horizontal biomass carbonization furnace product introduction |

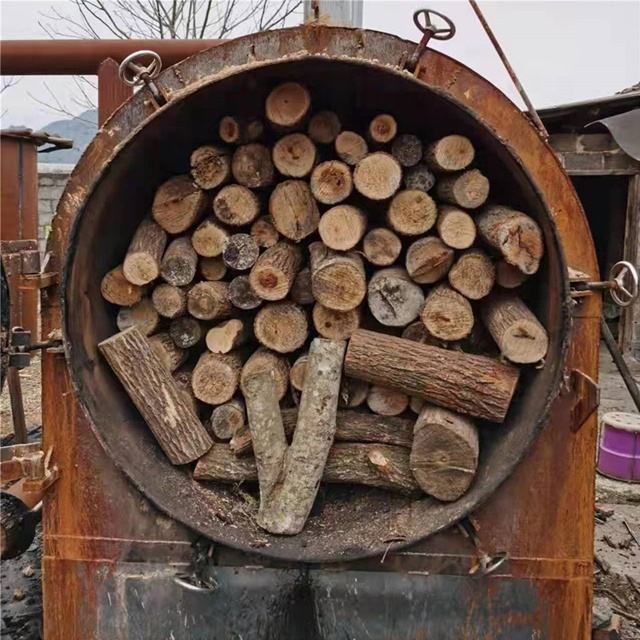

The Songbai retort carbonization furnace is specially designed for the characteristics of long stick biomass such as logs, wood, jute sticks, etc. It adopts a horizontal structure, a cart to enter and exit raw materials, and advanced hot gas retort carbonization technology. It uses unique carbonization flue gas (volatile hydrogen substances and tar etc.) back-burning technology, making full use of the flue gas generated during the carbonization process to meet the thermal energy needs of the carbonization furnace itself, greatly improving the carbonization rate from 80% to more than 95%, and is easy to operate, safe and environmentally friendly, and production It has high efficiency and can save a lot of energy. It is an ideal equipment for carbonizing long rod-type biomass materials. |
Carbonization processJute stick sawdust charcoal making machine |

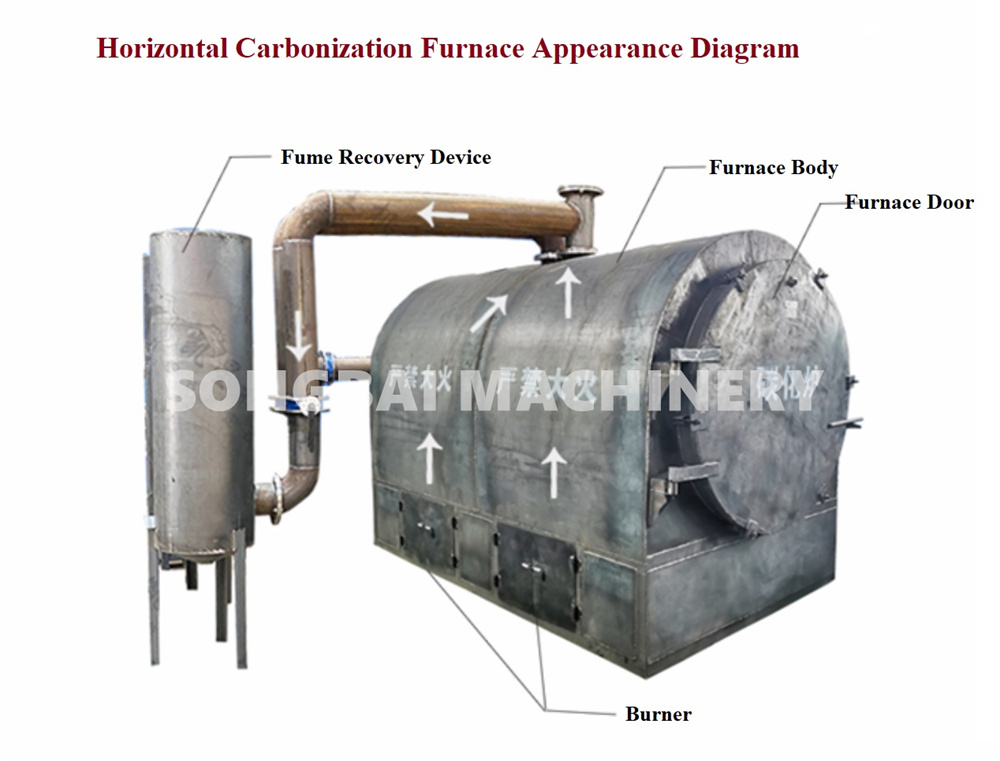

Songbai horizontal biomass carbonization furnace consists of inner tank, insulation material, furnace door, rail car, combustible gas reburning pipe, dehumidification buffer tank, burner, exhaust pipe, thermometer, etc. Gasifier and flue gas purification device are optional equipment. The furnace uses the principle of anaerobic carbonization to remove volatile substances in biomass raw materials and carbonize the biomass raw materials. The carbonization process is: feeding and sealing → raw material preheating and drying → anaerobic carbonization → cooling to produce charcoal, a total of four steps. . |
Features of biomass rice husk bamboo charcoal making machine |
1. The powdered activated carbon production line adopts horizontal manufacturing process. The carbonization furnace has a three-layer structure, with lightweight insulation materials in the middle to maintain the temperature in the furnace at all times. |
2. The furnace door is sealed with packing to prevent air from entering, and the carbonization rate is much higher than that of conventional carbonization furnaces. |
3. The reason why it is called a green carbonization furnace is because the wood sticks will produce a large amount of light yellow flammable gas during the carbonization process. These gases can be guided to the combustion zone of the carbonization furnace through the pipelines of the carbonization furnace for secondary fire heating. More environmentally friendly and more fuel efficient. |
4. The excess gas from the carbonization furnace can be used to dry sawdust or burn boilers. |
5. The cooling time from the carbonization furnace to the end of the charcoal is short. We use inter-layer water cooling to naturally cool the carbonization furnace, which is more efficient and convenient. |
6. The environmentally friendly air carbonization furnace is equipped with tracks and kiln cars, which are more convenient to use and reduce the labor intensity of workers. |
Product parameters

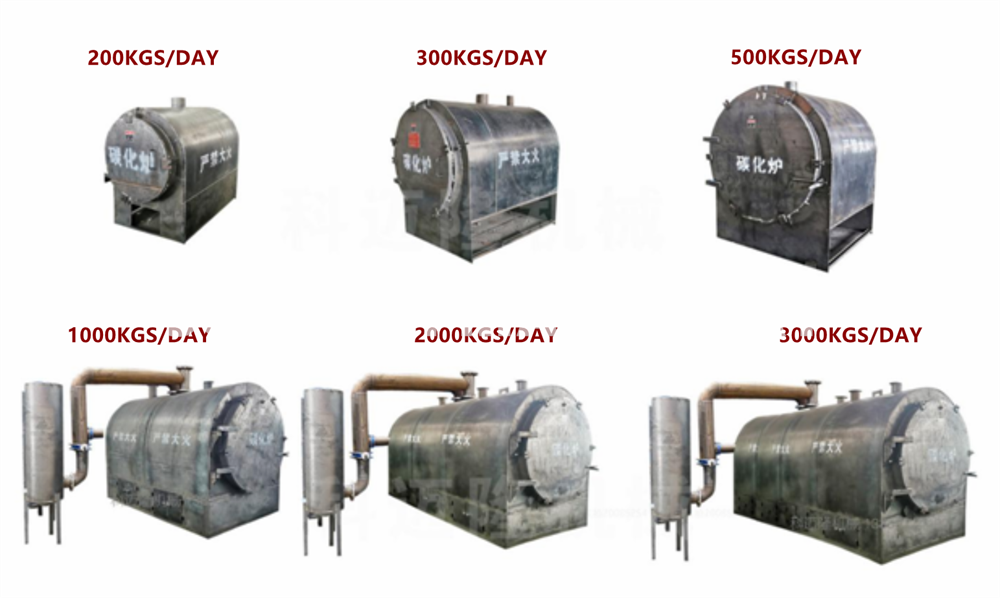

Technical parameters of different models of wood coal and sawdust carbonization furnaces | ||||||||||
Model | Inner diameter size(rice) | aspect(rice) | weight(Kilogram) | Carbonization cycle | output | |||||
0815 | 0.8*1.5 | 1.8*1.1*1.3 | 400 | 8-10 hours | 150-200kg | |||||
1215 | 1.2*1.5 | 1.9*1.5*1.8 | 650 | 10-12 hours | 200-300kg | |||||
1515 | 1.5*1.5 | 1.9*1.8*2.3 | 1000 | 18-20 hours | 400-500kg | |||||
1220 | 1.2*2 | 2.3*1.6*1.8 | 1200 | 18-24 hours | 500-600kg | |||||
1330 | 1.3*3 | 3.3*1.8*2.3 | 2300 | 18-24 hours | 700-800kg | |||||
1530 | 1.5*3 | 3.3*2*2.4 | 2800 | 18-24 hours | 800-1000kg | |||||
Chapter 1545 | 1.5*4.5 | 4.7*1.9*2.3 | 3200 | 18-24 hours | 1800-2000kg | |||||
2060 | 1.9*6 | 6.2*2.3*2.8 | 7000 | 18-24 hours | 2800-3000kg | |||||
Carbonization time | 4-6 hours | |||||||||
