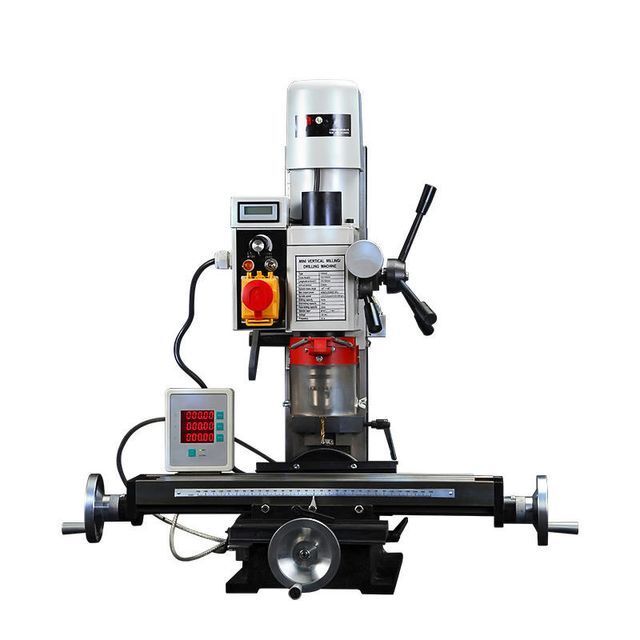

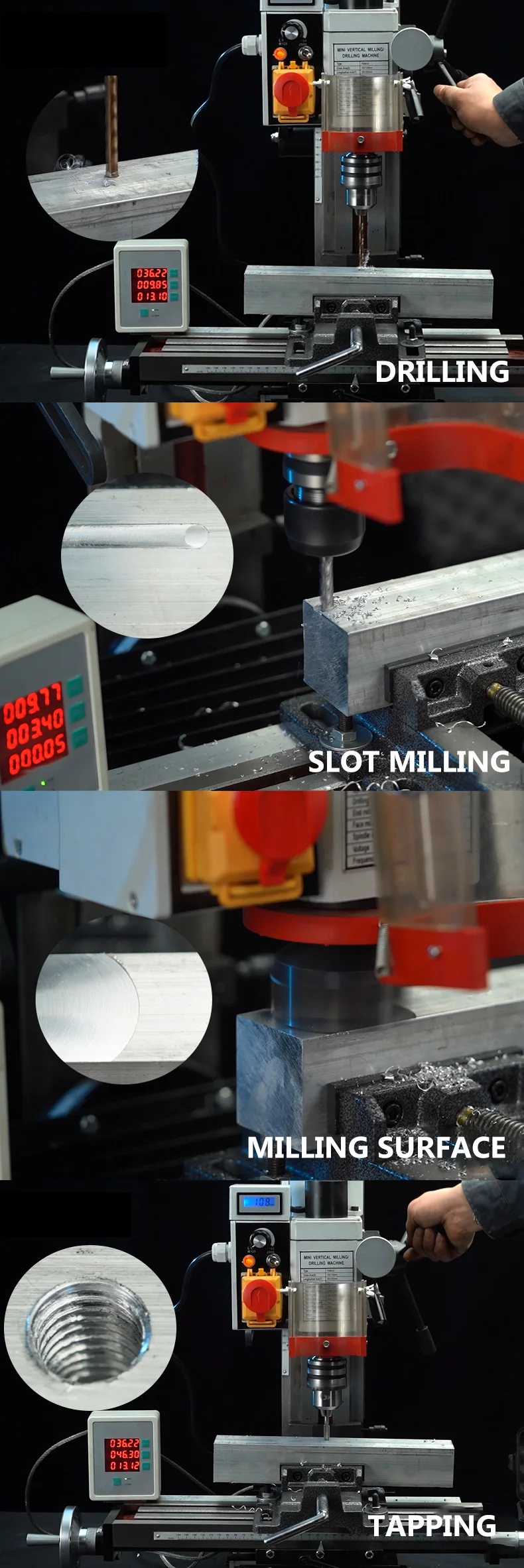

FS9512 Desktop Three-in-one vertical drilling and milling machine Multi-function Drilling 220V

PRODUCT DETAIL
Z axis:200mm;Power:550W;
Certification:GS;X by stroke:250mm;
Y-axis:100mm;To:Amy;
Spindle speed range:20-2250 rpm;Model Number:FS9512;
Extended workbench:500*140mm;Tilt range:45°;
Max Working Height:Other;Voltage:220V,110V-240V;
Payment Terms:T/T;Max Spindle Speed:2000RPM;
Customized support:OEM;Chuck Capacity:Other;
Grade:DIY;Place of Origin:Guangdong, China;
 Product parameter

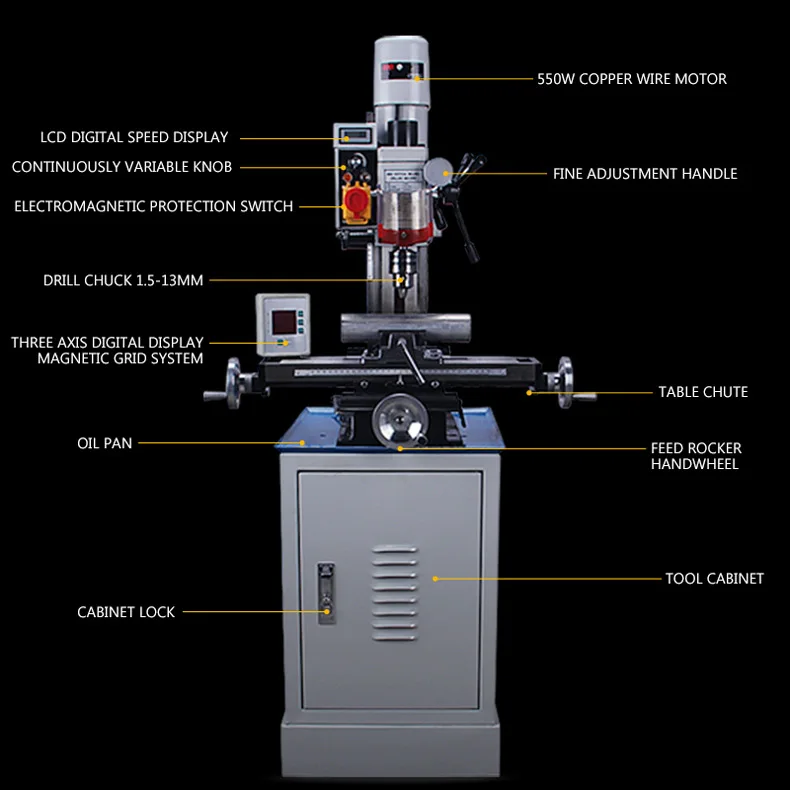

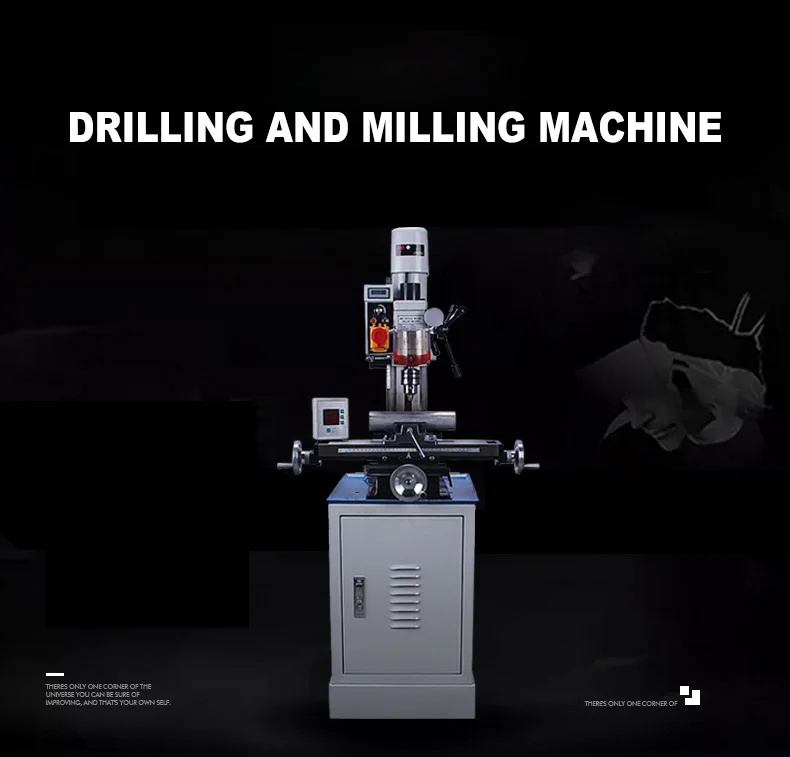

Drilling and Milling Machine

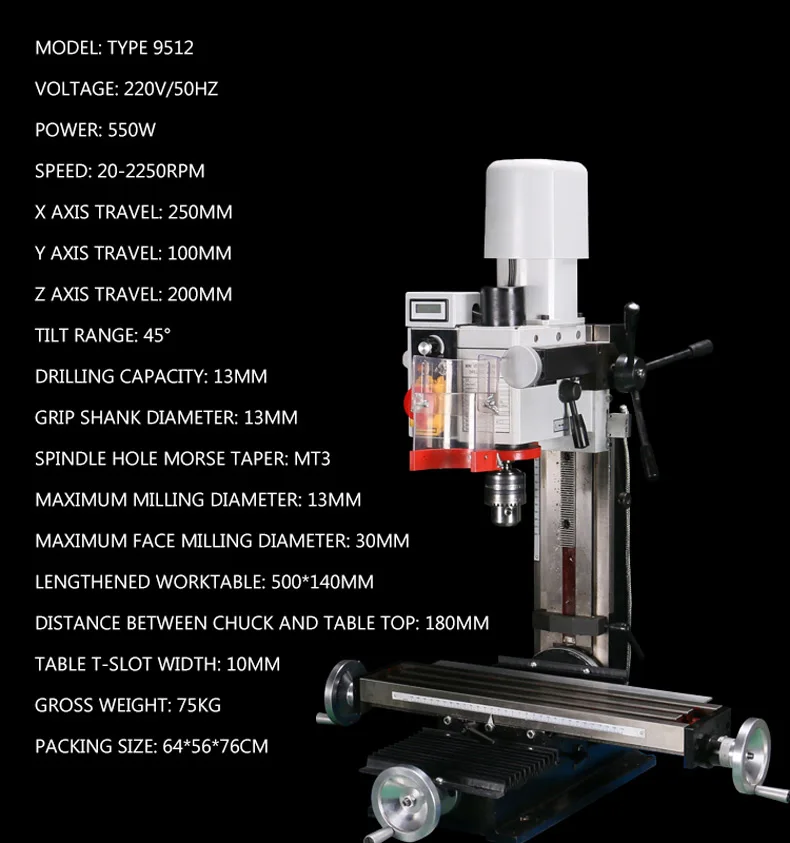

Specifications:
Voltage: 220V/50Hz
Power: 550W

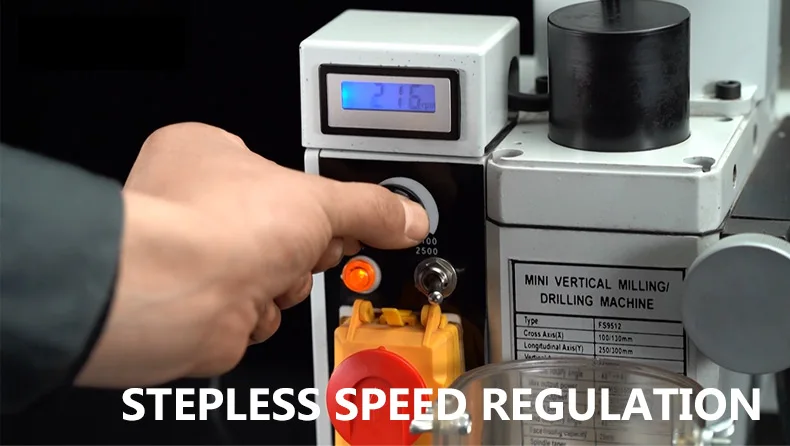

Speed: 20-2250rpm
X by stroke: 250mm
Y-axis travel: 100mm
Z axis travel: 200mm

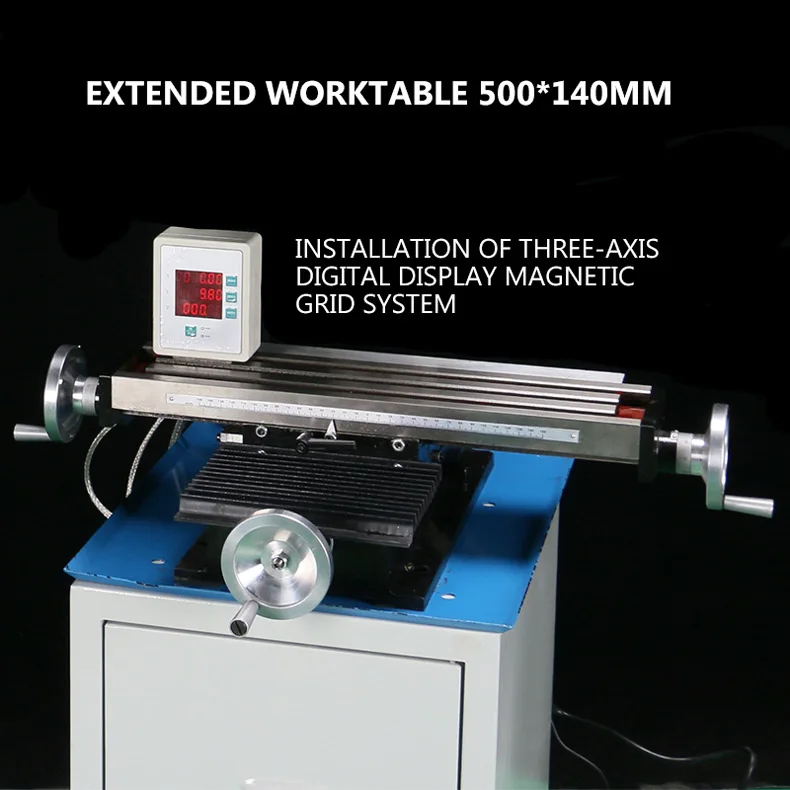

Extended workbench: 500*140mm

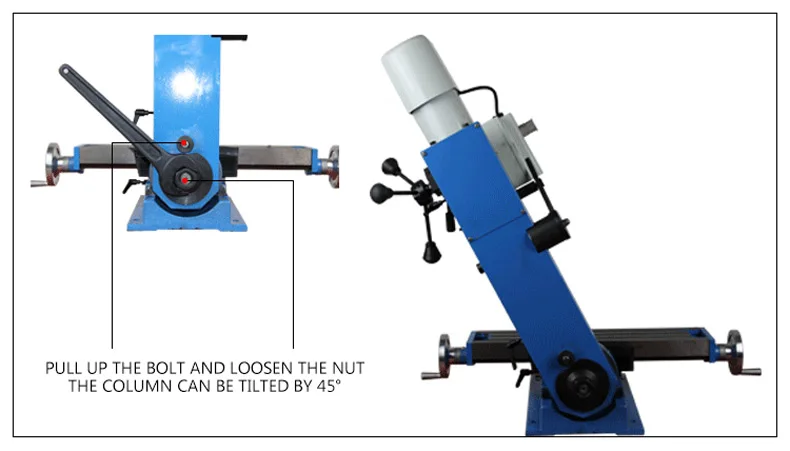

Tilt range: 45°
Grip shank diameter: 13mm
Drilling capacity: 13mm
Maximum milling diameter: 13mm
Maximum face milling diameter: 30mm
Chuck and table distance range: 180mm
Spindle hole Mohs taper: MT3
Countertop T-slot width: 10mm
Net weight / gross weight: 65/75KG
Packing: 640*560*760
