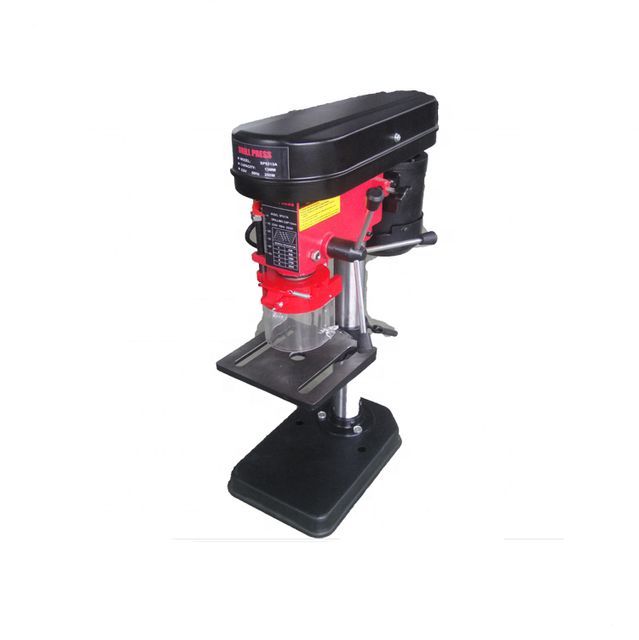

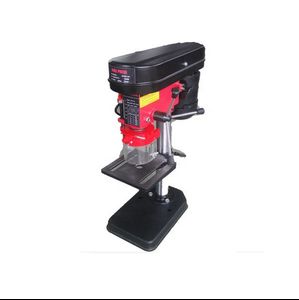

5-Speed Rotary Table Column Bench Top Drill Press for Hobby Drilling SP5213A
- $45.00 / 20 - 199 sets
$43.00 / 200 - 499 sets
$38.00 / >=500 sets - 20 sets
- Shanghai Sumore Industrial Co., Ltd.
- Shanghai, China
- Ms Tobey Yu
PRODUCT DETAIL
Place of origin: | China | Voltage: | 110V-240V |
port: | Shanghai Port | payment terms: | Letter of credit, wire transfer |
Packaging details: | Hobby desktop drill press carton packaging box | Speed level: | 5 |
Maximum working height: | other | Chuck capacity: | 1/2 inch |
model: | SP5213A | Table size: | 160x160mm |
swing: | 210mm | Column diameter: | 46 |
Package Size: | 435x340x230mm | Supply capacity: | 10,000 hobby benchtop drill presses per month |
high: | 580mm | Energy source: | electrical |
Maximum spindle speed: | 2620 rpm | Key words: | Hobby bench drill press |
Drilling capacity: | 13mm | Spindle travel: | 50mm |
Motor Power: | 250/350W |
Product Description

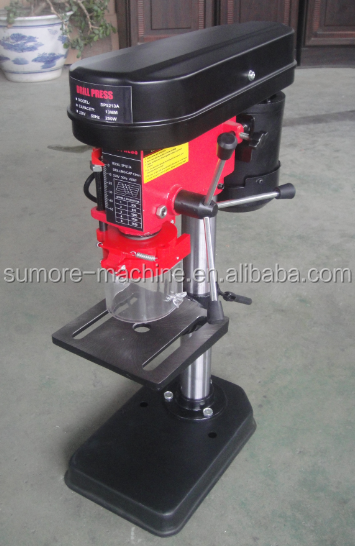

5-Speed Rotary Table Column Bench Top Drill Press for Hobby Drilling SP5213A
feature:
1. High rigidity structure
2.Easy to operate, extended DDurability
3.differentDimensions and interchangeable workbenches
4.Thoughtful security design
5. 1/2" (13mm) maximum chuck capacity
6. 210mm swing
7. - 45° ~ 0° ~ + 45° table tilt L&R
8. 5-speed spindle speed
9. The chuck guard is a standard accessory
10. Optional micro switch that meets CE requirements
.
Technical data
Model | SP5213A |
drilling capacity | 13 mm (1/2 inch) |
swing | 210mm |
Spindle taper | B16 |
Spindle travel | 50mm |
Spindle speed steps | 5 steps |
Spindle speed | 620 - 2,620 / 740 - 3,140 rpm |
Maximum distance from spindle axis to column surface | 105mm |
Maximum distance from spindle end face to worktable surface | 220mm |
Maximum distance from spindle end face to base surface | 300mm |
Column diameter | 46mm |
high | 580mm |
working desk size | 160×160mm |
Base size | 290 x 190mm |
Motor Power | 250 / 350 watts |
Net weight/gross weight | 16 / 17 kg |
Package Size | 435 x 340 x 230mm |
Key words | Hobby bench drill press |
Accessories
Packaging and shipping
pack |
carton packaging box |
Minimum order quantity (MOQ) | 20 sets |
Full container load (FCL) | 840 sets/20'GP (all-in-one; customizable packaging) |

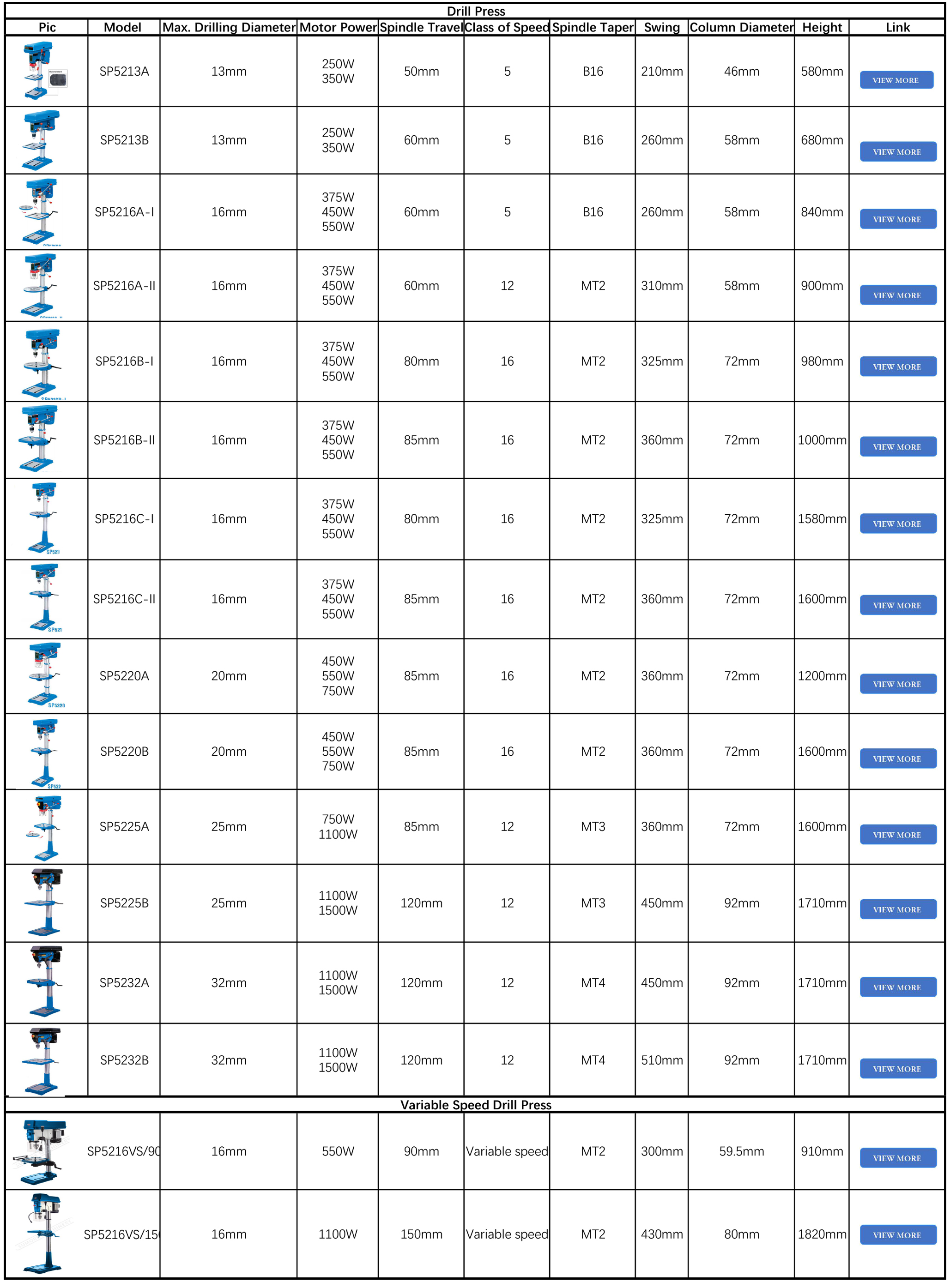

More drill presses
