SP2240 16mm drilling capacity factory best prices milling machine tool for sale

PRODUCT DETAIL
Range of Spindle Speed(r.p.m):50 - 2500 r.p.m;Dimension(L*W*H):640x570x720mm;
Payment Terms:L/C,T/T;Model Number:SP2240;
Video outgoing-inspection:Provided;Table Travel (X) (mm):300 mm;
Longitudinal travel(X):250/300mm;Drilling capacity:16mm;
Port:Shanghai Port;Key Selling Points:Competitive Price;
Spindle Motor Power(kW):0.55;Spindle Taper:MT3;
Table Travel (Z) (mm):180 mm;Showroom Location:Viet Nam;
Voltage:Customer Requirement;Machining Capacity:Light Duty;
Condition:New;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Home Use,Retail;
Table Travel (Y) (mm):130 mm;Place of Origin:Shanghai China;
Working table size:410/460*112mm;Weight (KG):80;
Spindle rotary angle:-45°~+45°;Color:Customized Option;
Spindle stroke:180mm;Spindle taper:MT3;
Warranty:1 Year;Number of Axes:3;
Type:VERTICAL;Brand Name:Sumore Machinery;
Warranty of core components:1 Year;After Warranty Service:Video technical support,Online support,Spare parts;
Machinery Test Report:Provided;Marketing Type:Hot Product 2019;
Supply Ability:1000 Set/Sets per Month;Local Service Location:Viet Nam;
Face milling capacity:13mm;Cross travel(Y):100/130mm;
Core Components:Gearbox;Certification:CE/ISO/SGS;
End milling capacity:30mm;
Product Description

SP2240 16mm drilling capacity factory best prices milling machine tool for sale



Looking for excellent milling machine? Check out our  generous range of various metal-working appliations from bench lathe, milling machine, band saw, drilling machine,surface grinder to the spareparts & accessories related from Sumore Machinary.

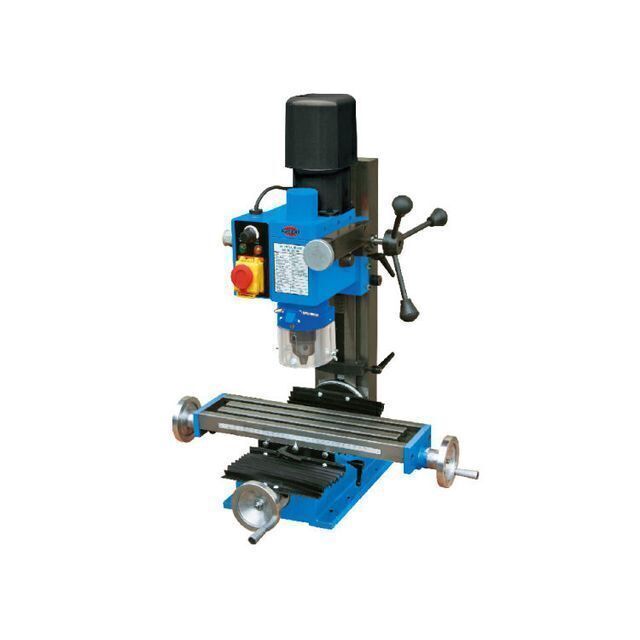

Sumore SP2240 milling machine belongs to one of our most economic manual milling machine, compare to normal larger gear head lathe,it has unique advantage,such as smaller size,lighter weight,lower noise,high accuracy and so on. It's relatively simply structure also remain in full rigid and high strength hardened steel base construction.







 Specification

Model SP2240
Drilling Capacity 16 mm
End Milling Capacity 13 mm
Face Milling Capacity 30 mm
Longitudinal Travel (X) 250 / 300 mm
Cross Travel (Y) 100 / 130 mm
Spindle Stroke (Z) 180 mm
Spindle Rotary Angle ±45°
Working Table Size 410 / 460 x 112 mm
Spindle Taper MT3
Spindle Speed Range 50 - 2,500 rpm
Motor Power 550 W
Voltage and Frequency Customrized
Net Weight 62 kg
Packing Size (LxWxH)

570 x 510 x 740 mm / 640 x 565 x 720 mm

Gross Weight 80 kg
