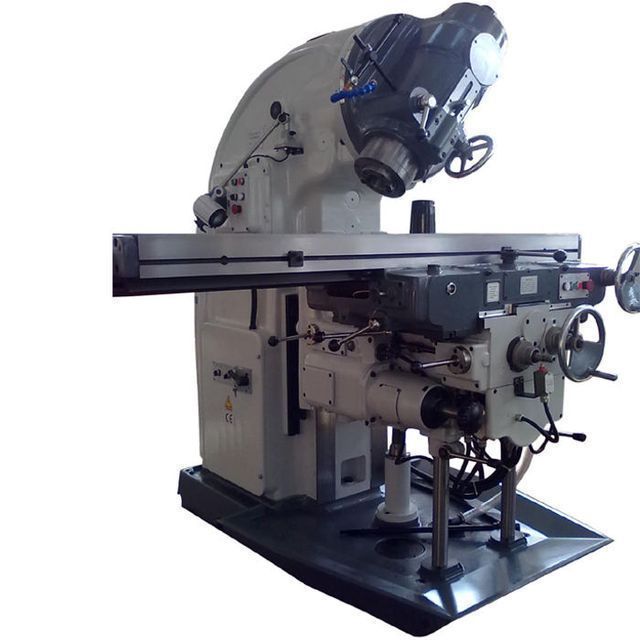

X5040 Universal Turret Mill

PRODUCT DETAIL
year:2020Table travel (mm):1700*400
After-sales service provided:Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical support, overseas third-party support is availableplace of origin; place of origin:Shandong China
Health status:newtype:vertical
Packaging Details:Wooden box with inner plastic cover, no fumigation requiredpayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
Spindle speed range (rpm):30 - 1500 rpmMain selling point:high productivity
Table stroke (Y) (mm):385 mmTable stroke (X) (mm):315 mm
Supply capacity:400 sets per monthmodel:X5040
CNC or not:normalMaximum load of the table:800kg
Weight (kg):800Table travel (Z) (mm):85 mm
Spindle motor power (kW):11Table size:1600*400mm
Vertical stroke (manual/automatic):385/365mmVoltage:220/380/400V
port:any port in ChinaDimensions (L*W*H):2556*2159*2298MM
Warranty:1 yearSpindle stroke:85mm
Applicable industries:Mechanical Repair Shop, Manufacturing PlantLateral travel (manual/automatic):315/300mm
Processing capacity:heavy loadbrand:Do not
Certification:CE, ISO9001Spindle motor power:11KG

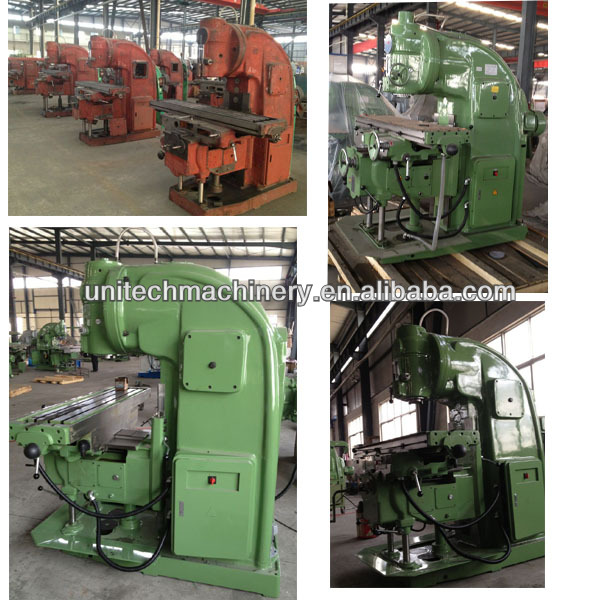

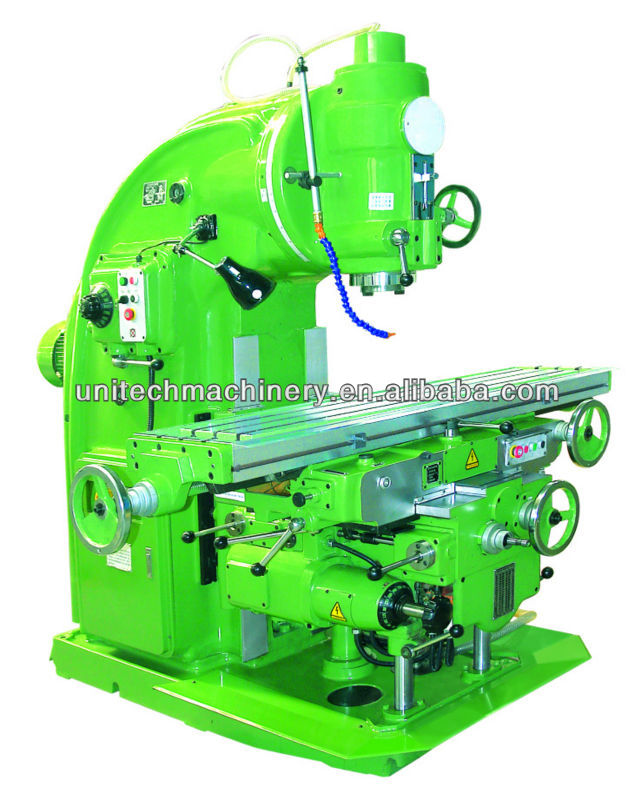

X5040 Vertical Knee Milling Machine





Specification

unit

X5040

table size

mm

400X1700

T-slot (NO./Width/Pitch)



3/18/90

Longitudinal travel (manual/automatic)

mm

900/880

Cross driving (manual/automatic)

mm

315/300

Vertical stroke (manual/automatic)

mm

385/365

Rapid feed rate (X/Y/Z)

mm/min

2300/1540/770

maximum. load

Kilogram

800

Table feed range (X/Y/Z)

mm/min

23.5-1180/15-786/8-394

Spindle speed range

rpm

30-1500

Spindle speed step

pace

18 steps

Spindle sleeve stroke

mm

85

The maximum rotation angle of the end milling head



±45°

Distance from spindle nose to work table

mm

115/500

Spindle motor power

kilowatt

11

Dimensions (L×W×H)

mm

2556×2159×2258

net weight

Kilogram

4250/4350







 Standard accessories:





Name

Specifications

quantity

tie rod



1 set

ISO50 milling chuck

4,5,6,8,10,12,14,16

8 pieces/set

ISO50 Shank Shank

φ40

1

7:24 Middle group

7:24 ISO50/MS4

1

oil gun



1

Allen key

6

1

double-ended wrench

17x19

1

double-ended wrench

22x24

1

double-ended wrench

27x30

1

double-ended wrench

32x36

1

single-ended wrench

14

1

single-ended wrench

50

1

Allen key

5

1

Allen key

8

1

Allen key

10

1

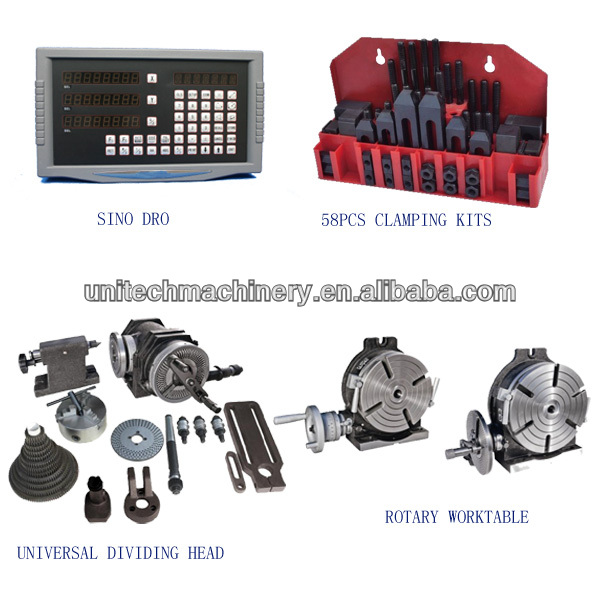

Optional accessories:



Name

Specifications

Comment

Universal indexing head

125A

Includes three-jaw chuck

Universal indexing head

160

Includes three-jaw chuck

turntable

φ320

manual

Indexable carbide milling cutters

φ63

with handle

Indexable carbide milling cutters

φ100

without handle

Indexable carbide milling cutters

φ160



without handle

size block

240x120

6 pieces/set

Clamping Kit





milling chuck

15

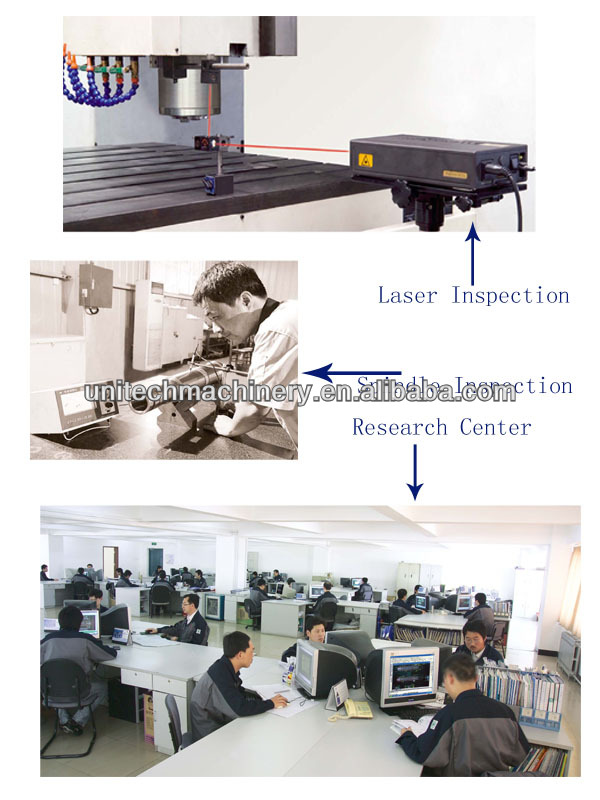

production process:

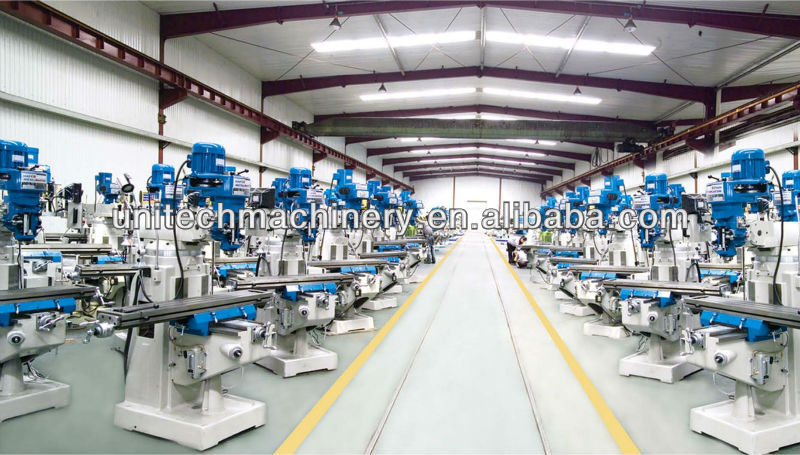

Mass production:



Our products are finished under the standard of normal workshop, mass-produced with high quality to ensure high efficiency and ensure product quality.
