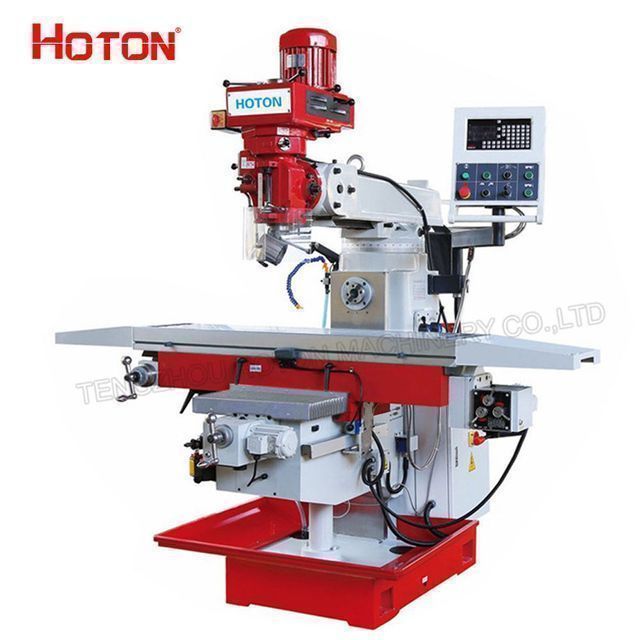

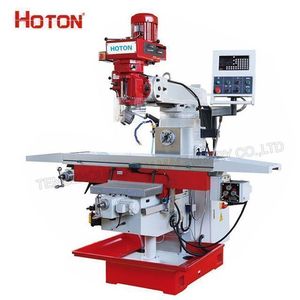

( Fresadoras de Torreta ) turret milling machine X6323A X6325 X6325D X6330A X6333
- $2000.00 /set
- 1 set
- Tengzhou Hoton Machinery Co., Ltd.
- Shandong, China
- Ms Wang Andy
| brand: | Holden | Certification: | CE ISO9001 |
| After-sales service provided: | Provide overseas third-party support | Supply capacity: | 70 sets per month |
| Spindle taper: | ISO40 or R8 or NT40 | port: | Qingdao port or Shanghai port |
| Voltage: | customer request | Warranty: | 12 months |
| CNC or not: | normal | Health status: | new |
| Dimensions (L*W*H): | 1400x1476x2030mm | Origin: | Shandong China |
| Name: | Turret milling machine | Type of machine: | Universal Horizontal |
| strength: | 3.75kw | payment terms: | L/C, T/T, Western Union |
| application: | metal processing | type: | common |
| weight: | 1500KG | color: | custom made |

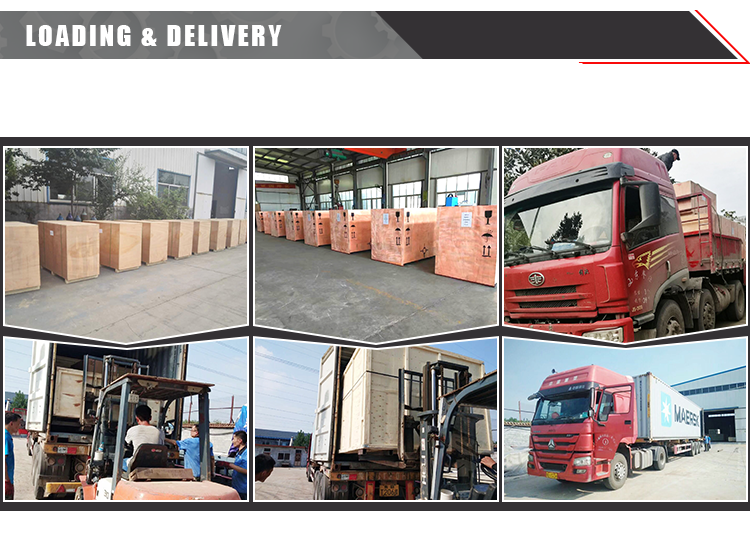

| Packaging Details: | in plywood case |
Features of X6323
Both Y and Z axes adopt double 55° dovetail guide rails, which are convenient for adjustment and maintenance.
Ribs are used on both sides of the column to make the machine firm and beautiful.
Features of X6325:
Y-axis, Z-axis rectangular guide rail, good rigidity
The saddle rail is lined with TF wear-resistant material
The working surface and three-axis guideway are hardened and precision ground
Features of X6325D:
Both Y and Z axes adopt rectangular guide rails.
The rails on the saddle are lined with TF wear-resistant material. Make the machine stable and firm, beautiful and easy to operate.
5HP milling head motor and sleeve diameter is 100MM
Features of X6333
Both Y and Z axes adopt double 55° dovetail guide rails, which are convenient for adjustment and maintenance.
Ribs are used on both sides of the column to make the machine firm and beautiful.
Features of X6330A
Both Y and Z axes adopt double 55° dovetail guide rails, which are convenient for adjustment and maintenance.
Reinforced ribs are used on both sides of the column to make the machine firm and beautiful.
| Model | X6325 | X6325D | X6330 | X6330D |
| table size | 1270x254mm | 1270x254mm | 305×1370mm | 305×1370mm |
| table load | 280Kg | 320 kg | 350Kg | 350Kg |
| long trip | 780mm | 800mm | 800mm | 800mm |
| Interbank | 420mm | 420mm | 420mm | 420mm |
| vertical travel | 420mm | 420mm | 420mm | 420mm |
| T-slot number and size | 3×16 | 3×16 | 3×16 | 3×16 |
| Ram travel | 470mm | 470mm | 470mm | 470mm |
| Distance from spindle nose to worktable surface | 0-405mm | 0-405mm | 0-405mm | 0-405mm |
| Spindle bore taper | R8 | ISO40 | ISO40 | ISO40 |
| Arm diameter | 85mm | 85mm | 85mm | 85mm |
| Spindle travel | 127mm | 130mm | 127mm | 127mm |
| Spindle speed | (standard): (class) 50 Hz: 66-4540 60 Hz: 80-5440 | |||
| car. quill feed | (Three steps): 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/rev | |||
| engine | 2.25KW/3HP Taiwan milling head | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Taiwan milling head | ||
| head rotation | 90° | 90° | 90° | 90° |
| tilt head | 45° | 45° | 45° | 45° |
| Machine size | 1516×1550×2130 | 1516x1550x2160 | 1516×1550×2250 | 1516×1550×2500 |
| Gross weight/set | 1350Kg | 1400 kg | 1450Kg | 1500Kg |

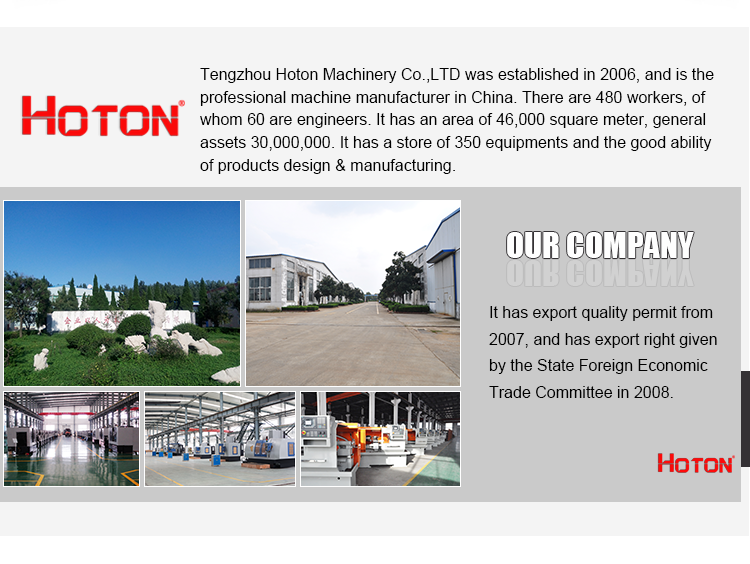

Q1: Are you trading company or manufacturer?
A: We are factory.
Q2. What about the delivery time?
A: Sample needs 3-5 days, order quantity more than mass production time needs 1-2 weeks.
Q3: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but do not pay for shipping.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. What is your payment terms?
A: Payment<=1000 USD, 100% in advance. Payment >= USD 1000, 30% T/T in advance, balance before shipment. If you have other questions, please feel free to contact us through the following ways.
