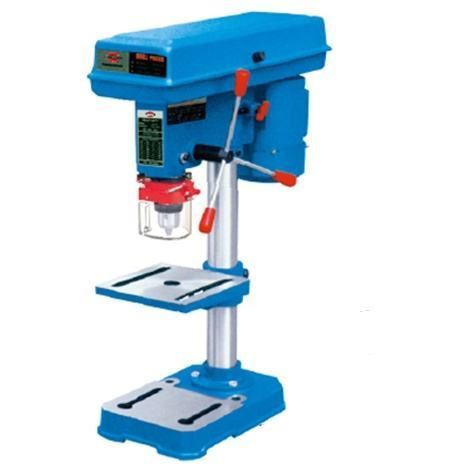

China factory direct sale portable bench top drilling machine SP5213A ZJ4113A

PRODUCT DETAIL
Spindle taper:B16Motor Power:250/350W
port:Shanghai PortDrilling capacity:13mm
Spindle travel:50 mmSpeed ​​class:5
Energy source:electricalswing:210 mm
table size:160x160 mmhigh:580mm
Supply capacity:10000 drilling machines per monthOrigin:China
grade:DIYMaximum working height:other
model:SP5123AWarranty:1 year
Packaging Details:1 set / poly wooden box for drill press (reinforced by aluminum strips)payment terms:L/C, D/P, D/A, T/T
northwest:19 kgBase size:290x290mm
Home



Product Description

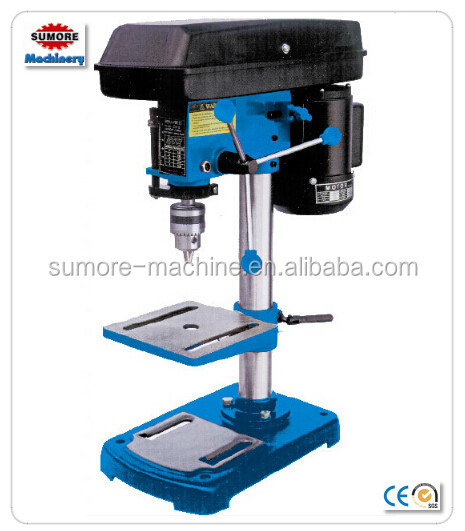

China factory direct sale portable bench top drilling machine SP5213A ZJ4113A

  • Excellent Sumo quality

  • Individual accuracy tests for each machine

  • High Rigid Structure
  • Easy to operate and durable
  • Different sizes and interchangeable tables
  • Thoughtful Security Design



Model SP5213A
Drilling capacity 13 mm (1/2 in)
swing 210 mm
Spindle taper B16
Spindle travel 50mm
Spindle speed steps 5 steps
Spindle speed 620 - 2,620 / 740 - 3,140 rpm
Maximum distance from spindle axis to column surface 105mm
The maximum distance from the end face of the spindle to the table surface 220mm
Maximum distance from spindle end face to base surface 300 mm
Column diameter 46mm
high 580mm
working desk size 160×160 mm
Table rotation angle (left/right) +/- 45°
base size 290 x 290 mm
Motor Power 250 / 350 watts
Net weight/Gross weight 19/20kg
Package Size 435 x 340 x 230mm



Packaging and Shipping

pack

1 set/poly wooden box  (reinforced with aluminum tape)

Minimum Order Quantity (MOQ) 1 set
Full container load (FCL) 840 sets/20'GP (integrated; can be customized packaging)
delivery time 25 calendar days after receipt of advance payment/full payment
