Factory Hot Sale High Quality ASTM B760 Pure Annealing 99.95% Tungsten Sheet Tungsten Price
- $28.00 /kilogram
- 1 kilogram
- Changsha Xinkang Advanced Materials Co., Ltd.
- Hunan, China
- Ms Grace Wu
PRODUCT DETAIL
| Packaging Details: | Factory Hot Selling Packing High Quality ASTM B760 Annealed Pure 99.95% Tungsten Foil Tungsten Price: Carton or Wooden Box with Well Protection, or as your special request. | purity: | W1≥99.95%, W2≥99.92% |
| density: | 19.3 g/cm3 | product name: | Factory Hot Sale High Quality ASTM 99.95% Tungsten Foil Tungsten Price |
| model: | XK-WF 001 | Package preview: | |
| payment terms: | Western Union, T/T, MoneyGram, PayPal | Key words: | Tungsten foil |
| brand: | Xinkang | Certification: | ISO9001 |
| Boiling point: | 5927°C | Melting point: | 3410°C |
| standard: | GB/T3875, ASTM B760 | Origin: | Hunan, China |
| port: | Changsha, Shanghai, Guangzhou, Shenzhen, Ningbo | Supply capacity: | 5000 kg per month hot sale high quality ASTM99.95% tungsten foil tungsten price |
| Material: | Tungsten, W1, W2 | application: | Industry, medical treatment, metallurgy, high temperature furnace, aerospace |

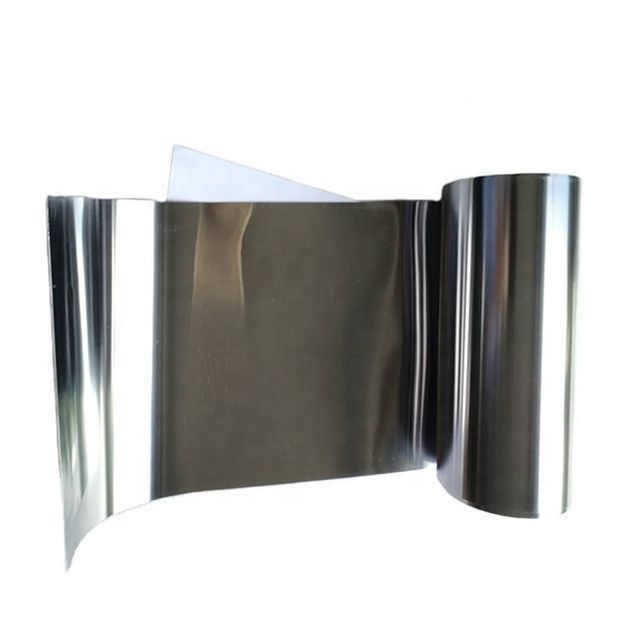

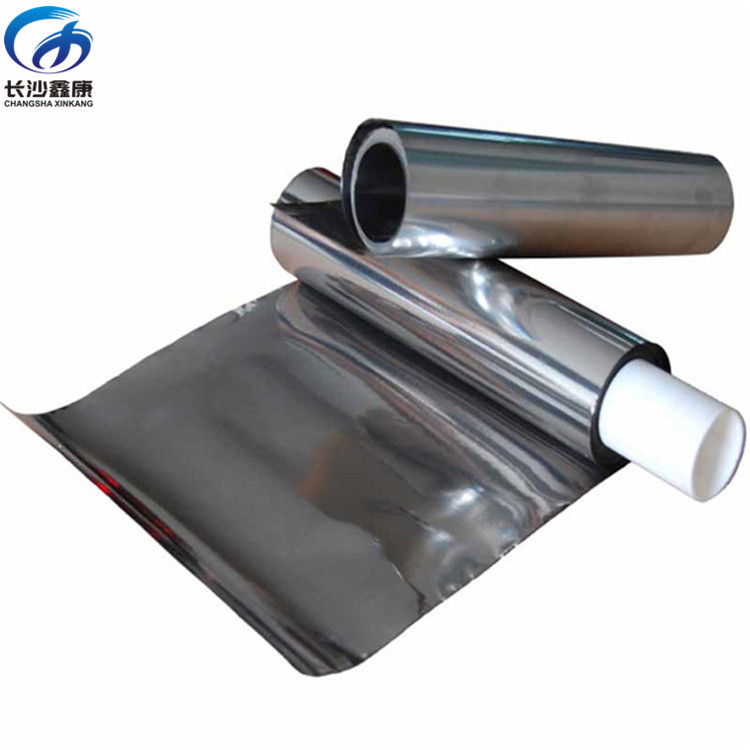

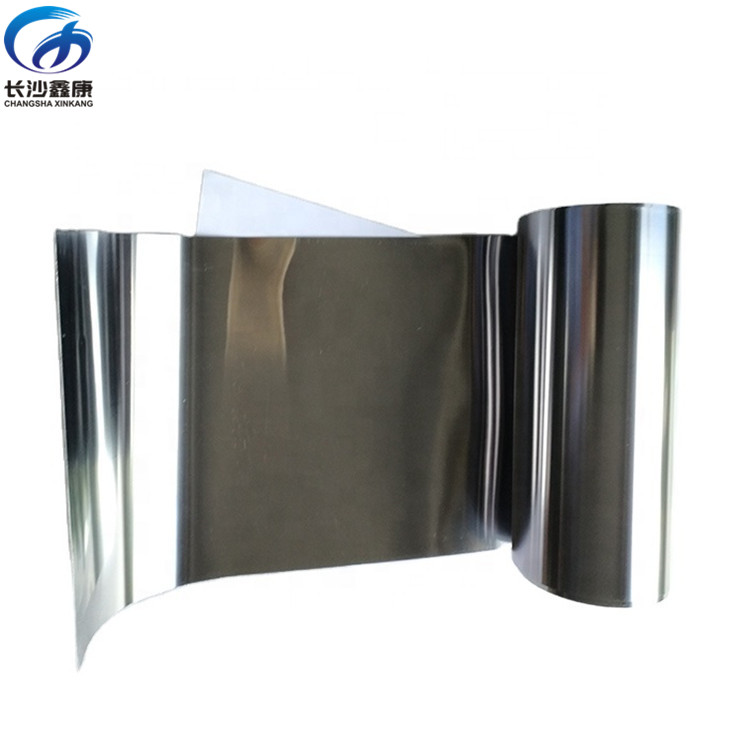

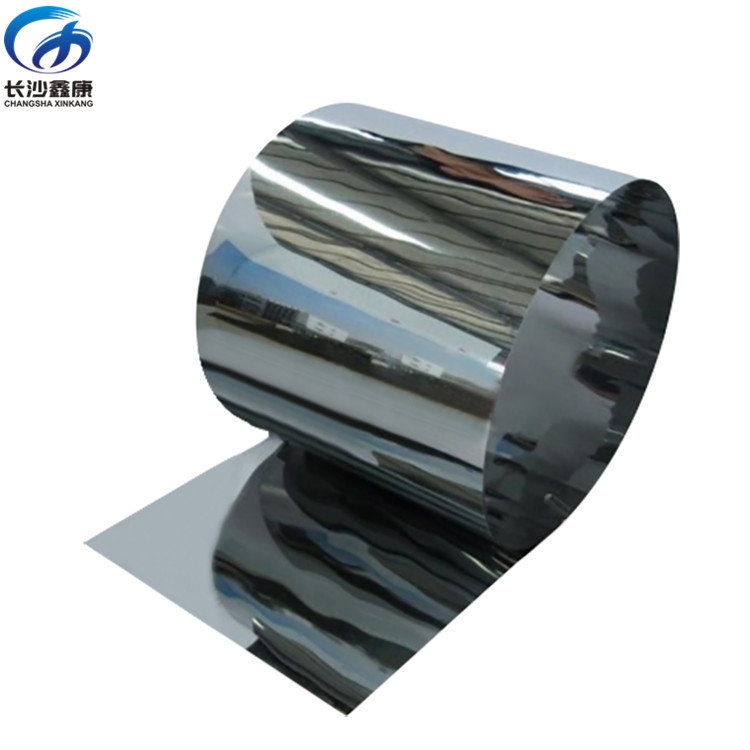

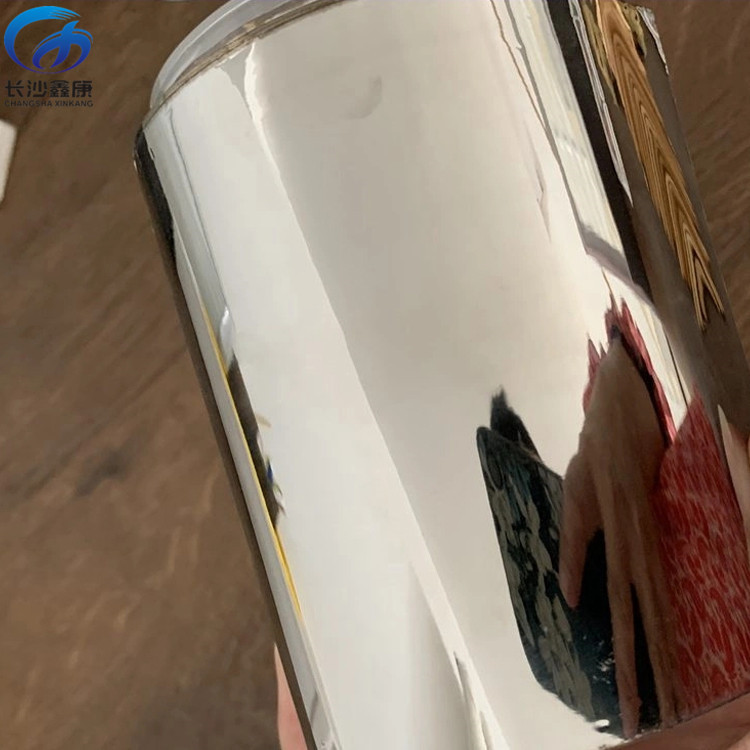

product display
Product Description
Factory hot sale high quality ASTM B760 annealed pure 99.95% tungsten foil tungsten price
product name | Factory hot sale high quality ASTM B760 annealed pure 99.95% tungsten foil tungsten price | ||||||
Material | 99.95% Tungsten | ||||||
standard | ASTMB760-07, GB/T3875-83 | ||||||
melting point | 3410°C | ||||||
boiling point | 5927°C | ||||||
density | 19.3 g/cm3 | ||||||
technology | cold rolled or hot rolled | ||||||
delivery time | 3-15 days | ||||||
feature | 1. The tungsten foil is made of tungsten with a purity of 99.95% and a density close to 19.3g/cm3 (theoretical density); 2. The surface of the tungsten sheet has metallic silver luster; 3. The radiation shielding effect is equivalent to that of lead plate; 4. Tungsten sheet is easier to process than lead. The sheet can be cut or punched with household scissors to form any curved shape; 5. Soft, stretchable, foldable, durable, and can withstand repeated bending; 6. Tungsten foil is easy to handle and has no potential pollution; 7. Excellent thermoplasticity. Therefore it can be molded into shapes with cylindrical or complex curved surfaces; 8. Xinkang tungsten foil has been vacuum annealed and leveled before leaving the factory. | ||||||
application | 1. Aerospace, electronics, lighting 2. Medical equipment, vacuum coating, electrode of electric vacuum furnace 3. Heat shields, etc. are used as radiation shielding materials and radiation protection equipment. | ||||||
chemical composition
Impurity content (%), ≤ | ||||||||||||||||||
Al | calcium | iron | magnesium | mo | you | silicon | C | no | Europe | |||||||||
0.002 | 0.005 | 0.005 | 0.003 | 0.01 | 0.003 | 0.005 | 0.008 | 0.003 | 0.005 | |||||||||
Dimensions and Tolerances
thickness | Thickness Tolerance | Thickness Tolerance | width | Width Tolerance | length | Length Tolerance | |
I | two | ||||||
0.10-0.20 | ±0.02 | ±0.03 | 30-150 | ±3 | 50-400 | ±3 | |
>0.20-0.30 | ±0.03 | ±0.04 | 50-200 | ±3 | 50-400 | ±3 | |
>0.30-0.40 | ±0.04 | ±0.05 | 50-200 | ±3 | 50-400 | ±3 | |
>0.40-0.60 | ±0.05 | ±0.06 | 50-200 | ±4 | 50-400 | ±4 | |
>0.60-0.80 | ±0.07 | ±0.08 | 50-200 | ±4 | 50-400 | ±4 | |
>0.8-1.0 | ±0.08 | ±0.10 | 50-200 | ±4 | 50-400 | ±4 | |
>1.0-2.0 | ±0.12 | ±0.20 | 50-200 | ±5 | 50-400 | ±5 | |
>2.0-3.0 | ±0.20 | ±0.30 | 50-200 | ±5 | 50-400 | ±5 | |
>3.0-4.0 | ±0.30 | ±0.40 | 50-200 | ±5 | 50-400 | ±5 | |
>4.0-6.0 | ±0.40 | ±0.50 | 50-150 | ±5 | 50-400 | ±5 | |
VIEW MORE
