Factory production of hydrogen production methanol cracking catalyst catalytic materials
- $16.00 / >=50 kilograms
- 50 kilograms
- Chengdu Senli Technology Co., Ltd.
- Sichuan, China
- Mr Wilson Qing
PRODUCT DETAIL
CAS number: | mixture | Packaging Preview: | |
model: | SF104 | Other names: | Methanol reforming catalyst |
EINECS number: | Not applicable | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
place of origin; place of origin: | China | Storage: | Vacuum Compression Bags & Vacuum Barrels |
Shape/Appearance: | metallic black cylinder | application: | catalyst, hydrogen production |
IF: | Copper Zinc Aluminum | Packaging Details: | Internally sealed vacuum packaging, net weight 25~30kg per carton b. Net weight per steel drum 50~150kg |
brand: | Sunlihem | Supply capacity: | 7000 tons/year |
Classification: | catalyst | purity: | Not applicable |
sample: | usable |
Product Description
Specification
Name | Methanol decomposition catalyst |
Card | Sunlihem |
Model | SF104 |
other names | Methanol reforming catalyst, methanol steam reforming catalyst, methanol cracking catalyst |
CAS number | - |
usage | The catalyst is used for the reaction of methanol and steam reforming to produce H2+CO2, and is specially designed for methanol cracking hydrogen production units. |
Conditions of Use | Adaptation temperature: 230-285℃ (reactor inlet temperature) Best working temperature: 240-280°C (depending on working pressure) Best working pressure: ≤2.5MPa Liquid air velocity: ≤1.0h⁻¹ 'S' content in raw materials: <1×10⁻⁶ 'Cl-' content in raw materials: <1×10⁻⁶ |

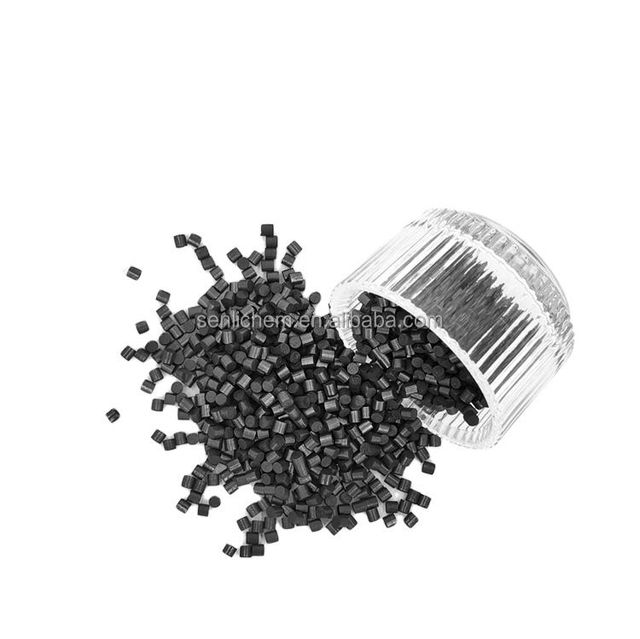

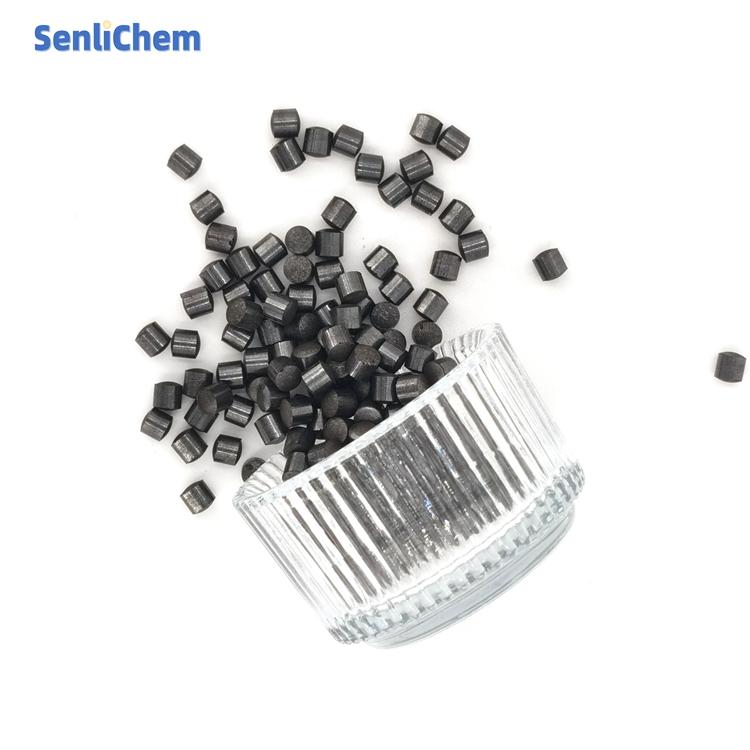

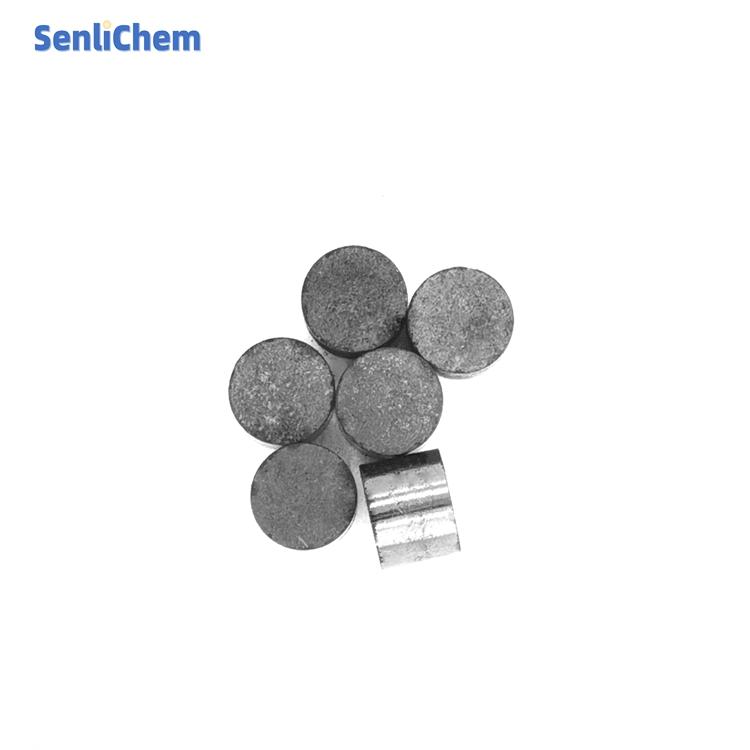

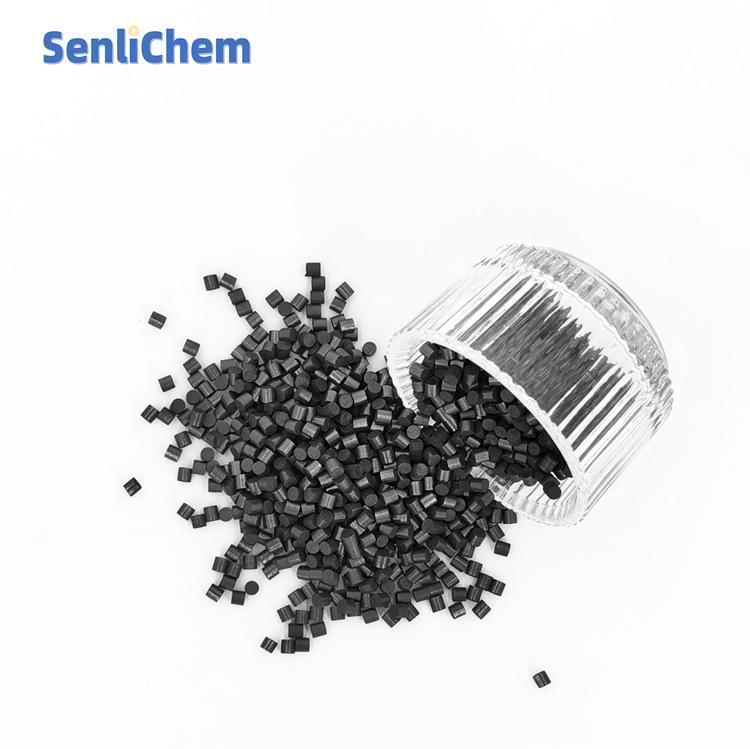

appearance | metallic black cylinder |
Dimensions (mm) | 5±0.2 |
Length (mm) | 5±0.5 |
Bulk density (kg/l) | 1.20~1.30 |
Average strength before compression (transverse compression) (N/cm) | ≥160 |
Copper oxide(%) | ≥63.0 |
Zinc oxide(%) | ≥13.0 |
Al₂O₃(%) | ≥7.0 |
Certification | ISO9001 |
Performance | 'CH₃OH' conversion rate≥98% |
Packaging and Storage | Packed in sealed iron drums (50kg/drum). It must be moisture-proof, drop-proof and anti-rolling during transportation. Store in a ventilated and dry room. Products with damaged packaging and unclear labels cannot be used. |
