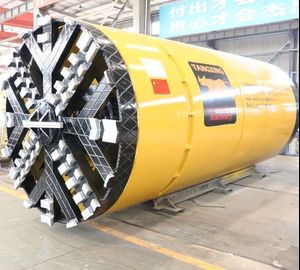

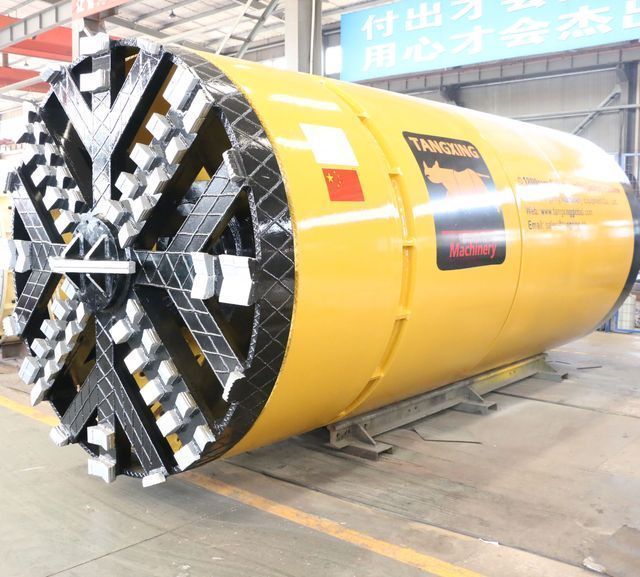

For sale: 3500mm machine without underground trench, machine for extracting tunnel pipes
- $750000.00 /set
- 1 set
- Anhui Tangxing Equipment Technology Co., Ltd.
- Anhui, China
- Mr Xing
PRODUCT DETAIL
usage: | Tunnel, pipe jacking | Core components: | PLC, motor |
port: | Shanghai | payment terms: | letter of credit, wire transfer |
Packaging Details: | Standard export packaging | type: | Hydraulic pipe jacking machine |
pack: | wooden | work experience: | Underground Tunnel Construction |
pipeline: | RCP, glass fiber reinforced plastic, steel pipe | brand: | Tang Xing |
Applicable industries: | construction project | place of origin; place of origin: | Anhui, China |
Dimensions (L*W*H): | 4180*5433mm | Supply capacity: | 10 sets per month |
Video external inspection: | if | Mechanical test report: | if |
soil: | gravel, rock | Health status: | new |
Warranty: | 12 months, 1 year | Showroom location: | India, Russia, Thailand, Malaysia |
After-sales service provided: | Provide overseas service center | Trenchless: | trenchless pipe jacking |
diameter: | 3500mm | Marketing Type: | normal product |
Core Components Warranty: | 1 year | weight: | 75 kg |
Product Description
Applications
1) Specially designed for gravel and rock (up to 150MPa)
2) Easy access to the face for maintenance and repair work.
3) Through the rotation of the cutter head, the stones or obstacles entering the cone of the crusher are crushed to a transportable particle size.
Long distance lift.
4) Data collected and controlled by computers.
3500MM Rock Pipe Jacking Machine Specifications | ||||||
the inside diameter of | ¢3500mm | |||||
Outer diameter*length | ¢4180×5433mm | |||||
cutter | Motor Power | 37*6kW | ||||
rated. torque | 815 KN.M | |||||
revolution | 0--2.5 turn | |||||
steering system | Thrust*Quantity | 200T*8 | ||||
angle | 2.5° | |||||
Motor Power | 7.5KW | |||||
jacking cylinder | Thrust*Quantity | 200 tons*8 | ||||
stroke | 2500/3000/3500 mm | |||||
pressure | 31.5 MPa | |||||
mud pipe | diameter | 6 inches | ||||
total machine power | 240KW |
